PCS-XE68SLFDUN datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> PCS-XE68SLFDUN

Preview

PCS-XE68SLFDUN: DescriptionTelecom and Datacom Connector, 68 Contact(s), Female, Right Angle, Solder Terminal, #4-40, Plug,; CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PCS-XE68SLFDUN Overview

Telecom and Datacom Connector, 68 Contact(s), Female, Right Angle, Solder Terminal, #4-40, Plug,

PCS-XE68SLFDUN Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	incompatible
Maker	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STAGGERED CONFIGURATION
Board mount options	HOLE .120- .126
body width	0.353 inch
subject depth	0.453 inch
body length	2.516 inch
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD (8)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	SCREW
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of rows loaded	2
Options	GENERAL PURPOSE
Plating thickness	8u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL/ZINC ALLOY
Termination type	SOLDER
Total number of contacts	68
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

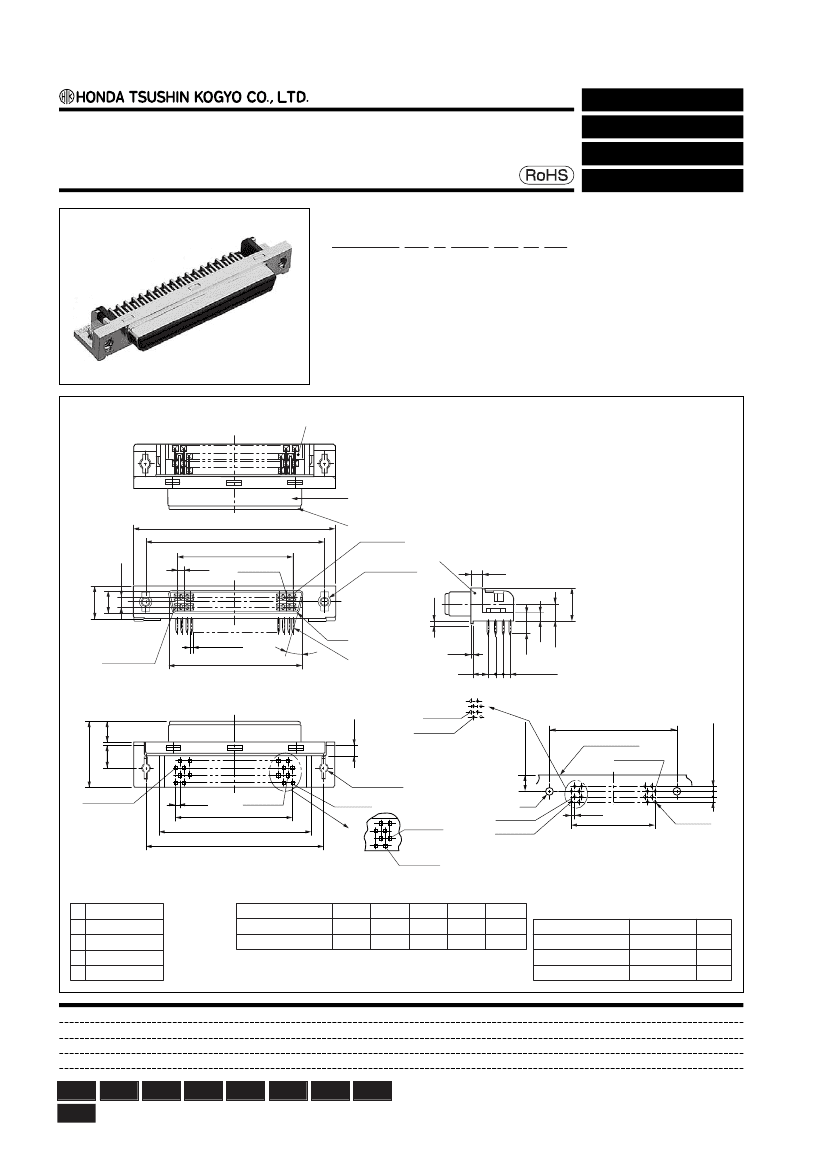

1.27 mm pitch connector

Right-angle through hole type female connector for PCB

PCS-XE( )SLFD( )N( )+

●

Configuration of product Part No.

For PCB

Right-angle Through hole

SCSI-III

PCS-XE ( ) S LFD ( ) N ( )+

➀

➁

➂

➃

➄

➅

➆

➄

Screw size

➀

Series name

➁

No. of contacts: 50 or 68

Blank: M2.5≈0.45

➂

Type of shell

U

: #4-40UNC (standard)

S: Short shell

U2 : #2-56UNC

➃

Type of connector

➅

Lock type

LFD: Right-angle through hole type,

N: Screw lock

female

➆

Contact plating

Blank: Min. 0.2

μm

Gold plating

G1 : Min. 0.76

μm

Gold plating

➀

HONDA

JAPAN

➁

A

B

C

2.54

1.27

POS.#2

➂

POS.#1

Screw size

➃

0.5

3.2

8.47

0.8

4

1.905≈3

3.4

2.0

4.37

8.2

5.54

0.4≈0.35

LAST POS.

D

4-R1

15˚

➄

5.705 REF.

16.9

5.905 5.4

LAST POS.

Screw size

LAST POS.

1.27

C

E

B

POS.#2

POS.#1

øF

POS.#2

POS.#1

1.27

0.05 +0.1

C

-

+

ø0.8

0.06

-

+

POS.#2

For 68-contact connector

Recommended PCB layout

(Connector side)

t = 1.6 mm

●

Components

➀

Bracket

➁

Shell B

➂

Insulator

➃

Shell A

➄

Contacts

●

Dimensions

Part No.

PCS-XE50SLFD( )N( )+

PCS-XE68SLFD( )N( )+

A

52.5

63.9

B

46.5

57.9

C

30.48

41.91

D

34.7

46.13

E

39.28

50.71

Part No.

PCS-XE( )SLFDN( )+

PCS-XE( )SLFDUN( )+

Screws size

M2.5≈0.45

#4-40UNC

øF

2.8

3.05

2.5

Because some combinations of “Configurations of Product Part No.”, are under

consideration for development, please contact us for availability details.

PCS-XE( )SLFDU2N( )+

#2-56UNC

Mating connectors:

PCS-XE series IDC type male connector for cable

Through

hole

SMT

Press-in

IDC

Wire

Soldering Crimping wrapping

Others

1.905

±0.05

≈3

POS.#1

POS.#2

For 68-contact connector

B

0.1

Board-edge

-

2.8

+
