Datasheet
System LXXX
LXXX 15.00/03/90 4.5SN BK BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-2083
www.weidmueller.com

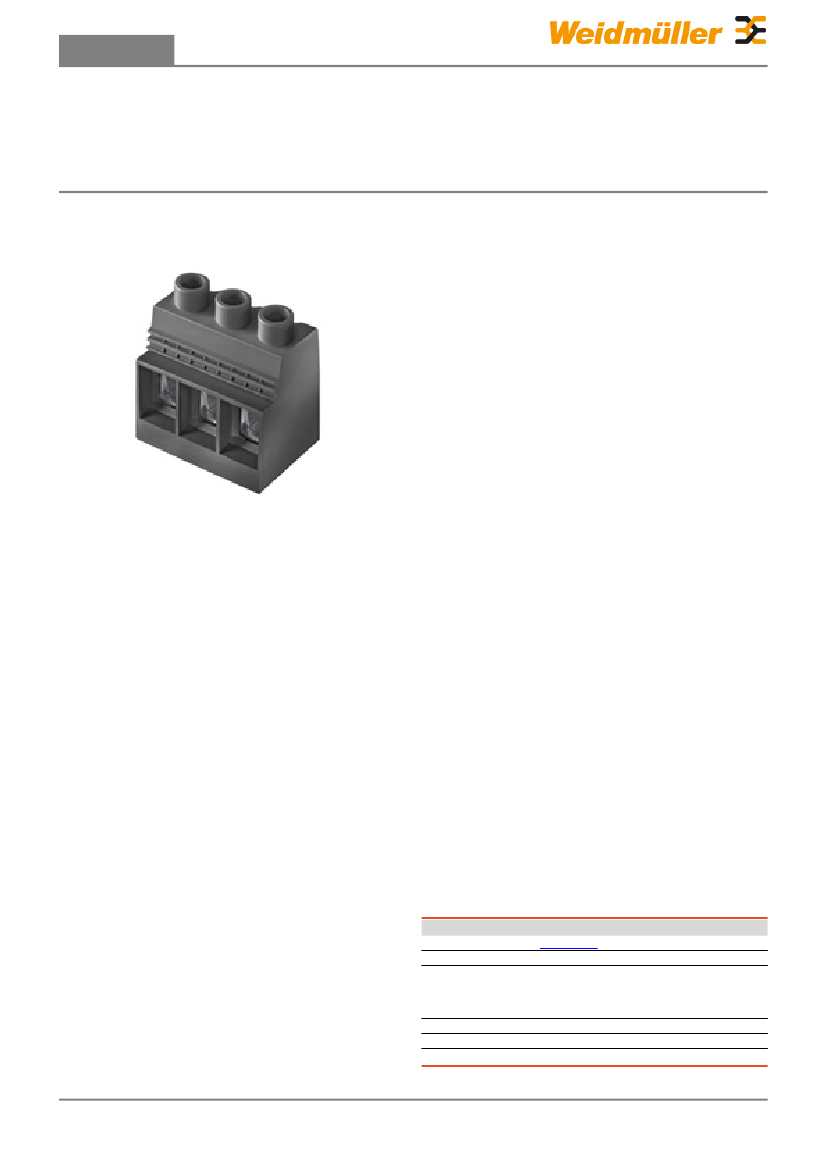

The high-current PCB connection for more power on board:
150 A /1000 V with wires up to 50 mm², transmitted right to the
PCB!
The LXXX 15.0 – with its proven steel clamping-yoke
technology in a compact standard housing – integrates
the latest market requirements for security, power density
and miniaturization in power electronics. It connects
these requirements into an efficient solution for the entire
value-creation chain – including development, production,
installation and maintenance.
The function and form of the application's connection method
plays a key role. It influences the application's design,
reliability, usability and costs. With the Substitution of
For example, with the replacement of complex constructions
involving bolts or bus bars, the PCB can be transformed into
a system platform that is both consistent and sustainable into
the future – even for high-current applications.
The LXXX 15.0 reduces size and complexity while at the same
time improving application integration. In so doing, it fulfils the
requirements of power electronics better than the established
mechanisms and connection elements.
General ordering data
Material number
1047140000
Short text for material
LXXX 15.00/03/90 4.5SN BK BX
Article - short description PCB terminal, Clamping yoke connection, Solder
connection, Clamping range, rated connection,
max.: 50 mm², Pitch in mm: 15.00 mm, No. of
poles: 3, 90°, Box
EAN
4032248784011
Qty.
10 pc(s).
Packaging
Box
Creation date February 19, 2011 12:03:37 AM CET
Last update 29.11.2010 / We reserve the right to make technical changes.
1
Datasheet
System LXXX
LXXX 15.00/03/90 4.5SN BK BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-2083
www.weidmueller.com
Technical data
Approvals
Approvals
CSA; UR
System parameters
Product family
Fitted to PCB
Pitch in mm
No. of poles
No. of rows
Diameter of solder eyelet
Number of solder pins per pole
Screwdriver blade standard
Tightening torque, max.
Stripping length
L1 in inch
System LXXX
Solder connection
15 mm
3
1
1.6 mm
4
DIN 5264
4 Nm
18 mm
1.181 inch
Conductor connection system
Outgoing direction of conductor
Pitch in inch
Fitted by customer
Solder pin length
Tolerance of the diameter of the solder
eyelet
Screwdriver blade
Tightening torque, min.
Clamping screw
L1 in mm
Clamping yoke connection
90°
0.591 inch
No
4.5 mm
+ 0,1 mm
1.2 x 6.5
2.5 Nm
M6
30 mm
Material data
Insulating material
Flammability class UL 94
Contact material
Contact base material
Wemid (PA)
V-0
Copper alloy
Copper alloy
Colour
CTI
Contact surface
black
≥ 600
tinned
Connectable conductors
Clamping range, rated connection, min.
Conductor connection cross-section AWG,
min.
Solid, min. H05(07) V-U
Stranded, max. H07V-R
Flexible, min. H05(07) V-K
w. wire end ferrule, DIN 46228 pt 1, min
w. plastic collar ferrule, DIN 46228 pt 4, min.
0.5 mm²
AWG 20
0.5 mm²
50 mm²
0.5 mm²
0.5 mm²
0.5 mm²
Clamping range, rated connection, max.
Conductor connection cross-section AWG,
max.
Solid, max. H05(07) V-U
Stranded, min. H07V-R
Flexible, max. H05(07) V-K
with wire end ferrule, DIN 46228 pt 1, max.
with plastic collar ferrule, DIN 46228 pt 4,
max.
50 mm²
AWG 1
16 mm²
6 mm²
35 mm²
35 mm²
35 mm²
DIN IEC rating data
Rated current, min. No. of poles (Tu=20°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage at overvoltage category/
pollution degree III/3
Rated impulse withstand voltage for
overvoltage class/pollution severity III/2
150 A
1,000 V
1,000 V
8 kV
Rated current, no. of poles (Tu=40°C), min.
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for
overvoltage class/pollution severity II/2
Rated impulse withstand voltage for
overvoltage class/pollution severity III/3
150 A
1,000 V
8 kV
8 kV
CSA rating data
Rated voltage (Use group B)
Rated voltage (Use group C)
Rated voltage (use group D)
Wire cross-section, AWG, min.
600 V
600 V
600 V
AWG 20
Rated current (use group B)
Rated current (use group C)
Rated current (use group D)
Wire cross-section, AWG, max.
127 A
127 A
5A
AWG 1
Creation date February 19, 2011 12:03:37 AM CET
Last update 29.11.2010 / We reserve the right to make technical changes.
2
Datasheet
System LXXX
LXXX 15.00/03/90 4.5SN BK BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-2083
www.weidmueller.com
Technical data
UL 1059 rating data
Rated voltage (use group B)
Rated voltage (use group C)
Rated voltage (use group D)
Wire cross-section, AWG, min.
600 V
600 V
600 V
AWG 20
Rated current (use group B)
Rated current (use group C)
Rated current (use group D)
Wire cross-section, AWG, max.
127 A
127 A
5A
AWG 1
Classifications
ETIM 3.0
eClass 6.0
EC001284
27-26-11-01
ETIM 4.0
EC002643
Notes
Notes
• Additional colours on request
• Rated current related to rated cross-section and min. No. of poles.
• Wire end ferrule without plastic collar to DIN 46228 pt 1
• Wire end ferrule with plastic collar to DIN 46228 pt 4
• P on drg. = pitch
• Rated data refer only to the component itself. Clearance and creepage distances to other components are
to be designed in accordance with the relevant application standards.
• IP 20 from 16 mm² to 50 mm²
Creation date February 19, 2011 12:03:37 AM CET
Last update 29.11.2010 / We reserve the right to make technical changes.
3
Datasheet
System LXXX
LXXX 15.00/03/90 4.5SN BK BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-2083
www.weidmueller.com

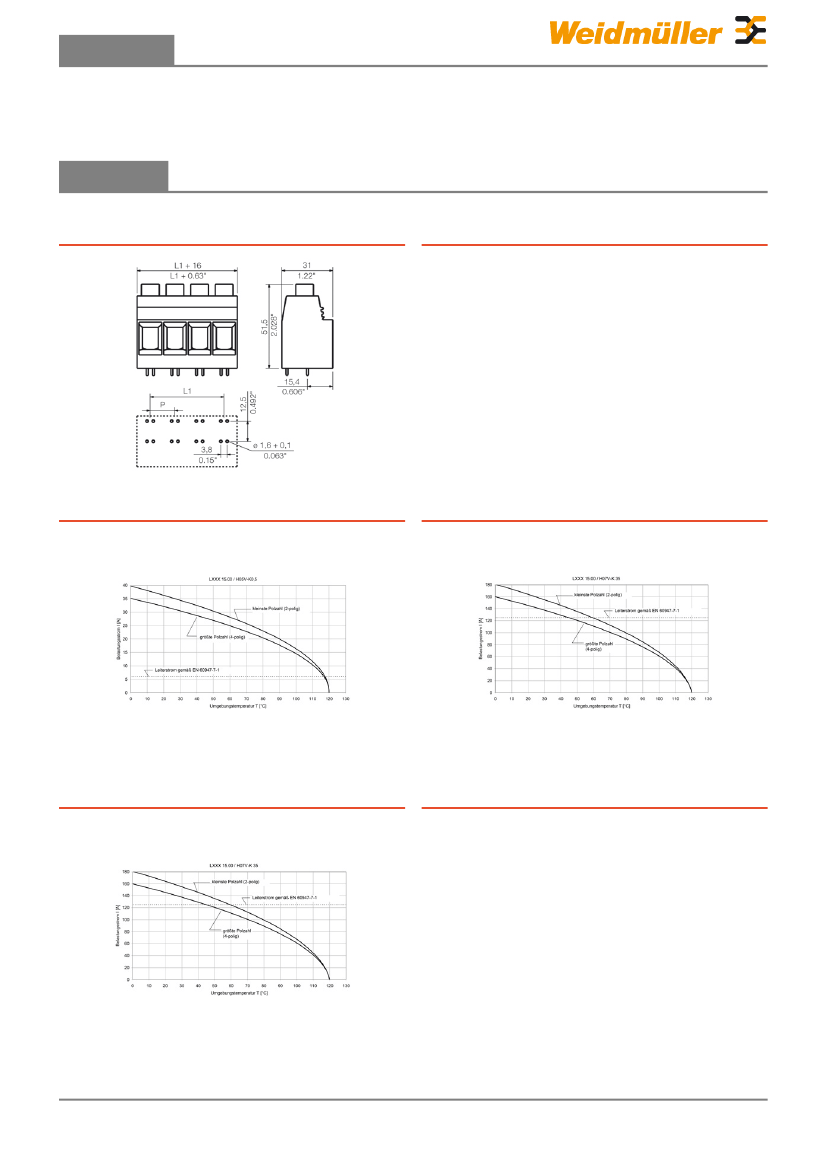

Drawings
Derating curve
Derating curve
Derating curve
Creation date February 19, 2011 12:03:37 AM CET
Last update 29.11.2010 / We reserve the right to make technical changes.
4
