QC13-067-18 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> QC13-067-18

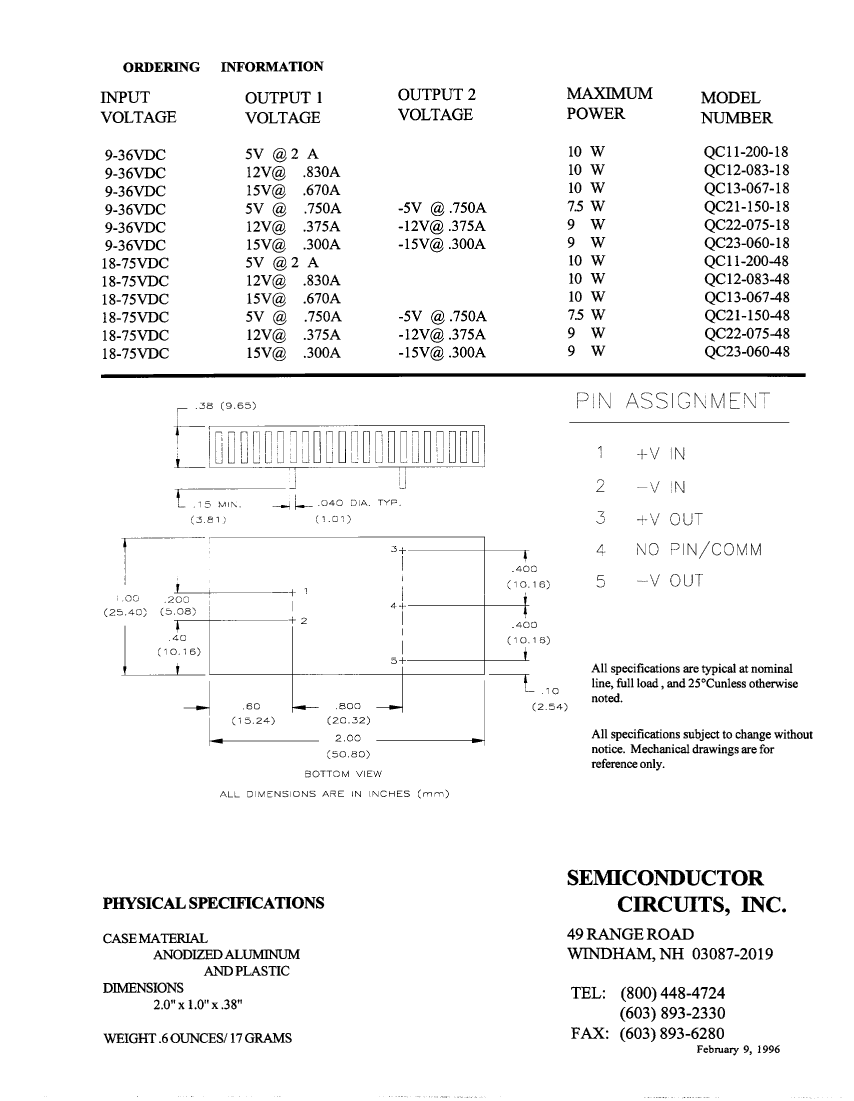

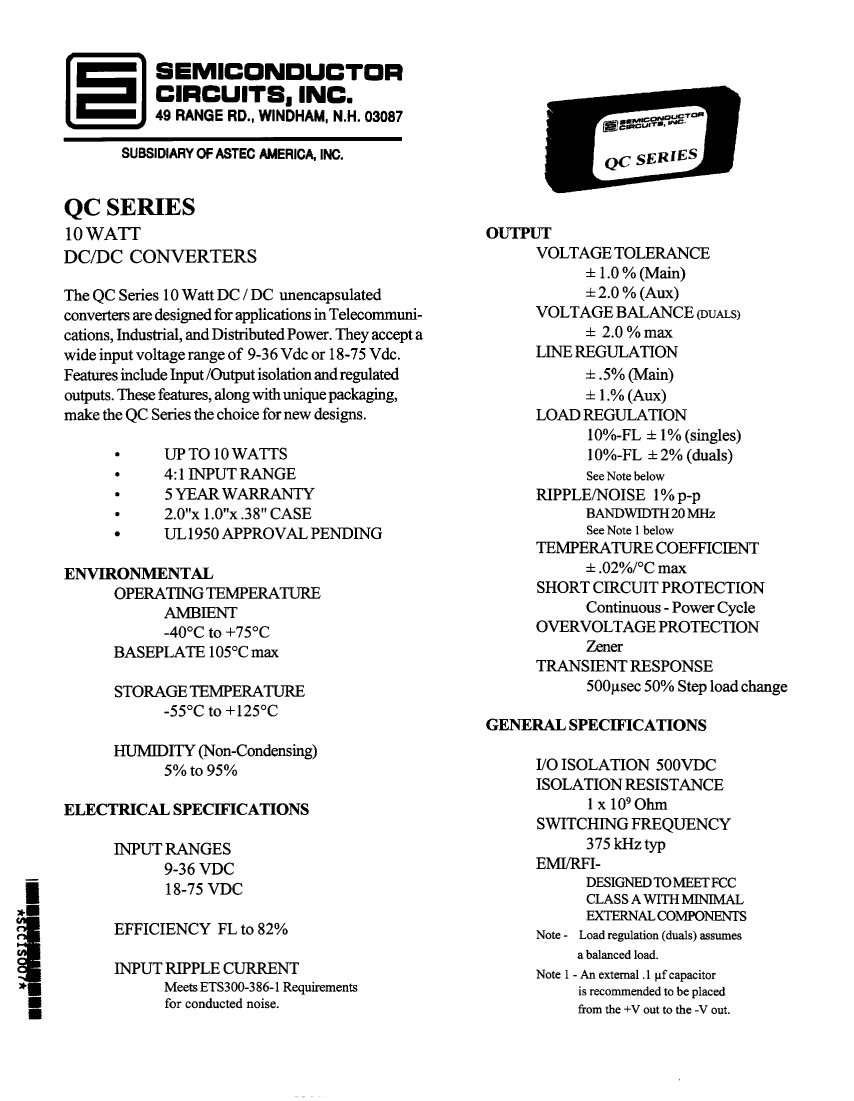

QC13-067-18: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid, 2 X 1 INCH, 0.380 INCH HEIGHT, PLASTIC, PACKAGE-4; CategoryPower/power management The power supply circuit; File Size80KB，2 Pages; ManufacturerSemiconductor Circuits Inc

Download Datasheet Parametric Compare View All

QC13-067-18 Overview

DC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid, 2 X 1 INCH, 0.380 INCH HEIGHT, PLASTIC, PACKAGE-4

QC13-067-18 Parametric

Parameter Name	Attribute value
Maker	Semiconductor Circuits Inc
Parts packaging code	MODULE
package instruction	DIP,
Contacts	4
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	82%
Maximum input voltage	36 V
Minimum input voltage	9 V
JESD-30 code	R-PDIP-P4
length	25.4 mm
Maximum grid adjustment rate	0.5%
Maximum load regulation	1%
Number of functions	1
Output times	1
Number of terminals	4
Maximum operating temperature	75 °C
Minimum operating temperature	-40 °C
Maximum output voltage	15.15 V
Minimum output voltage	14.85 V
Nominal output voltage	15 V
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Protect	CURRENT; OUTPUT OVER VOLTAGE
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal pitch	5.08 mm
Terminal location	DUAL
Maximum total power output	10 W
Fine-tuning/adjustable output	NO
width	20.32 mm

Preview

Download Datasheet

View All

QC13-067-18 Related Products

	QC13-067-18	QC23-060-18	QC22-075-48	QC12-083-18	QC21-150-48	QC11-200-48	QC13-067-48	QC11-200-18	QC22-075-18
Description	DC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid, 2 X 1 INCH, 0.380 INCH HEIGHT, PLASTIC, PACKAGE-4	DC-DC Regulated Power Supply Module, 2 Output, 9W, Hybrid, 2 X 1 INCH, 0.380 INCH HEIGHT, PLASTIC, PACKAGE-5	DC-DC Regulated Power Supply Module, 2 Output, 9W, Hybrid, 2 X 1 INCH, 0.380 INCH HEIGHT, PLASTIC, PACKAGE-5	DC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid, 2 X 1 INCH, 0.380 INCH HEIGHT, PLASTIC, PACKAGE-4	DC-DC Regulated Power Supply Module, 2 Output, 7.5W, Hybrid, 2 X 1 INCH, 0.380 INCH HEIGHT, PLASTIC, PACKAGE-5	DC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid, 2 X 1 INCH, 0.380 INCH HEIGHT, PLASTIC, PACKAGE-4	DC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid, 2 X 1 INCH, 0.380 INCH HEIGHT, PLASTIC, PACKAGE-4	DC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid, 2 X 1 INCH, 0.380 INCH HEIGHT, PLASTIC, PACKAGE-4	DC-DC Regulated Power Supply Module, 2 Output, 9W, Hybrid, 2 X 1 INCH, 0.380 INCH HEIGHT, PLASTIC, PACKAGE-5
Maker	Semiconductor Circuits Inc	Semiconductor Circuits Inc	Semiconductor Circuits Inc	Semiconductor Circuits Inc	Semiconductor Circuits Inc	Semiconductor Circuits Inc	Semiconductor Circuits Inc	Semiconductor Circuits Inc	Semiconductor Circuits Inc
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
package instruction	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,
Contacts	4	5	5	4	5	4	4	4	5
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	82%	82%	82%	82%	82%	82%	82%	82%	82%
Maximum input voltage	36 V	36 V	75 V	36 V	75 V	75 V	75 V	36 V	36 V
Minimum input voltage	9 V	9 V	18 V	9 V	18 V	18 V	18 V	9 V	9 V
JESD-30 code	R-PDIP-P4	R-PDIP-P5	R-PDIP-P5	R-PDIP-P4	R-PDIP-P5	R-PDIP-P4	R-PDIP-P4	R-PDIP-P4	R-PDIP-P5
length	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm
Maximum grid adjustment rate	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%
Maximum load regulation	1%	2%	2%	1%	2%	1%	1%	1%	2%
Number of functions	1	1	1	1	1	1	1	1	1
Output times	1	2	2	1	2	1	1	1	2
Number of terminals	4	5	5	4	5	4	4	4	5
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output voltage	15.15 V	15.15 V	12.12 V	12.12 V	5.05 V	5.05 V	15.15 V	5.05 V	12.12 V
Minimum output voltage	14.85 V	14.85 V	11.88 V	11.88 V	4.95 V	4.95 V	14.85 V	4.95 V	11.88 V
Nominal output voltage	15 V	15 V	12 V	12 V	5 V	5 V	15 V	5 V	12 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Protect	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum total power output	10 W	9 W	9 W	10 W	7.5 W	10 W	10 W	10 W	9 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO	NO
width	20.32 mm	20.32 mm	20.32 mm	20.32 mm	20.32 mm	20.32 mm	20.32 mm	20.32 mm	20.32 mm
