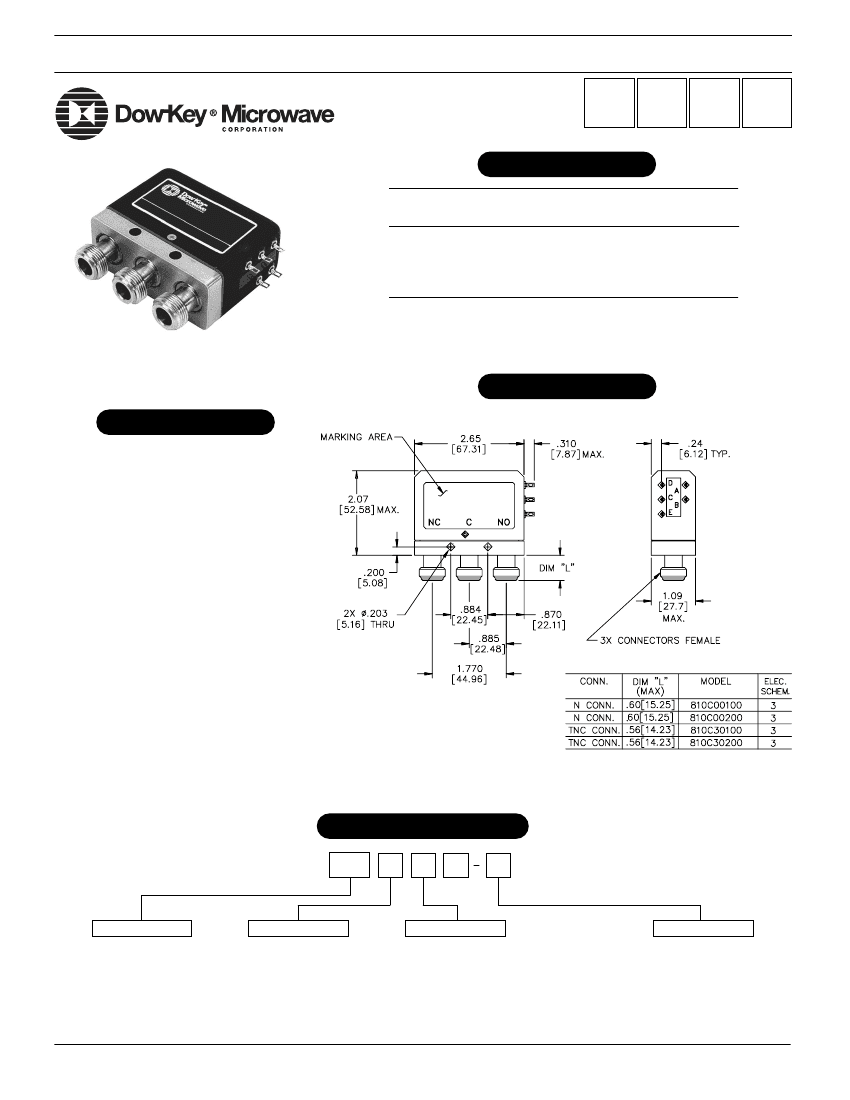

810 Series SPDT Failsafe

N, TNC, SC

C M A

Commercial

Military

Avionics

Space

RF Characteristics

Frequency

GHz

0-1

1-4

4-8

8-12.4

VSWR

(max)

1.20

1.30

1.40

1.50

Isolation

dB (min)

Ins. Loss

dB (max)

0.20

0.30

0.40

0.50

Note: RF Characteristics are for type N & TNC Female connectors, consult Dow-Key

for other connector configurations

810 Series SPDT Failsafe

with indicators

Specifications

Operating Voltage:

(across temperature range)

28 Vdc (20-30 Vdc)

Coil Current (max @ nom.Vdc & 20°C):

28 Vdc 160mA

Switching Time:

20 mS maximum

Operating Temperature:

-55ºC to +85ºC

Mechanical Life, Cycles:

100,000 minimum

Vibration, Operating:

20g’s sine/random

Mechanical Shock, Non-Operating:

50G, 1/2 Sine, 11mS

Nominal Weight:

8.5 oz., (241g.)

Mechanical

810C00200 Shown

Part Number Selection

810C

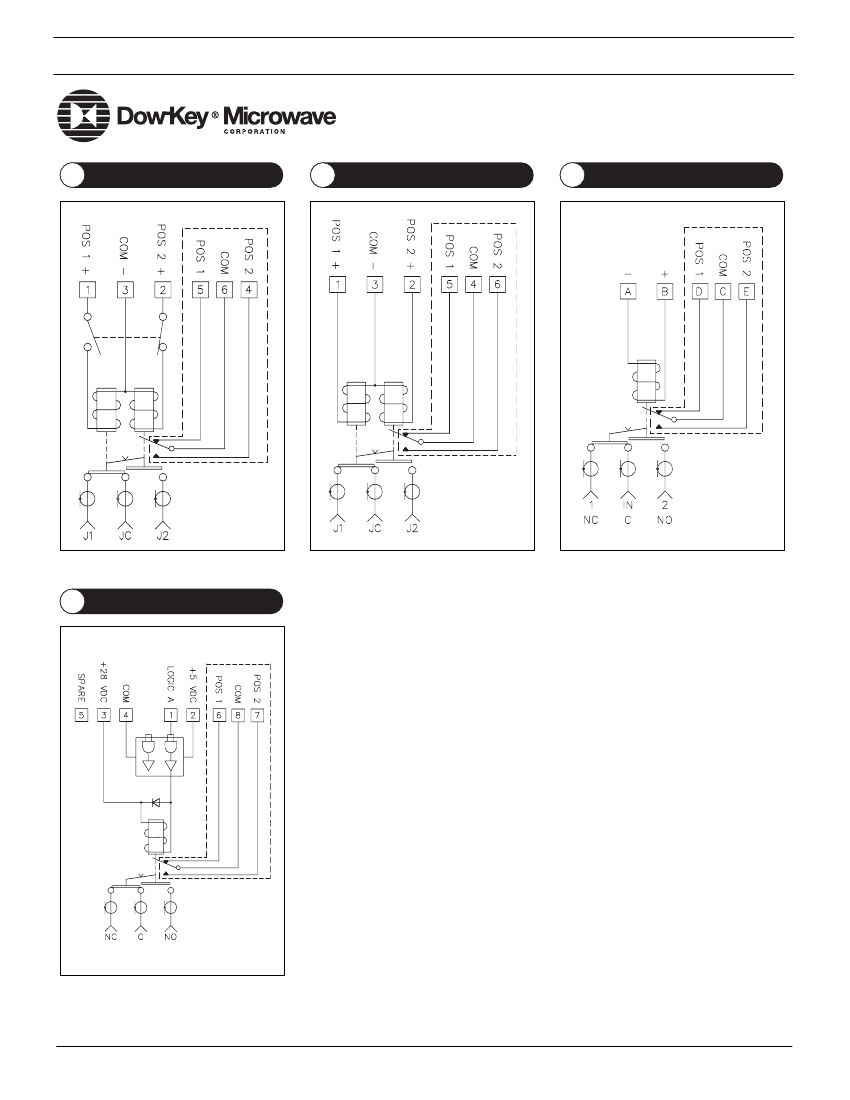

For Electrical Schematic

see page # 1-17

Family

Connectors

Voltage/Actuator

Options

810C

= SPDT Failsafe

= N Female

= TNC Female

= SC Female*

= 28 Vdc, No Indicators

= 28 Vdc with SPDT Indicators

= Transient Diodes

= DC Power Plug

= TTL High

= High Power**

**Consult Power Chart on page #

*1” connector spacing

Consult Dow-Key for Dimensions

ISO 9001 Certified

www.dowkey.com
