THIN FILM CHIP INDUCTOR
ATFC-0201
FEATURES:
• A photo-lithographic single layer ceramic chip
• High SRF; Excellent Q
• Superior Temperature Stabilit
• Tight Tolerance of
±
1% or
±
0.1nH
• Self Resonant Frequency Control within 10%
• Stable Inductance in High Frequency Circuit
• Highly Stable Design for Critical Needs
APPLICATIONS:
• Cellular Telephones
• Communication Appliances
• Pagers and GPS Products
• Wireless LAN
• Bluetooth Module
• VCO,TCXO Circuit and RF Transceiver Modules
Pb
RoHS
Compliant
0.6 x 0.3 x 0.23mm
| | | | | | | | | | | | | | |
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N:
Operating temperature:
Storage temperature:
ATFC-0201-xxx Series
-25°C to + 85°C
25±3ºC; Humidity <80%RH.
Electrical Characteristics / ATFC-0201-xxx
ABRACON
p/n
ATFC-0201-0N1- X
ATFC-0201-0N2- X
ATFC-0201-0N3- X
ATFC-0201-0N4- X
ATFC-0201-0N5- X
ATFC-0201-0N6- X
ATFC-0201-0N7- X
ATFC-0201-0N8- X
ATFC-0201-0N9- X
ATFC-0201-1N0- X
ATFC-0201-1N1- X
ATFC-0201-1N2- X
ATFC-0201-1N3- X
ATFC-0201-1N4- X
ATFC-0201-1N5- X
ATFC-0201-1N6- X
ATFC-0201-1N7- X
ATFC-0201-1N8- X
ATFC-0201-1N9- X
ATFC-0201-2N0- X
ATFC-0201-2N1- X
ATFC-0201-2N2- X
ATFC-0201-2N3- X
Inductance
(nH)
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.3
Inductance Tolerance
Standard
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
Other Options
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
Quality
Factor (Q)
min
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
Resistance
DC/Max (Ohm)
0.2
0.2
0.2
0.25
0.25
0.25
0.3
0.3
0.3
0.3
0.35
0.35
0.45
0.45
0.45
0.55
0.55
0.55
0.55
0.7
0.7
0.7
0.8
Current
DC/Max (mA)
400
400
400
350
350
350
300
300
300
300
300
250
250
250
200
200
200
200
200
200
200
150
150
Self Resonant
Frequency /min
(GHz)
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
8
8
8
8
Test Equipment: HP4286A +Aglient 16196C
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 11.26.08
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
THIN FILM CHIP INDUCTOR
ATFC-0201
Pb
RoHS
Compliant
Quality
Factor (Q)
min
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
8 / 500 MHz
0.6 x 0.3 x 0.23mm
| | | | | | | | | | | | | | |
ABRACON
p/n
ATFC-0201-2N4 - X
ATFC-0201-2N5 - X
ATFC-0201-2N6 - X
ATFC-0201-2N7 - X
ATFC-0201-2N8 - X
ATFC-0201-2N9 - X
ATFC-0201-3N0 - X
ATFC-0201-3N1 - X
ATFC-0201-3N2 - X
ATFC-0201-3N3 - X
ATFC-0201-3N4 - X
ATFC-0201-3N5 - X
ATFC-0201-3N6 - X
ATFC-0201-3N7 - X
ATFC-0201-3N9 - X
ATFC-0201-4N7 - X
ATFC-0201-5N6 - X
ATFC-0201-6N8 - X
ATFC-0201-8N2 - X
ATFC-0201-10N - X
Inductance
(nH)
2.4
2.5
2.6
2.7
2.8
2.9
3.0
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.9
4.7
5.6
6.8
8.2
10.0
Inductance Tolerance
Standard
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
B(±0.1nH)
G(±2%)
G(±2%)
G(±2%)
G(±2%)
Other Options
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
J
J
J
J
Resistance
DC/Max (Ohm)
0.8
0.8
0.8
0.8
1
1
1
1
1
1
1.2
1.2
1.2
1.2
1.2
1.4
1.8
2.3
3
3.5
Current
DC/Max (mA)
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
130
130
110
110
80
Self Resonant
Frequency /min
(GHz)
8
8
8
8
6
6
6
6
6
6
6
6
6
6
6
6
4
4
3
2
OPTIONS AND PART IDENTIFICATION:
(Left blank if standard)
Inductance Code
Please refer to the Table
above.
ATFC - 0201 -
-
-
Packaging
Tape & Reel
Inductance Tolerance
J
G
S
C
B
±5
±2%
±0.3 nH
±0.2 nH
±0.1 nH
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 11.26.08
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
THIN FILM CHIP INDUCTOR
ATFC-0201

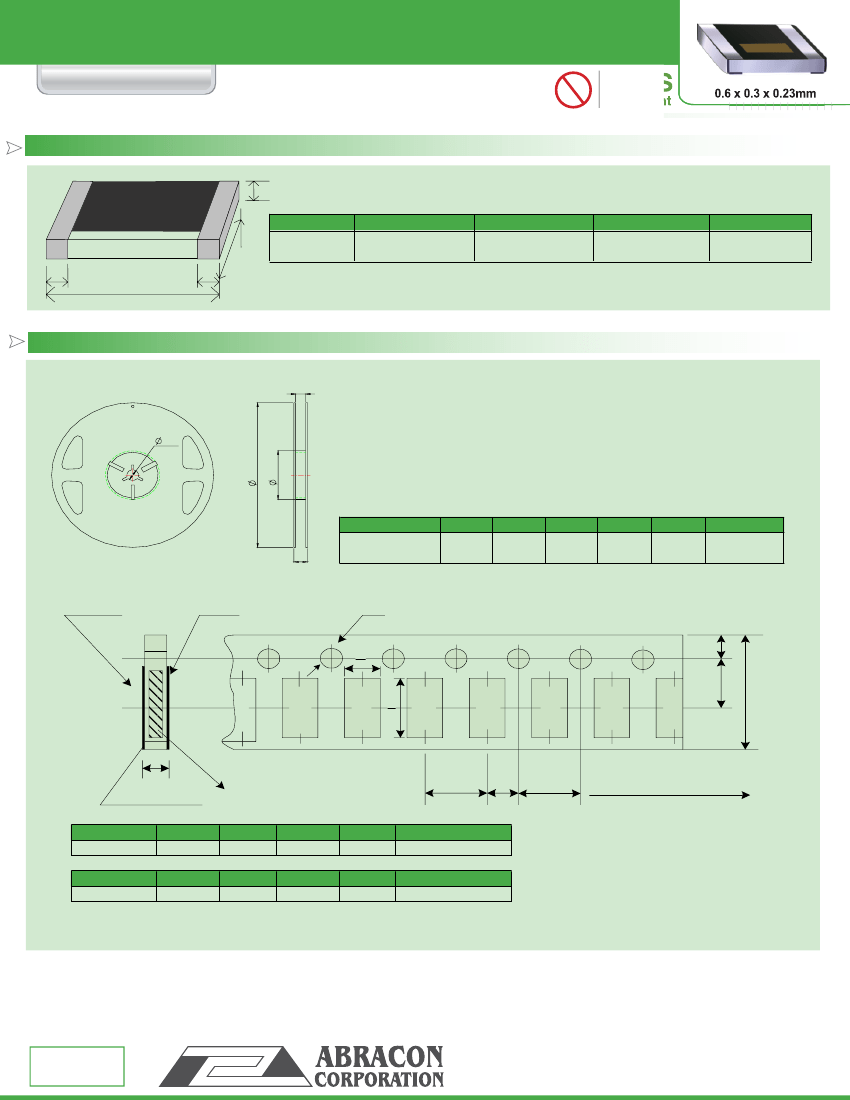

OUTLINE DRAWING:
C
Pb
RoHS
Compliant
0.6 x 0.3 x 0.23mm
| | | | | | | | | | | | | | |
Series
ATFC-0201
D
D
B
A
0.024±0.002
B
0.012±0.002
C
0.009±0.002
(0.23 ± 0.05)
D
0.006±0.002
(0.15 ± 0.05)
(0.60 ± 0.05)
(0.30 ± 0.05)
Dimensions: Inches (mm)
A
TAPE & REEL:
T= tape and reel (10000pcs/reel)
W
C
A
B
ABRACON P/N
?A
178±1
?B
60.2±0.5
?C
13.0±0.50
W
9.00±0.5
T
12.0±0.15
Paper Tape (EA)
10,000
T
ATFC-0201
B o tto m T a p e
Top Tape
ψ
D
0
A
B
E
F
W
T
P aper T ape
Codes
ATFC-0201
Codes
ATFC-0201
A
0.40±0.05
P
0
4.00±0.10
Abracon Part
B
0.70±0.05
P
1
4.00±0.05
W
8.00±0.10
P
2
2.00±0.05
E
1.75±0.05
? D
0
1.55±0.05
P
1
P
2
P
0
d ire c tio n o f u n re e lin g
F
3.5±0.05
T
0.265±0.05
Dimensions: mm
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 11.25.08
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
