1008 CHIP INDUCTORS
Outgassing Compliant Chip Inductors
AE413RAD
This robust version of Coilcraft’s standard 1008HQ series
features high temperature materials that pass NASA low
outgassing specifications and allow operation in ambient
temperatures up to 155°C. The standard tin-lead (Sn-Pb)
Inductance
3
(nH)
3.0 @ 50 MHz
4.1 @ 50 MHz
7.8 @ 50 MHz
10 @ 50 MHz
12 @ 50 MHz
18 @ 50 MHz
22 @ 50 MHz
33 @ 50 MHz
36 @ 50 MHz
39 @ 50 MHz
47 @ 50 MHz
56 @ 50 MHz
68 @ 50 MHz
82 @ 50 MHz
100 @ 50 MHz
Percent
tolerance
5
5
5
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
terminations over leach-resistant base metalization en-
sures the best possible board adhesion.
All parts are compliant with MIL-STD-981 Family 50,
Class S.
Q
57 @ 1000 MHz
75 @ 1000 MHz
51 @ 500 MHz
60 @ 500 MHz
57 @ 500 MHz
62 @ 350 MHz
62 @ 350 MHz
49 @ 150 MHz
57 @ 150 MHz
45 @ 150 MHz
45 @ 150 MHz
43 @ 150 MHz
54 @ 150 MHz
54 @ 150 MHz
51 @ 150 MHz
Core material
Ceramic
Terminations
Tin-lead (63/37) over silver-platinum-glass frit. Other
terminations are also available.
Ambient temperature
–55°C to +125°C with
Imax
current
Maximum part temperature
+155°C (ambient + temp rise).
Storage temperature
Component: –55°C to +155°C.
Tape and reel packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +155 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
2000/7″reel
Standard height parts: Plastic tape: 8 mm wide, 0.23 mm thick,
4 mm pocket spacing, 1.8 mm pocket depth
Low profile parts: Plastic tape: 8 mm wide, 0.3 mm thick,
4 mm pocket spacing, 1.6 mm pocket depth
Part
AE413RAD3N0_SZ
2
AE413RAD4N1_SZ
AE413RAD7N8_SZ
2
AE413RAD10N_SZ
AE413RAD12N_SZ
AE413RAD18N_SZ
AE413RAD22N_SZ
AE413RAD33N_SZ
AE413RAD36N_SZ
AE413RAD39N_SZ
AE413RAD47N_SZ
AE413RAD56N_SZ
AE413RAD68N_SZ
AE413RAD82N_SZ
AE413RADR10_SZ
number
1
min
4
SRF min
5
(GHz)
>5.00
>5.00
3.80
3.20
2.40
2.10
2.05
1.70
1.40
1.30
1.45
1.08
1.15
1.06
0.82
DCR max
6
(mOhms)
38
50
50
60
60
70
70
90
90
90
120
120
130
160
160
Imax
(A)
1.8
1.8
1.6
1.5
1.5
1.4
1.4
1.2
1.1
1.1
0.95
0.95
0.85
0.80
0.80
1. When ordering, please specify
tolerance, termination
and
testing
codes:
Tolerance:
AE413RADR10JSZ
F
= 1%
G
= 2%
J
= 5%
Termination: S
= Tin-lead (63/37) over leach-resistant silver-platinum-
glass frit
Special order: L
= RoHS compliant silver-palladium-
platinum-glass frit
Testing:
Z
= Unscreened
H
= Group A screening per Coilcraft CP-SA-10001
T
= Screening per MIL-STD-981
U
= Screening per EEE-INST-002
F
= Screening per ESCC 3201
All screening performed to the document’s latest revision
Custom screening also available
2. Part is wound on low profile coilform.
3. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/HP
4286A impedance analyzer or equivalent with Coilcraft-provided cor-
relation pieces.
4. Q measured using an Agilent/HP 4291A with an AgilentHP 16197A test
fixture or equivalents.
5. SRF measured using an Aglilent/HP 8753ES network analyzeror
equivalent and a Coilcraft SMD-D test fixture.
6. DCR measured on a Keithley 580 micro-ohmmeter or equivalent and a
Coilcraft CCF858 test fixture.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
®
Document AE190-1 Revised 07/28/17
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2017

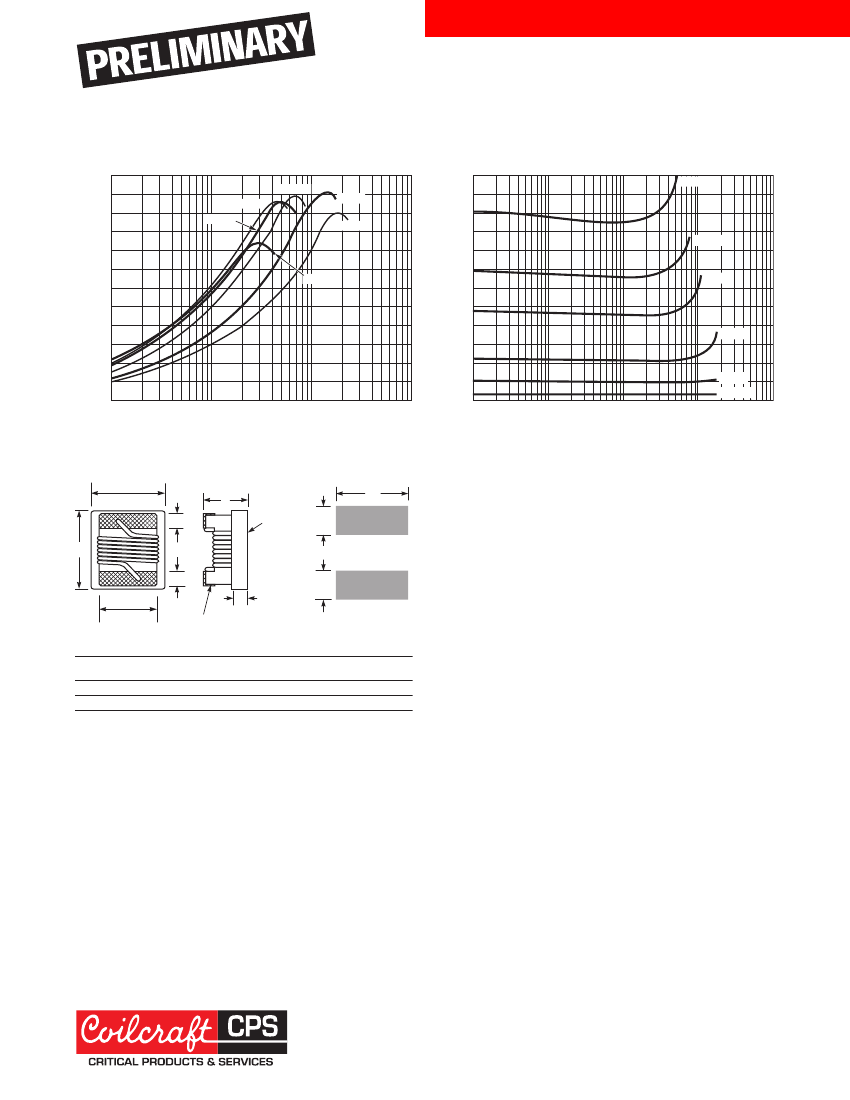

1008 CHIP INDUCTORS
AE413RAD Series (1008)
Typical Q vs Frequency
120
110
100
90
80
47 nH
68 nH
Typical L vs Frequency
22 nH
120
10 nH
3.0 nH
100 nH
110
100
90
68 nH
Inductance (nH)
80
70
60
50
40
30
20
10
Q Factor
70
60
50
40
30
20
10
0
10
100
100 nH
47 nH
22 nH
10 nH
3.0 nH
1000
10000
0
1
10
100
1000
10000
Frequency (MHz)
Frequency (MHz)
B
overall
F
A
G
F
E
terminal
C
H
Pick and
place
material
I
J
I
D
Terminal wraparound:
approx 0.015/0,38 both ends
Recommended
Suggested
Land Pattern
Land Pattern
A
max
2,92
B
max
2,79
C
max*
2,03
D
ref
0,51
E
2,03
F
0,51
G
1,52
H
2,54
I
1,02
J
1,27 mm
0.115 0.110 0.080 0.020 0.080 0.020 0.060 0.100 0.040 0.050 inches
*Low profile parts: 0.050/1,27
Note: Dimensions are before solder application. For maximum overall
dimensions including solder, add 0.0025 in / 0,064 mm to
B
and
0.006 in / 0,15 mm to
A
and
C.
®
Document AE190-2 Revised 07/28/17
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2017
