1812CHIP INDUCTORS
High-Reliability Chip Inductors
MS450RAA
■
Higher SRF values than 1812 size parts with ferrite cores
■
5% tolerances for all values
■
19 inductance values from 1.0 to 33 µH
This robust version of Coilcraft’s standard 1812CS
series features high temperature materials that allow
operation in ambient temperatures up to 155°C. The
leach-resistant base metalization with tin-lead (Sn-Pb)
terminations ensures the best possible board adhesion.
SRF min
4
(MHz)
260
230
210
190
170
160
145
130
115
100
90
80
70
60
50
40
40
30
20
DCR max
5
(Ohms)
1.1
1.2
1.6
2.0
2.2
3.2
3.8
5.0
5.4
5.7
6.6
7.0
7.7
8.7
9.6
10.5
11.5
12.5
13.5
Imax
(mA)
530
480
430
380
340
300
270
240
230
220
210
200
190
180
170
155
155
150
145
Part number
1
MS450RAA102JSZ
MS450RAA122JSZ
MS450RAA152_SZ
MS450RAA182JSZ
MS450RAA222JSZ
MS450RAA272JSZ
MS450RAA332JSZ
MS450RAA392_SZ
MS450RAA472JSZ
MS450RAA562JSZ
MS450RAA682JSZ
MS450RAA822JSZ
MS450RAA103JSZ
MS450RAA123JSZ
MS450RAA153JSZ
MS450RAA183JSZ
MS450RAA223_SZ
MS450RAA273JSZ
MS450RAA333_SZ
Inductance
2
(µH)
1.0 @ 7.9 MHz
1.2 @ 7.9 MHz
1.5 @ 7.9 MHz
1.8 @ 7.9 MHz
2.2 @ 7.9 MHz
2.7 @ 7.9 MHz
3.3 @ 7.9 MHz
3.9 @ 7.9 MHz
4.7 @ 7.9 MHz
5.6 @ 7.9 MHz
6.8 @ 7.9 MHz
8.2 @ 7.9 MHz
10.0 @ 7.9 MHz
12.0 @ 2.5 MHz
15.0 @ 2.5 MHz
18.0 @ 2.5 MHz
22.0 @ 2.5 MHz
27.0 @ 2.5 MHz
33.0 @ 2.5 MHz
Percent
tolerance
5
5
5,2
5
5
5
5
5,2
5
5
5
5
5
5
5
5
5,2
5
5,2
Q
59 @ 50 MHz
54 @ 50 MHz
57 @ 50 MHz
57 @ 50 MHz
52 @ 50 MHz
53 @ 50 MHz
53 @ 50 MHz
53 @ 50 MHz
32 @ 10 MHz
32 @ 10 MHz
32 @ 10 MHz
32 @ 10 MHz
32 @ 10 MHz
26 @ 5 MHz
26 @ 5 MHz
28 @ 5 MHz
28 @ 5 MHz
28 @ 5 MHz
24 @ 2.5 MHz
min
3
1. When ordering, please specify
tolerance
and
testing
codes:
MS450RAA333JSZ
Tolerance: G
= 2%
J
= 5%
Testing: Z
= COTS
H
= Screening per Coilcraft CP-SA-10001
N
= Screening per Coilcraft CP-SA-10003
C
= Custom screening (please specify when ordering)
2. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/
HP 4286 impedance analyzer or equivalent with Coilcraft-provided
correlation pieces.
3. Q measured at the same frequency as inductance using an Agilent/
HP 4291A with an Agilent/HP 16193 test fixture or equivalents.
4. SRF measured using an Agilent/HP 8753ES network analyzer or
equivalent and a Coilcraft SMD-D test fixture.
5. DCR measured on a micro-ohmmeter.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Core material
Ceramic
Terminations
Tin-lead (63/37) over silver-platinum-glass frit
Ambient temperature
–55°C to +125°C with
Imax
current, +125°C
to +155°C with derated current
Storage temperature
Component: –55°C to +155°C.
Packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +155 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
600 per 7″ reel
Plastic tape: 12 mm wide, 0.3 mm thick, 8 mm pocket spacing,
3.7 mm pocket depth
®
Specifications subject to change without notice.
Please check our website for latest information.
Document MS105-1 Revised 02/03/11
1102 Silver Lake Road
Cary IL 60013
© Coilcraft, Inc. 2011
Phone 800-981-0363
Fax 847-639-1508
E-mail cps@coilcraft.com
Web www.coilcraft-cps.com

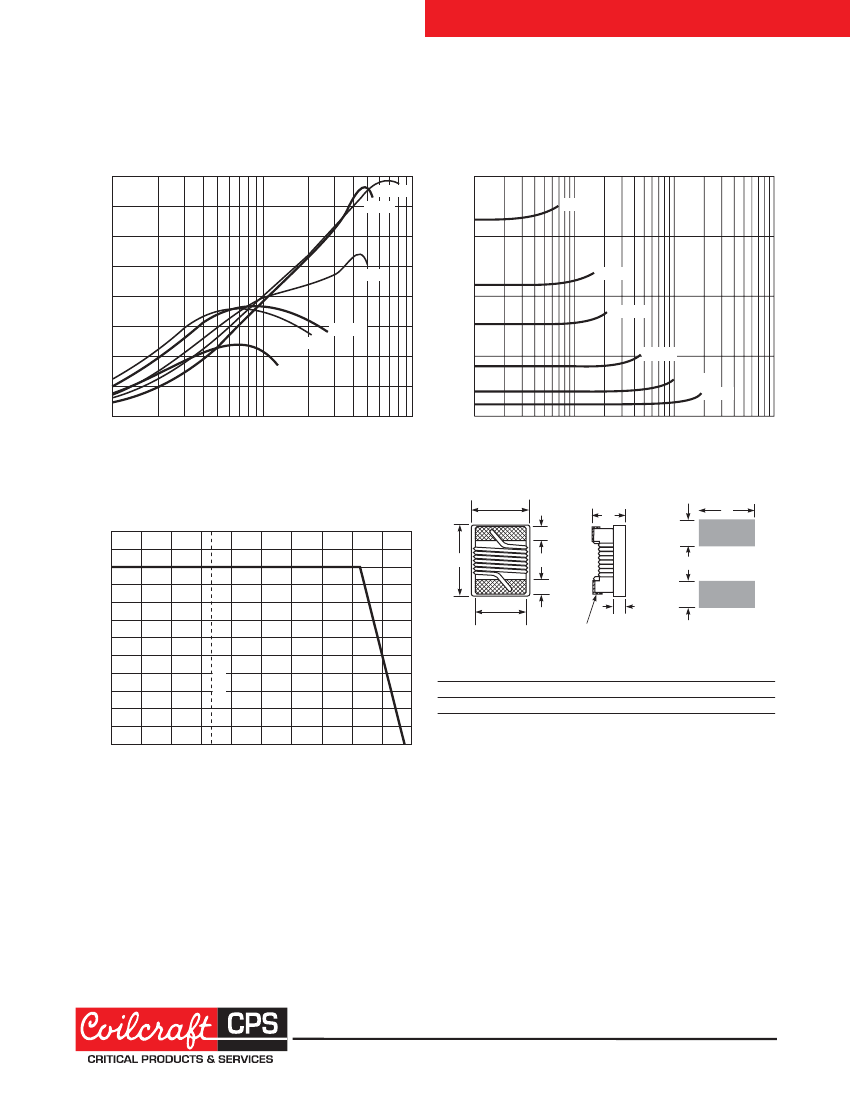

1812 CHIP INDUCTORS
MS450RAA Series (1812)
Typical Q vs Frequency
80
Typical L vs Frequency
40
1.8 µH
3.9 µH
33.0 µH
70
60
50
30
Inductance (µH)
Q Factor
8.2 µH
22.0 µH
40
30
20
15.0 µH
15.0 µH
22.0 µH
20
10
33.0 µH
8.2 µH
3.9 µH
1.8 µH
10
0
1
10
100
0
1
10
100
1000
Frequency (MHz)
Frequency (MHz)
Current Derating
120
110
100
B
overall
F
A
G
F
E
terminal
C
I
J
I
D
Terminal wraparound:
approx 0.007/0,18 both ends
H
Percent of rated
I
rms
90
80
70
60
50
Suggested
Land Pattern
H
3,05
I
1,14
J
3,00
25°C
40
30
20
10
0
-40
-20
0
20
A max B max C max
0.195
4,95
0.150 0.135
3,81
3,43
D ref
0.070
1,78
E
2,54
F
0,64
G
3,25
0.100 0.025 0.128 0.120 0.045 0.118
All dimensions are without solder applied to the terminations. For
maximum dimensions with solder, add 0.006 inches / 0,152 mm.
40
60
80
100
120
140 160
Ambient temperature (°C)
®
Specifications subject to change without notice.
Please check our website for latest information.
Document MS105-2 Revised 02/03/11
1102 Silver Lake Road
Cary IL 60013
© Coilcraft, Inc. 2011
Phone 800-981-0363
Fax 847-639-1508
E-mail cps@coilcraft.com
Web www.coilcraft-cps.com
