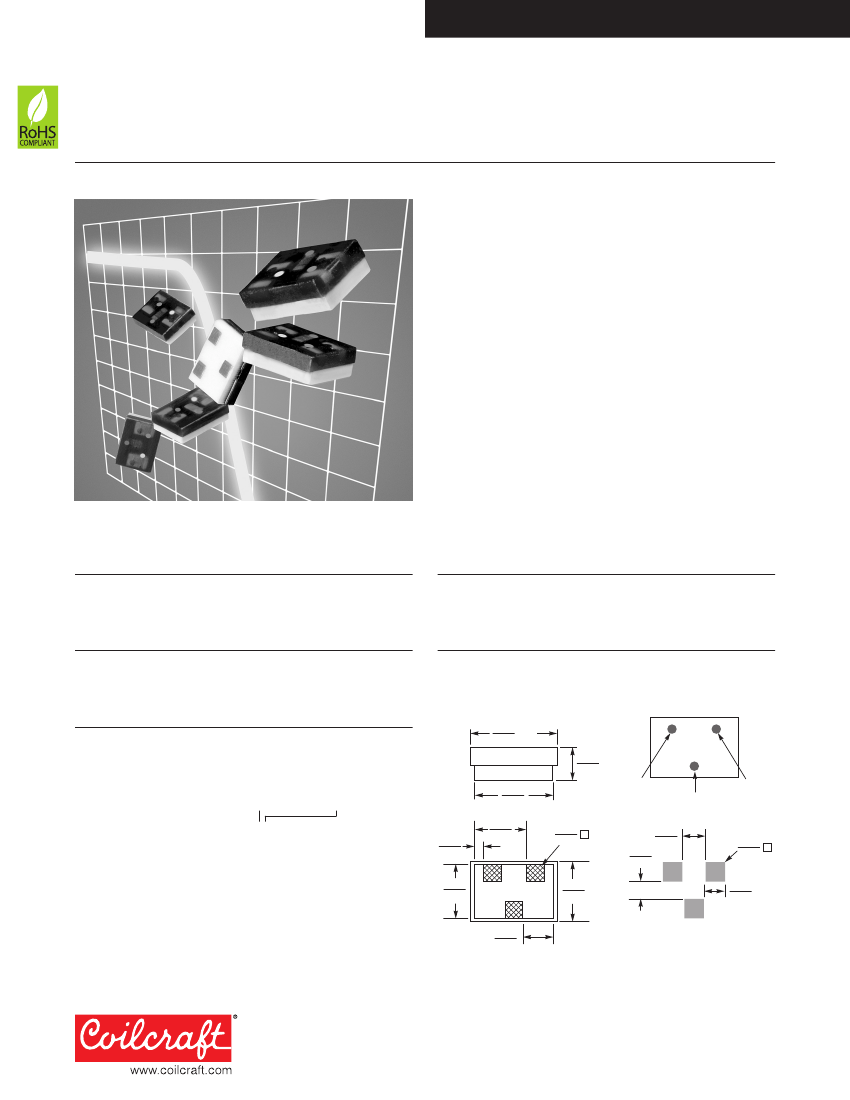

Document 124-1
Surface Mount LC Filters
These space saving low and high pass filters are pre-
tuned, tight tolerance modules that serve a wide variety
of filtering requirements.
• 3rd order Butterworth alignment
• 50 Ohm characteristic impedance; less than 0.3 dB insertion loss
Designer’s Kit C362
contains 3 of each value
Terminations
RoHS compliant silver over copper or gold over nickel
over silver
Weight
64.7 – 69.0 mg
Ambient temperature
–40°C to +85°C
Storage temperature
Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
12 per billion hours / 83,333,333 hours, calculated per Telcordia SR-332
Packaging
600/7″ reel; 2200/13″ reel Paper tape: 12 mm wide,
0.3 mm thick, 8 mm pocket spacing, 2.3 mm pocket depth
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
Low Pass Filters
Part
number
1
S3LP156L_
S3LP306L_
S3LP606L_
S3LP157L_
S3LP307L_
S3LP507L_
S3LP707L_
S3LP807L_
S3LP907L_
S3LP108L_
S3LP128L_
S3LP158L_
S3LP188L_
S3LP218L_
-3 dB Cutoff
15 MHz
30 MHz
60 MHz
150 MHz
300 MHz
500 MHz
700 MHz
800 MHz
900 MHz
1.0 GHz
1.2 GHz
1.5 GHz
1.8 GHz
2.1 GHz
Irms
(mA)
2
200
300
300
400
400
500
500
500
500
500
500
500
500
500
High Pass Filters
Part
number
1
S3HP156L_
S3HP306L_
S3HP606L_
S3HP157L_
S3HP307L_
S3HP507L_
S3HP807L_
-3 dB Cutoff
15 MHz
30 MHz
60 MHz
150 MHz
300 MHz
500 MHz
800 MHz
Irms
(mA)
2
300
300
300
300
300
500
500
Part marking
0.205
max
5,21
0.085
max
2,16
0.180
4,57
0.120
3,05
0.040
1,02
0.040
1,02
0.160
max
4,06
1st digit
2nd digit
(over P1) Multiplier (×10) (over P3)
(over P2)
0.055
1,40
P1
P3
1. When ordering, please specify
termination
and
packaging
codes:
S3HP156LC
Termination: L
= RoHS compliant silver over copper or gold over nickel
over silver.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic tape
(600 parts per full reel).
B
= Less than full reel. In tape, but not machine ready. To have
a leader and trailer added ($25 charge), use code letter C
instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic tape
(2200 parts per full reel).
0.020
0,51
0.125
3,18
0.045
1,14
0.050
1,27
P2
0.070
1,78
Recommended
Land Pattern
2. Current that causes a 15°C rise from 25°C ambient.
3. Operating temperature range -40°C to +85°C.
4. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering
Visit http://www.coilcraft.com/colrcode.cfm for color coding explanation.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 124-1
Revised 01/24/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.

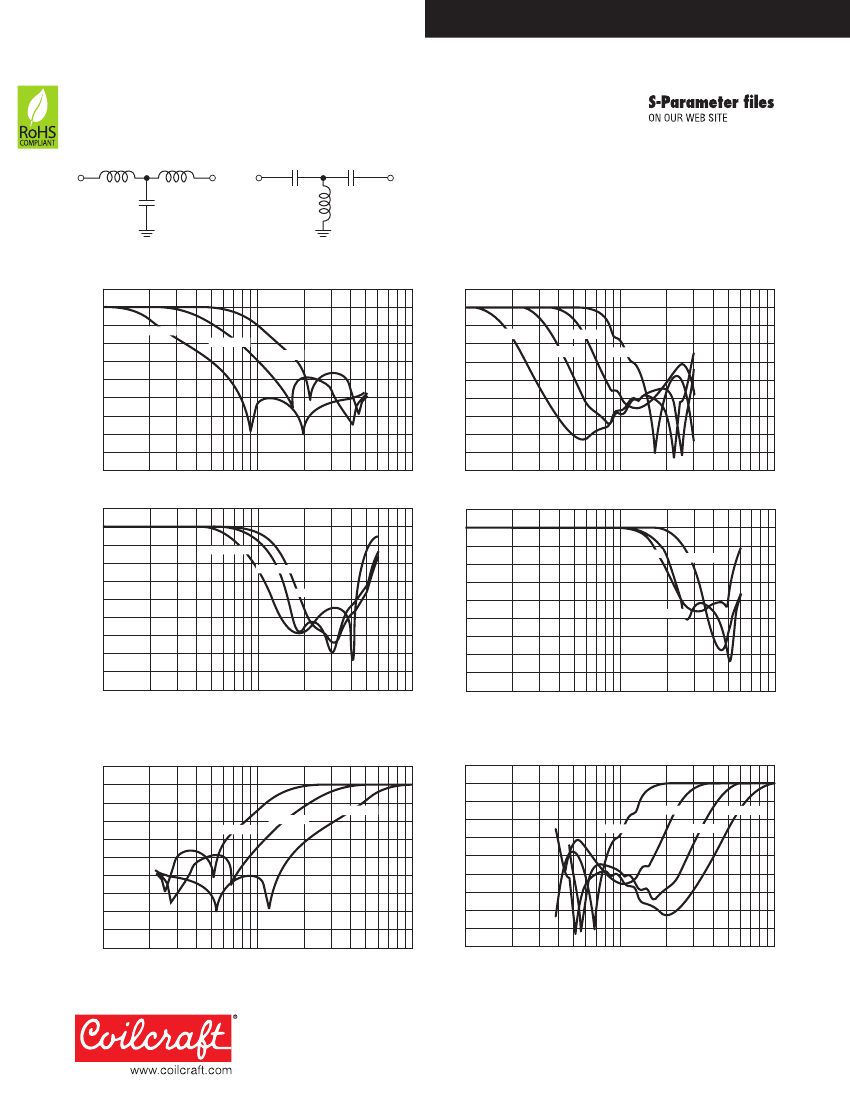

Document 124-2
Surface Mount LC Filters
Low pass filter
IN
L1
L2
OUT
IN
High pass filter
C1
C2
OUT
C1
L1
Frequency Response—Low Pass Filters*
0
0
S3LP-156
20
S3LP-306
S3LP-606
40
dB Attenuation (re: 50 )
dB Attenuation (re: 50 )
10
S3LP-157
S3LP-507
S3LP-307
S3LP-807
20
60
30
80
10
100
1000
40
100
1000
10000
Frequency (MHz)
0
Frequency (MHz)
0
S3LP-707
dB Attenuation (re: 50 )
dB Attenuation (re: 50 )
10
S3LP-907
S3LP-128
10
S3LP-188
S3LP-218
20
20
S3LP-158
30
30
40
40
100
1000
10000
Frequency (MHz)
100
1000
10000
Frequency (MHz)
Frequency Response—High Pass Filters*
0
0
dB Attenuation (re: 50 )
dB Attenuation (re: 50 )
20
S3HP-156
40
S3HP-306
S3HP-606
10
S3HP-307
S3HP-157
S3HP-807
S3HP-507
20
60
30
80
1
10
100
40
10
100
1000
Frequency (MHz)
*Measured on Agilent/HP 8753D network analyzer
Frequency (MHz)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 124-2
Revised 01/24/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
