SER2013-901TB

Description
General Purpose Inductor, 0.9uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT
CategoryPassive components    inductor
File Size162KB,4 Pages
ManufacturerCOILCRAFT
Websitehttp://www.coilcraft.com/
Environmental Compliance
Download Datasheet Parametric View All

SER2013-901TB Overview

General Purpose Inductor, 0.9uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT

SER2013-901TB Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerCOILCRAFT
Reach Compliance Codecompliant
ECCN codeEAR99
core materialFERRITE
DC Resistance0.00182 Ω
Nominal inductance(L)0.9 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee1
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
self resonant frequency98 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal surfaceTin/Silver/Copper (Sn95.5Ag4.0Cu0.5)
Terminal locationDUAL ENDED
Terminal shapeGULL WING
Test frequency0.1 MHz
Tolerance20%
Document 349-1

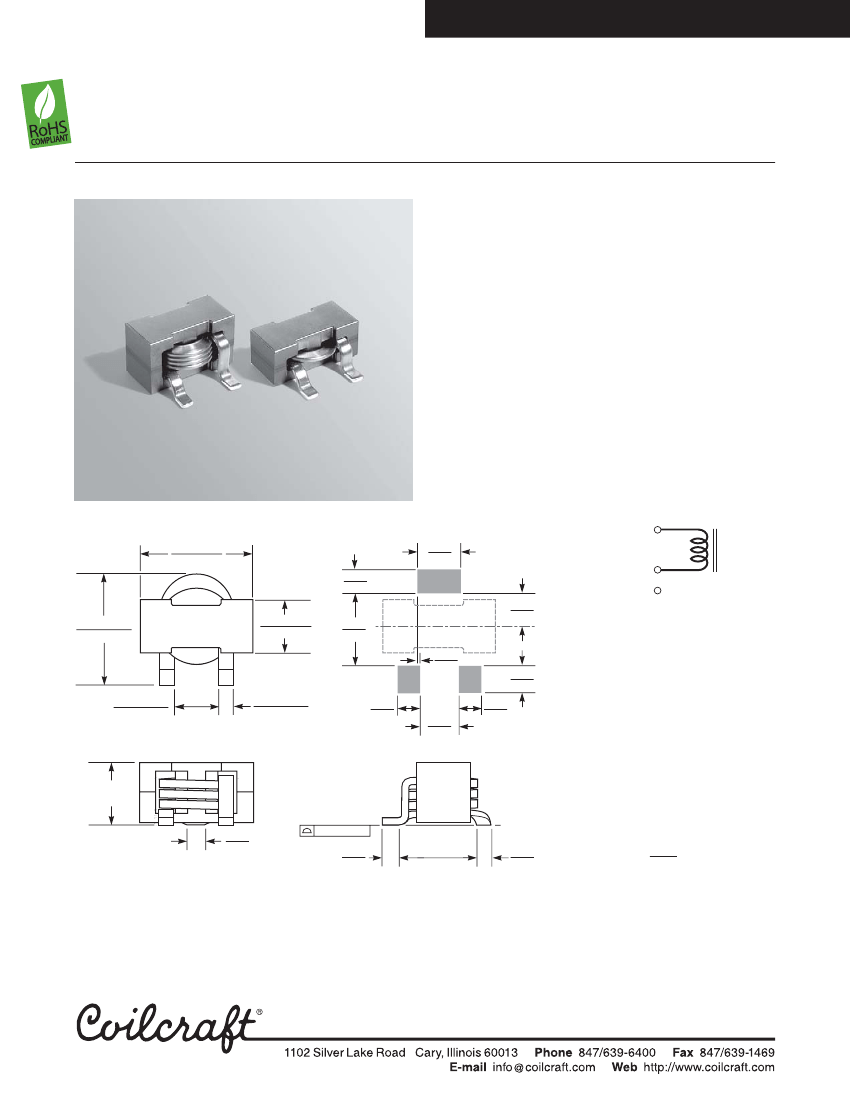

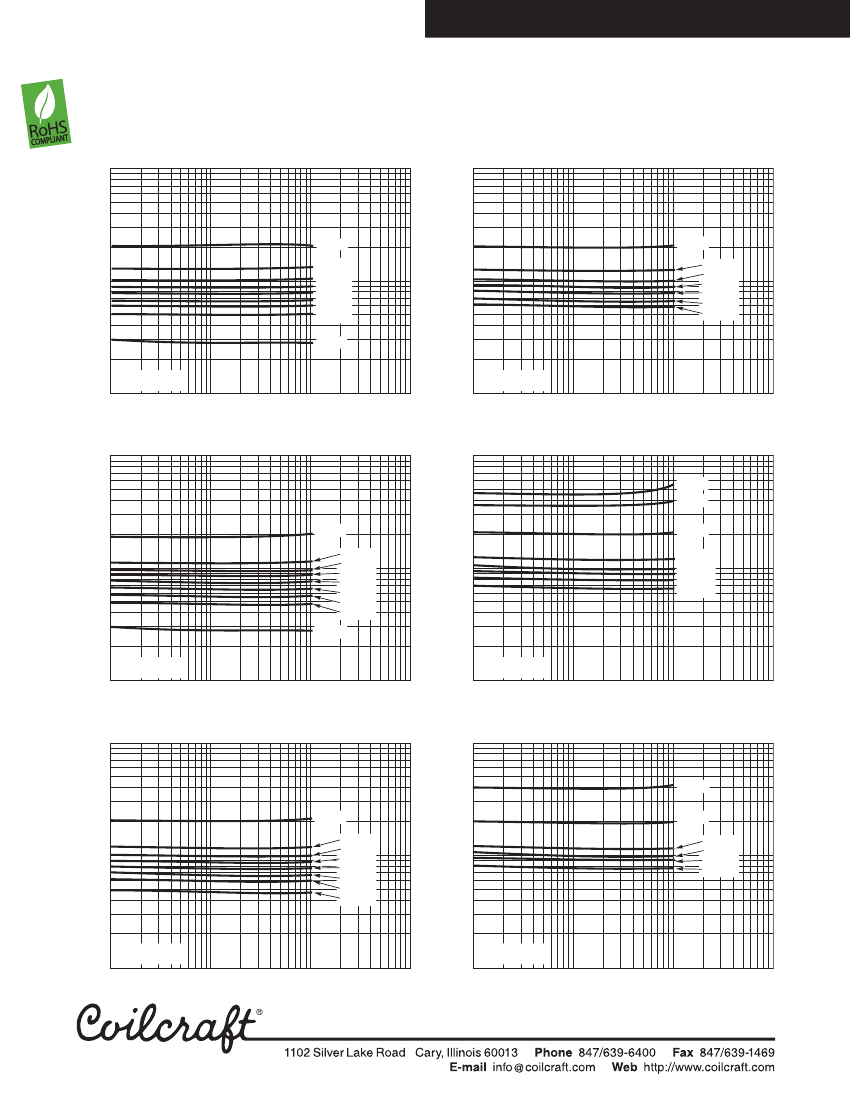

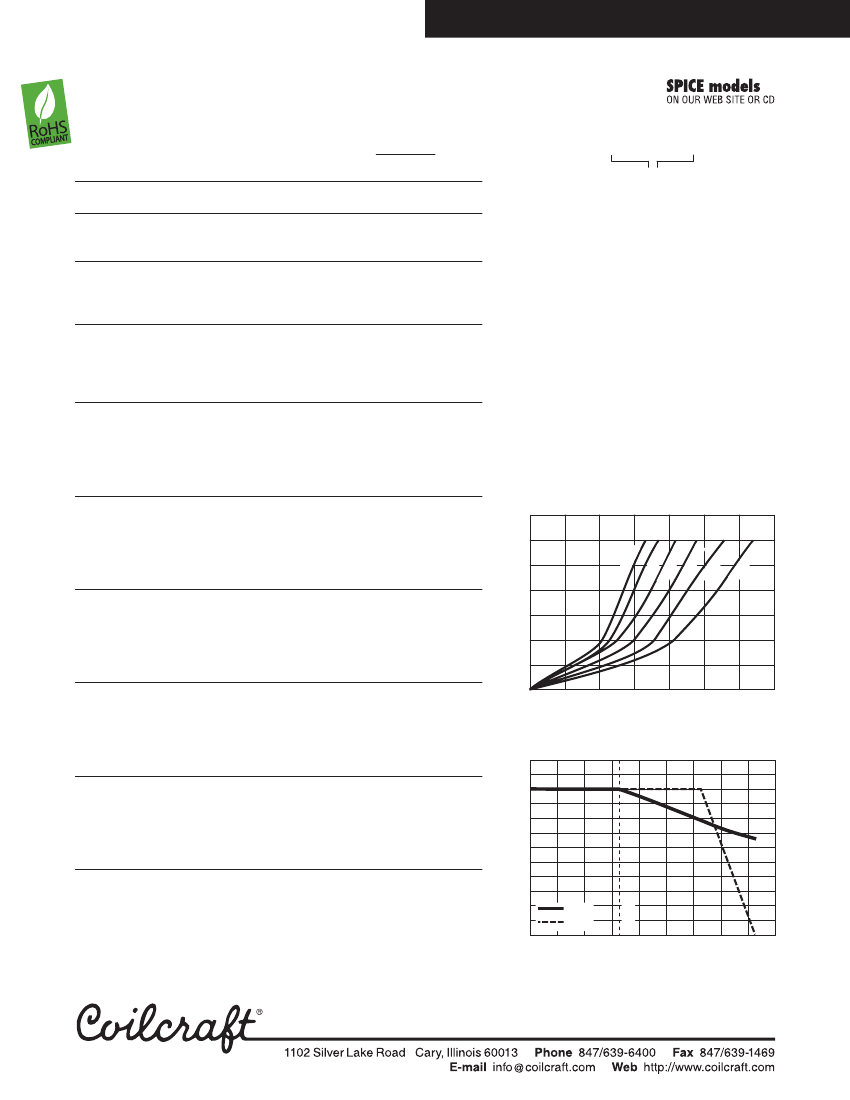

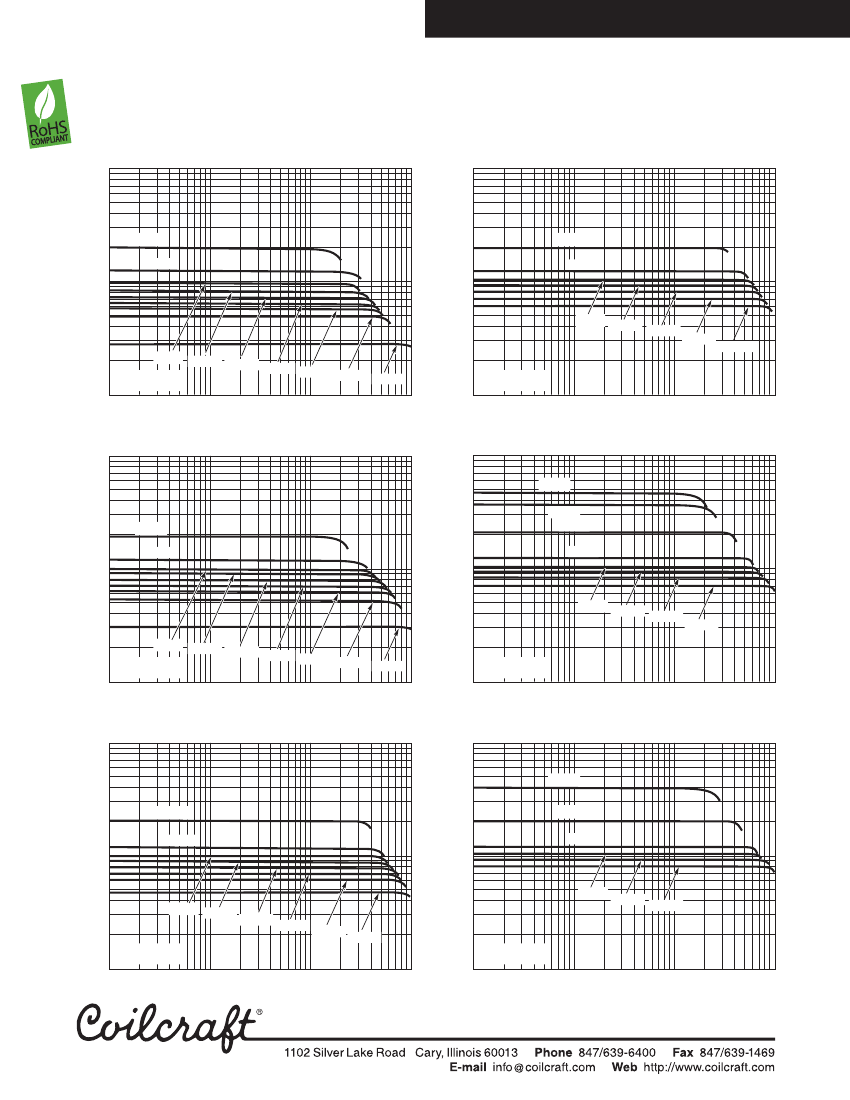

SMT Power Inductor - SER2000 Series
• Designed for high current power supply applications
• Flat wire windings provide exceptionally low DCR
Isat
ratings as high as 100 A
Designer’s Kit C374
contains 2 each of nine part
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant tin-silver over copper. Other
terminations available at additional cost.
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C
to +125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C
/ 85% relative humidity)
Mean Time Between Failures (MTBF)
26,315,789 hours
PCB washing
Only pure water or alcohol recommended
Recommended Land Pattern
0.755 ±0.02
19,18 ±0,51
0.160
4,06
0.290
7,37
1
2
3
0.210
5,33
C
L
3
Caution:
Terminal 3 is provided for mounting stability
only. This terminal is connected to the
winding of the inductor and must not be
connected to ground or any circuitry.
0.736 ±0.034
18,70 ±0,85
0.365 ±0.02
9,27 ±0,51
0.470
11,94
0.015
0,38
1
2
0.185
4,70
0.150
3,81
Maximum
height
0.34 / 8,64
0.37 / 9,40
0.42 / 10,67
0.47 / 11,94
0.51 / 12,95
0.55 / 13,97
Weight
6.65 – 6.89 g
7.46 – 7.90 g
8.63 – 9.08 g
9.92 – 10.3 g
10.8 – 11.4 g
11.7 – 12.4 g
0.311 ±0.015
7,90 ±0,38
0.100 ±0.003
typ
2,54 ±0,76
0.150
3,81
0.260
6,60
Height
(See table)
0.004/0,102
0.125
3,18
0.515±0.015
13,08 ±0,37
0.100
2,54
SER2009
SER2010
SER2011
SER2012
SER2013
SER2014
0.130
*
3,30
Dimensions are in
*
Width of flat area on winding
inches
mm
Packaging
SER2009 200
SER2010 200
SER2011 170
SER2012 150
SER2013 150
SER2014 125
per
per
per
per
per
per
13″
13″
13″
13″
13″
13″
reel;
reel;
reel;
reel;
reel;
reel;
Plastic
Plastic
Plastic
Plastic
Plastic
Plastic
tape:
tape:
tape:
tape:
tape:
tape:
44
44
44
44
44
44
mm
mm
mm
mm
mm
mm
wide,
wide,
wide,
wide,
wide,
wide,
0.4
0.4
0.4
0.4
0.5
0.5
mm
mm
mm
mm
mm
mm
thick,
thick,
thick,
thick,
thick,
thick,
4
4
4
4
4
4
mm
mm
mm
mm
mm
mm
pocket
pocket
pocket
pocket
pocket
pocket
spacing,
spacing,
spacing,
spacing,
spacing,
spacing,
9.25
10.5
11.6
13.0
14.0
15.0
pocket
pocket
pocket
pocket
pocket
pocket
depth
depth
depth
depth
depth
depth
Revised 01/21/08
Specifications subject to change without notice.
Please check our website for latest information. Document 349-1
© Coilcraft, Inc. 2007
