DSRT-L000-021 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> Consumption circuit> DSRT-L000-021

DSRT-L000-021: DescriptionConsumer Circuit, PQFP64, TQFP-64; CategoryOther integrated circuit (IC) Consumption circuit; File Size382KB，58 Pages; ManufacturerCONEXANT; Websitehttp://www.conexant.com/

Download Datasheet Parametric Compare View All

DSRT-L000-021 Overview

Consumer Circuit, PQFP64, TQFP-64

DSRT-L000-021 Parametric

Parameter Name	Attribute value
Maker	CONEXANT
Parts packaging code	QFP
package instruction	LFQFP,
Contacts	64
Reach Compliance Code	compliant
Other features	CAN ALSO OPERATE AT 5V SUPPLY
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	S-PQFP-G64
length	10 mm
Number of functions	1
Number of terminals	64
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Certification status	Not Qualified
Maximum seat height	1.55 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
width	10 mm

Preview

Download Datasheet

View All

5LS7LGH5$0&DQG5$0&

$0&·$XGLR0RGHP&RGHF$0&

1. Overview

The Rockwell RipTide™ Audio Modem Codec (AMC)

combines two coder/decoder functions, compliant to Intel

Audio Codec ’97 2.0 Extensions for a combo audio

modem codec (AMC’97), into a single package. The AMC

is available in either an 80-pin PQFP, which supports two

telephone lines (RAMC002), or a 64-pin TQFP, which

supports one telephone line (RAMC001). The AMC is

supplied with Rockwell WaveStream™ 64 (WS64) or

Mega WaveStream software and optionally with Rockwell

MMX-based SoftK56 V.90/K56flex™ modem software (see

Table 1).

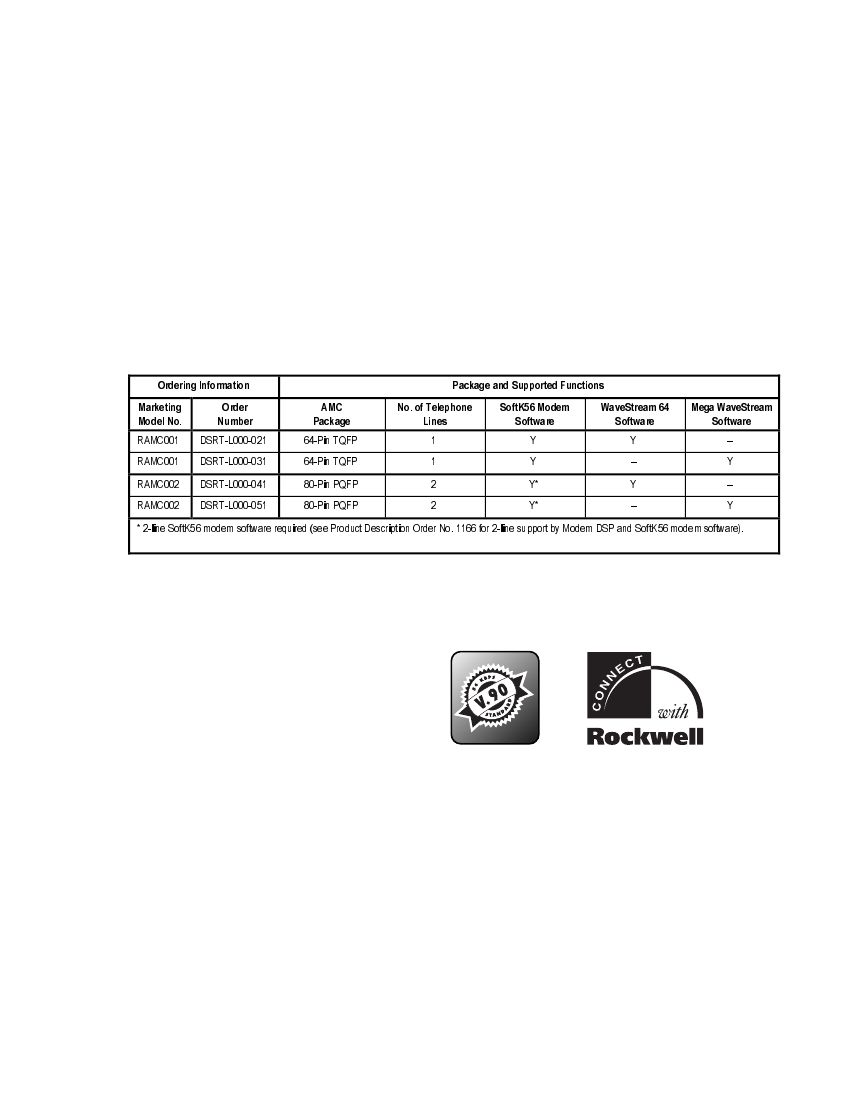

The AMC can be ordered by itself or as part of the

Rockwell RipTide PCI Audio/Comm Device Family which

also includes an Communications Controller (ACC) and

optional Modem DSP and Rockwell RipTide

V.90/K56flex™ modem software (see Product Description

Order Number 1167).

Mono_out

PC_Beep

Line_out

HP_Out

GPIOs

2. Features

•

Combined Audio/Modem Codec (AMC)

−

AC ’97 Codec V2.0 compliant (AMC ’97)

•

Advanced Power Management

•

Audio

−

Stereo Full-Duplex Codec with 18-bit resolution

−

Six Audio Analog Input Channels

−

Three Audio Analog Output Channels

−

3D Spatialization and Bass Boost

•

Modem

−

Full-Duplex Codec with 16-bit resolution

−

1-Line (64-pin TQFP) or 2-Line (80-pin PQFP)

Telephone Line Interface

−

Dedicated Handset ADC/DAC

−

Dedicated Microphone ADC

•

GPIO Lines

•

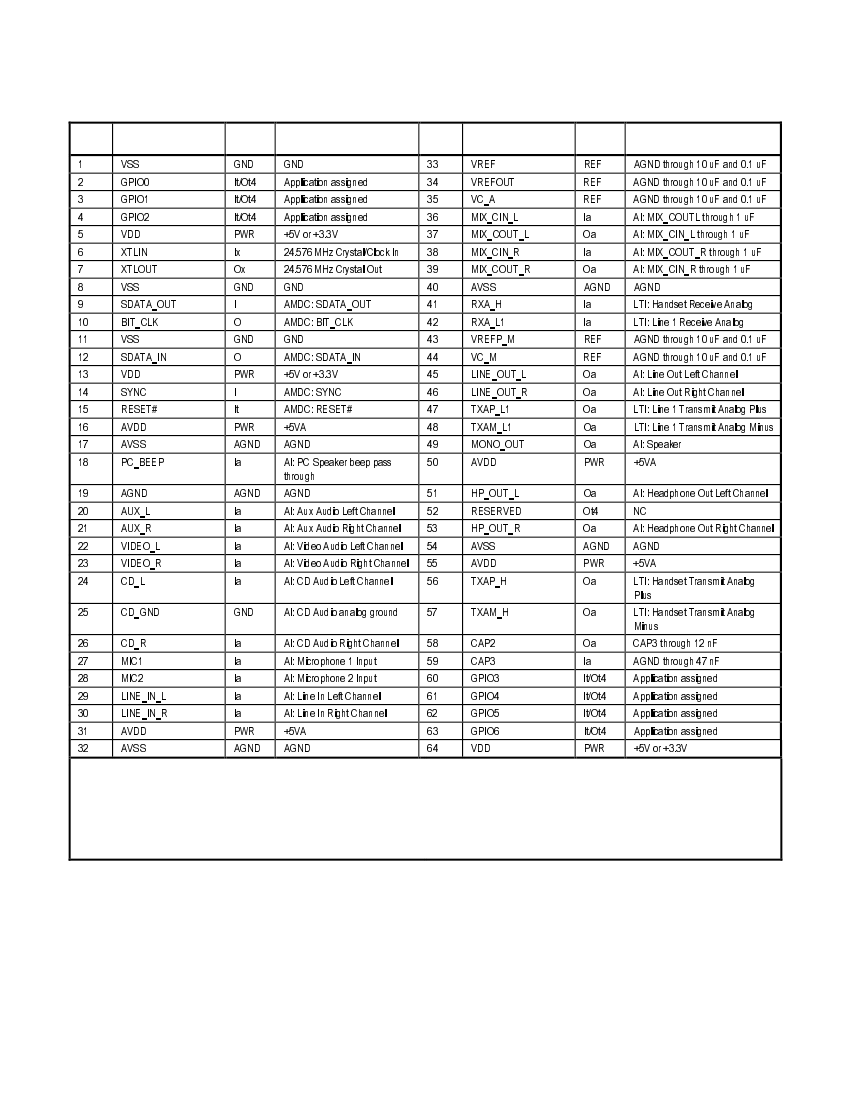

Standard 64-pin TQFP and 80-pin PQFP

GPIOs

PCM Voice

Recognition

VM : Volume, Mute

G : Gain

PG : Programmable Gain

SG : SCF Gain

Mono Signal

Stereo Signal

0/20

Mic1

Mic2

A/D

D/A

PCM Stereo

Out

AC_LINK

Reset#

Sync

Bit_Clk

Sdata_Out

Sdata_In

PCM Stereo

Input

Power

Management

SELECT

3D/

Bass

Boost

Line_in

AUX

Video

Digital Interface

A/D

PCM HS Out

D/A

PCM HS In

LPF

0/20

TXAP_H

RXA_H

TXA_L1

TXA_L2

RXA_L1

RXA_L2

A/D

PCM MDM TX1

D/A

PCM MDM TX2

D/A

PCM MDM RX1

A/D

PCM MDM RX2

A/D

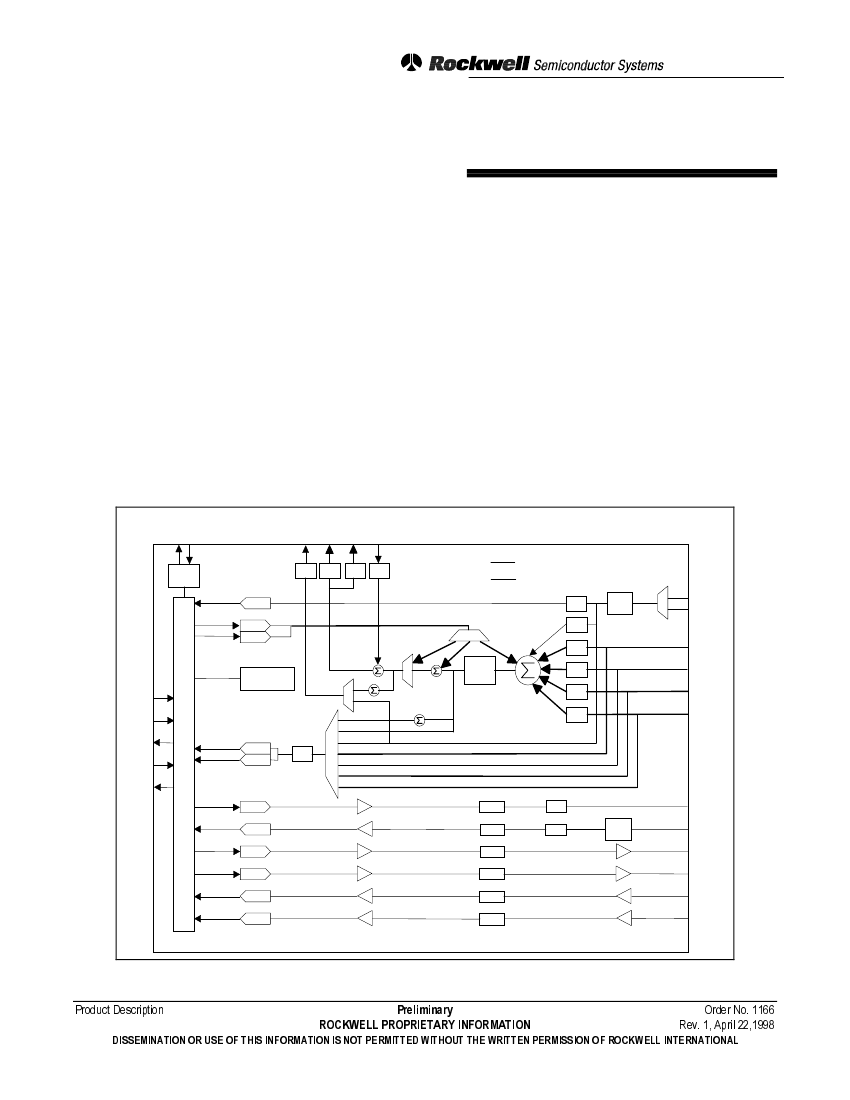

Figure 1. RipTide AMC Functional Block Diagram

3URGXFW 'HVFULSWLRQ

3UHOLPLQDU\

52&.:(// 35235,(7$5< ,1)250$7,21

2UGHU 1R

5HY $SULO

',66(0,1$7,21 25 86( 2) 7+,6 ,1)250$7,21 ,6 127 3(50,77(' :,7+287 7+( :5,77(1 3(50,66,21 2) 52&.:(// ,17(51$7,21$/

DSRT-L000-021 Related Products

	DSRT-L000-021	DSRT-L000-041	DSRT-L000-051	RAMC001	DSRT-L000-031
Description	Consumer Circuit, PQFP64, TQFP-64	Consumer Circuit, PQFP80, PLASTIC, QFP-80	Consumer Circuit, PQFP80, PLASTIC, QFP-80	Consumer Circuit, PQFP64, TQFP-64	Consumer Circuit, PQFP64, TQFP-64
Parts packaging code	QFP	QFP	QFP	QFP	QFP
package instruction	LFQFP,	QFP,	QFP,	LFQFP,	LFQFP,
Contacts	64	80	80	64	64
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Other features	CAN ALSO OPERATE AT 5V SUPPLY	CAN ALSO OPERATE AT 5V SUPPLY	CAN ALSO OPERATE AT 5V SUPPLY	CAN ALSO OPERATE AT 5V SUPPLY	CAN ALSO OPERATE AT 5V SUPPLY
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	S-PQFP-G64	S-PQFP-G80	S-PQFP-G80	S-PQFP-G64	S-PQFP-G64
length	10 mm	14 mm	14 mm	10 mm	10 mm
Number of functions	1	1	1	1	1
Number of terminals	64	80	80	64	64
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LFQFP	QFP	QFP	LFQFP	LFQFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK	FLATPACK	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.55 mm	2.4 mm	2.4 mm	1.55 mm	1.55 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V
surface mount	YES	YES	YES	YES	YES
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.65 mm	0.65 mm	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD
width	10 mm	14 mm	14 mm	10 mm	10 mm
Maker	CONEXANT	-	-	CONEXANT	CONEXANT
