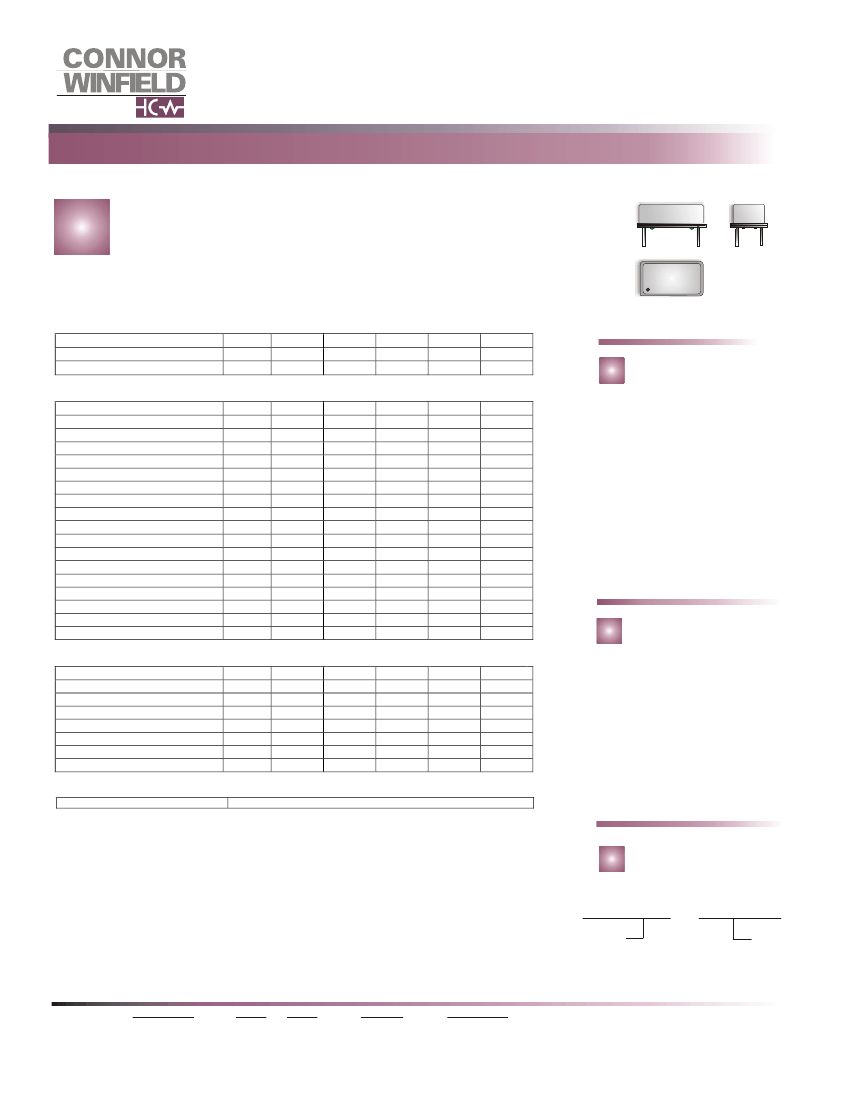

THE CONNOR-WINFIELD CORP.
2111 COMPREHENSIVE DRIVE.
AURORA, IL 60505.
FAX (630) 851-5040.
PHONE (630) 851-4722.
HTTP://WWW.CONWIN.COM
PRODUCT
DATA
SHEET
CRYSTAL CONTROLLED OSCILLATORS
14 PIN DIP 3.3V HCMOS STRATUM 3 OCXO
CW 0440
AGOF3S3
12.800M
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Storage Temperature
Supply Voltage
(Vcc)
UNITS
MINIMUM
-40
-0.5
NOMINAL
-
-
MAXIMUM
85
4.5
UNITS
°C
Vdc
TABLE 1.0
NOTE
AGOF3S3
DESCRIPTION
OPERATING SPECIFICATIONS
PARAMETER
Center Frequency
Frequency Calibration
Frequency Stability
Aging (Daily)
Aging (20 Years)
Total Frequency Tolerance
Operating Temperature Range
Supply Voltage
Supply Current
Phase Jitter (BW=12KHz to 20MHz)
Phase Jitter (BW=10Hz to 20 MHz)
Period Jitter
SSB Phase Noise at 10Hz offset
SSB Phase Noise at 10KHz offset
Warm Up Time
TDEV @ 1.0 Sec.
TDEV @ 4.0 Sec.
(Vcc)
(Icc)
(Fo)
MINIMUM
1.544
-1.5
-0.25
-30
-2.5
-4.6
0
3.135
-
-
-
-
-
-
-
-
-
NOMINAL
-
-
-
-
-
-
3.3
-
-
-
-
-90
-135
-
-
-
MAXIMUM
20.0
1.5
0.25
30
2.5
4.6
70
3.465
450
1
3
5
-
-
5
1
2
UNITS
MHz
ppm
ppm
ppb
ppm
ppm
°C
Vdc
mA
ps rms
ps rms
ps rms
dBc/Hz
dBc/Hz
Minutes
nS
nS
TABLE 2.0
NOTE
1
2
3
4
The Connor-Winfield
AGOF3S3 is a hermetically
sealed 14 Pin DIP, 3.3V
Oven Controlled Crystal
Oscillator (OCXO) with an
HCMOS/TTL compatible
output. The AGOF3S3 is
designed for higher stability
Stratum 3 applications
requiring low jitter and tight
frequency stability.
5
FEATURES
TABLE 3.0
HCMOS OUTPUT CHARACTERISTICS
PARAMETER
LOAD
Voltage
(High)
(Low)
Current
(High)
(Low)
Duty Cycle at 50% of Vcc
Rise / Fall Time 10% to 90%
MINIMUM
-
2.6
-
-4
-
45
-
NOMINAL
-
-
-
-
50
-
MAXIMUM
15
-
0.4
-
4
55
6
UNITS
pf
Vdc
Vdc
mA
mA
%
nS
3.3V OPERATION
LOW JITTER <1pS RMS
FREQUENCY STABILITY: ±0.25ppm
TEMPERATURE RANGE: 0 to 70°C
FREQUENCY TOLERANCE OF
±4.6ppm OVER TWENTY YEARS
NOTE
(Voh)
(Vol)
(Ioh)
(Ioh)
PACKAGE CHARACTERISTICS
Package
TABLE 4.0
14 pin DIP, hermetically sealed, grounded case, welded package
Notes:
1)
2)
3)
4)
Initial calibration @ 25°C
Frequency vs. temperature stability, 0 to 70°C absolute.
At the time of shipment after48 hours of operation.
Inclusive of calibration, operating temperature range, supply voltage change, load change, shock
and vibration, 20 years aging.
5) Measured @ 25°C, within 5 minutes, the unit will be within +/-0.1ppm of its reference frequency,
measured after 30 minutes of continuous operation at a stable 25
°C.
ORDERING INFORMATION
AGOF3S3
OCXO
SERIES
- 12.800MHz
CENTER
FREQUENCY
Specifications subject to change without notice.
DATA SHEET #:
Cx011
PAGE
1
OF
2
REV:
06
DATE:
11/12/04
a
Copyright 2001 Connor-Winfield all rights reserved.
THE CONNOR-WINFIELD CORP.
2111 COMPREHENSIVE DRIVE.
AURORA, IL 60505.
FAX (630) 851-5040.
PHONE (630) 851-4722.
PRODUCT
D ATA
SHEET
CRYSTAL CONTROLLED OSCILLATORS

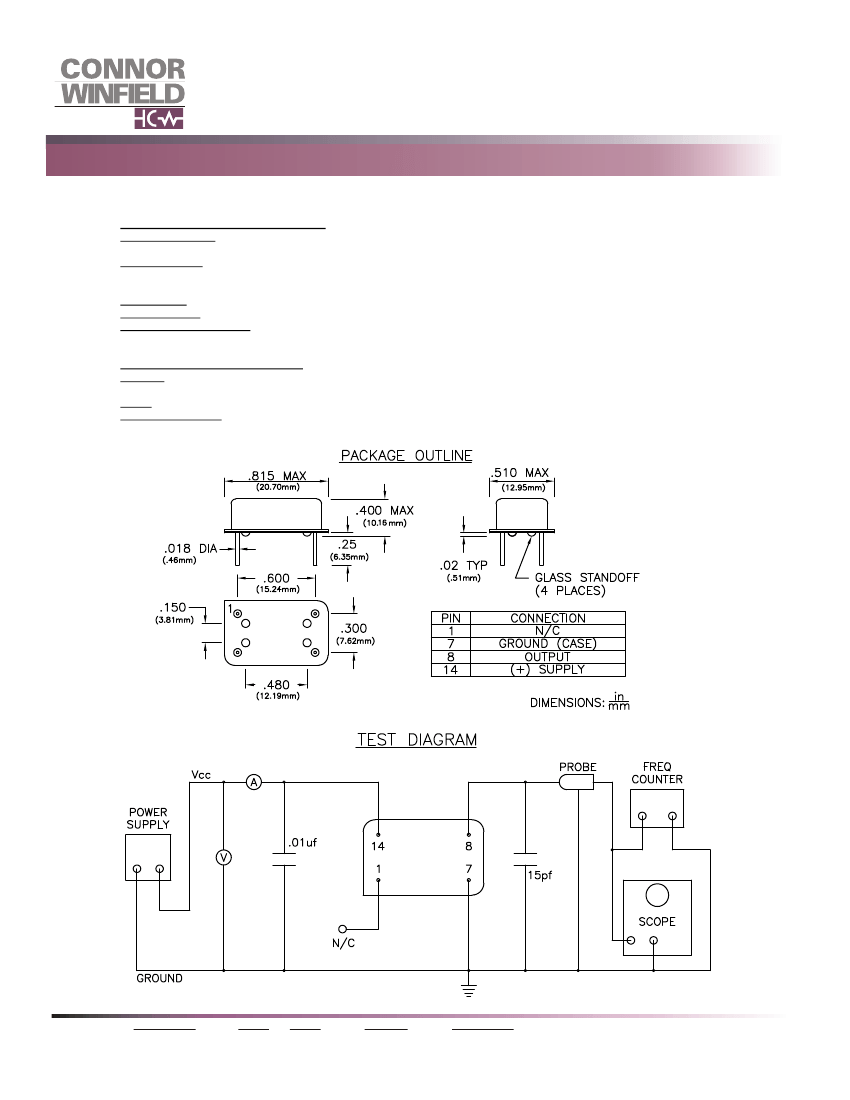

ENVIRONMENTAL CHARACTERISTICS
Temperature Cycle: Per MIL-STD-883, Method 1010, Condition B. -55°C to 125°C, 20 cycles,10 minute dwell, 1m inute
transition.
Gross Leak Test: Per MIL-STD-202, Method 112, Condition D. No bubbles in flourinert (FC-43) at 125°C ±5°C for 20
seconds.
SOLDERING
Pin Solderability: Per MIL-STD-883, Method 2003. 8 hour steam age prior to 245°C ±5°C Solder pot dip, 95% Coverage.
Resistance to Solder Heat: Per MIL-STD-202, Method 210, Condition C. Wave: Topside board -mount product, 260°C
±5°C for 20 Seconds.
MECHANICAL CHARACTERISTICS
Vibration: Per MIL-STD-202, Method 204, Condition A. 10G’s peak, 10Hz to 500Hz, 15mi nute cycles 12 times each
perpendicular axis.
Shock: Per MIL-STD-202, Method 213, Condition D. 500G’s, 1ms, half sine, 3 shocks per direction.
Moisture Resistance: Per MIL-STD-202, Method 106. 95% RH @ 65°C, 10 cycles 10°C to 65°C.
+3.3Vdc
Specifications subject to change without notice.
DATA SHEET #:
Cx011
PAGE
2
OF
2
REV:
06
DATE:
11/12/04
a
Copyright 2001 Connor-Winfield all rights reserved.
