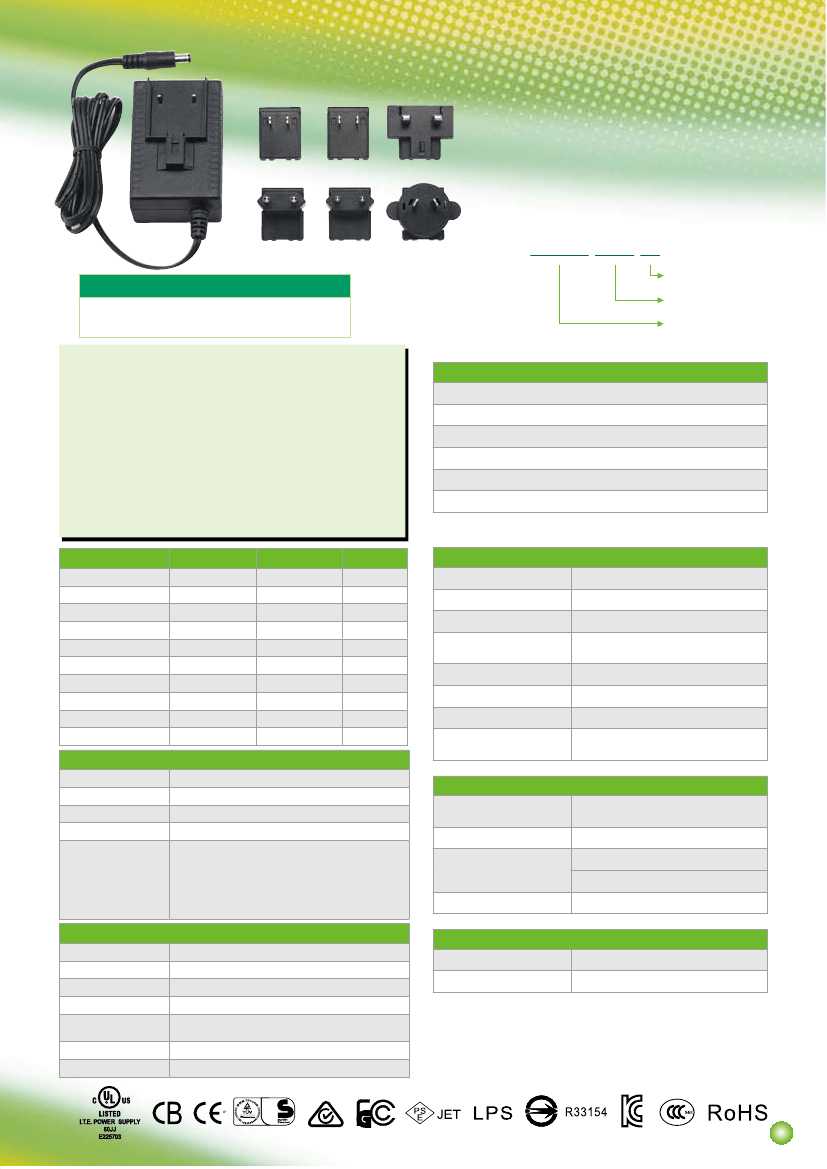

Volgen
24 Watt Series
AC Prong Changeable
Wall Mount Type
www.volgen.com
KTPS-□□□
□□ □
Green Mode
Meet CEC , Energy Star & ERP Regulations
No Load Power Consumption less Than 0.3W
MP-
Changeable Plug
O/P Current
O/P Voltage
Features:
■
100-240VAC Universal Input
■
Single Output to 24W
■
Wall Mount Changeable Plug with Option of Various Plugs
■
Regulated Output with Low Ripple Noise
■
Meets Safety Agency Requirements and Complies EMI/
EMS,
CEC V
■
Modified and Custom Designs Available
■
1 Year Warranty
Safety Approvals
For USA - CB / UL / cUL / FCC / PSE* / BSMI* / LPS
For Europe - CB / GS / CE / LPS
For U.K. - CB / CE / LPS
For Australia - CB / RCM* / LPS*
For China - CB / CCC*
For Korea - CB / EK*
* apply upon customer request
Model
KTPS24-05040MP
KTPS24-06035MP
KTPS24-07030MP
KTPS24-07530MP
KTPS24-09025MP
KTPS24-09525MP
KTPS24-12020MP
KTPS24-15016MP
KTPS24-24010MP
KTPS24-48005MP
O/P Voltage
5.0V
5.9
7.0
7.5
9.0
9.5
12.0V
15.0V
24.0V
48.0V
O/P Current
4.0A
3.5A
3.0A
3.0A
2.5A
2.5A
2.0A
1.6A
1.0A
0.5A
Watt
20.0 W
20.65 W
21.0 W
22.5 W
22.5 W
23.75 W
24.0 W
24.0 W
24.0 W
24.0 W
Electrical
Topology
Dielectric Withstand
Leakage Current
Efficiency
Switching Flyback
3000 VAC Primary - Secondary
0.25mA @ 2 Pin
Meet Energy Star Level V &
ERP Stage 2 & MEPS
EMI Conduction & Radiation Compliance to EN55022 Class B
Harmonic Current
EMS Immunity
MTBF
Compliance to EN61000-3-2,3
Compliance to EN61000-4-2,3,4,5,6,8,11
50,000 Calculated Hours at 25ºC, by
MIL-HDBK-217F
Input
Voltage
Line Frequency
Current
Protection
100-240 VAC
50-60Hz
0.58A Max.
Internal Primary Current Fuse, Inrush Limiting
MP
for UL AC Pin (Frontal)
E for EU Pin
B for UK Pin
A for AU Pin
C for CN Pin
K for KR Pin
Environmental
Operaturing Temperature
Storage Temperature
Relative Humidity
Storage: 10 to 90% RH
Cooling
Natural Convection Cooling
0 to +40ºC
-20 to +80ºC
Operating: 20 to 80% RH
Configuration
Output
Load Regulation
Ripple
Transient Response
Holdup Time
Protection
DC Cord
Ferrite Core
± 5% (Typical)
1~2% V p-p Max. for Output Voltage @ Full Load
0.5mS for 50% Load Change Typical
10mS @ Full Load
Short Circuit Protection/ Over Voltage
Protection/ Over Current Protection
22AWG / 20AWG / 18AWG
No (Optional)
Mechanical
Case Dimensions
Weight
L76 x W52 x H39 (mm)
158g (reference)
8
