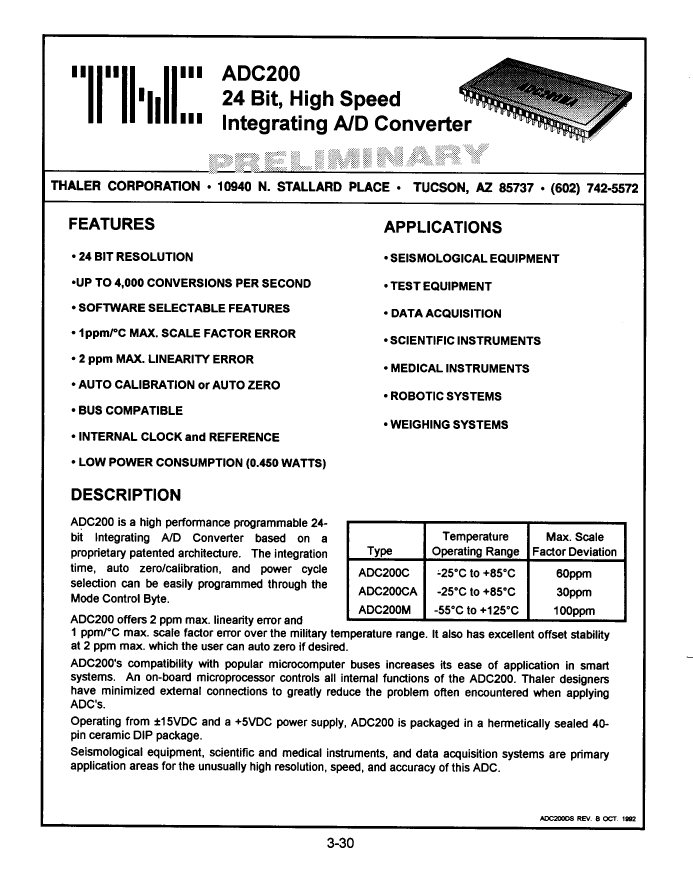

ADC200M datasheet, PDF - EEWORLD Datasheet

ADC200M: DescriptionA/D Converter, 24-Bit, 1 Func, Hybrid, CDIP40,; CategoryAnalog mixed-signal IC converter; File Size72KB，1 Pages; ManufacturerThaler Corp; Environmental Compliance

Download Datasheet Parametric Compare View All

ADC200M Overview

A/D Converter, 24-Bit, 1 Func, Hybrid, CDIP40,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Thaler Corp
package instruction	DIP, DIP40,.9
Reach Compliance Code	unknown
Maximum analog input voltage	10.486 V
Converter type	A/D CONVERTER
JESD-30 code	R-XDIP-T40
Maximum linear error (EL)	0.0002%
Number of digits	24
Number of functions	1
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	OFFSET BINARY
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.9
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,+-15 V
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	ADC200M	ADC200C	ADC200CA
Description	A/D Converter, 24-Bit, 1 Func, Hybrid, CDIP40,	A/D Converter, 24-Bit, 1 Func, Hybrid, CDIP40,	A/D Converter, 24-Bit, 1 Func, Hybrid, CDIP40,
Is it Rohs certified?	conform to	conform to	conform to
Maker	Thaler Corp	Thaler Corp	Thaler Corp
package instruction	DIP, DIP40,.9	DIP, DIP40,.9	DIP, DIP40,.9
Reach Compliance Code	unknown	unknown	unknown
Maximum analog input voltage	10.486 V	10.486 V	10.486 V
Converter type	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER
JESD-30 code	R-XDIP-T40	R-XDIP-T40	R-XDIP-T40
Maximum linear error (EL)	0.0002%	0.0002%	0.0002%
Number of digits	24	24	24
Number of functions	1	1	1
Number of terminals	40	40	40
Maximum operating temperature	125 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-25 °C	-25 °C
Output bit code	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP40,.9	DIP40,.9	DIP40,.9
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
power supply	5,+-15 V	5,+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	OTHER	OTHER
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
