USC68HC138CPD datasheet, PDF - EEWORLD Datasheet

USC68HC138CPD: DescriptionParallel I/O Port, 8 I/O, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24; CategoryThe embedded processor and controller Microcontrollers and processors; File Size185KB，4 Pages; ManufacturerUniversal Semiconductor Inc

Download Datasheet Parametric Compare View All

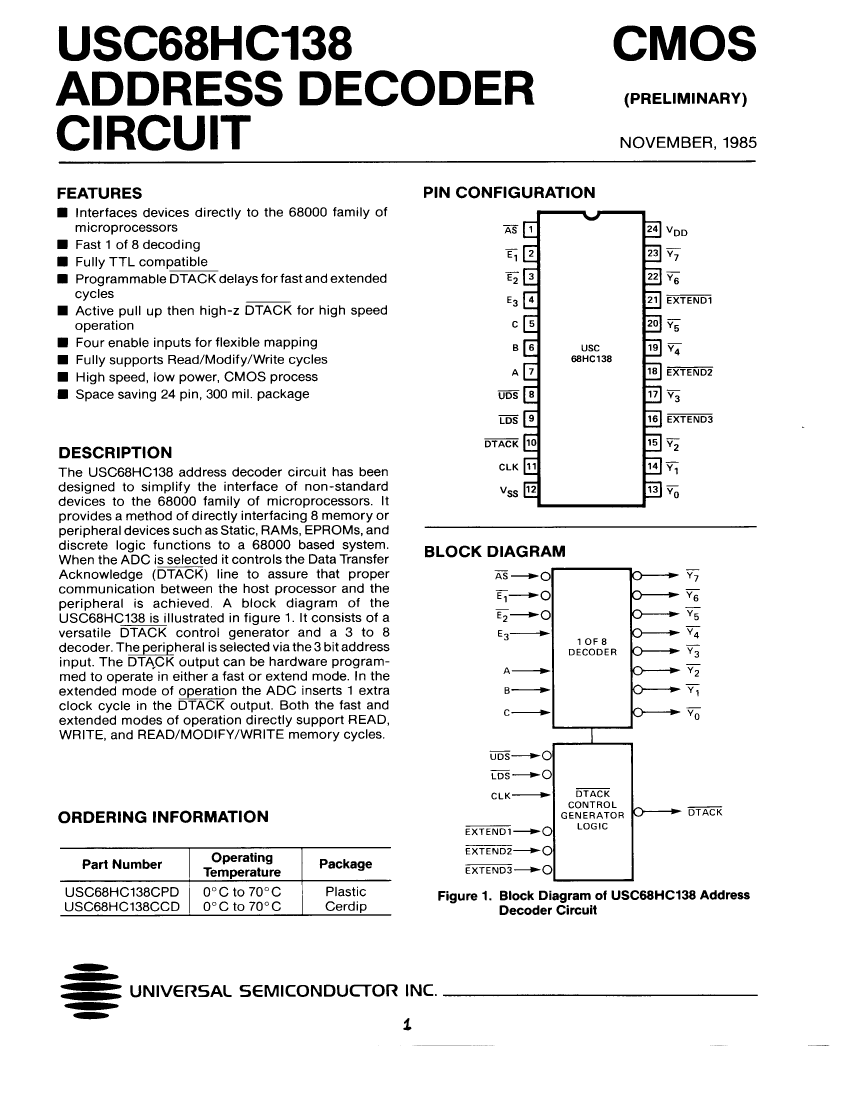

USC68HC138CPD Overview

Parallel I/O Port, 8 I/O, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Universal Semiconductor Inc
Parts packaging code	DIP
package instruction	,
Contacts	24
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
Number of I/O lines	8
Number of ports	8
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE

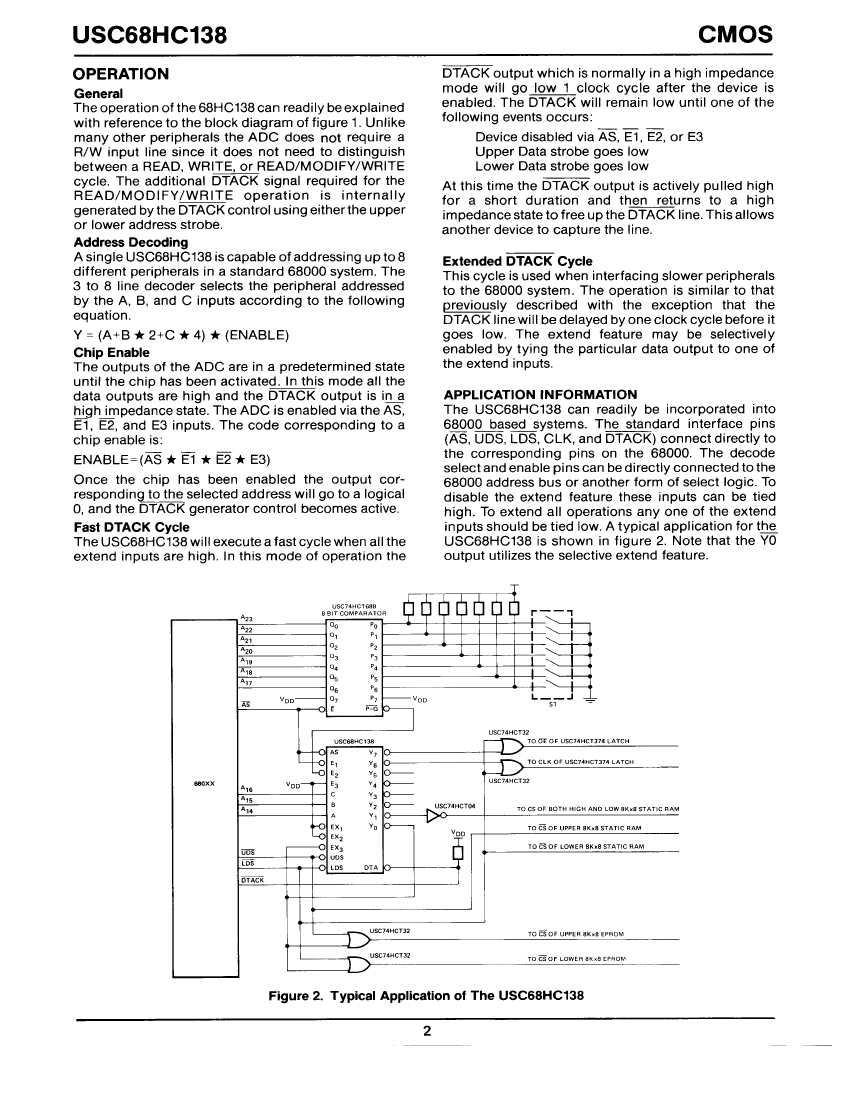

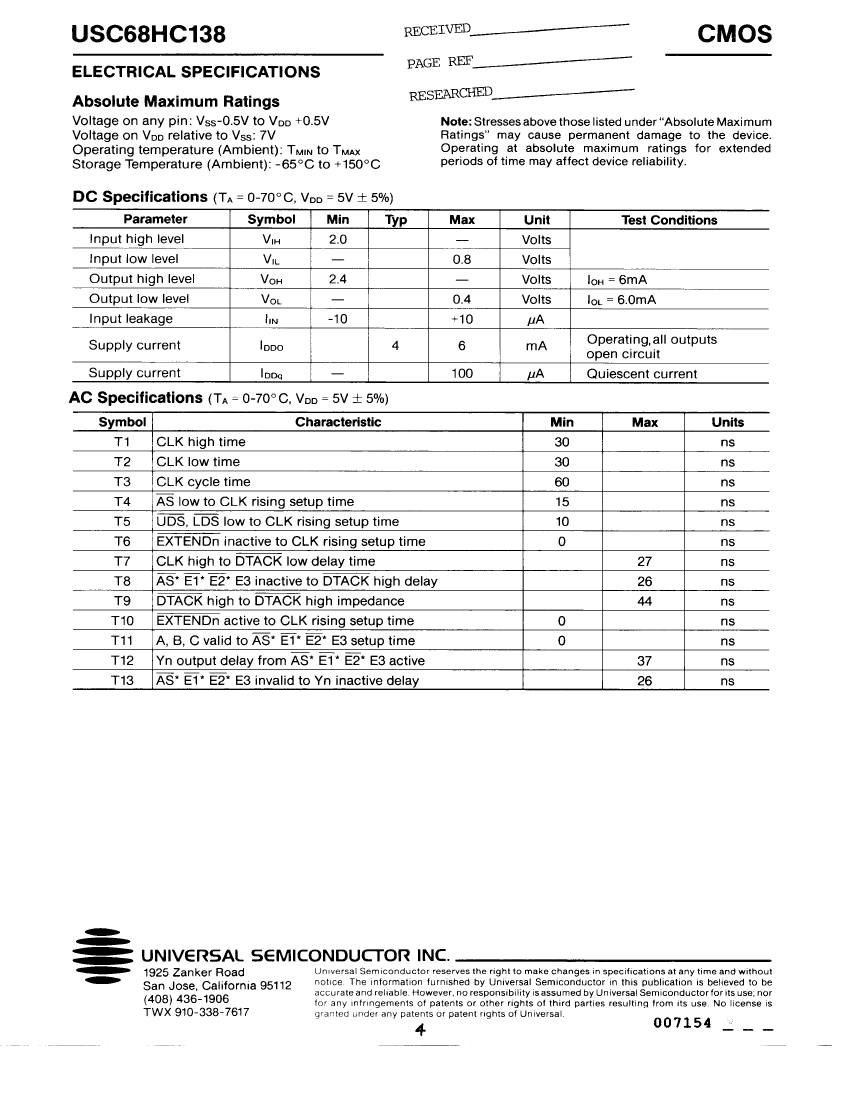

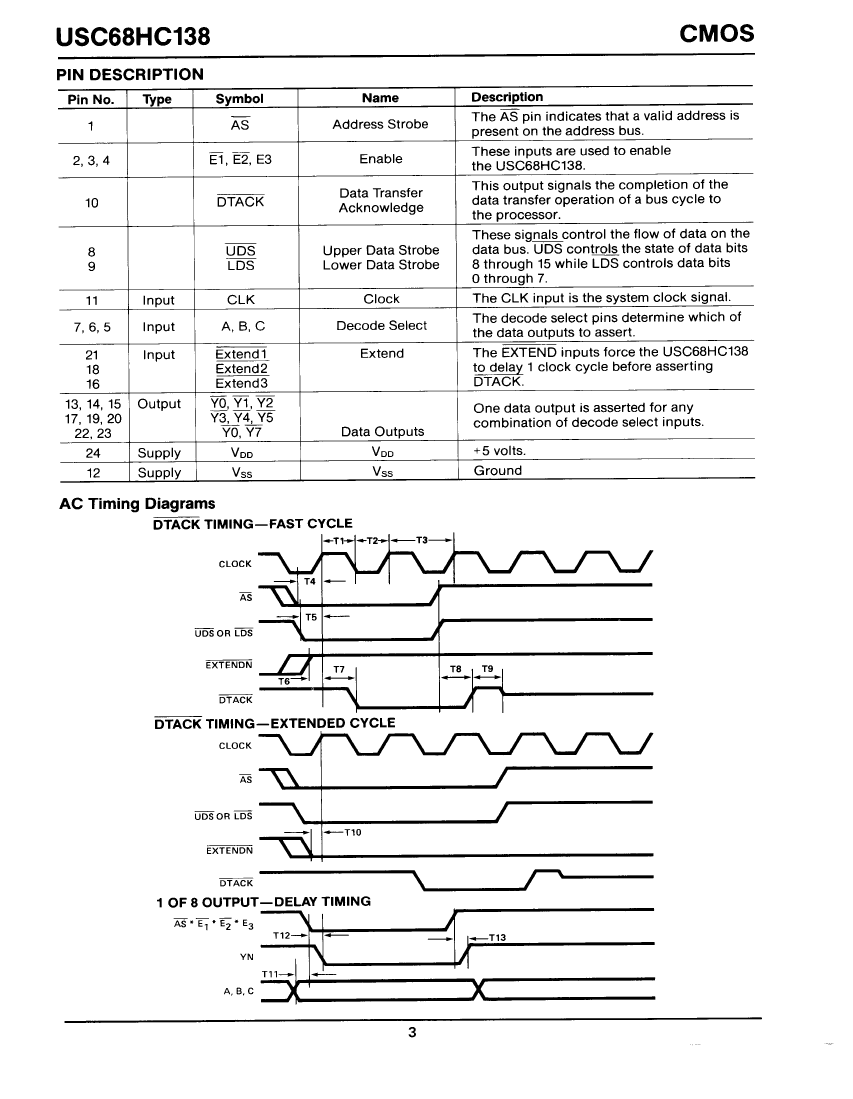

This Material Copyrighted By Its Respective Manufacturer

	USC68HC138CPD	USC68HC138CCD
Description	Parallel I/O Port, 8 I/O, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	Parallel I/O Port, 8 I/O, CMOS, CDIP24, 0.300 INCH, CERDIP-24
Is it Rohs certified?	incompatible	incompatible
Maker	Universal Semiconductor Inc	Universal Semiconductor Inc
Parts packaging code	DIP	DIP
Contacts	24	24
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
JESD-30 code	R-PDIP-T24	R-GDIP-T24
JESD-609 code	e0	e0
Number of I/O lines	8	8
Number of ports	8	8
Number of terminals	24	24
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE
