ZX74HCT541N-2 datasheet, PDF - EEWORLD Datasheet

ZX74HCT541N-2: DescriptionBus Driver, 1-Func, 8-Bit, True Output, CMOS, PDIP20; Categorylogic logic; File Size167KB，3 Pages; ManufacturerRadiation Semiconductor Corp

Download Datasheet Parametric Compare View All

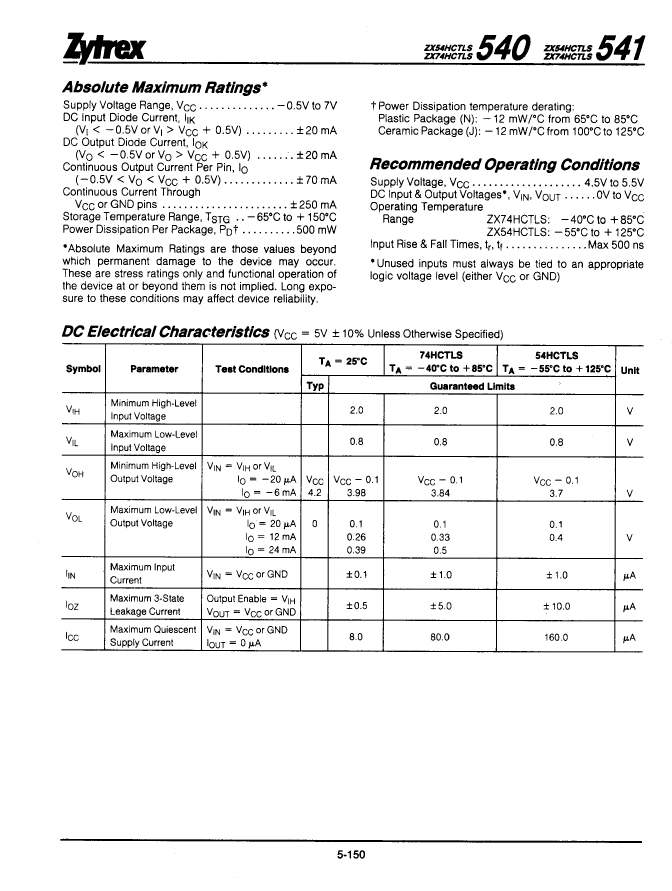

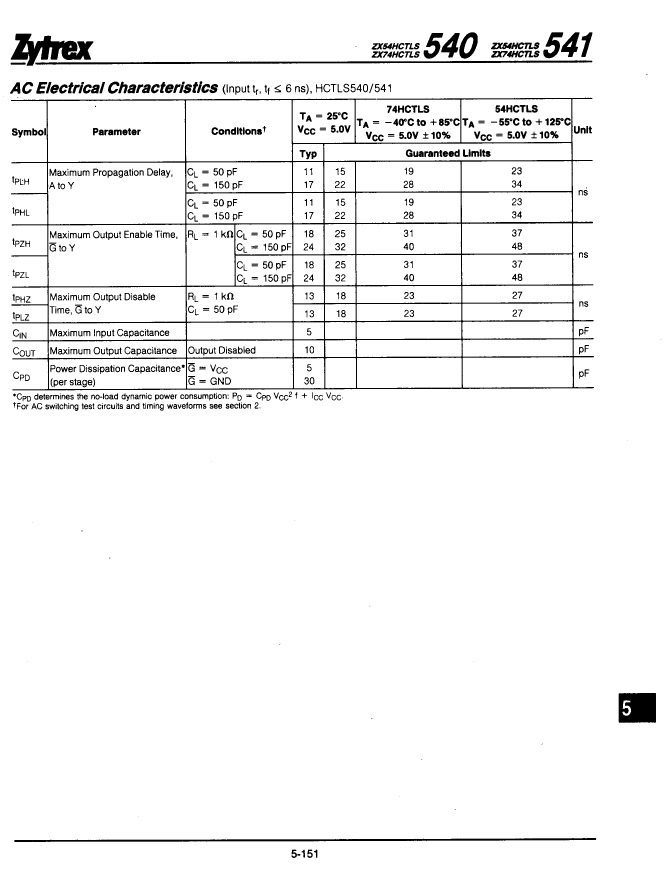

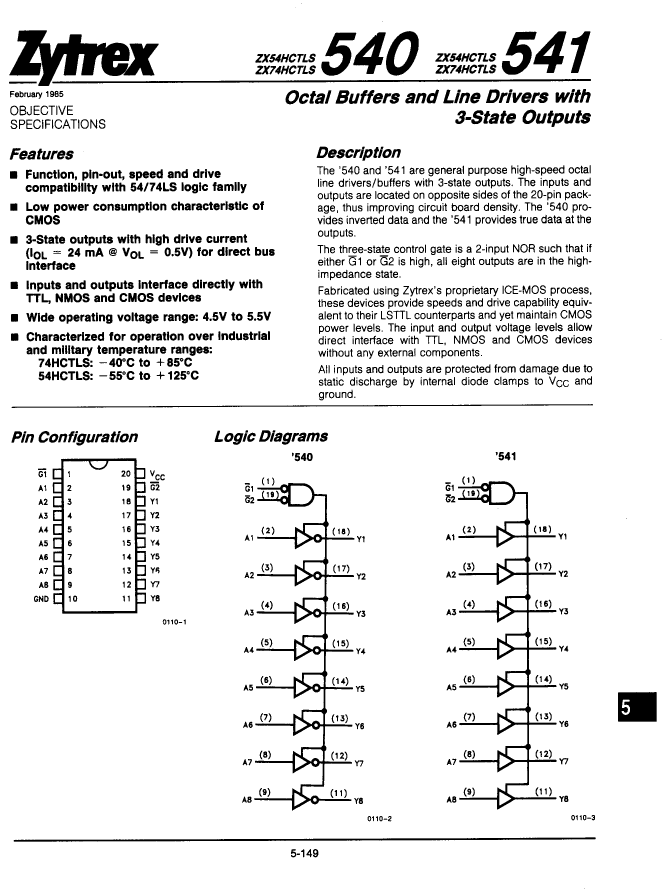

ZX74HCT541N-2 Overview

Bus Driver, 1-Func, 8-Bit, True Output, CMOS, PDIP20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Radiation Semiconductor Corp
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
Control type	ENABLE LOW
JESD-30 code	R-PDIP-T20
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.024 A
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	ZX74HCT541N-2	ZX74HCT540N-2
Description	Bus Driver, 1-Func, 8-Bit, True Output, CMOS, PDIP20	Bus Driver, 1-Func, 8-Bit, Inverted Output, CMOS, PDIP20
Is it Rohs certified?	incompatible	incompatible
Maker	Radiation Semiconductor Corp	Radiation Semiconductor Corp
package instruction	DIP, DIP20,.3	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown
Control type	ENABLE LOW	ENABLE LOW
JESD-30 code	R-PDIP-T20	R-PDIP-T20
JESD-609 code	e0	e0
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.024 A	0.024 A
Number of digits	8	8
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
