ZX74HCTLS163AN

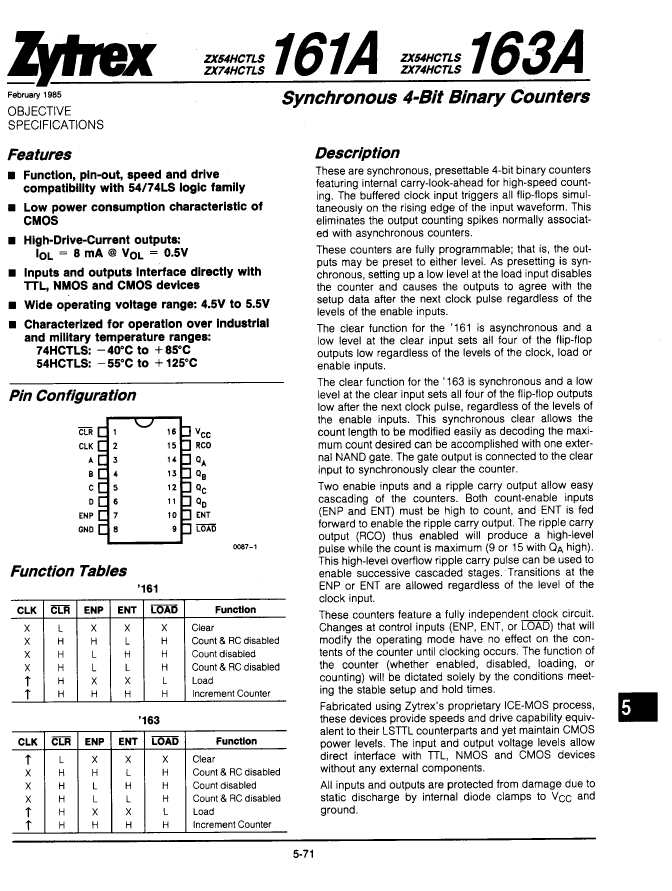

Description
Binary Counter, Synchronous, Up Direction, CMOS, PDIP16
Categorylogic    logic
File Size680KB,9 Pages
ManufacturerRadiation Semiconductor Corp
Download Datasheet Parametric Compare View All

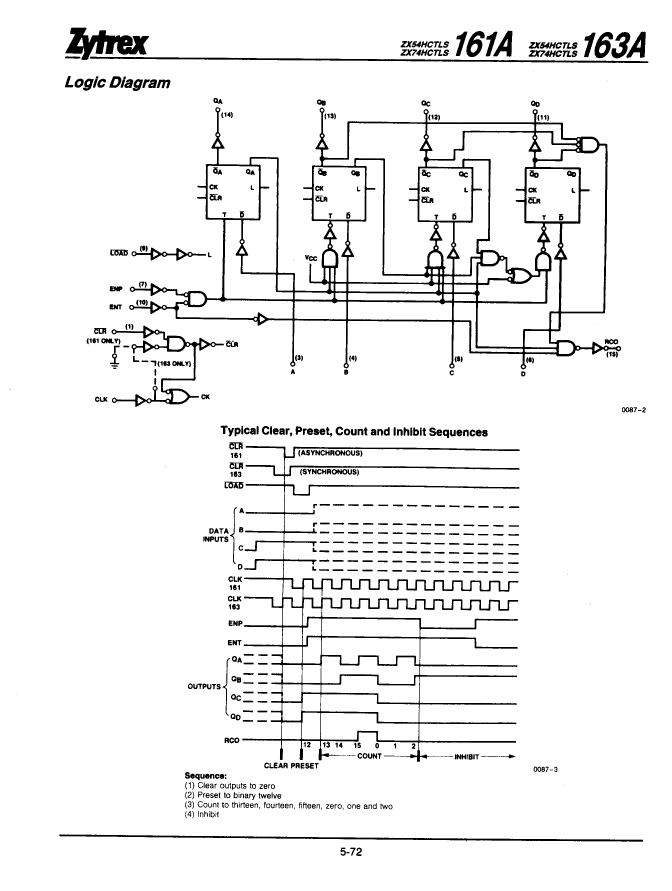

ZX74HCTLS163AN Overview

Binary Counter, Synchronous, Up Direction, CMOS, PDIP16

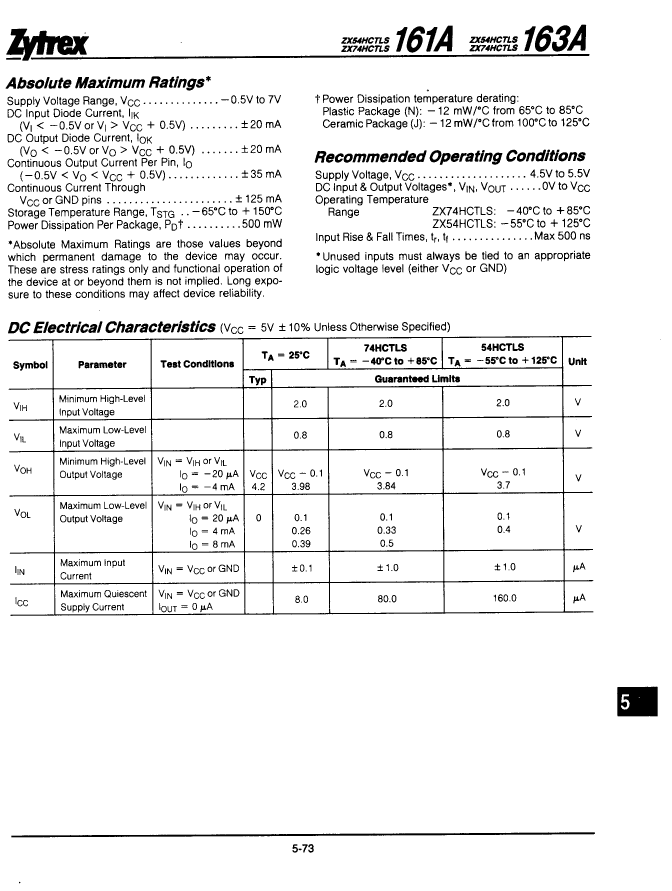

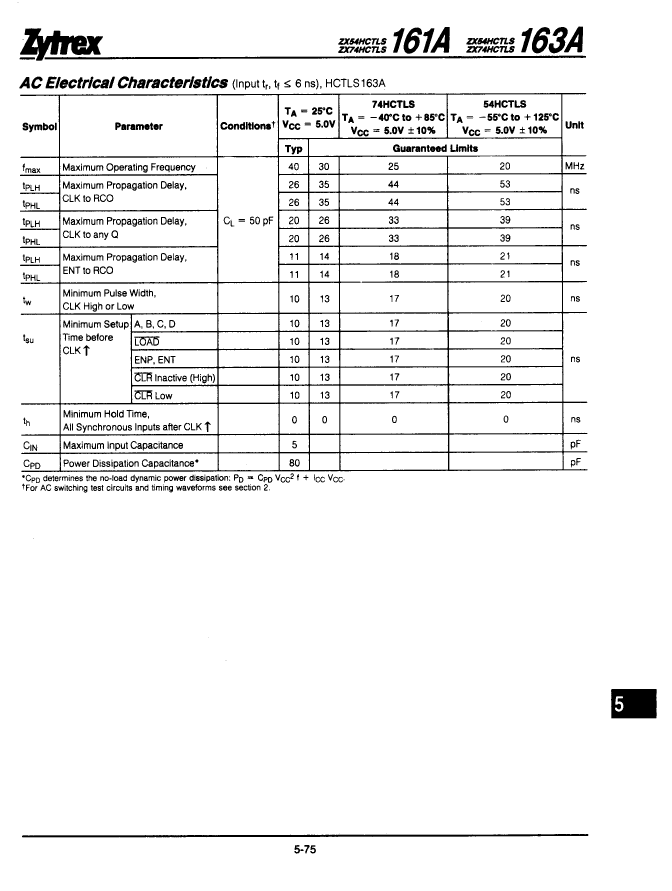

ZX74HCTLS163AN Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerRadiation Semiconductor Corp
package instructionDIP, DIP16,.3
Reach Compliance Codeunknown
Counting directionUP
JESD-30 codeR-PDIP-T16
JESD-609 codee0
Load capacitance (CL)50 pF
Load/preset inputYES
Logic integrated circuit typeBINARY COUNTER
Maximum Frequency@Nom-Sup25000000 Hz
MaximumI(ol)0.008 A
Operating modeSYNCHRONOUS
Number of functions1
Number of terminals16
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply5 V
Certification statusNot Qualified
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL

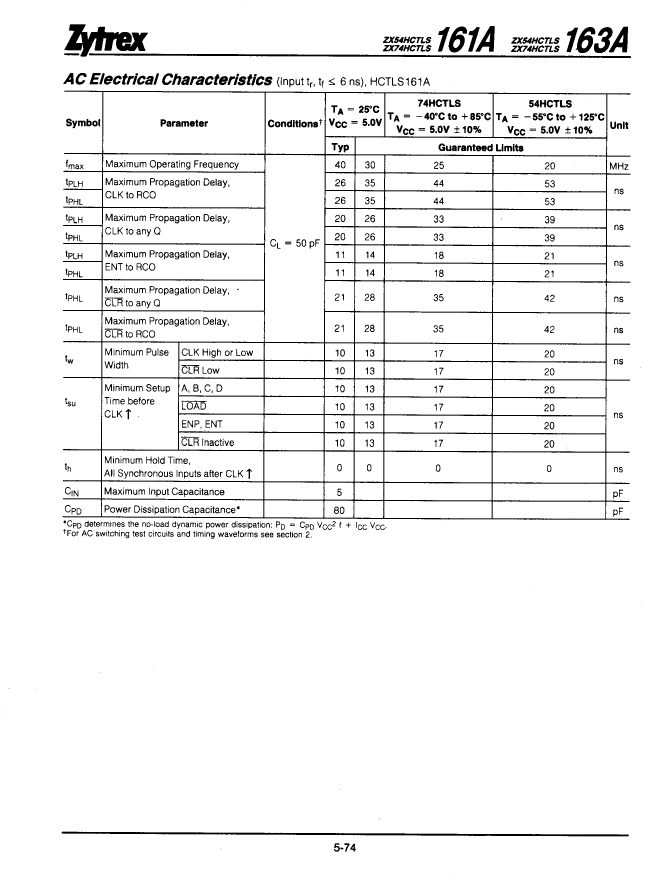

ZX74HCTLS163AN Related Products

ZX74HCTLS163AN ZX74HCTLS163AJ
Description Binary Counter, Synchronous, Up Direction, CMOS, PDIP16 Binary Counter, Synchronous, Up Direction, CMOS, CDIP16
Is it Rohs certified? incompatible incompatible
Maker Radiation Semiconductor Corp Radiation Semiconductor Corp
package instruction DIP, DIP16,.3 DIP, DIP16,.3
Reach Compliance Code unknown unknown
Counting direction UP UP
JESD-30 code R-PDIP-T16 R-XDIP-T16
JESD-609 code e0 e0
Load capacitance (CL) 50 pF 50 pF
Load/preset input YES YES
Logic integrated circuit type BINARY COUNTER BINARY COUNTER
Maximum Frequency@Nom-Sup 25000000 Hz 25000000 Hz
MaximumI(ol) 0.008 A 0.008 A
Operating mode SYNCHRONOUS SYNCHRONOUS
Number of functions 1 1
Number of terminals 16 16
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C
Package body material PLASTIC/EPOXY CERAMIC
encapsulated code DIP DIP
Encapsulate equivalent code DIP16,.3 DIP16,.3
Package shape RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE
power supply 5 V 5 V
Certification status Not Qualified Not Qualified
Nominal supply voltage (Vsup) 5 V 5 V
surface mount NO NO
technology CMOS CMOS
Temperature level INDUSTRIAL INDUSTRIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm
Terminal location DUAL DUAL
