CEH156F18-4-DA: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, IDC Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size205KB，2 Pages; ManufacturerPANCON CONNECTORS

Download Datasheet Parametric View All

CEH156F18-4-DA Overview

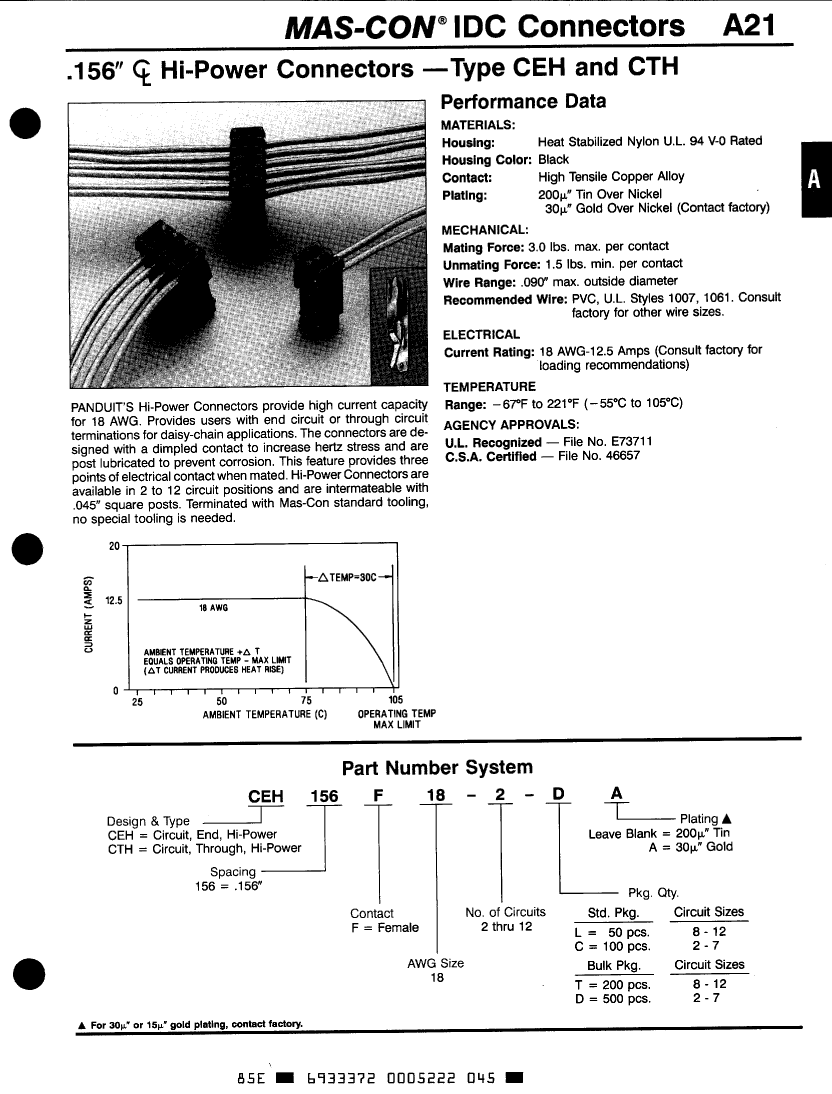

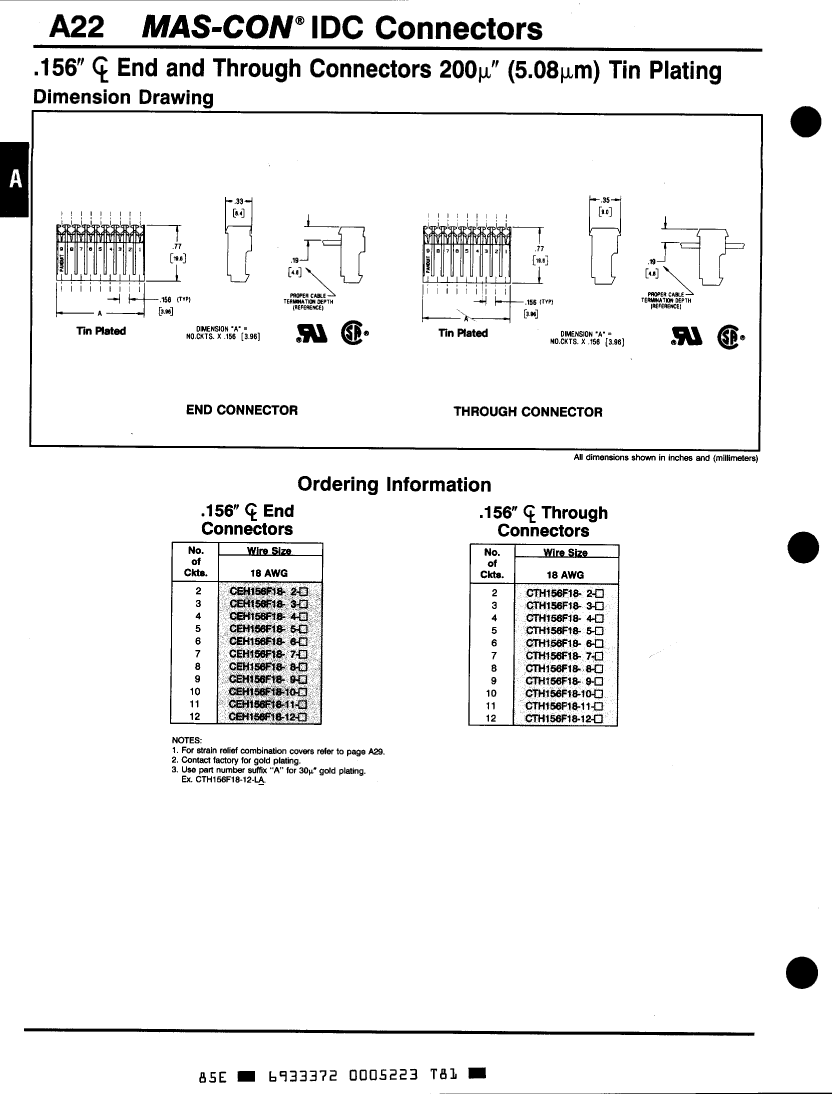

Board Connector, 4 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, IDC Terminal, Black Insulator, Plug

Parameter Name	Attribute value
Maker	PANCON CONNECTORS
Reach Compliance Code	unknown
Other features	CLOSED END, TERMINATION
body width	0.33 inch
subject depth	0.77 inch
body length	0.624 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	DUAL PRONG
maximum insertion force	13.344 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	CEH
Plug contact pitch	0.156 inch
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length
Termination type	IDC
Total number of contacts	4
Maximum wire diameter	18 AWG
Evacuation force-minimum value	6.672 N
