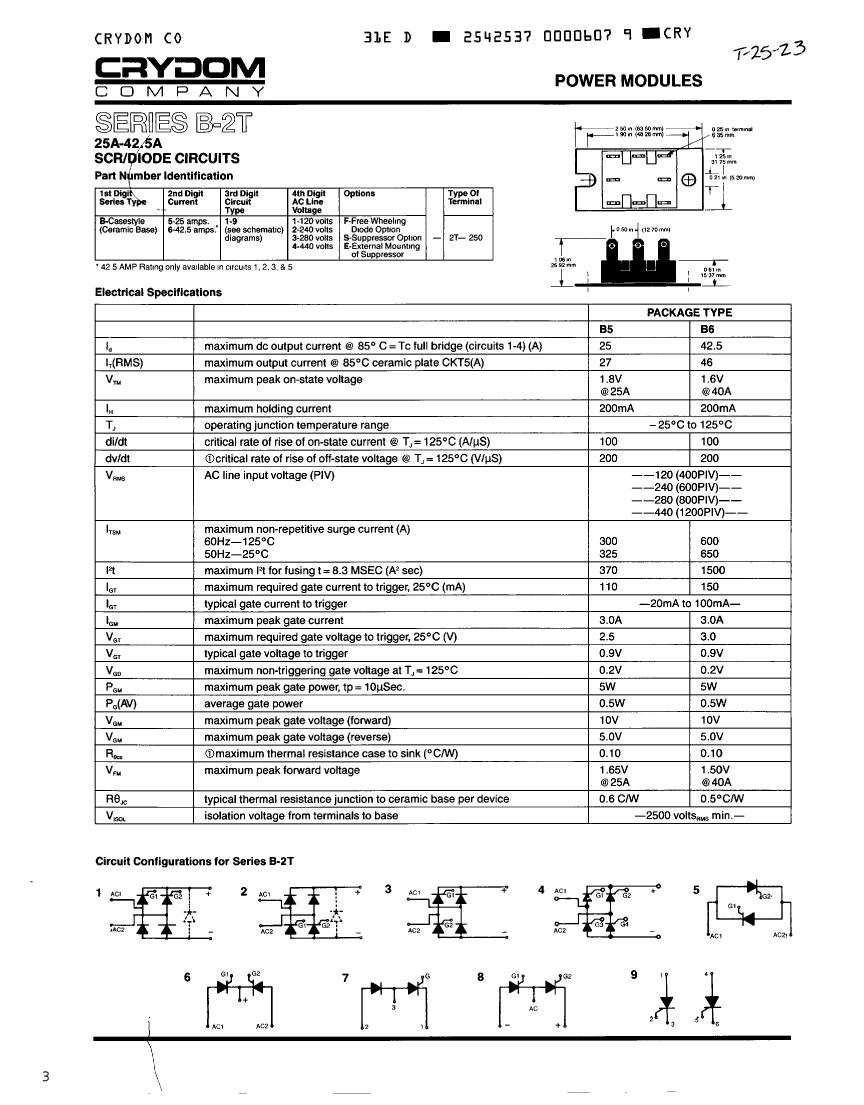

B513E2T Overview

Silicon Controlled Rectifier, 27000mA I(T), 280V V(RRM)

Parameter Name	Attribute value
Maker	Crydom
package instruction	,
Reach Compliance Code	unknown
Configuration	BRIDGE, HALF-CONTROLLED, COMMON CATHODE
Maximum DC gate trigger current	110 mA
Maximum DC gate trigger voltage	2.5 V
Quick connection description	2G-2AK-CA-CK
Description of screw terminals	0
Maximum holding current	200 mA
Maximum leakage current	25000 mA
On-state non-repetitive peak current	325 A
Maximum on-state voltage	1.8 V
Maximum on-state current	27000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-25 °C
Repeated peak reverse voltage	280 V
