Series 1 240 VAC
• Crydom's signature family of solid-state relays. Ratings from 10A to
125A @ 12-280 VAC
• SCR output for heavy industrial loads
• AC or DC control
• Zero-crossing (resistive loads) or random-fire (inductive loads) output

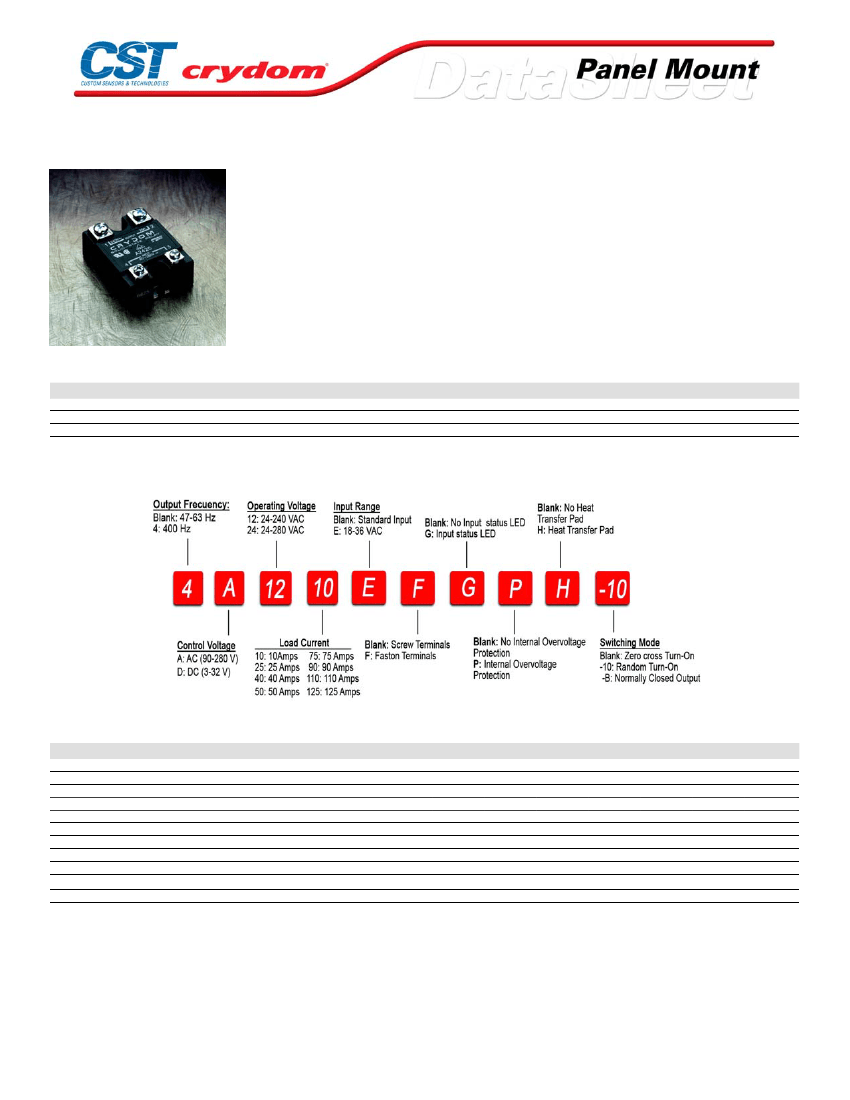

PRODUCT SELECTION
Control Voltage
3-32 VDC
90-280 VAC
18-36 VAC
10A
D2410
A2410
A2410E
25A
D2425
A2425
A2425E
50A
D2450
A2450
A2450E
75A
D2475
A2475
A2475E
90A
D2490
A2490
A2490E
110A
D21110
A24110
A24110E
125A
D24125
A24125
A24125E
AVAILABLE OPTIONS
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage (47-63Hz) [Vrms]
Transient Overvoltage [Vpk]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (2)
Maximum Load Current (3) [Arms]
Minimum Load Current [mArms]
Maximum Surge Current (16.6ms) [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Thermal Resistance Junction to Case (Rjc) [°C/W]
Maximum I
2
t for Fusing (8.3 msec) [A
2
sec]
Minimum Power Factor (with Maximum Load)
24-280
600
10
500
10
40
120
1.6
1.48
60
0.5
24-280
600
10
500
25
40
250
1.6
1.02
260
0.5
24-280
600
10
500
50
40
625
1.6
0.63
1620
0.5
24-280
600
10
500
75
40
1000
1.6
0.31
4150
0.5
24-280
600
10
500
90
40
1200
1.6
0.28
6000
0.5
24-280
600
10
500
110
150
1500
1.7
0.25
9340
0.5
24-280
600
10
500
125
150
1750
1.7
0.22
12700
0.5
For Contact information visit our web
site.
www.crydom.com
©2008 Crydom, Inc.
Specifications subject to change without notice.
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range
Maximum Reverse Voltage
Maximum Turn-On Voltage
Minimum Turn-Off Voltage
Typical Input Current
Nominal Input Impedance [Ohms]
Maximum Turn-On Time [msec] (4)
Maximum Turn-Off Time [msec]
( D PREFIX)
3-32 VDC
-32
3.0 VDC
1.0 VDC
3.4-20 mA
1500 Ohm
1/2 Cycle
1/2 Cycle
( A PREFIX)
90-280 Vrms
-
90 Vrms
10 Vrms
2.0-4.0 mA
60 K Ohm
10
40
( E SUFFIX)
18-36 Vrms
-
18 Vrms
4.0 Vrms
3 mA
9.0 K Ohm
10
40
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 V DC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Encapsulation
Terminals
Recommended Terminal Screw Torque Range:
Fastons:
Parameters
4000 Vrms
10
9
Ohm
8 pF
-40 to 80 °C
-40 to 125 °C
3 oz (86.5g)
Thermally conductive Epoxy
Screw and saddle Clamps Furnished, Unmounted
6-32 Screws - 10 in/lbs. 8-32 & 10-32 Screws - 20 in. lbs. (Screws dry without grease)
Single pair (up to 25A) Double pair* (50A model only) *Caution: User must connect to both pairs
GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.
2) Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
3) Heat sinking required, for derating curves see page 3.
4) Turn-on time for Random turn-on versions is 0.02 msec (DC Control Models)
For Contact information visit our web
site.
www.crydom.com
©2008 Crydom, Inc.
Specifications subject to change without notice.

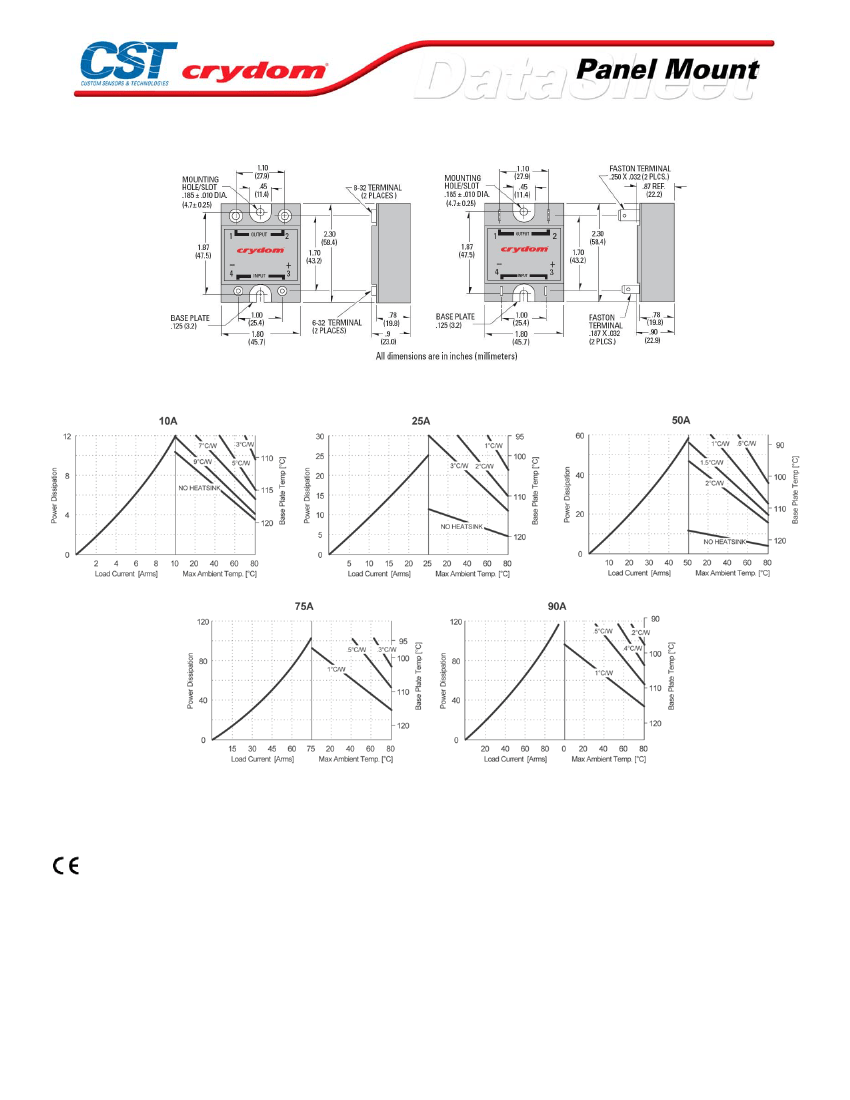

MECHANICAL SPECIFICATIONS
THERMAL DERATE INFORMATION
AGENCY APPROVALS
UL E116949
CSA LR81689
VDE 10143 UG (Not Applicable: -B and 4D
)
Rev. 070308
For Contact information visit our web
site.
www.crydom.com
©2008 Crydom, Inc.
Specifications subject to change without notice.

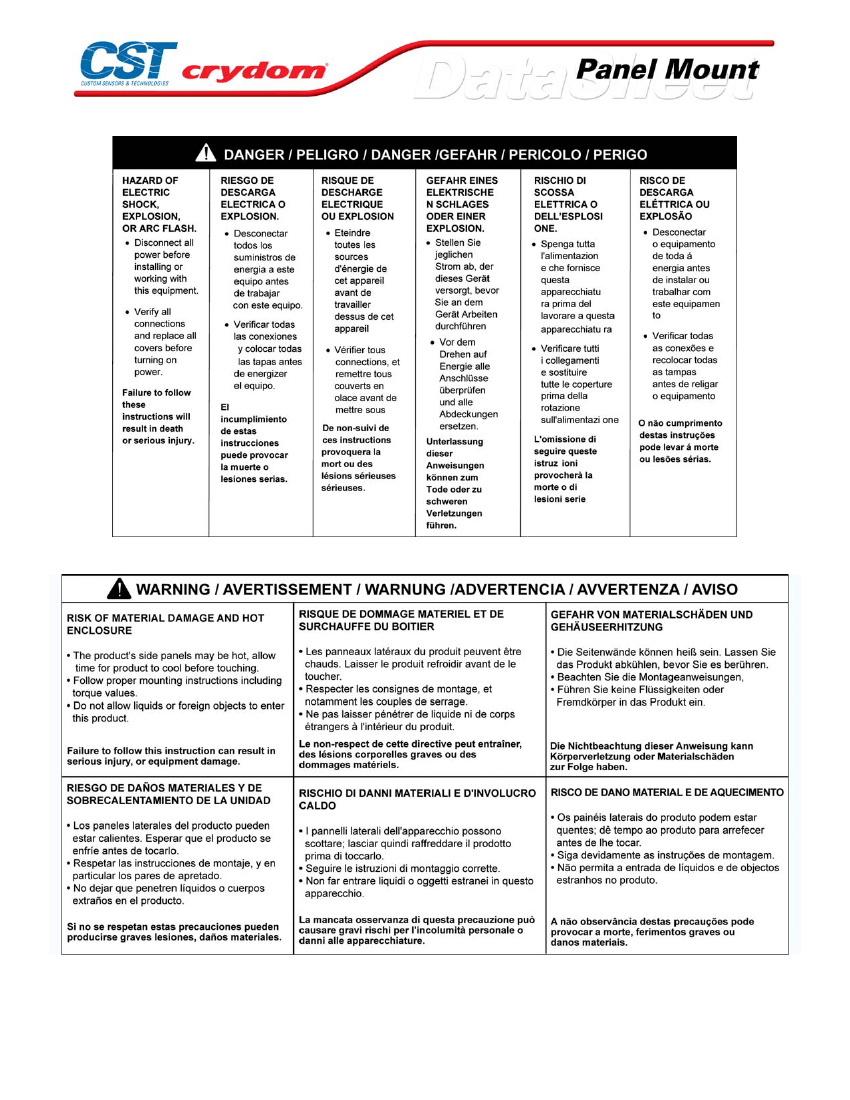

For Contact information visit our web
site.
www.crydom.com
©2008 Crydom, Inc.
Specifications subject to change without notice.

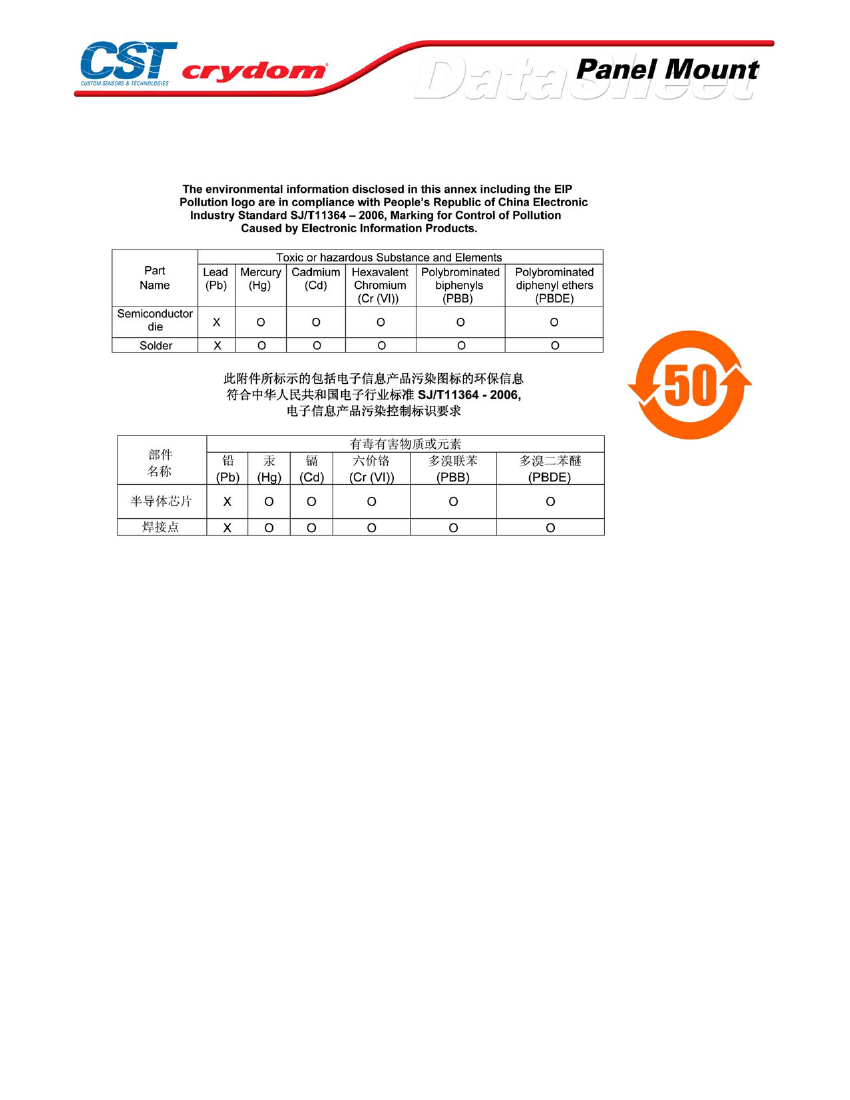

ANNEX - ENVIROMENTAL INFORMATION
For Contact information visit our web
site.
www.crydom.com
©2008 Crydom, Inc.
Specifications subject to change without notice.
