CTGSR105BF-221N datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CTGSR105BF-221N

CTGSR105BF-221N: DescriptionGeneral Purpose Inductor, 220uH, 30%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size162KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTGSR105BF-221N Overview

General Purpose Inductor, 220uH, 30%, 1 Element, SMD, ROHS COMPLIANT

CTGSR105BF-221N Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CT [ Central Technologies ]
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.78 Ω
Nominal inductance(L)	220 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	CTGSR105BF
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-30 °C
Maximum rated current	0.47 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.001 MHz
Tolerance	30%

Preview

Download Datasheet

View All

Power Inductors - Shielded

ctparts.com

CTGSR105BF Series

From 10 µH to 470 µH

Part

Number

Not shown at actual size.

SPECIFICATIONS

Parts specify tolerance code when ordering.

CTGSR105BF-100_

L = ±15%, M = ±20% & N = ±30%

Inductance

(µH)

100

120

150

180

220

270

330

390

470

L Test

Freq.

(_Hz)

2.52M

1.00k

DCR

Max.

(Ω)

0.06

0.07

0.08

0.10

0.11

0.12

0.14

0.19

0.21

0.28

0.34

0.37

0.51

0.57

0.78

0.87

1.20

1.34

1.50

Rated

(A)

2.06

1.94

1.72

1.58

1.42

1.32

1.16

1.10

1.00

0.93

0.85

0.79

0.72

0.63

0.55

0.50

0.47

0.41

0.37

0.35

0.33

Compliant

RoHS

CTGSR105BF-100_

CTGSR105BF-120_

CTGSR105BF-150_

CTGSR105BF-180_

CTGSR105BF-220_

CTGSR105BF-270_

CTGSR105BF-330_

CTGSR105BF-390_

CTGSR105BF-470_

CTGSR105BF-560_

CTGSR105BF-680_

CTGSR105BF-820_

CTGSR105BF-101_

CTGSR105BF-121_

CTGSR105BF-151_

CTGSR105BF-181_

CTGSR105BF-221_

CTGSR105BF-271_

CTGSR105BF-331_

CTGSR105BF-391_

CTGSR105BF-471_

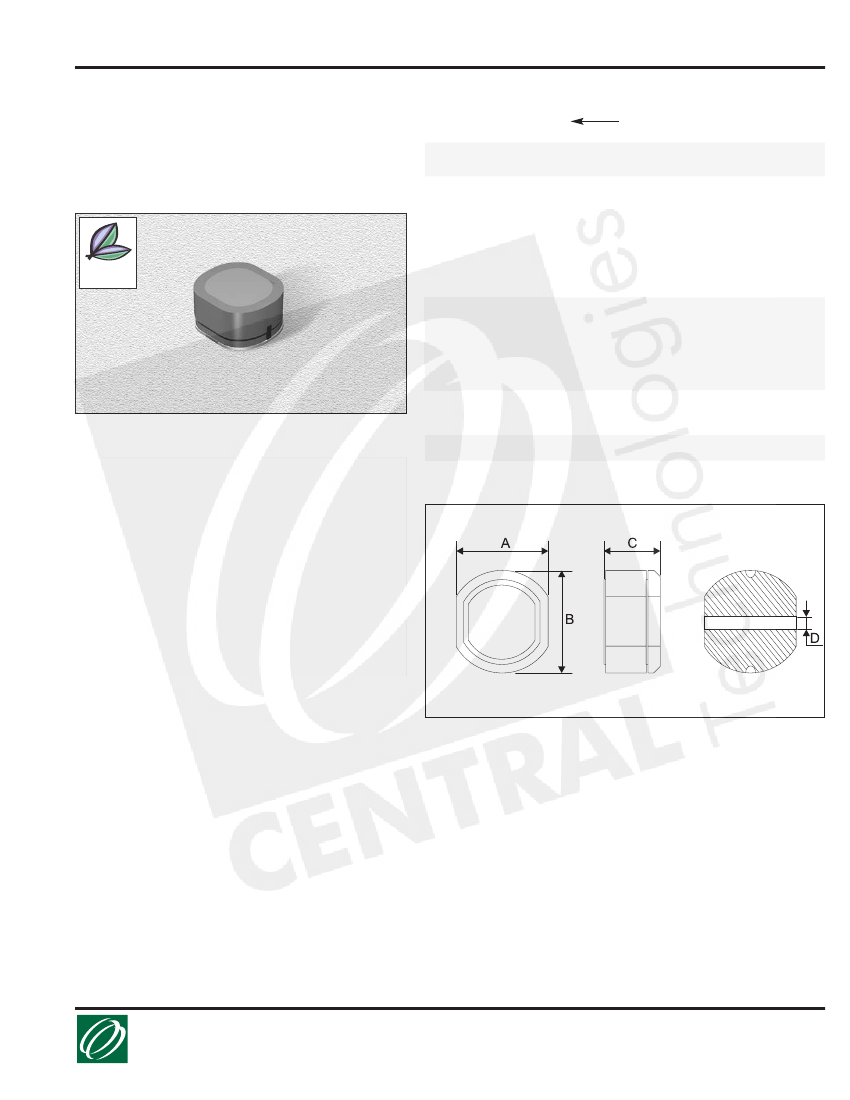

PHYSICAL DIMENSIONS

CHARACTERISTICS

Description:

SMD shielded power inductor

Applications:

VTR power supplies, OA equipment, LCD

televisions, PC notebooks, portable communication equipment,

DC/DC converters

Operating Temperature:

-30°C to +100°C

Inductance Tolerance:

±10%, ±15%, ±20% & ±30%

Testing:

Inductance is tested on an HP4285A at specified

frequency

Packaging:

Tape & Reel, 500 parts per reel

Miscellaneous:

RoHS Compliant.

Marking:

Marked with inductance code

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

Size

inches

9.0 ± 0.5

0.35 ± 0.02

10.0 ± 0.5

0.39 ± 0.02

5.0 ± 0.5

0.20 ± 0.02

(Ref.)

2.9

0.08

07.09.08

Technologies

Manufacturer of Passive and Discrete Semiconductor Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL
