TSC128D
High Voltage NPN Transistor with Diode
TO-220
TO-263
2
(D PAK)
Pin Definition:
1. Base
2. Collector
3. Emitter
PRODUCT SUMMARY
BV
CEO
BV
CBO
I
C
V
CE(SAT)
400V
700V
4A
1.5V @ I
C
/ I
B
= 4A / 1A
Features
●
●
Build-in Free-wheeling Diode Makes Efficient Anti-
saturation Operation
No Need to Interest an hfe Value Because of Low
Variable Storage-time Spread Even Though Comer
Spirit Product.
●
●
Low Base Drive Requirement
Suitable for Half Bridge Light Ballast Application

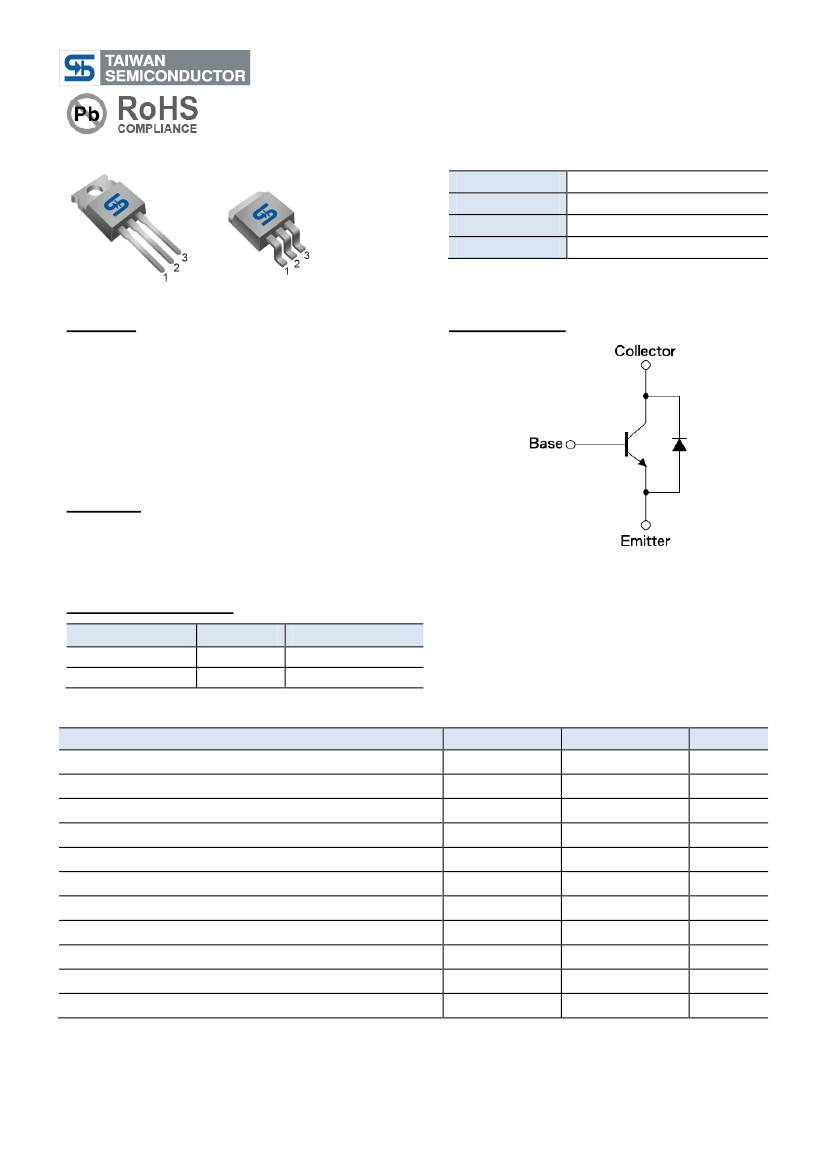

Block Diagram
Structure
●
●
●
Silicon Triple Diffused Type
NPN Silicon Transistor
Integrated Anti-parallel Collector-Emitter Diode
Ordering Information
Part No.
TSC128DCZ C0
TSC128DCM RN
Package
TO-220
TO-263
Packing
50pcs / Tube
800pcs / 13” Reel
Absolute Maximum Rating
(Ta = 25
o
C unless otherwise noted)
Parameter
Collector-Base Voltage
Collector-Emitter Voltage @ V
BE
=0V
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Collector Peak Current (tp <5ms)
Base Current
Base Peak Current (tp <5ms)
Power Total Dissipation @ Tc=25ºC
Maximum Operating Junction Temperature
Storage Temperature Range
Symbol
V
CBO
V
CES
V
CEO
V
EBO
I
C
I
CM
I
B
I
BM
P
DTOT
T
J
T
STG
Limit
700
700
400
9
4
8
2
4
35
+150
-55 to +150
Unit
V
V
V
V
A
A
A
A
W
o
o
C
C
1/6
Version: B11
TSC128D
High Voltage NPN Transistor with Diode
Thermal Performance
Parameter
Thermal Resistance - Junction to Case
Thermal Resistance - Junction to Ambient
TO-220
TO-263
TO-220
TO-263
Symbol
RӨ
JC
RӨ
JA
Limit
1.78
1.78
62.5
62.5
Unit
o
C/W
C/W
o
Electrical Specifications
(Ta = 25
o
C unless otherwise noted)
Parameter
Static
Collector-Base Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Collector Cutoff Current
Emitter Cutoff Current
I
C
=1mA, I
B
=0
I
C
=10mA, I
E
=0
I
E
=1mA, I
C
=0
V
CB
=700V, I
E
=0
V
CE
=400V, I
B
=0
V
EB
=7V, I
C
=0
I
C
=0.5A, I
B
=0.1A
Collector-Emitter Saturation Voltage
I
C
=1A, I
B
=0.2A
I
C
=2.5A, I
B
=0.5A
I
C
=4A, I
B
=1A
Base-Emitter Saturation Voltage
I
C
=1A, I
B
=0.2A
I
C
=2A, I
B
=0.5A
V
CE
=5V, I
C
=10mA
DC Current Gain
Forward Voltage Drop
Turn On Time
Storage Time
V
CE
=5V, I
C
=1A
V
CE
=5V, I
C
=2A
I
F
=2A
V
CC
=250V, I
C
=1A,
I
B1
=I
B2
=0.2A, t
p
=25uS
Vf
t
ON
t
STG
t
f
Hfe
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
CEO
I
EBO
V
CE(SAT)1
V
CE(SAT)2
V
CE(SAT)3
V
CE(SAT)4
V
BE(SAT)1
V
BE(SAT)2
700
400
9
--
--
--
--
--
--
--
--
--
10
17
12
--
--
--
--
--
--
--
--
--
--
0.25
0.5
1.2
0.5
--
--
--
--
--
--
0.2
3.0
0.2
--
--
--
100
250
10
0.7
1
1.5
--
1.1
1.2
--
27
32
2
0.6
4.5
0.3
V
uS
uS
uS
V
V
V
V
V
uA
uA
uA
Conditions
Symbol
Min
Typ
Max
Unit
Duty Cycle<1%
Fall Time
Notes: Pulsed duration =380uS, duty cycle
≤2%
2/6
Version: B11
TSC128D
High Voltage NPN Transistor with Diode

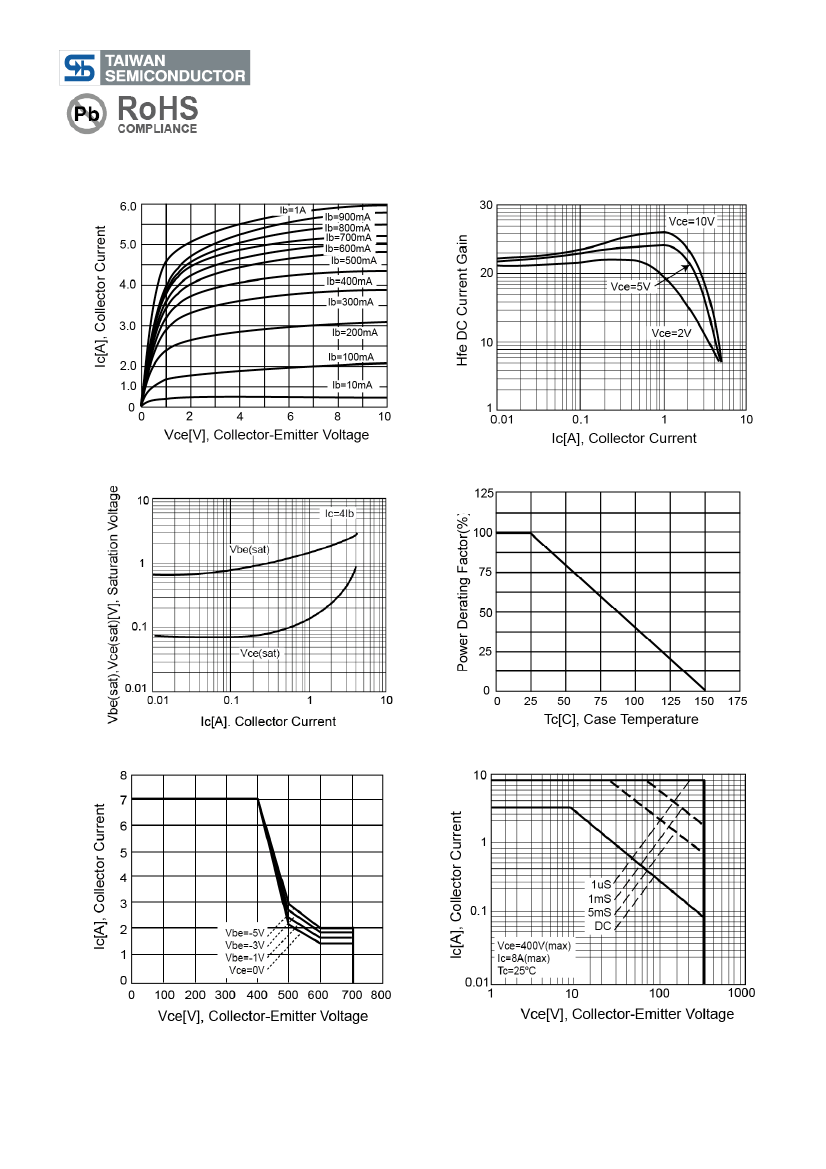

Electrical Characteristics Curve
(Ta = 25
o
C, unless otherwise noted)
Figure 1. Static Characteristics
Figure 2. DC Current Gain
Figure 3. Vce(sat) v.s. Vbe(sat)
Figure 4. Power Derating
Figure 5. Reverse Bias SOA
Figure 6. Safety Operating Area
3/6
Version: B11
TSC128D
High Voltage NPN Transistor with Diode

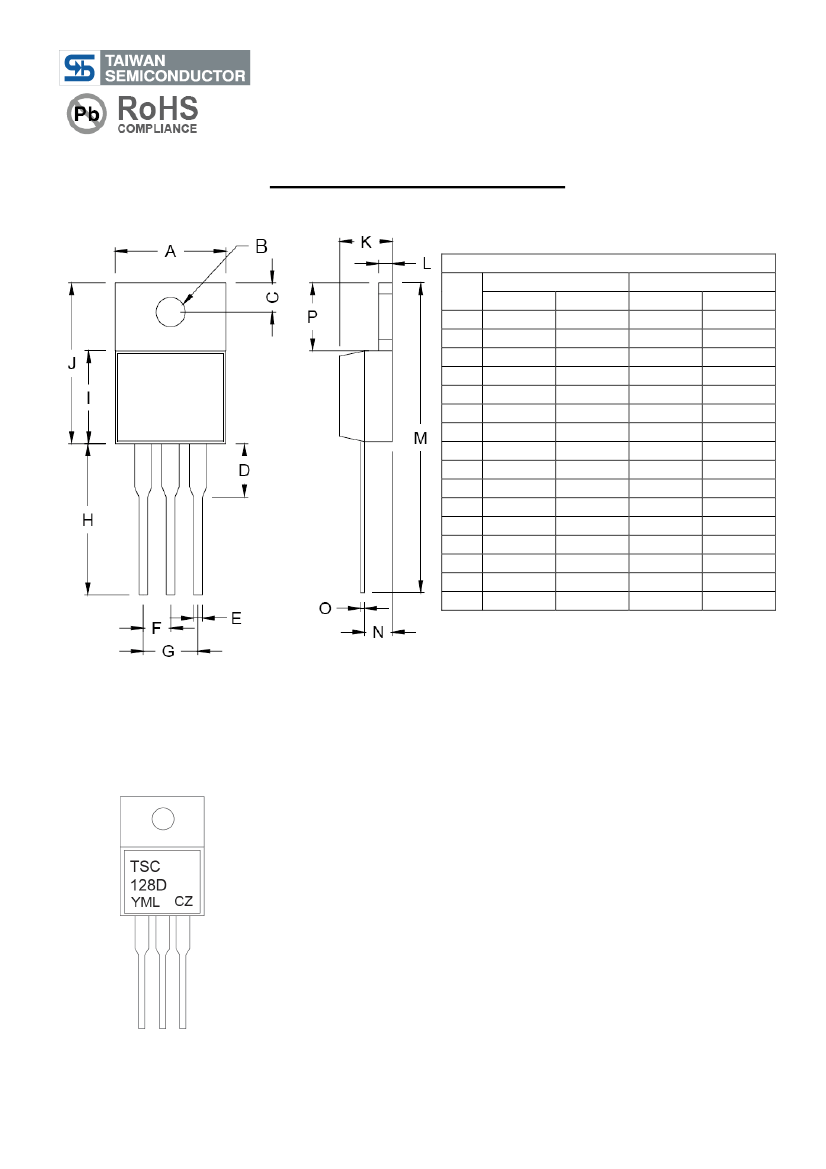

TO-220 Mechanical Drawing
DIM
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
TO-220 DIMENSION
MILLIMETERS
INCHES
MIN
MAX
MIN
MAX
9.31
10.550
0.366
0.415
3.740
3.910
0.147
0.154
2.440
2.940
0.096
0.116
2.22
3.22
0.087
0.127
0.78
0.98
0.030
0.038
2.34
2.65
0.092
0.104
4.69
5.31
0.184
0.209
12.32
13.88
0.485
0.546
8.74
9.26
0.344
0.364
15.07
16.07
0.593
0.632
4.35
4.65
0.171
0.183
1.16
1.40
0.045
0.055
27.39
30.35
1.078
1.194
1.785
2.675
0.070
0.105
1.50
1.75
0.059
0.068
5.75
7.65
0.226
0.301
Marking Diagram
Y
= Year Code
M
= Month Code
(A=Jan,
B=Feb, C=Mar, D=Apl, E=May, F=Jun, G=Jul, H=Aug,
I=Sep, J=Oct, K=Nov, L=Dec)
L
= Lot Code
4/6
Version: B11
TSC128D
High Voltage NPN Transistor with Diode
TO-263 Mechanical Drawing
DIM
A
B
C
D
E
F
G
H
I
J
TO-263 DIMENSION
MILLIMETERS
INCHES
MIN
MAX
MIN
MAX
10.000
10.500
0.394
0.413
14.605
15.875
0.575
0.625
0.508
0.991
0.020
0.039
2.420
2.660
0.095
0.105
4.064
4.830
0.160
0.190
1.118
1.400
0.045
0.055
0.450
0.730
0.018
0.029
8.280
8.800
0.325
0.346
1.140
1.400
0.044
0.055
1.480
1.520
0.058
0.060
Marking Diagram
Y
= Year Code
M
= Month Code
(A=Jan,
B=Feb, C=Mar, D=Apl, E=May, F=Jun, G=Jul, H=Aug,
I=Sep, J=Oct, K=Nov, L=Dec)
L
= Lot Code
5/6
Version: B11
