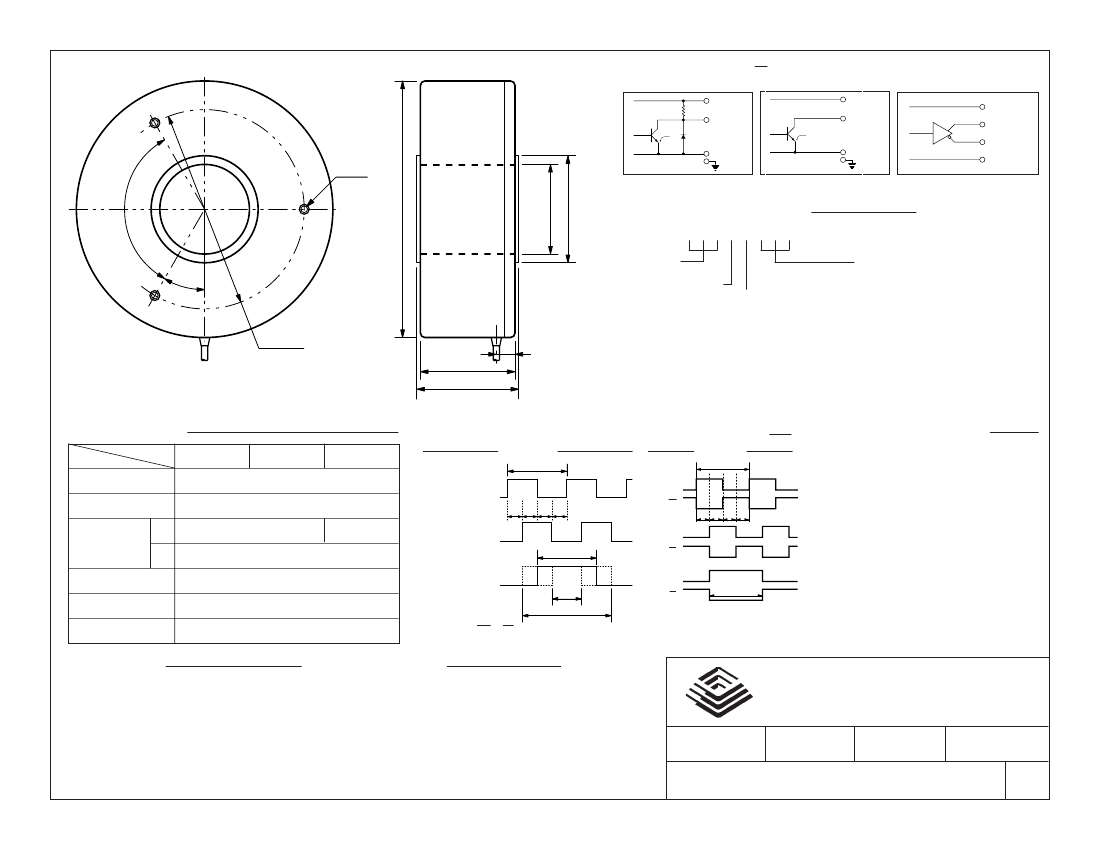

OUTPUT CIRCUITS
TYPE R (Voltage)
TYPE C (Open Coll) TYPE E (Line Driver)
2kΩ
©
C U I Stack, Inc.,
1997
Vcc
Signal
Vcc
Signal
30mA
max
Vcc
Signal
Inv. Sig.
0V
20mA
max
0V
CABLE SHIELD
0V
CABLE SHIELD
3-M4
Ø36
- 0.000
Ø43
Ø103
120˚
+0.025
ORDERING INSTRUCTIONS
MEH80-_ _ _-_ _-_ _ _
Resolution
Output Format:
R = Voltage
C = Open Coll
E = Line Driver
Bore Size:
127 = 0.5"
1905 = 0.75"
245 = 1.0"
30 = 30mm
3175 = 1.25"
36 = 36mm
30˚
PCD80
38
39
7.5
Input Voltage:
1 = 5VDC
±10%
2 = 12VDC
±10%
3 = 5~12VDC
±10%
4 = 24VDC
±10%
SPECIFICATIONS
OUTPUT WAVEFORM
(Clockwise rotation viewed from front)
TYPE E
STANDARD RESOLUTIONS
MEH80-XXX
600
600 P/R
10800* 10800 P/R
800
800 P/R
18000 18000 P/R
1000 1000 P/R
21600* 21600 P/R
*A/B only; no index channel
TYPE
Supply Voltage
Current
Output
Voltage
Sink Current
Signal Risetime
Freq. Response
R
C
5.0 VDC ±10%
12.0 VDC ±10%
D
TYPE R,C
P
P
Sig A
Sig A
Sig B
h
Sig B
Sig Z
h min
Sig Z
60mA max.
Signal A
ab cd
≥
2.5V
a b c d
H
L
Vcc - 1V
≤
0.5V
20mA max.
≤
2µS
30 - 100kHz
Signal B
Signal Z
P±P/2
P = 1/PPR
h max
P P
a,b,c,d = ±
h = P ± 0.75P Wave Duty Ratio: 50% ± 25%
4 8
MECHANICAL
1. Max Shaft Load, radial: 1.5 kgf
axial: 0.5 kgf
2. Moment of Inertia: 40 g•cm
2
3. Angular Acceleration: 1x10
5
rad/S
2
4. Max Slewing Speed: 1000 RPM
5. Starting Torque: 200 gf•cm max.
6. Rotational Life: 1 x 10
7
rpm•hrs
ENVIRONMENTAL
1.
2.
3.
4.
5.
Operating Temp: 0° to +60° C
Storage Temp: -20° to +80° C
Humidity: 90% RH, no condensation
Vibration: 10~55 Hz, 1.5 mm, 2 hrs
Shock: 50G, 11ms, 3 axes, 3 reps
C U I Stack, Inc.
9615 SW Allen Blvd. #103
Beaverton, OR 97005
Tel: 503/643-4899 FAX: 503/643-6129
DRAWN BY
UPDATED
CHECKED
RELEASED
PART NO.
REV.
MEH80-XXX-XX-XXX A
