82344 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 82344

82344: DescriptionTerminal and Terminal Block,; CategoryThe connector; File Size36KB，1 Pages; ManufacturerEtco Inc

Download Datasheet Parametric Compare View All

82344 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	82344	-	-	View	Buy Now

82344 Overview

Terminal and Terminal Block,

82344 Parametric

Parameter Name	Attribute value
Maker	Etco Inc
Reach Compliance Code	unknown

Preview

Download Datasheet

View All

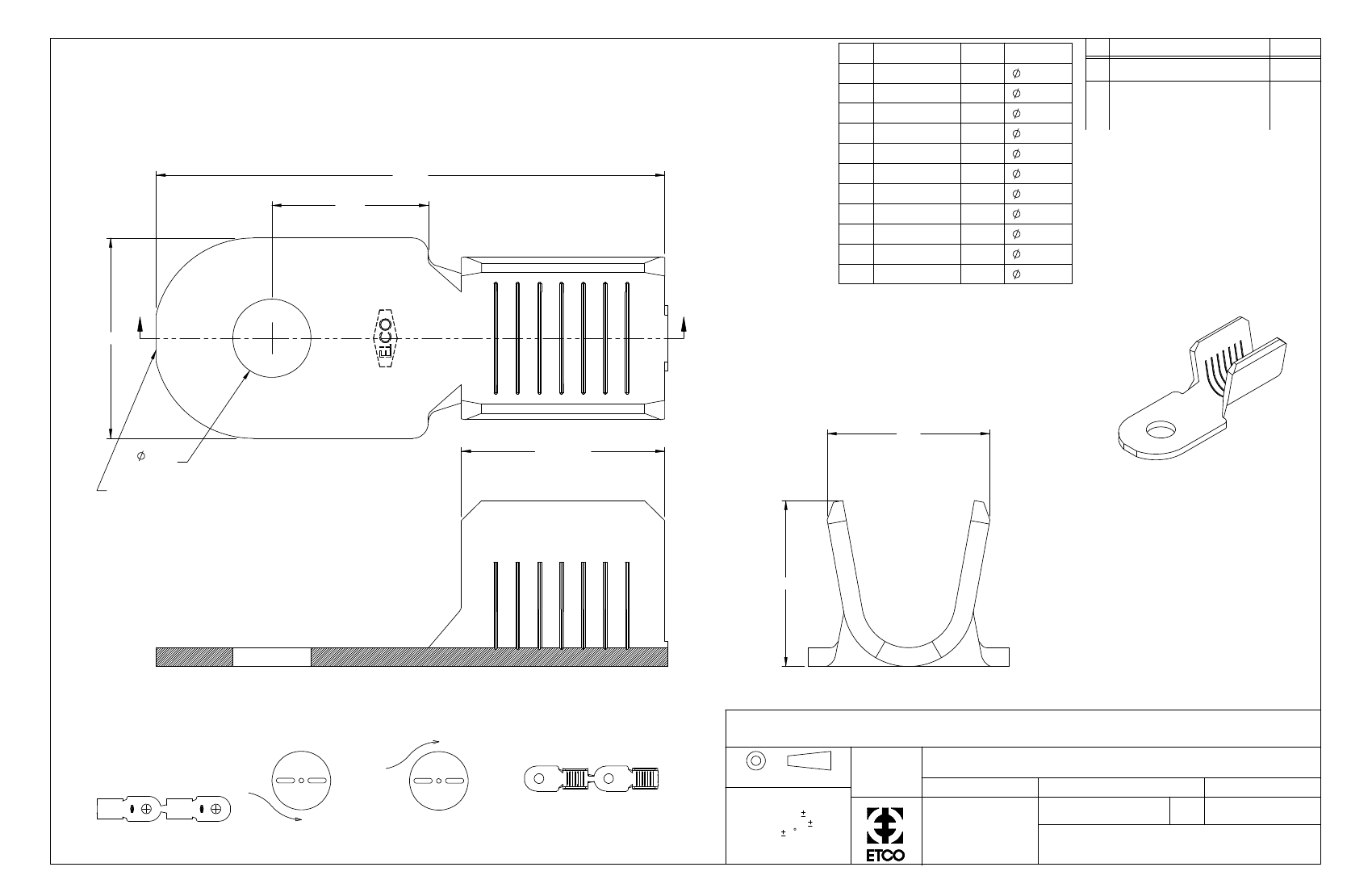

NOTES:

1. MATERIAL: .060 THICK C26000 BRASS; 1/2 HARD, ANNEALED TO TEMPER,

PER ETCO METAL CODE 07032.

2. MATERIAL: .060 THICK C26000 PRE-TINNED BRASS; 1/2 HARD, ANNEALED TO TEMPER,

PER ETCO METAL CODE 01900.

3. MATERIAL: .060 THICK C11000 PRE-TINNED COPPER; 1/2 HARD,

PER ETCO METAL CODE 00223.

4. PARTS MAY BE COATED WITH A LIGHT FILM OF LUBRICATION

USED IN THE MANUFACTURING PROCESS.

5. WIRE RANGE: #4-#6 AWG.

1.625

.500

P/C

82350

82352

82354

DESCRIPTION

R553E-350-HB

R553E-14-HB

R553E-275-THB

MAT'L

NOTE 1

NOTE 2

DIM 'X'

.355-.345

.255-.245

.280-.270

.333-.323

.280-.270

.286-.276

.408-.398

.442-.432

.286-.276

.408-.398

.442-.432

Rev.

Description of Change/ SCN#

Date

INITIAL RELEASE

SCN#140184

SCJ

6-1-07

82359 R553E-5/16-THB NOTE 2

82361

82338

82339

82344

R553E-275-HB

R553E-281-HB

R553E-403-HB

R553E-437-HB

NOTE 1

NOTE 3

82346 R553E-281-TCU

82348 R553E-403-TCU

82349 R553E-437-TCU

.640

"X"

SEE TABLE

CUT-OFF FLAT PERMISSIBLE

.650

+.010

- .005

.52

.53

SECTION A-A

UNCONTROLLED COPY

TOOL NO.

ETCO

THIRD ANGLE PROJECTION

TOLERANCES UNLESS

OTHERWISE SPECIFIED

Title:

0843

RING TERMINAL

Drawn By:

DO NOT SCALE DWG.

S.JOHNSON

Scale:

Date:

6-1-07

DIRECTION EXITING TOOL

EARS DOWN, TO THE LEFT

DIRECTION TOWARDS APPLICATOR

EARS UP, TO THE RIGHT

THIS PRINT IS THE PROPERTY OF ETCO INCORPORATED. NO PART OF THIS DESIGN MAY BE USED IN ANY WAY WITHOUT WRITTEN CONSENT FROM ETCO INCORPORATED.

INCHES: .XX - .030

.XXX - .015

ANGLES: 5

ETCO Incorporated

Engineered Products

25 Bellows Street

Warwick, RI 02888

Phone: (401) 467-2400

Fax: (401) 467-9230

www.ETCO.com

Chk'd/App'd By:

Dwg. No.:

Size

R553E cust

82344 Related Products

	82344	R553E-281-HB	R553E-281-TCU	R553E-14-HB	82354
Description	Terminal and Terminal Block,	Terminal and Terminal Block,	Terminal and Terminal Block,	Terminal and Terminal Block,	Terminal and Terminal Block,
Maker	Etco Inc	Etco Inc	Etco Inc	Etco Inc	Etco Inc
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
