810KS datasheet, PDF - EEWORLD Datasheet

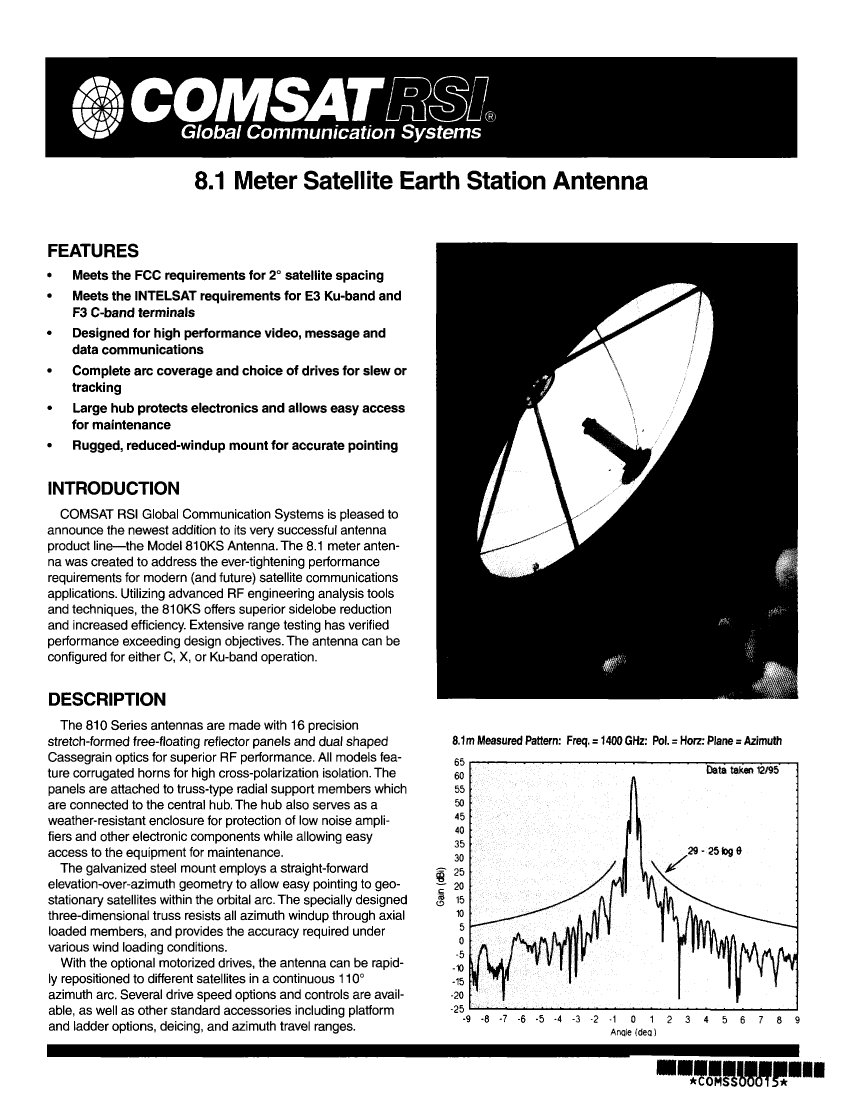

810KS: DescriptionBase Station/Broadcast Transmission Antenna, 17300MHz Min, 18100MHz Max, 49.2dB Gain, 110deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size117KB，2 Pages; ManufacturerGeneral Dynamics SATCOM Technologies

Download Datasheet Parametric Compare View All

810KS Overview

Base Station/Broadcast Transmission Antenna, 17300MHz Min, 18100MHz Max, 49.2dB Gain, 110deg 3dB Beamwidth

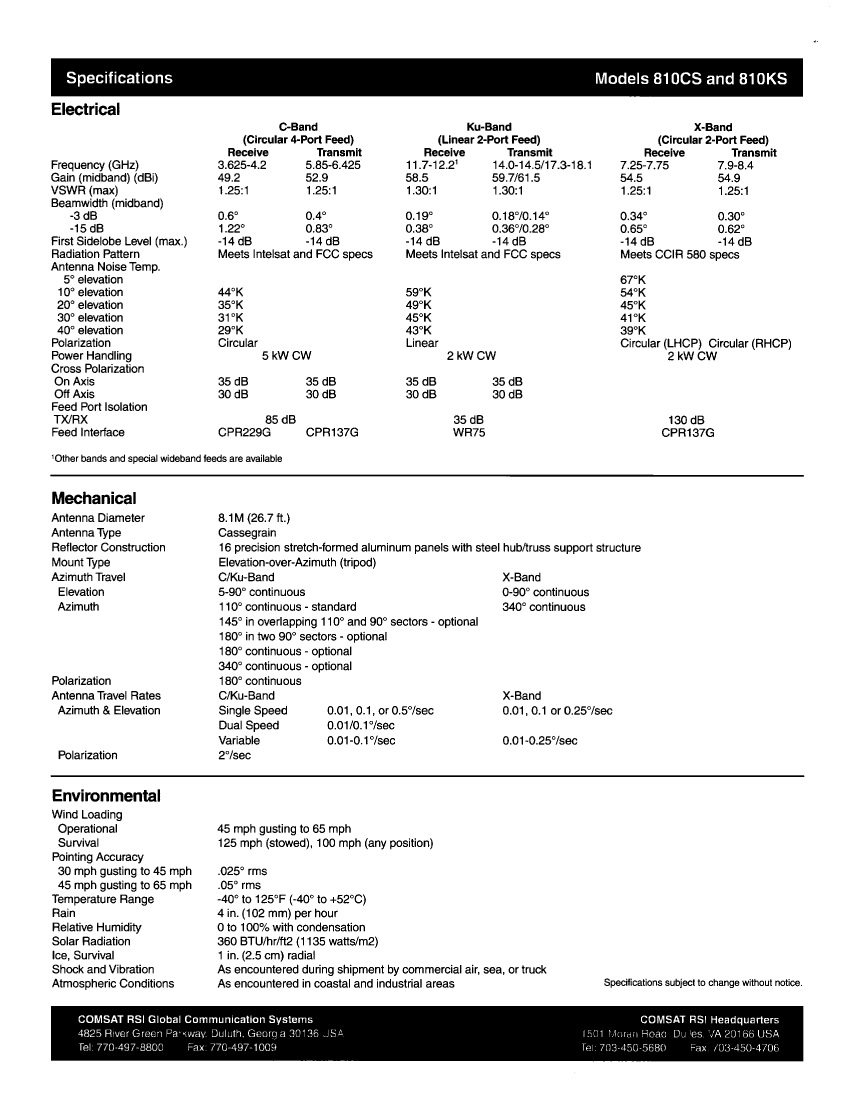

Parameter Name	Attribute value
Maker	General Dynamics SATCOM Technologies
Reach Compliance Code	unknown
Other features	IT CAN ALSO BE OPERATED FROM 11700MHZ TO 12200MHZ
Beam Width-E	90 deg
Beamwidth-H	110 deg
diameter	8.1 mm
Gain	49.2 dB
Omnidirectional	YES
Maximum operating frequency	18100 MHz
Minimum operating frequency	17300 MHz
Maximum operating temperature	52 °C
Minimum operating temperature	-40 °C
polarization	CIRCULAR
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	5000 W
Maximum voltage standing wave ratio	1.3
Commentary	125 mph

	810KS	810CS
Description	Base Station/Broadcast Transmission Antenna, 17300MHz Min, 18100MHz Max, 49.2dB Gain, 110deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 17300MHz Min, 18100MHz Max, 49.2dB Gain, 110deg 3dB Beamwidth
Maker	General Dynamics SATCOM Technologies	General Dynamics SATCOM Technologies
Reach Compliance Code	unknown	unknown
Other features	IT CAN ALSO BE OPERATED FROM 11700MHZ TO 12200MHZ	IT CAN ALSO BE OPERATED FROM 11700MHZ TO 12200MHZ
Beam Width-E	90 deg	90 deg
Beamwidth-H	110 deg	110 deg
diameter	8.1 mm	8.1 mm
Gain	49.2 dB	49.2 dB
Omnidirectional	YES	YES
Maximum operating frequency	18100 MHz	18100 MHz
Minimum operating frequency	17300 MHz	17300 MHz
Maximum operating temperature	52 °C	52 °C
Minimum operating temperature	-40 °C	-40 °C
polarization	CIRCULAR	CIRCULAR
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	5000 W	5000 W
Maximum voltage standing wave ratio	1.3	1.3
Commentary	125 mph	125 mph
