BYM06-200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYM06-200

BYM06-200: DescriptionRectifier Diode, 1 Element, 0.5A, 200V V(RRM), Silicon, DO-213AA, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size82KB，2 Pages; ManufacturerGeneral Instrument Corp

Download Datasheet Parametric Compare View All

BYM06-200 Overview

Rectifier Diode, 1 Element, 0.5A, 200V V(RRM), Silicon, DO-213AA, PLASTIC PACKAGE-2

BYM06-200 Parametric

Parameter Name	Attribute value
Maker	General Instrument Corp
package instruction	PLASTIC PACKAGE-2
Reach Compliance Code	unknown
Other features	PATENTED DEVICE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-213AA
JESD-30 code	O-PELF-R2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	0.5 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.15 µs
surface mount	YES
Terminal form	WRAP AROUND
Terminal location	END

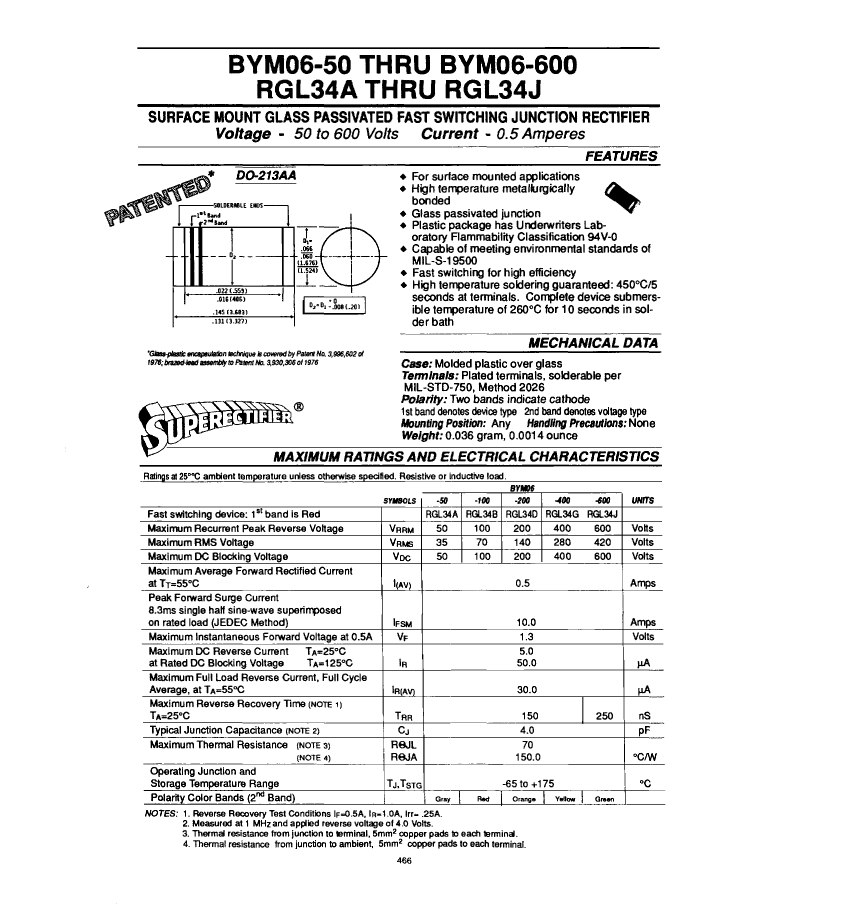

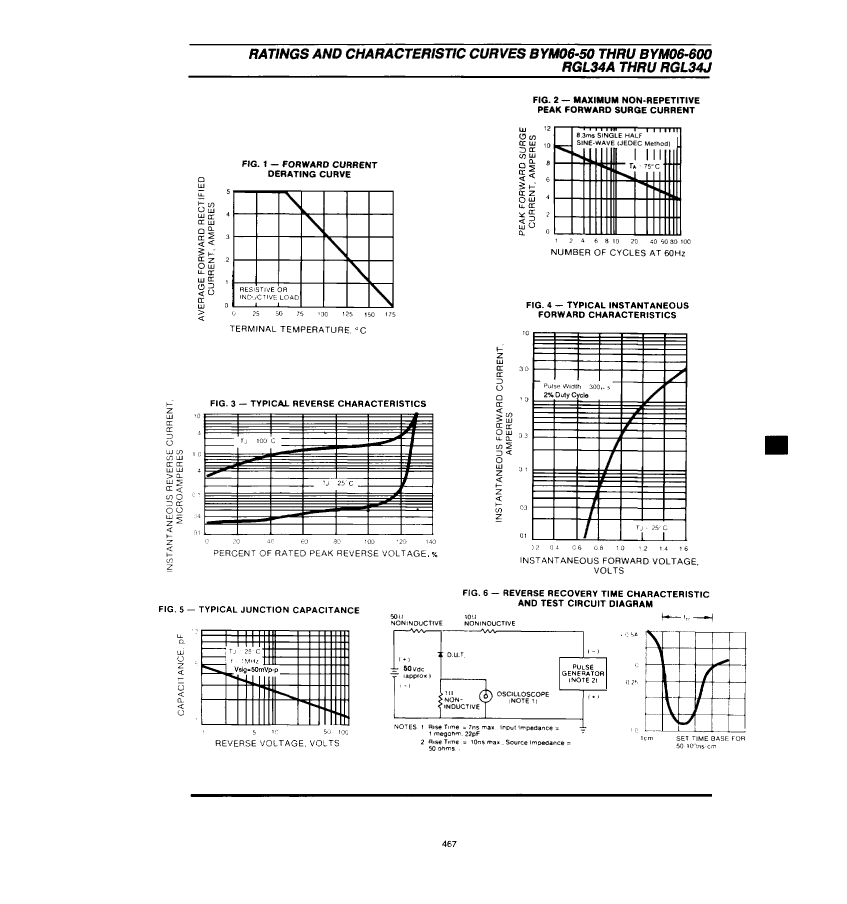

Preview

Download Datasheet

View All

BYM06-200 Related Products

	BYM06-200	BYM06-100	BYM06-400	BYM06-50	BYM06-600
Description	Rectifier Diode, 1 Element, 0.5A, 200V V(RRM), Silicon, DO-213AA, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 0.5A, 100V V(RRM), Silicon, DO-213AA, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 0.5A, 400V V(RRM), Silicon, DO-213AA, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 0.5A, 50V V(RRM), Silicon, DO-213AA, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 0.5A, 600V V(RRM), Silicon, DO-213AA, PLASTIC PACKAGE-2
package instruction	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
Other features	PATENTED DEVICE	PATENTED DEVICE	PATENTED DEVICE	PATENTED DEVICE	PATENTED DEVICE
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-213AA	DO-213AA	DO-213AA	DO-213AA	DO-213AA
JESD-30 code	O-PELF-R2	O-PELF-R2	O-PELF-R2	O-PELF-R2	O-PELF-R2
Number of components	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	100 V	400 V	50 V	600 V
Maximum reverse recovery time	0.15 µs	0.15 µs	0.15 µs	0.15 µs	0.25 µs
surface mount	YES	YES	YES	YES	YES
Terminal form	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND
Terminal location	END	END	END	END	END
Maker	General Instrument Corp	-	General Instrument Corp	General Instrument Corp	General Instrument Corp
