DS1315SN-3V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> DS1315SN-3V

DS1315SN-3V: DescriptionReal Time Clock, Volatile, 0 Timer(s), CMOS, PDSO16,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size462KB，22 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

DS1315SN-3V Overview

Real Time Clock, Volatile, 0 Timer(s), CMOS, PDSO16,

DS1315SN-3V Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	DALLAS
Reach Compliance Code	unknown
Information access methods	SERIAL, FIXED PROTOCOL
interrupt capability	N
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Number of terminals	16
Number of timers
Maximum operating temperature	85 °C
Minimum operating temperature	-45 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	3 V
Certification status	Not Qualified
Nominal supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
shortest time	1/100 SECOND
Volatile	YES
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK

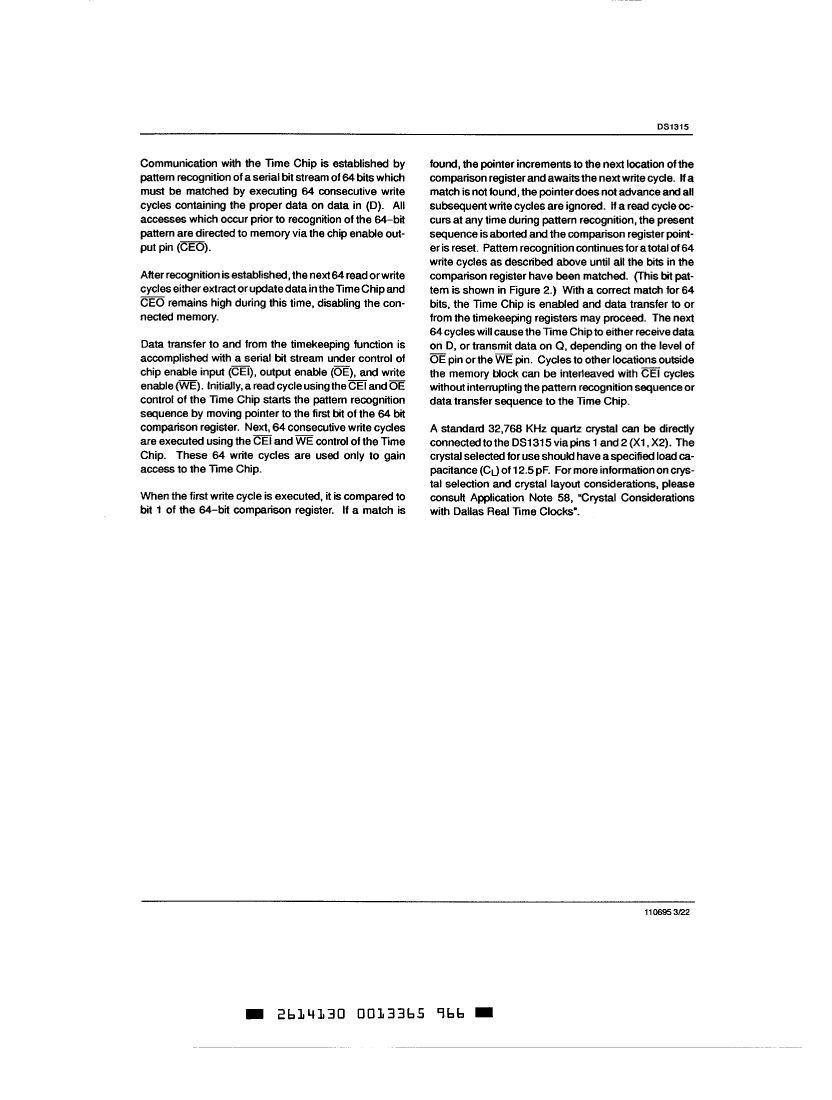

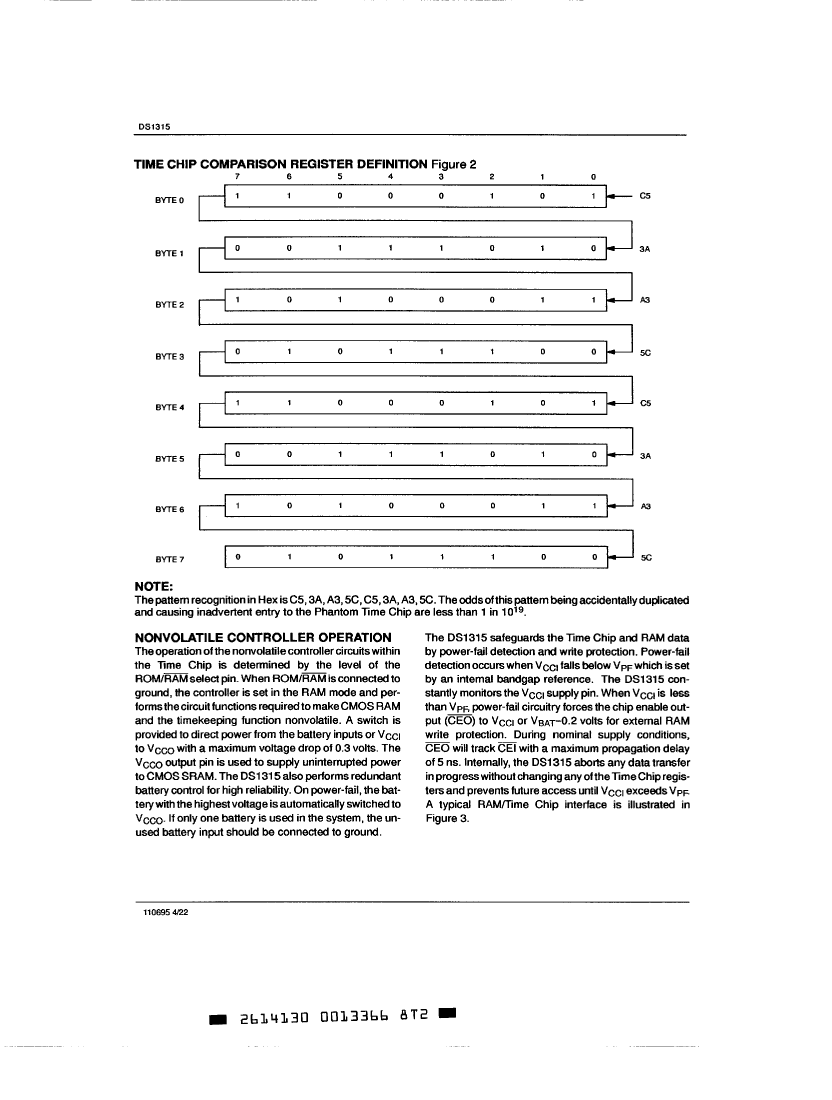

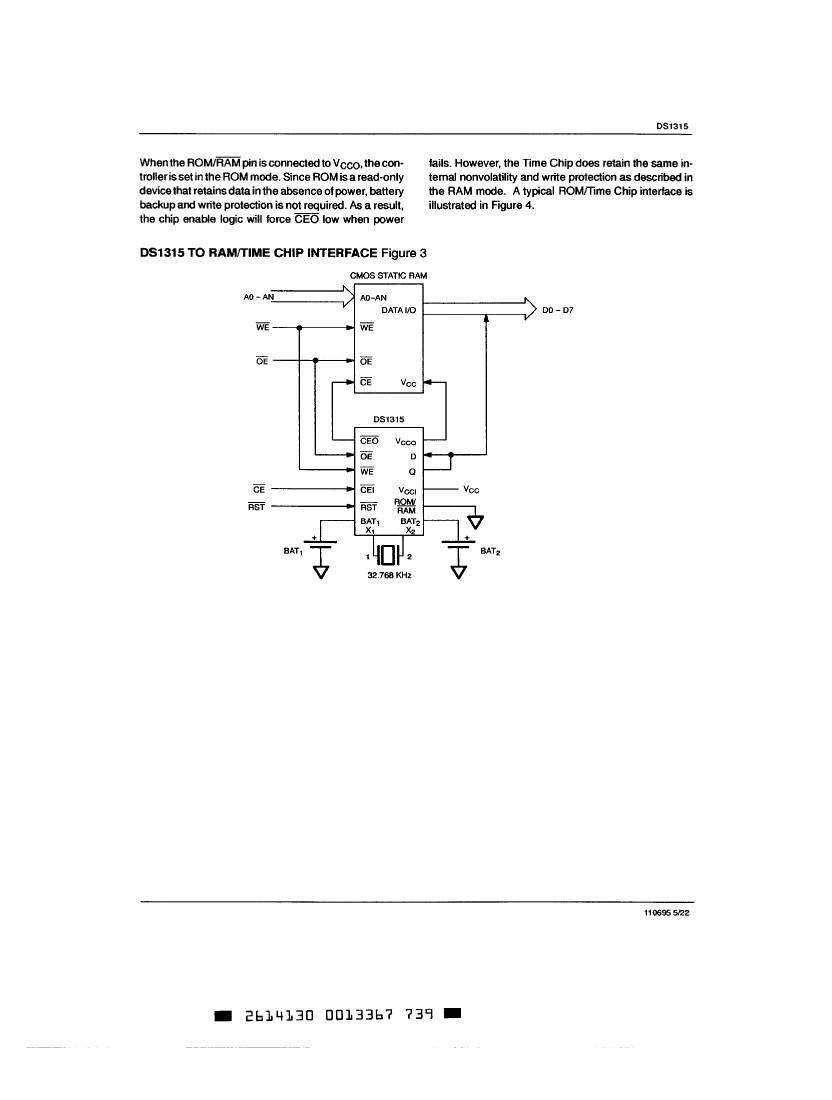

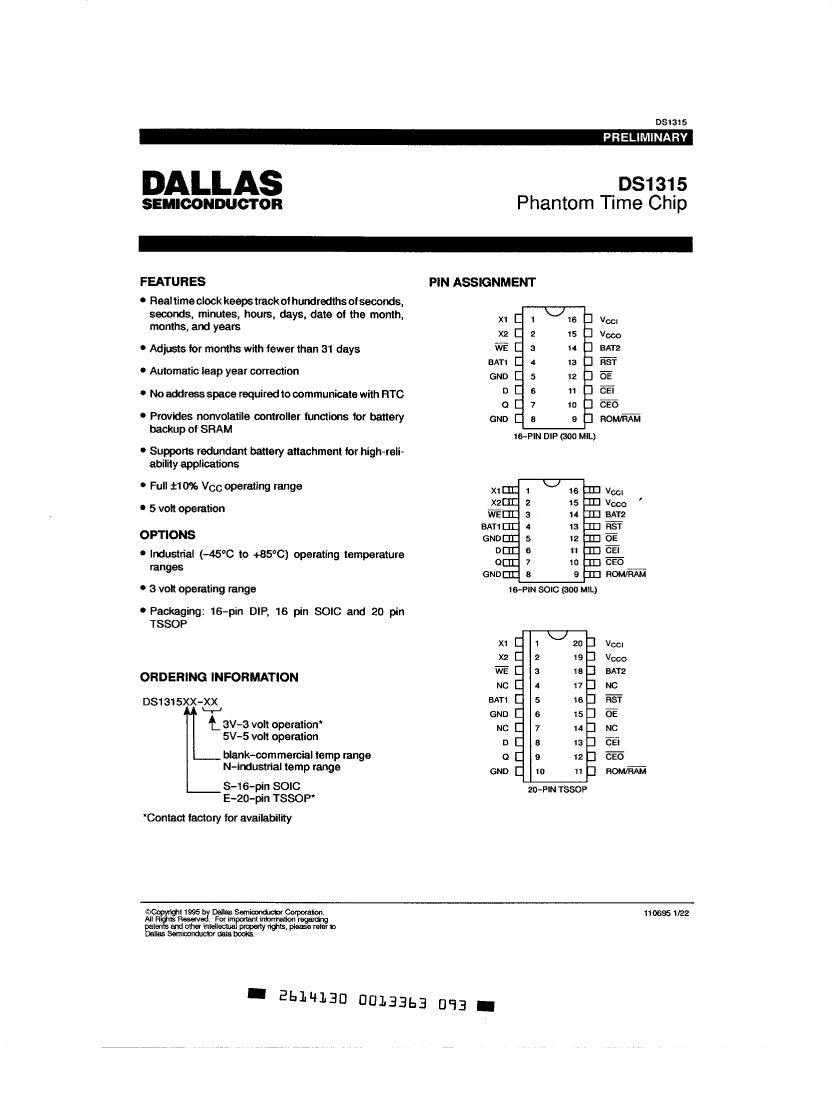

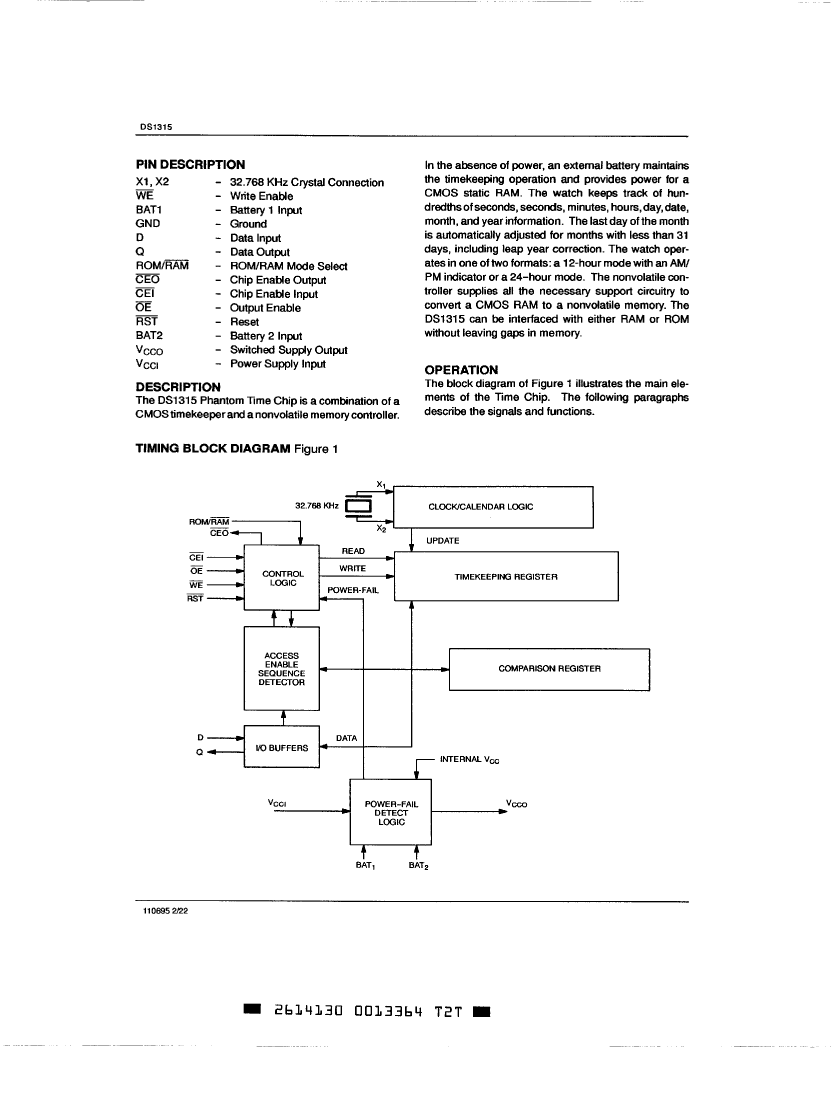

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

DS1315SN-3V Related Products

	DS1315SN-3V	DS1315EN-5V	DS1315SN-5V	DS1315S-5V	DS1315E-5V	DS1315EN-3V	DS1315E-3V	DS1315S-3V
Description	Real Time Clock, Volatile, 0 Timer(s), CMOS, PDSO16,	Real Time Clock, Volatile, 0 Timer(s), CMOS, PDSO20,	Real Time Clock, Volatile, 0 Timer(s), CMOS, PDSO16,	Real Time Clock, Volatile, 0 Timer(s), CMOS, PDSO16,	Real Time Clock, Volatile, 0 Timer(s), CMOS, PDSO20,	Real Time Clock, Volatile, 0 Timer(s), CMOS, PDSO20,	Real Time Clock, Volatile, 0 Timer(s), CMOS, PDSO20,	Real Time Clock, Volatile, 0 Timer(s), CMOS, PDSO16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Information access methods	SERIAL, FIXED PROTOCOL	SERIAL, FIXED PROTOCOL	SERIAL, FIXED PROTOCOL	SERIAL, FIXED PROTOCOL	SERIAL, FIXED PROTOCOL	SERIAL, FIXED PROTOCOL	SERIAL, FIXED PROTOCOL	SERIAL, FIXED PROTOCOL
interrupt capability	N	N	N	N	N	N	N	N
JESD-30 code	R-PDSO-G16	R-PDSO-G20	R-PDSO-G16	R-PDSO-G16	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	16	20	16	16	20	20	20	16
Maximum operating temperature	85 °C	85 °C	85 °C	70 °C	70 °C	85 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSSOP	SOP	SOP	TSSOP	TSSOP	TSSOP	SOP
Encapsulate equivalent code	SOP16,.4	TSSOP20,.25	SOP16,.4	SOP16,.4	TSSOP20,.25	TSSOP20,.25	TSSOP20,.25	SOP16,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
power supply	3 V	5 V	5 V	5 V	5 V	3 V	3 V	3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	3 V	5 V	5 V	5 V	5 V	3 V	3 V	3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.635 mm	1.27 mm	1.27 mm	0.635 mm	0.635 mm	0.635 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
shortest time	1/100 SECOND	1/100 SECOND	1/100 SECOND	1/100 SECOND	1/100 SECOND	1/100 SECOND	1/100 SECOND	1/100 SECOND
Volatile	YES	YES	YES	YES	YES	YES	YES	YES
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK
Maker	DALLAS	DALLAS	DALLAS	DALLAS	DALLAS	DALLAS	-	DALLAS
Base Number Matches	-	1	1	1	1	1	1	-
