DS1669SN-10

Description
Digital Potentiometer, 10000ohm, PDSO8, SOIC-8
CategoryAnalog mixed-signal IC    converter
File Size535KB,12 Pages
ManufacturerDALLAS
Websitehttp://www.dalsemi.com
Download Datasheet Parametric Compare View All

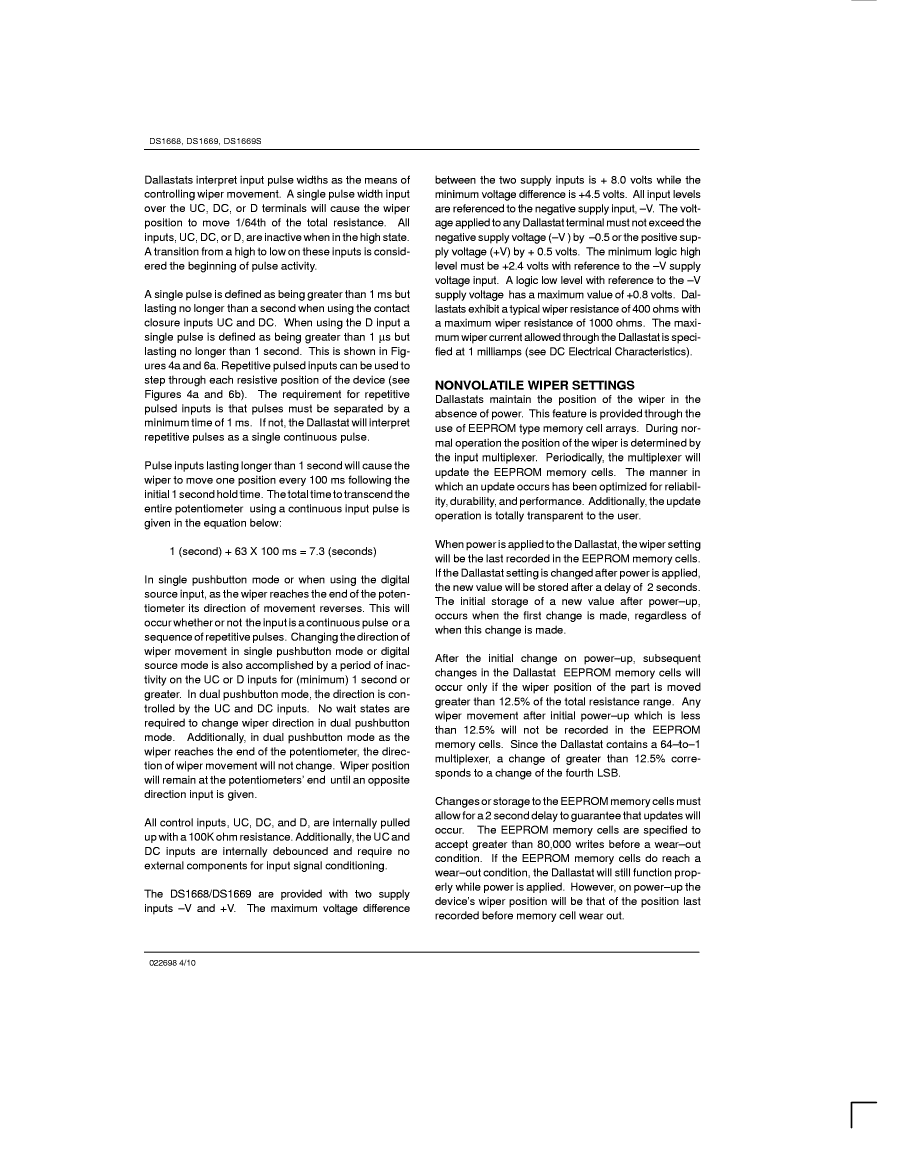

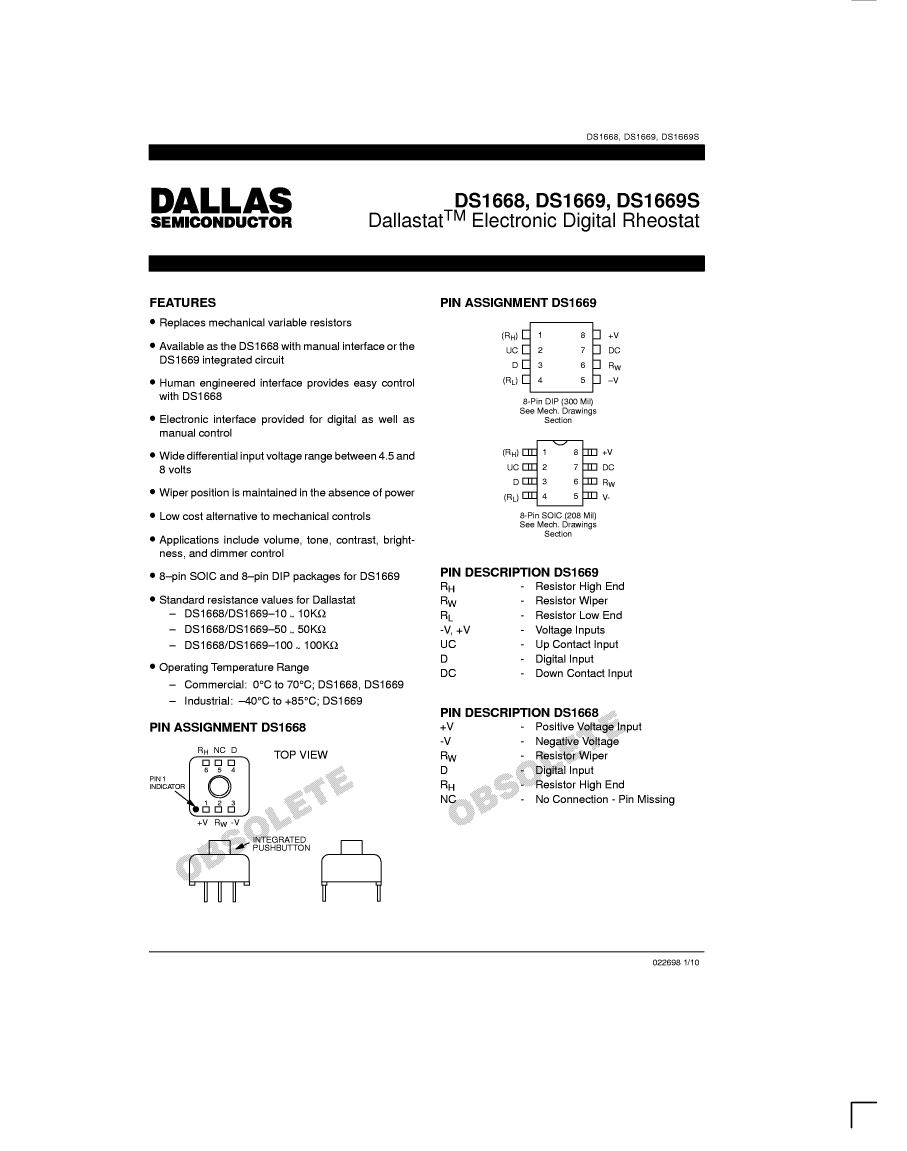

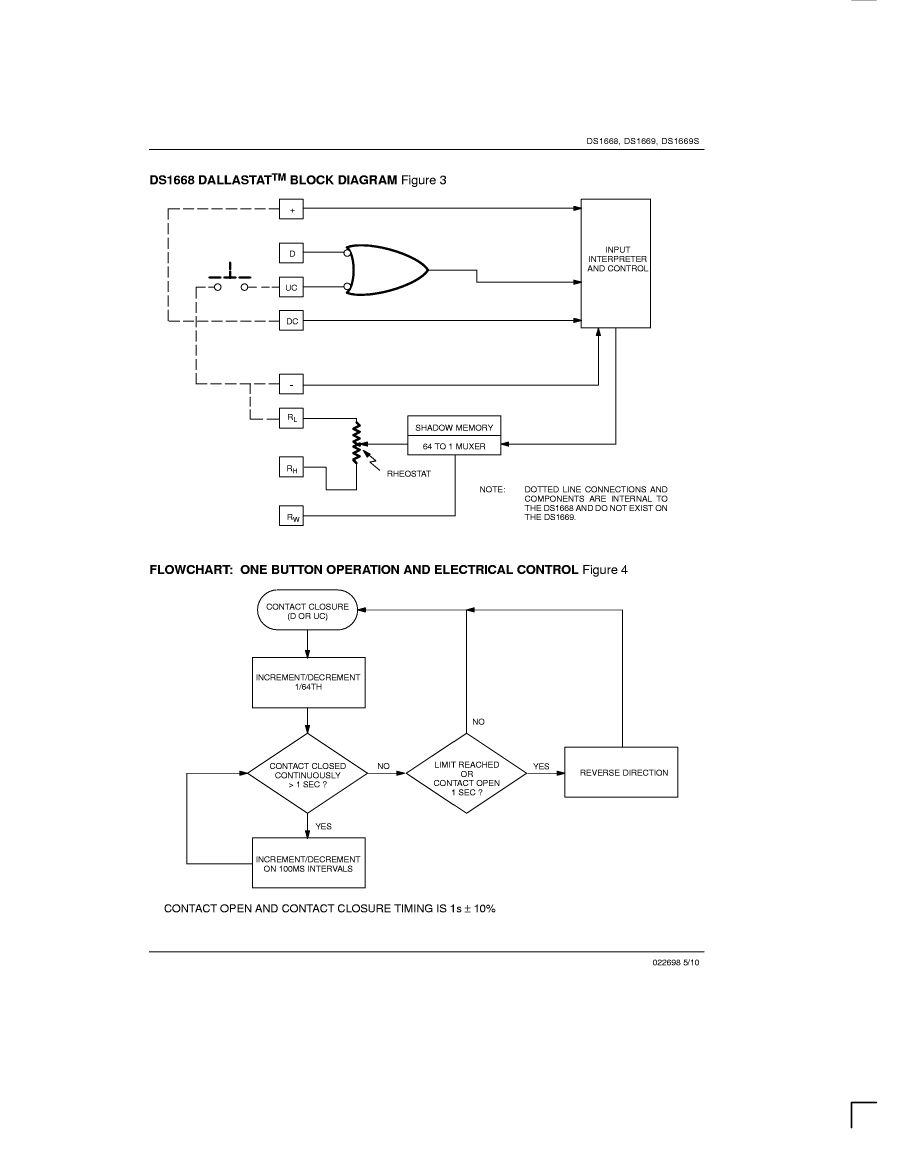

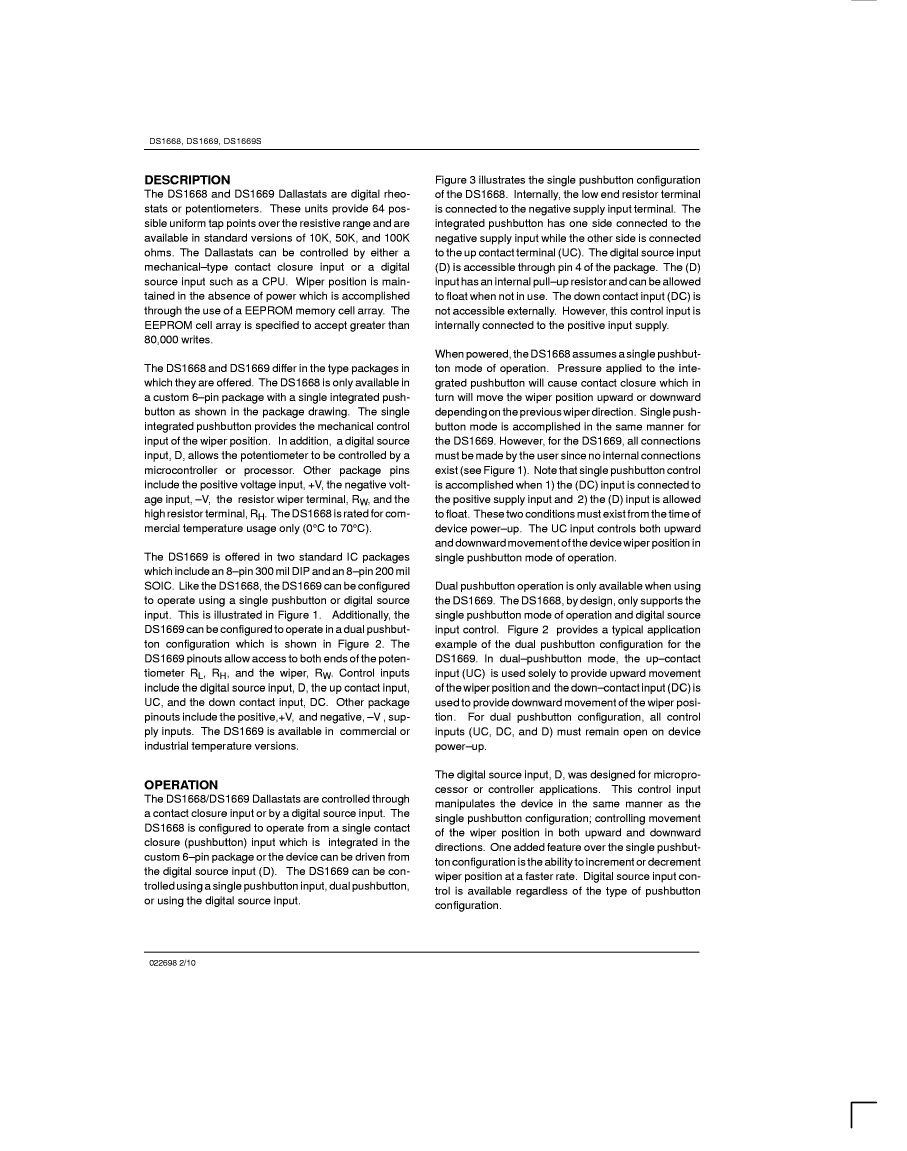

DS1669SN-10 Overview

Digital Potentiometer, 10000ohm, PDSO8, SOIC-8

DS1669SN-10 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerDALLAS
package instructionSOIC-8
Reach Compliance Codeunknown
Converter typeDIGITAL POTENTIOMETER
JESD-30 codeR-PDSO-G8
JESD-609 codee0
Number of terminals8
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP8,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply4.5/8.0 V
Certification statusNot Qualified
resistance lawLINEAR
surface mountYES
Temperature levelINDUSTRIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Nominal total resistance10000 Ω

DS1669SN-10 Related Products

DS1669SN-10 DS1669SN-50 DS1669N-10 DS1668S50 DS1668S100 DS1668S10 DS1669N-50
Description Digital Potentiometer, 10000ohm, PDSO8, SOIC-8 Digital Potentiometer, 50000ohm, PDSO8, SOIC-8 Digital Potentiometer, 10000ohm, PDSO8, SOIC-8 Interface Circuit, Interface Circuit, Interface Circuit, Digital Potentiometer, 50000ohm, PDSO8, SOIC-8
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown
Is it Rohs certified? incompatible incompatible incompatible - - - incompatible
Maker DALLAS - - DALLAS DALLAS DALLAS DALLAS
package instruction SOIC-8 SOIC-8 SOIC-8 - - - SOIC-8
Converter type DIGITAL POTENTIOMETER DIGITAL POTENTIOMETER DIGITAL POTENTIOMETER - - - DIGITAL POTENTIOMETER
JESD-30 code R-PDSO-G8 R-PDSO-G8 R-PDSO-G8 - - - R-PDSO-G8
JESD-609 code e0 e0 e0 - - - e0
Number of terminals 8 8 8 - - - 8
Maximum operating temperature 85 °C 85 °C 85 °C - - - 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C - - - -40 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY - - - PLASTIC/EPOXY
encapsulated code SOP SOP SOP - - - SOP
Encapsulate equivalent code SOP8,.25 SOP8,.25 DIP8,.3 - - - DIP8,.3
Package shape RECTANGULAR RECTANGULAR RECTANGULAR - - - RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE - - - SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED - - - NOT SPECIFIED
power supply 4.5/8.0 V 4.5/8.0 V 4.5/8.0 V - - - 4.5/8.0 V
Certification status Not Qualified Not Qualified Not Qualified - - - Not Qualified
resistance law LINEAR LINEAR LINEAR - - - LINEAR
surface mount YES YES YES - - - YES
Temperature level INDUSTRIAL INDUSTRIAL INDUSTRIAL - - - INDUSTRIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) - - - Tin/Lead (Sn/Pb)
Terminal form GULL WING GULL WING GULL WING - - - GULL WING
Terminal pitch 1.27 mm 1.27 mm 2.54 mm - - - 2.54 mm
Terminal location DUAL DUAL DUAL - - - DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED - - - NOT SPECIFIED
Nominal total resistance 10000 Ω 50000 Ω 10000 Ω - - - 50000 Ω
