RSC241D2C14 datasheet, PDF - EEWORLD Datasheet

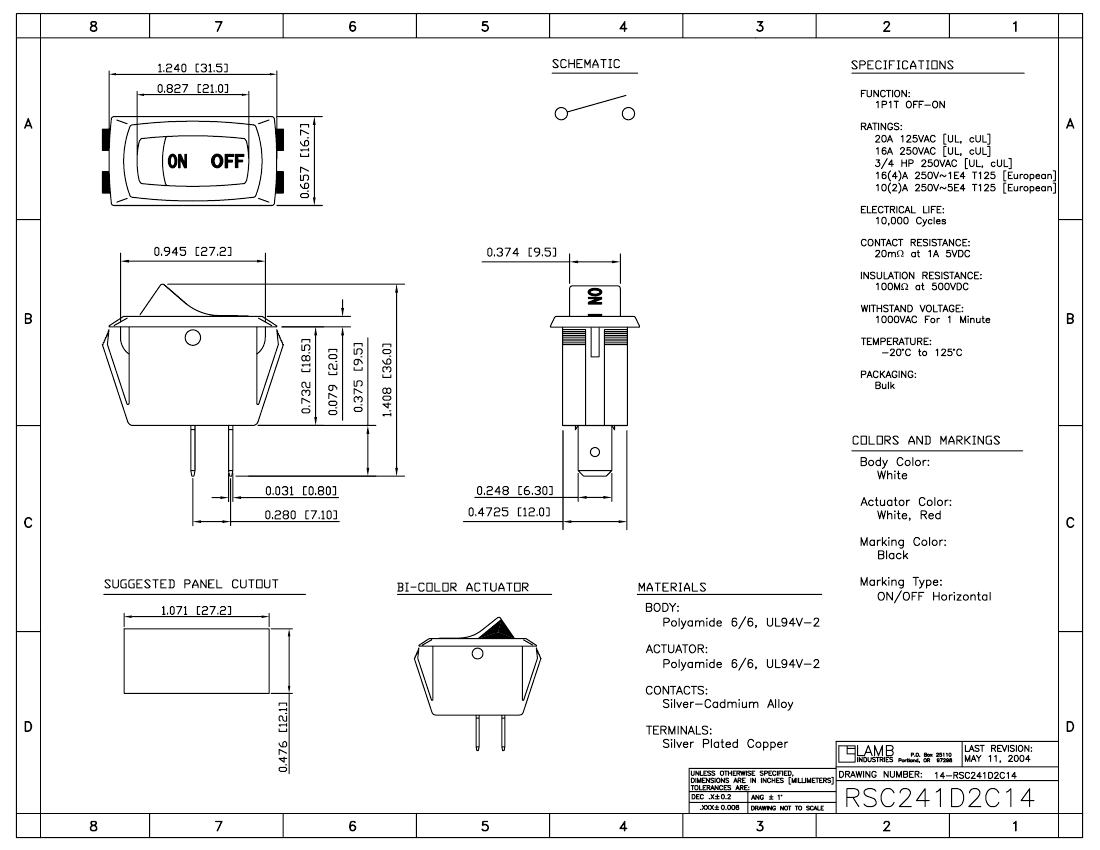

RSC241D2C14: DescriptionRocker Switch, SPST, Off-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size51KB，1 Pages; ManufacturerLamb Industries

Download Datasheet Parametric View All

RSC241D2C14 Overview

Rocker Switch, SPST, Off-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount

Parameter Name	Attribute value
Maker	Lamb Industries
Reach Compliance Code	unknown
Actuator angle
Actuator color	RED-WHITE
Actuator length	0.315 inch
Actuator material	POLYAMIDE
Actuator type	ROCKER
Other features	UL APPROVED,BULK,ON/OFF HORZ.
body width	12.0142 mm
Body color	WHITE
body height	18.5928 mm
Body length or diameter	24.003 mm
center contact material	SILVER CADMIUM OXIDE
Center contact plating	SILVER
Contact (AC) maximum rated power R load	0.75HP@250VAC
Contact (AC) maximum rated R load	16A@250VAC
Maximum contact current (AC)	16 A
Contact function	OFF-ON
Contact resistance	0.02 mΩ
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1000VAC V
Electrical life	10000 Cycle(s)
End contact material	SILVER CADMIUM OXIDE
End contact plating	SILVER
Insulation resistance	100000000 Ω
insulator material	POLYAMIDE
Manufacturer's serial number	RSC
Installation features	PANEL MOUNT
Maximum operating temperature	105 °C
Minimum operating temperature
seal	MOLDED
surface mount	NO
Switch action	MAINTAINED
switch function	SPST
Switch type	ROCKER SWITCH
Terminal length	0.375 inch
Terminal material	COPPER ALLOY
Termination type	QUICK CONNECT
