Mac 8’ terminals for printed boards
マックエイ
s
トのプリント板用端子
For oscilloscope
工 具

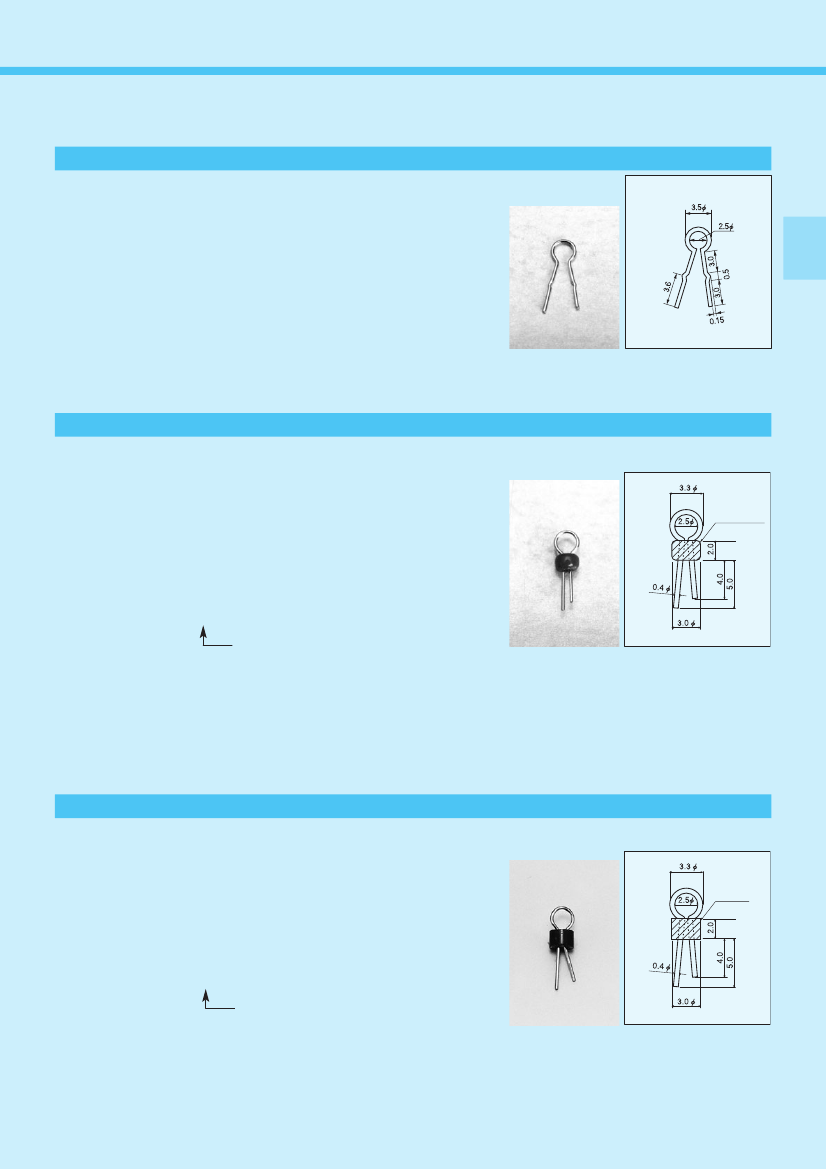

Check terminal for oscilloscope [Part number: LC-1-G, LC-1-S]
(1000pcs/pack)
The probe for oscilloscope can be hooked from any direction.
●
You can maintain the height according to the convex portion.
●
If you want to make the height lower, you can set it freely by making the fitting
hole diameter larger(φ1.4 or over).
●
Material: Phosphor bronze:φ0.5
●
Finish: LC-1-G: Gold plating over nickel base
LC-1-S: Tin plating over nickel base
●
Printed board fitting hole diameter:φ1.2
●
Operating temperature range:−40 to ＋150℃
●
For Check
Check terminal for oscilloscope [Part number: LC-2-G, LC-2-S]
The probe for oscilloscope can be hooked from any direction.
●
With six types of glass beads color, you can classify the signal lines by using
different colors.
●
Material: Phosphor bronze:φ0.4
●
Finish: LC-2-G: Gold plating over nickel base
LC-2-S: Tin plating over nickel base
●
Printed board fitting hole diameter:φ1.0
●
Operating temperature range:−40 to ＋150℃
●
Beads color type: black, greenish brown, green, sky blue, purple, white
●
How to order: LC-2-G-brown
●
(1000pcs/pack)
Glass beads
∼∼∼∼∼
Color designation
Check terminal for oscilloscope [Part number: LC-22-G, LC-22-S]
(1000pcs/pack)
We offer six colors: brown, red, orange, yellow, white and black.
●
Material: Metal part: Phosphor bronze,φ0.4
Resin part: Fluorine (UL94V-0)
●
Finish: LC-22-G: Gold plating over nickel base
LC-22-S: Tin plating over nickel base
●
Printed board fitting hole diameter:φ1.0
●
Operating temperature range:−40 to ＋150℃
●
Beads color type: brown, red, orange, yellow, white, black
●
How to order: LC-22-G- red
●
Fluorine
∼∼
Color designation
−33−
For oscilloscope
Mac 8’ terminals for printed boards
s

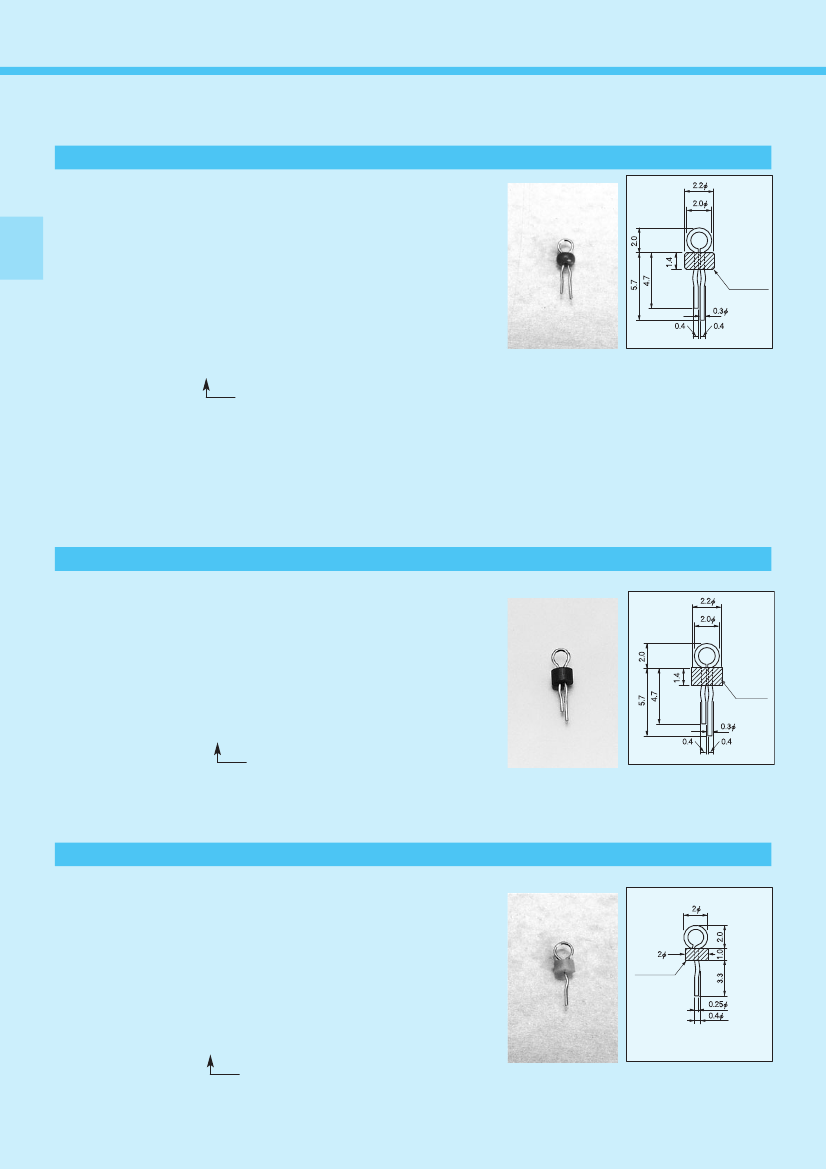

Check terminal for oscilloscope [Part number: LC-3-G, LC-3-S]
(1000pcs/pack)
You can put it with a pitch of 2.54 mm.
●
The probe for oscilloscope can be hooked from any direction.
●
With six types of glass beads color, you can classify the signal lines by using
different colors.
●
Material: Phosphor bronze:φ0.3
●
Finish: LC-3-G: Gold plating over nickel base
LC-3-S: Tin plating over nickel base
●
Printed board fitting hole diameter:φ0.8
●
Operating temperature range:−40 to ＋150℃
●
Beads color type: black, greenish brown, green, sky blue, purple, white
●
How to order: LC-3-G- black
●
For Check
Glass bead
∼∼∼∼∼
Color designation
Check terminal for oscilloscope [Part number: LC-33-G, LC-33-S]
(1000pcs/pack)
We offer six colors: brown, red, orange, yellow, white and black.
●
Material: Metal part: Phosphor bronze,φ0.3
Resin part: Fluorine (UL94V-0)
●
Finish: LC-33-G: Gold plating over nickel base
LC-33-S: Tin plating over nickel base
●
Printed board fitting hole diameter:φ0.8
●
Operating temperature range:−40 to ＋150℃
●
Beads color type: Brown, red, orange, yellow, white, black
●
How to order: LC-33-G- red
●
Fluorine
∼
∼
Color designation
Check terminal for φ0.3 [Part number: LC-4-G, LC-4-S]
(1000pcs/pack)
This check terminal is developed for a land with small diameter（0.3 to
φ0.4hole for upper and lower electrical connection)
●
Material: Metal part: Phosphor bronze,φ0.25、
Resin part: Fluorine (UL94V-0)
●
Finish: LC-4-G: Gold plating over nickel base
LC-4-S: Tin plating over nickel base
●
Printed board fitting hole diameter:0.3 toφ0.4
●
Operating temperature range:−40 to＋150℃
●
Beads color type: red, yellow, blue, white, black
●
How to order: LC-4-G- red
●
Fluorine resin
∼∼
Color designation
−34−
