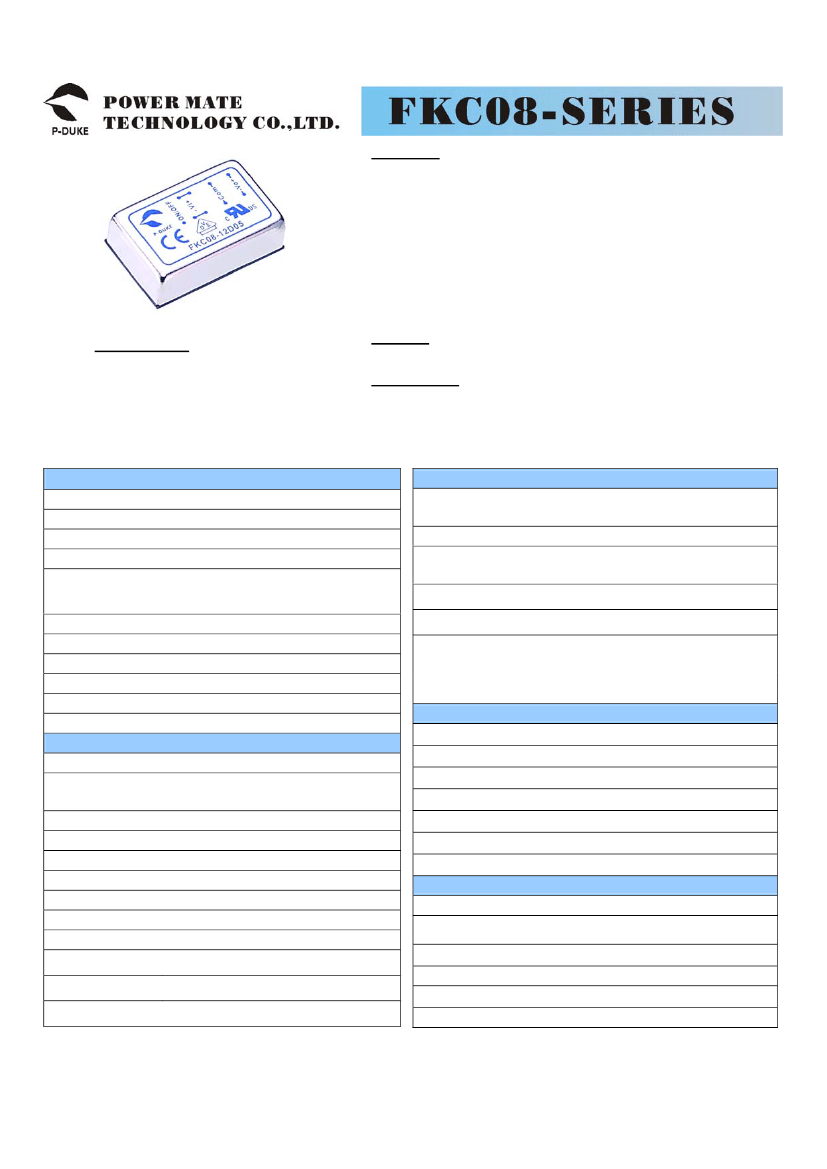

FEATURES
1 / 3
•
8 WATTS OUTPUT POWER
•
OUTPUT CURRENT UP TO 2A
•
STANDARD 1.25 X 0.80 X 0.40 INCH
•
HIGH EFFICIENCY UP TO 88%
•
2:1 WIDE INPUT VOLTAGE RANGE
•
FIVE-SIDED CONTINUOUS SHIELD
•
FIXED SWITCHING FREQUENCY (300KHz)
•
STANDARD 24 PIN DIP PACKAGE & SMD TYPE PACKAGE
•
CE MARK MEETS 2006/95/EC, 93/68/EEC AND 2004/108/EC
•
UL60950-1, EN60950-1 AND IEC60950-1 LICENSED
•
ISO9001 CERTIFIED MANUFACTURING FACILITIES
•
COMPLIANT TO RoHS EU DIRECTIVE 2002/95/EC
APPLICATIONS
Wireless Network
Telecom/Datacom
Industry Control System
Measurement Equipment
Semiconductor Equipment
OPTIONS
SMD TYPE
DESCRIPTION
The FKC08 series offer 8 watts of output power from a package in an IC
compatible 24pin DIP configuration. FKC08 series have 2:1 wide input voltage of
9-18, 18-36 and 36-75VDC. The FKC08 have features 1600VDC of isolation, short
circuit protection and as well as five sided shielding.
T E C H N I C A L S P E C I F I C AT I O N
OUTPUT SPECIFICATIONS
Output power
Voltage accuracy
Minimum load
Line regulation
Load regulation
LL to HL at Full Load
No Load
Single (DIP)
to Full Load Single (SMD)
Dual (SMD,DIP)
Full load and nominal Vin
All specifications are typical at nominal input, full load and 25ºC otherwise noted
INPUT SPECIFICATIONS
8 Watts max.
± 1%
0%
± 0.2%
± 0.5%
± 1%
± 1%
± 5%
See table
±0.02%
/ ºC, max.
200μS
150% typ.
Input filter
Input surge voltage
100mS max.
12V input
24V input
48V input
Input voltage range
12V nominal input
24V nominal input
48V nominal input
9 – 18VDC
18 – 36VDC
36 – 75VDC
Pi type
36VDC
50VDC
100VDC
Cross regulation (Dual) Asymmetrical load 25% / 100% FL
Ripple and noise
Temperature coefficient
20MHz bandwidth
Transient response recovery time 25% load step change
Over load protection
Short circuit protection
% of FL at nominal input
Input reflected ripple
Nominal Vin and full load
20mAp-p
current
Nominal Vin and
Start up time
Power up
700mS max.
constant resistive load
Remote ON/OFF (Note 6)
(Positive logic)
DC-DC ON
Open or 3.5V < Vr < 12V
DC-DC OFF
Short or 0V < Vr < 1.2V
Input current of remote control pin Nominal Vin
-0.5mA ~ 0.5mA
Remote off state input current
Nominal Vin
2.5mA
Continuous, automatics recovery
ENVIRONMENTAL SPECIFICATIONS
Operating ambient temperature
Maximum case temperature
Storage temperature range
Thermal impedance
Thermal shock
Vibration
Relative humidity
Nature convection
-40ºC to +85ºC (with derating)
+100ºC
-55ºC to +105ºC
20ºC/Watt
MIL-STD-810F
MIL-STD-810F
5% to 95% RH
GENERAL SPECIFICATIONS
Efficiency
Isolation voltage
Input to Output
Input(Output) to Case
DIP
SMD
See table
1600VDC, min.
1600VDC, min.
1000VDC, min.
10 ohms, min.
300pF, max.
300KHz, typ.
IEC60950-1, UL60950-1, EN60950-1
Nickel-coated copper
Non-conductive black plastic
Epoxy (UL94-V0)
1.25 X 0.80 X 0.40 Inch
(31.8 X 20.3 X 10.2 mm)
DIP
16g (0.55oz)
SMD
18g (0.62oz)
6
BELLCORE TR-NWT-000332
3.053 x 10 hrs
6
MIL-HDBK-217F
1.213 x 10 hrs
9
Isolation resistance
Isolation capacitance
Switching frequency
Approvals and standard
Case material
Base material
Potting material
Dimensions
Weight
MTBF (Note 1)
EMC CHARACTERISTICS
EMI (Note 7)
ESD
Radiated immunity
EN55022
EN61000-4-2
EN61000-4-3
Air
Contact
±
8KV
±
6KV
10 V/m
±
2KV
±
1KV
10 Vr.m.s
Class A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Fast transient (Note 8) EN61000-4-4
Surge (Note 8)
Conducted immunity
EN61000-4-5
EN61000-4-6
2

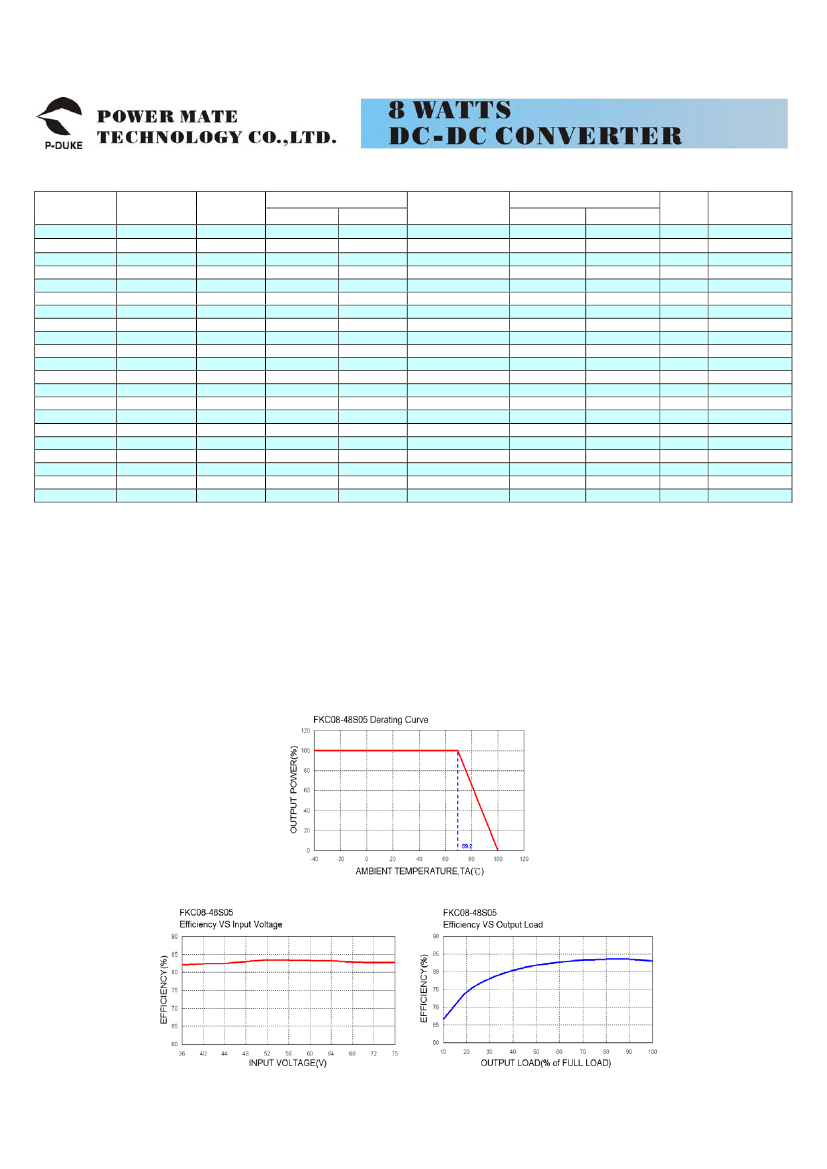

Model
Number
FKC08-12S33
FKC08-12S05
FKC08-12S12
FKC08-12S15
FKC08-12D05
FKC08-12D12
FKC08-12D15
FKC08-24S33
FKC08-24S05
FKC08-24S12
FKC08-24S15
FKC08-24D05
FKC08-24D12
FKC08-24D15
FKC08-48S33
FKC08-48S05
FKC08-48S12
FKC08-48S15
FKC08-48D05
FKC08-48D12
FKC08-48D15
/ 3
(5)
Input
Range
9 – 18 VDC
9 – 18 VDC
9 – 18 VDC
9 – 18 VDC
9 – 18 VDC
9 – 18 VDC
9 – 18 VDC
18 – 36 VDC
18 – 36 VDC
18 – 36 VDC
18 – 36 VDC
18 – 36 VDC
18 – 36 VDC
18 – 36 VDC
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
36 – 75 VDC
Output
Voltage
3.3 VDC
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
(4)
(4)
Output Current
Input Current
Eff
Output
Min. load Full load Ripple & Noise No load
(3)
Full load
(2)
(%)
Capacitor
Load max.
3300μF
1600μF
350μF
240μF
± 1000μF
± 160μF
± 100μF
3300μF
1600μF
350μF
240μF
± 1000μF
± 160μF
± 100μF
3300μF
1600μF
350μF
240μF
± 1000μF
± 160μF
± 100μF
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
2000mA
1500mA
666mA
533mA
± 800mA
± 333mA
± 267mA
2000mA
1500mA
666mA
533mA
± 800mA
± 333mA
± 267mA
2000mA
1500mA
666mA
533mA
± 800mA
± 333mA
± 267mA
50mVp-p
50mVp-p
50mVp-p
50mVp-p
50mVp-p
50mVp-p
50mVp-p
50mVp-p
50mVp-p
50mVp-p
50mVp-p
50mVp-p
50mVp-p
50mVp-p
50mVp-p
50mVp-p
50mVp-p
50mVp-p
50mVp-p
50mVp-p
50mVp-p
10mA
15mA
13mA
20mA
15mA
20mA
20mA
10mA
30mA
13mA
15mA
15mA
15mA
13mA
7mA
8mA
10mA
10mA
8mA
8mA
7mA
724mA
791mA
792mA
802mA
843mA
802mA
824mA
362mA
396mA
406mA
411mA
427mA
406mA
411mA
181mA
198mA
203mA
203mA
205mA
200mA
201mA
80
83
88
87
83
87
85
80
83
86
85
82
86
85
80
83
86
86
85
87
87
Note
1.
2.
3.
4.
5.
6.
7.
BELLCORE TR-NWT-000332. Case 1: 50% Stress, Temperature at 40ºC.
MIL-HDBK-217F Notice2 @Ta=25 ºC, Full load(Ground, Benign, controlled environment).
Maximum value at nominal input voltage and full load of standard type.
Typical value at nominal input voltage and no load.
Typical value at nominal input voltage and full load.
Test by minimum Vin and constant resistive load.
The ON/OFF control pin voltage is referenced to –Vin.
The FKC08 series can meet EN55022 Class A with parallel an external capacitor to the input pins.
Recommend: 12Vin: 4.7μF/25V 1210 MLCC .
24Vin : N/A .
48Vin : N/A.
An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5.
The filter capacitor Power Mate suggest: Nippon chemi-con KY series, 220μF/100V, ESR 48mΩ.
8.
3 / 3

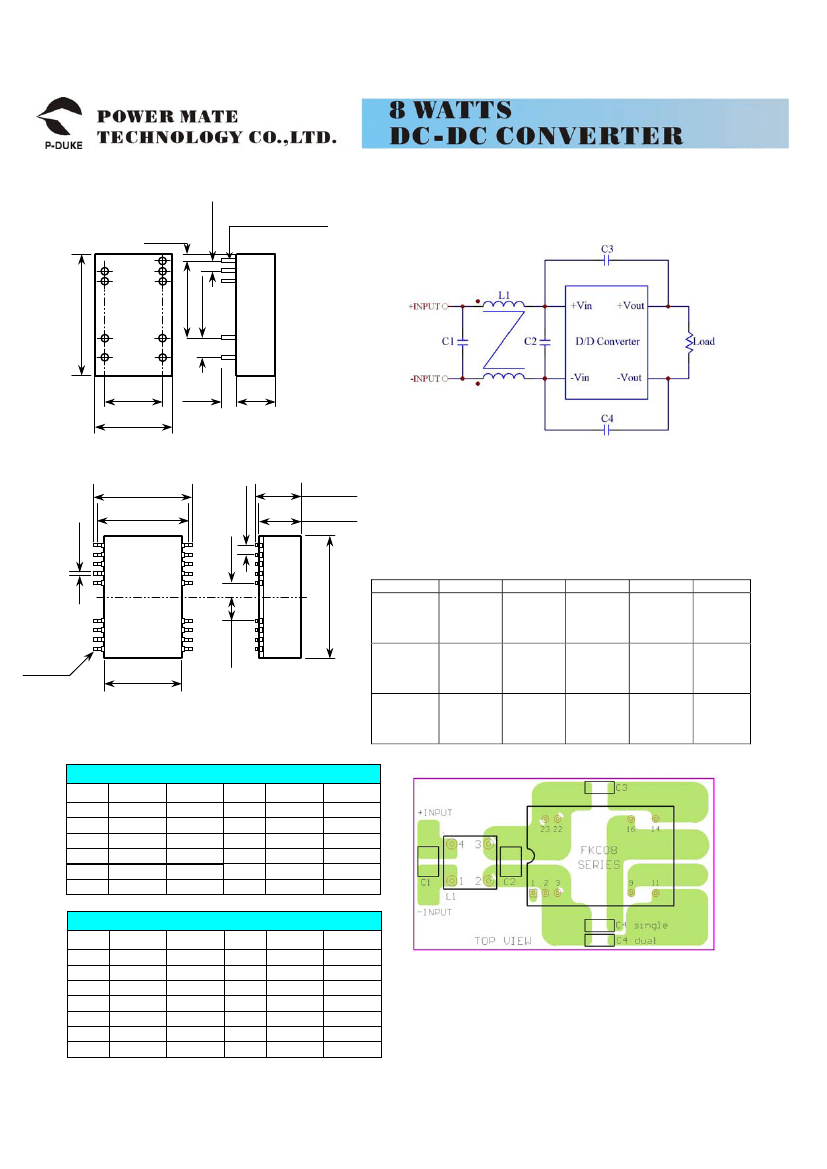

0.100(2.54)
Pin size is 0.02(0.5) Dia or
0.01 x 0.02 (0.25 x 0.50) Rectangular Pin
0.08(2.0)
0.800 (20.32)
1.25 (31.8)
BOTTOM
VIEW
16
14
9
11
0.600(15.24)
0.15
(3.8)
0.200 (5.08)
23
22
1
2
3
0.40
(10.2)
0.80(20.3)
Suffix-SMD
0.100 (2.54)
1.00(25.4)
0.92(23.4)
0.02(0.5)
0.44(11.2)
0.43(10.9)
Recommended Filter for EN55022 Class B Compliance
The components used in the above figure, together with the
manufacturers’ part numbers for these components, are as
follows:
24
20
16
1
5
9
12
0.80(20.3)
0.15 (3.8)
1.26 (32.0)
BOTTOM
VIEW
FKC08-
12xxx
FKC08-
24xxx
FKC08-
48xxx
Pin Area
0.04 x 0.02
(1.0 x 0.5)
13
1. All dimensions in Inches (mm)
Tolerance: X.XX±0.02 (X.X±0.5)
X.XXX±0.01 (X.XX±0.25)
2. Pin pitch tolerance
±0.01(0.25)
3. Pin dimension tolerance
±0.004
(0.1)
L1
325μH
1000pF/2KV 1000pF/2KV Common
4.7μF/50V
N/A
MLCC
MLCC
Choke
1812 MLCC
PMT-050
325μH
6.8μF/50V
1000pF/2KV 1000pF/2KV Common
N/A
1812 MLCC
MLCC
MLCC
Choke
PMT-050
325μH
2.2μF/100V 2.2μF/100V 1000pF/2KV 1000pF/2KV Common
1812 MLCC 1812 MLCC
MLCC
MLCC
Choke
PMT-050
C1
C2
C3
C4
DIP PIN CONNECTION
PIN
1
2
3
9
11
SINGLE
CTRL
- INPUT
- INPUT
NC
NC
DUAL
CTRL
- INPUT
- INPUT
COMMON
- OUTPUT
PIN
23
22
16
14
SINGLE
+ INPUT
+ INPUT
DUAL
+ INPUT
+ INPUT
0.25 (6.4)
- OUTPUT COMMON
+ OUTPUT + OUTPUT
SMD PIN CONNECTION
PIN
1
2
3
9
11
Others
SINGLE
CTRL
- INPUT
- INPUT
NC
NC
NC
DUAL
CTRL
- INPUT
- INPUT
PIN
23
22
SINGLE
+ INPUT
+ INPUT
DUAL
+ INPUT
+ INPUT
Recommended EN55022 Class B Filter Circuit Layout
COMMON
16
- OUTPUT COMMON
- OUTPUT
14
+ OUTPUT + OUTPUT
NC
Others
NC
NC
Last update:2008/6/4
