CA3410AE datasheet, PDF - EEWORLD Datasheet

CA3410AE: DescriptionOperational Amplifier, 4 Func, 8000uV Offset-Max, PDIP14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size560KB，10 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

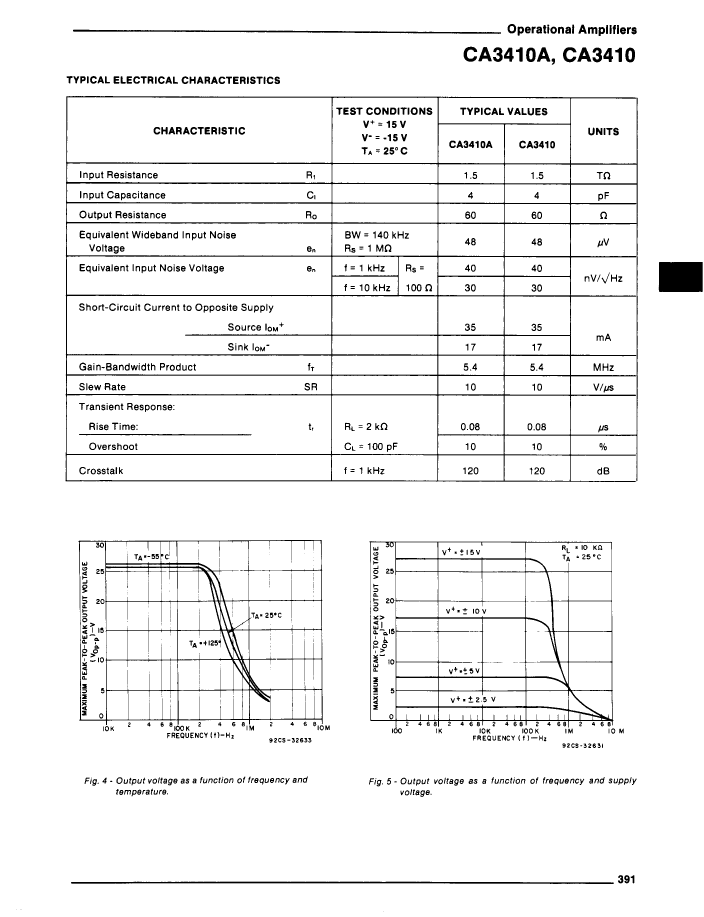

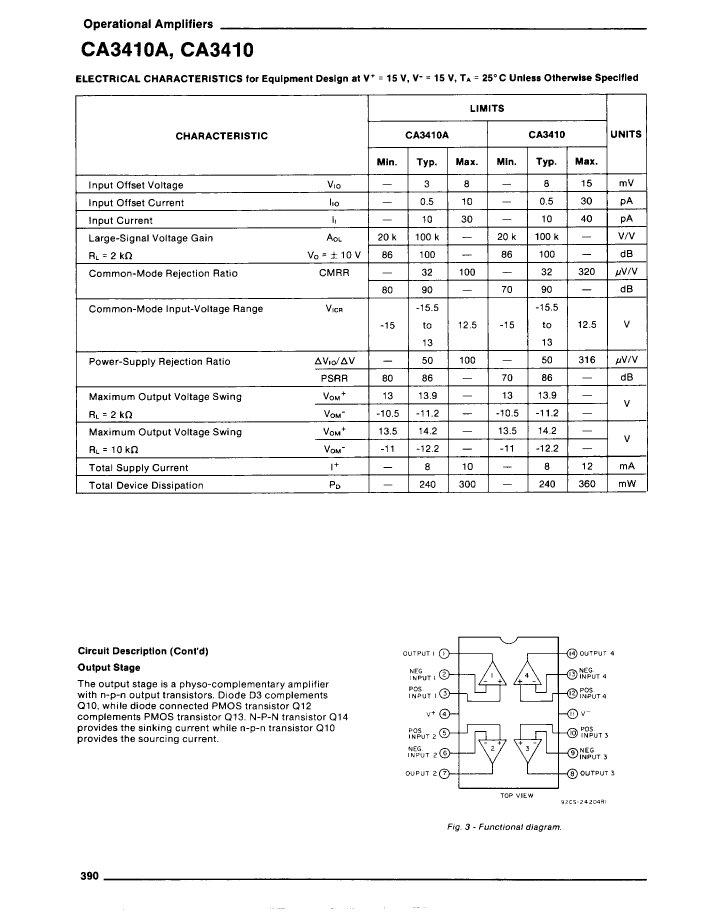

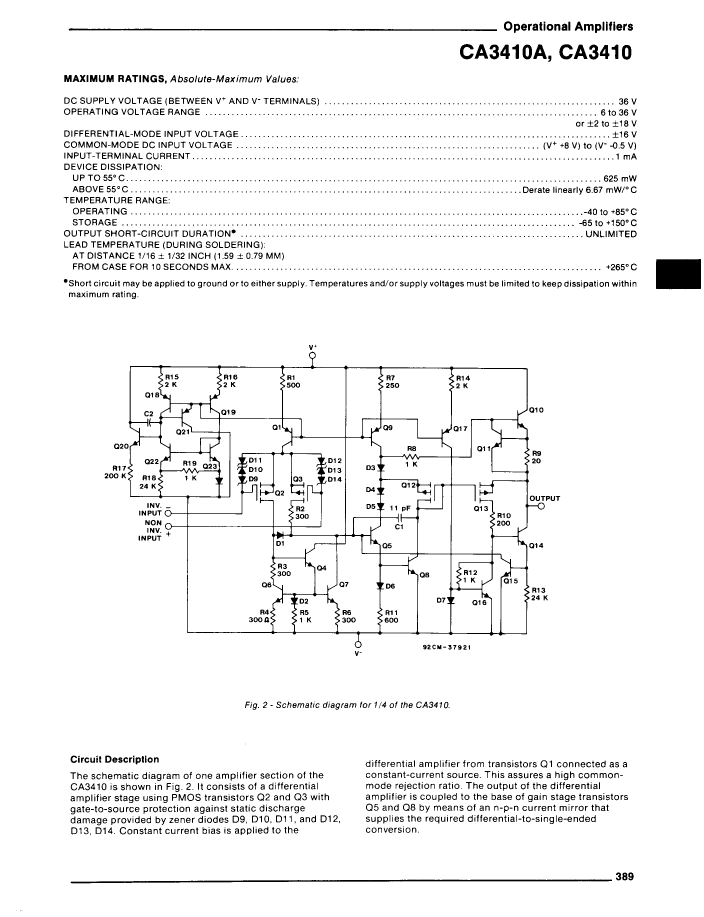

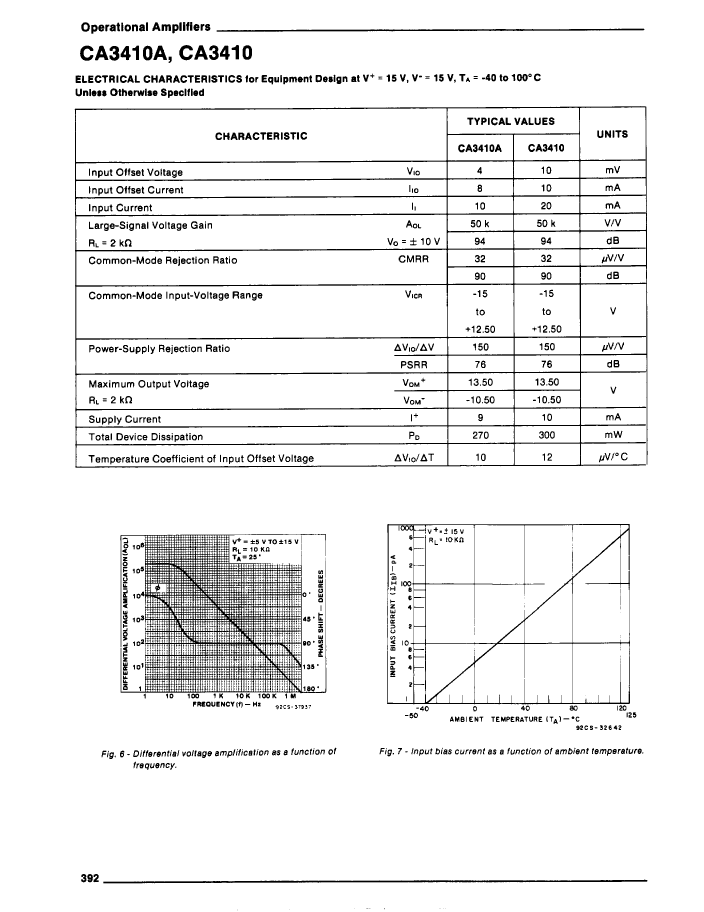

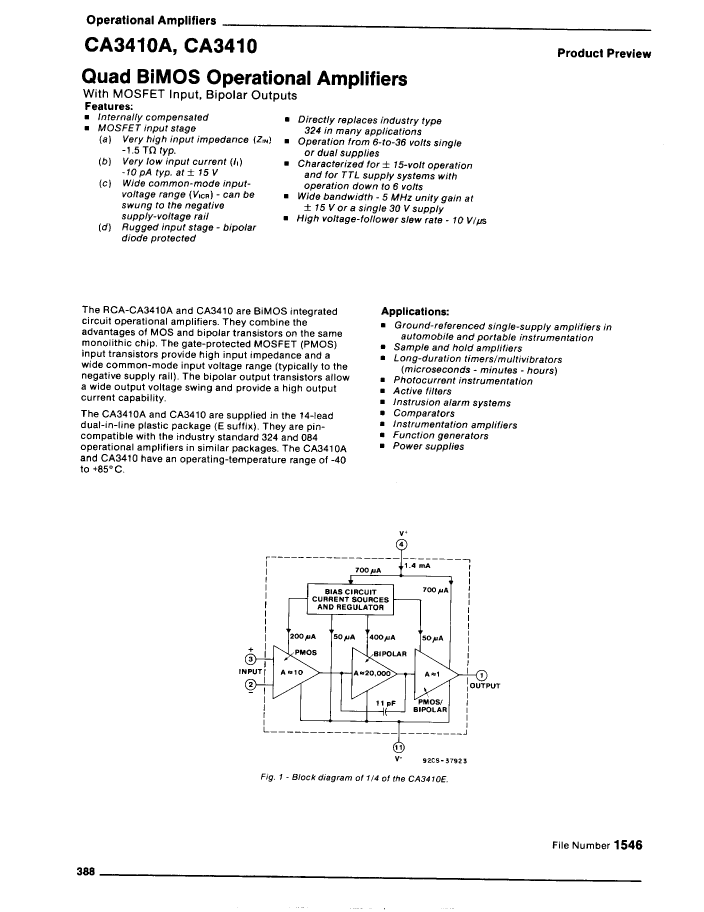

CA3410AE Overview

Operational Amplifier, 4 Func, 8000uV Offset-Max, PDIP14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	RCA
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	3e-8 µA
frequency compensation	YES
Maximum input offset voltage	8000 µV
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
low-bias	YES
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Maximum slew rate	10 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Minimum voltage gain	20000

	CA3410AE	CA3410E
Description	Operational Amplifier, 4 Func, 8000uV Offset-Max, PDIP14	Operational Amplifier, 4 Func, 15000uV Offset-Max, PDIP14,
Is it Rohs certified?	incompatible	incompatible
package instruction	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	3e-8 µA	4e-8 µA
frequency compensation	YES	YES
Maximum input offset voltage	8000 µV	15000 µV
JESD-30 code	R-PDIP-T14	R-PDIP-T14
JESD-609 code	e0	e0
low-bias	YES	YES
low-dissonance	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	4	4
Number of terminals	14	14
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
Maximum slew rate	10 mA	12 mA
Supply voltage upper limit	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	NO
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Minimum voltage gain	20000	20000
