CD4042AD datasheet, PDF - EEWORLD Datasheet

CD4042AD: DescriptionD Latch, 4-Func, 1-Bit, CMOS, CDIP16,; Categorylogic logic; File Size195KB，3 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

CD4042AD Overview

D Latch, 4-Func, 1-Bit, CMOS, CDIP16,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	RCA
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Logic integrated circuit type	D LATCH
Number of digits	1
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

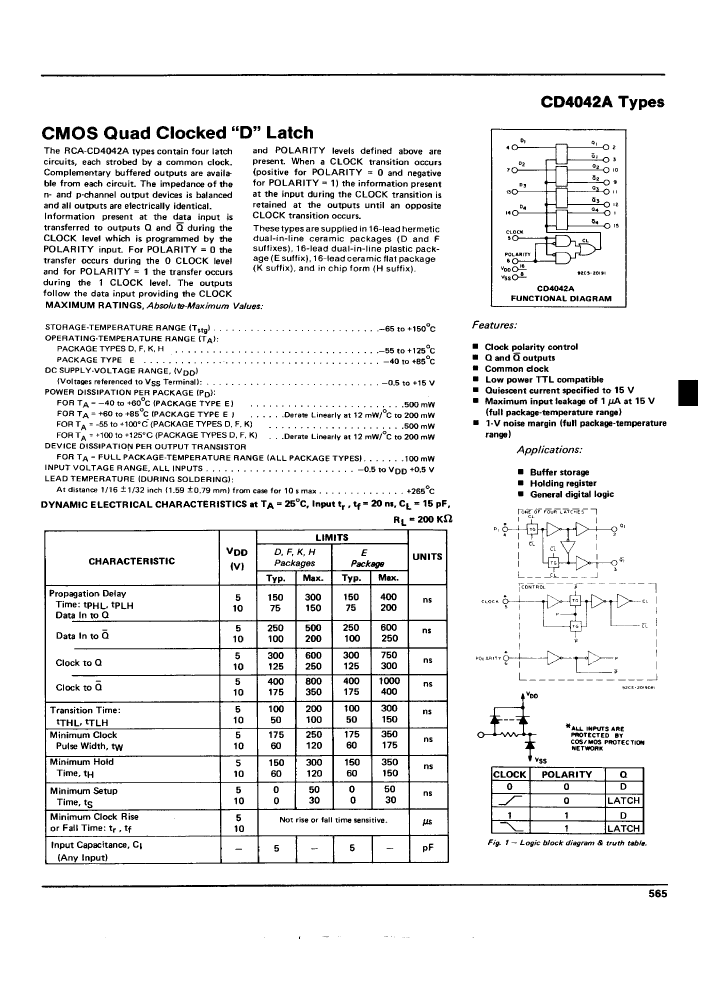

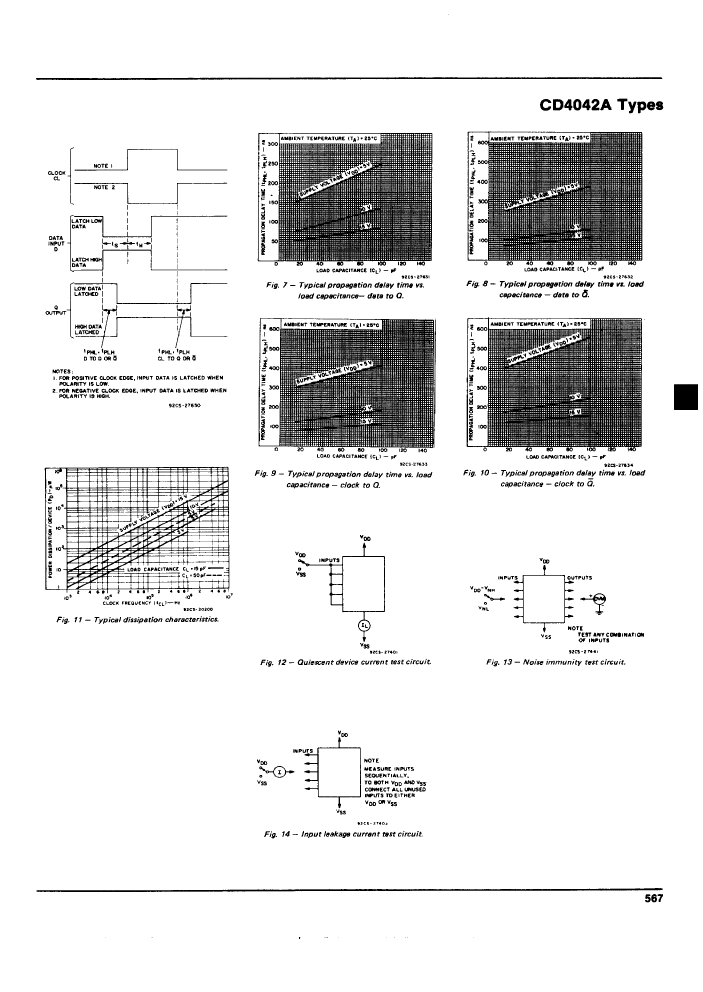

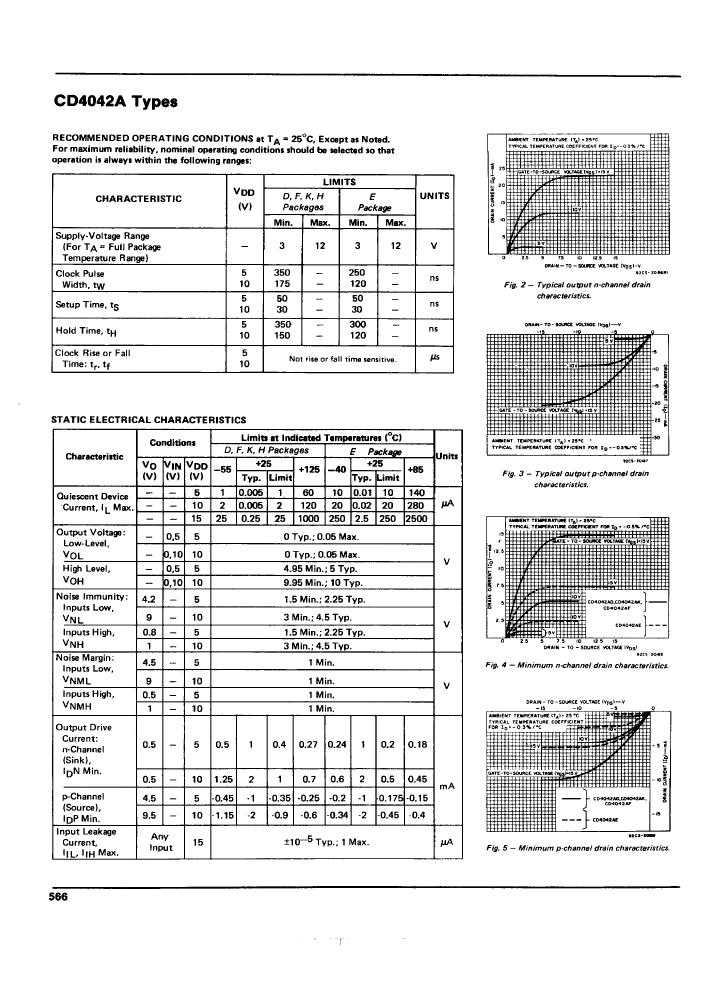

This Material Copyrighted By Its Respective Manufacturer

	CD4042AD	CD4042AF	CD4042AE	CD4042AH
Description	D Latch, 4-Func, 1-Bit, CMOS, CDIP16,	D Latch, 4000/14000/40000 Series, 1-Func, High Level Triggered, 4-Bit, Complementary Output, CMOS, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16	D Latch, 4-Func, 1-Bit, CMOS, PDIP16,	D Latch, 4-Func, 1-Bit, CMOS,
Maker	RCA	RCA	RCA	RCA
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	, DIE OR CHIP
Reach Compliance Code	unknown	unknown	unknown	unknown
Logic integrated circuit type	D LATCH	D LATCH	D LATCH	D LATCH
Number of digits	1	4	1	1
Number of functions	4	1	4	4
Maximum operating temperature	125 °C	125 °C	85 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-40 °C	-55 °C
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIE OR CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	INDUSTRIAL	MILITARY
Is it Rohs certified?	incompatible	incompatible	incompatible	-
JESD-30 code	R-XDIP-T16	R-CDIP-T16	R-PDIP-T16	-
JESD-609 code	e0	e0	e0	-
Number of terminals	16	16	16	-
Package body material	CERAMIC	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	-
encapsulated code	DIP	DIP	DIP	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	IN-LINE	IN-LINE	IN-LINE	-
surface mount	NO	NO	NO	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-
Terminal location	DUAL	DUAL	DUAL	-
