CD54ACT654F/3A datasheet, PDF - EEWORLD Datasheet

CD54ACT654F/3A: DescriptionRegistered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24,; Categorylogic logic; File Size98KB，3 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

CD54ACT654F/3A Overview

Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	RCA
package instruction	DIP, DIP24,.6
Reach Compliance Code	unknown
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.024 A
Number of digits	8
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-DRAIN/3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Sup	18.5 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE

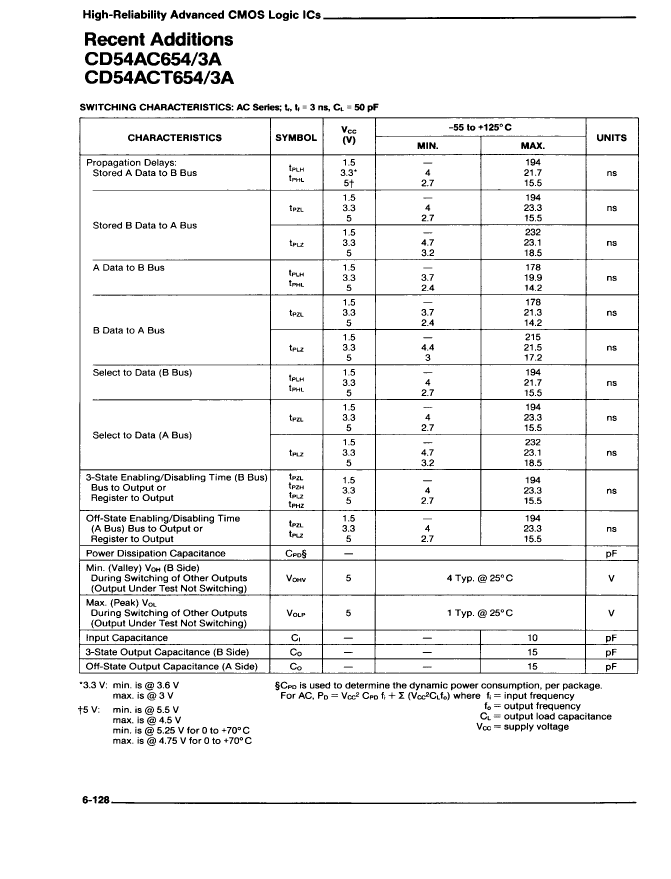

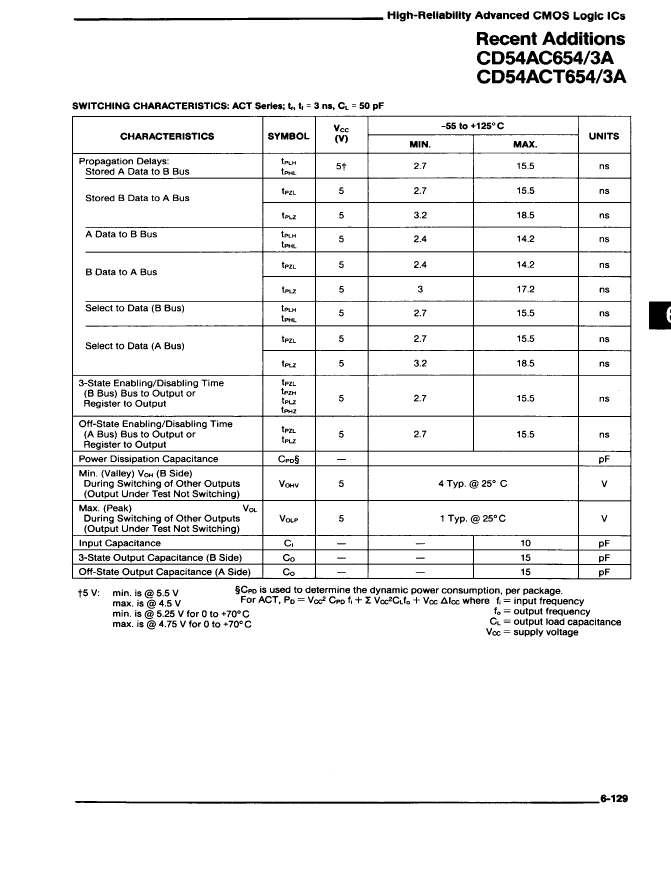

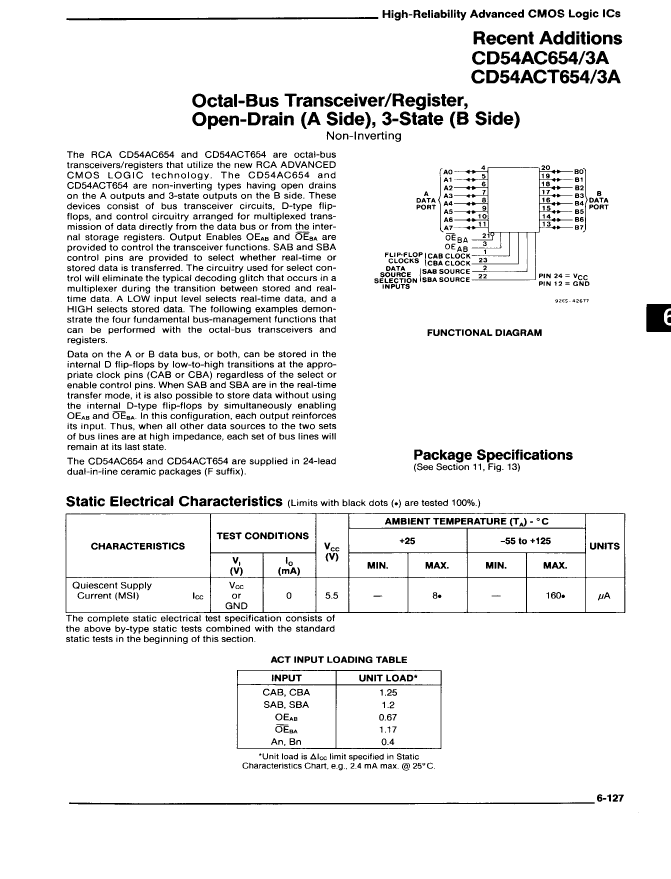

This Material Copyrighted By Its Respective Manufacturer

	CD54ACT654F/3A	CD54AC654F/3A
Description	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24,	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24,
Is it Rohs certified?	incompatible	incompatible
package instruction	DIP, DIP24,.6	DIP, DIP24,.6
Reach Compliance Code	unknown	unknown
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-XDIP-T24	R-XDIP-T24
JESD-609 code	e0	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.024 A	0.024 A
Number of digits	8	8
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	OPEN-DRAIN/3-STATE	OPEN-DRAIN/3-STATE
Output polarity	TRUE	TRUE
Package body material	CERAMIC	CERAMIC
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	5 V	3.3/5 V
Prop。Delay @ Nom-Sup	18.5 ns	21.7 ns
Certification status	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE
