854667 Overview

SAW Filter, 1 Function(s), 70MHz, SMP-53, 12 PIN

854667 Parametric

Parameter NameAttribute value
MakerSawtek Inc.
package instructionSMP-53, 12 PIN
Reach Compliance Codeunknown
Center frequency or cutoff frequency (fo/fc)70 MHz
filter typeSAW FILTER
high2 mm
input resistance50 OHM
Maximum insertion loss13 dB
length13.3 mm
Manufacturer's serial number854667
Installation typeSURFACE MOUNT
Number of functions1
Output impedance50 OHM Ω
physical sizeL13.3XB6.5XH2.0 (mm)/L0.524XB0.256XH0.079 (inch)

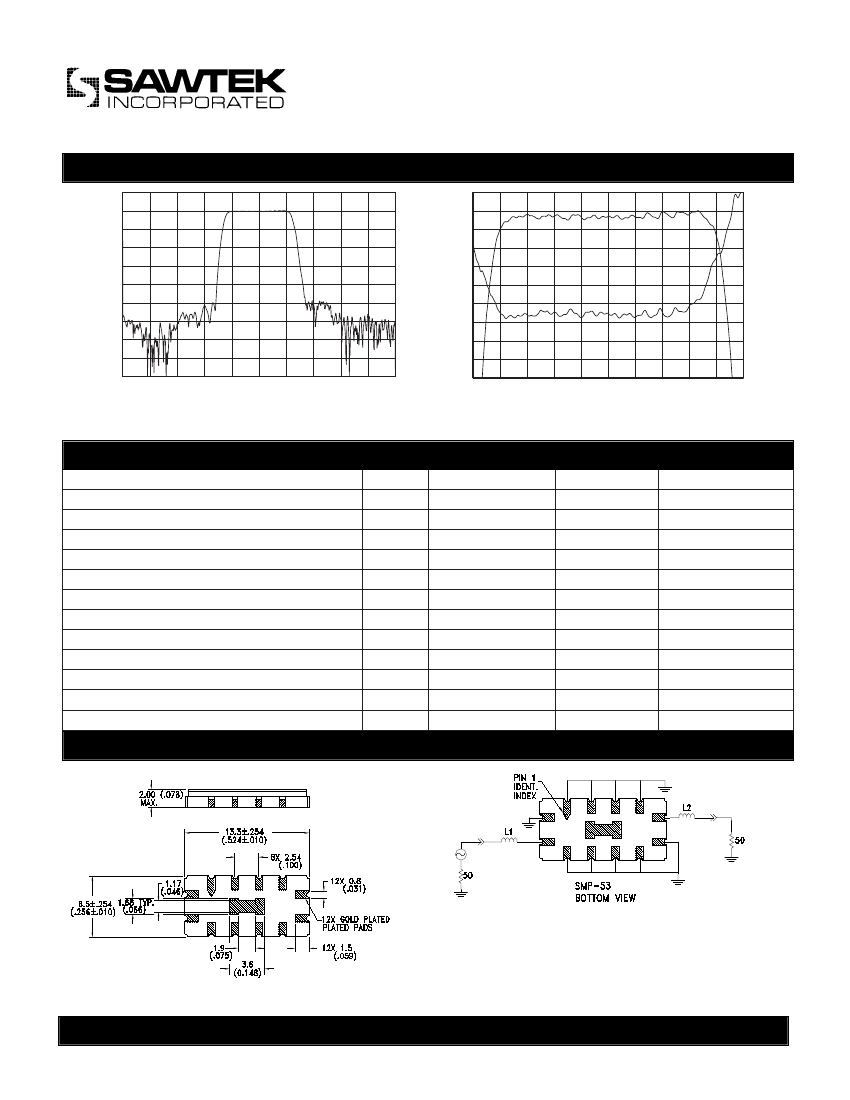

70 MHz Low-Loss Filter
Data Sheet
Typical Performance
10
0
-10
-20
-30
-40
-50
-60
-70
-80
-90
Horizontal:
76 82
40 46 52 58 64 70
6 MHz/Div
88 94 100
Vertical: 10 dB/Div
1
25
0
20
-1
15
-2
10
-3
5
-4
0
-5
-5
-6
-10
-7
-15
-8
-20
-9
-25
61.5 63.2 64.9
Horizontal: 1.7 MHz/Div
66.6 68.3 70 71.7 73.4 75.1 76.8 78.5
Vertical: 1 dB/Div
Vertical: 5 deg/Div
14 MHz Bandwidth
Part Number 854667
Parameter
Center Frequency
Insertion Loss at F
o
1 dB Bandwidth
3 dB Bandwidth
40 dB Bandwidth
Passband Ripple
Phase Linearity (90% of 3dB Bandwidth)
Group Delay Variation (90% of 3dB Bandwidth)
Absolute Delay
Substrate Material
Temperature Coefficient
Ambient Temperature
Specifications
Unit
Minimum
MHz
dB
MHz
MHz
MHz
dB
deg
nsec
µsec
-
ppm/°C
°C
69.8
-
13.35
14
-
-
-
-
-
-
-
-
Typical
70
12.5
13.55
14.45
19.5
0.7
9
65
1.07
YZ LiNbO
3
-94
25
Maximum
70.2
13
-
-
20.25
1
11.5
90
-
-
-
-
Package Outline
Matching Configuration
L1 = 100nH, L2 = 120nH
Nominal Source/Load Impedance = 50Ω
Package Style SMP-53
11/29/99
Sawtek Inc.
Telephone: (407) 886-8860
Fax: (407) 886-7061
