Z8410K1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z8410K1

Z8410K1: DescriptionDMA Controller, MOS, CQCC44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，23 Pages; ManufacturerSGS-Ates Componenti Electronici SPA

Download Datasheet Parametric Compare View All

Z8410K1 Overview

DMA Controller, MOS, CQCC44

Z8410K1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SGS-Ates Componenti Electronici SPA
package instruction	QCCN, LCC44,.65SQ
Reach Compliance Code	unknown
JESD-30 code	S-XQCC-N44
JESD-609 code	e0
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC44,.65SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	YES
technology	MOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	DMA CONTROLLER

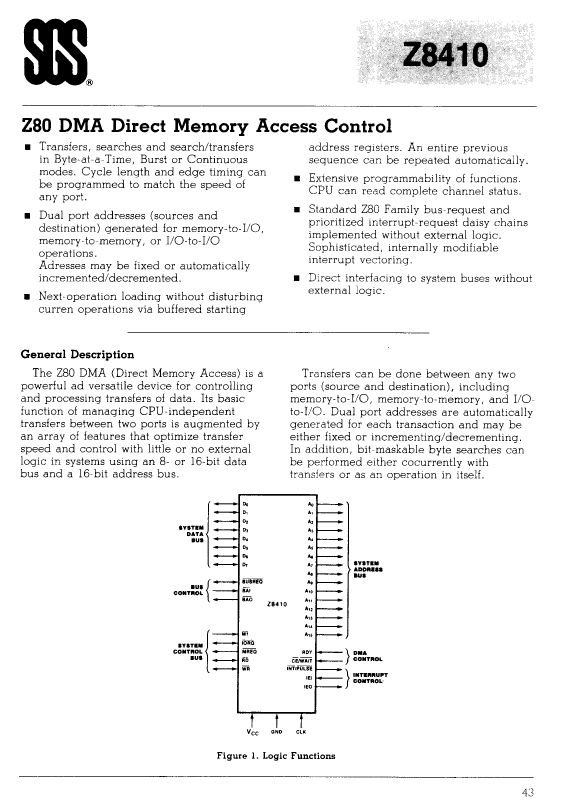

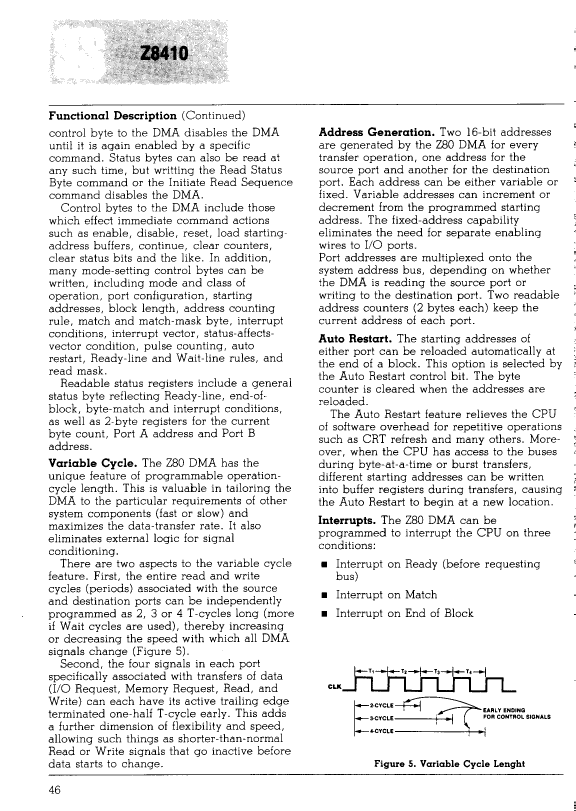

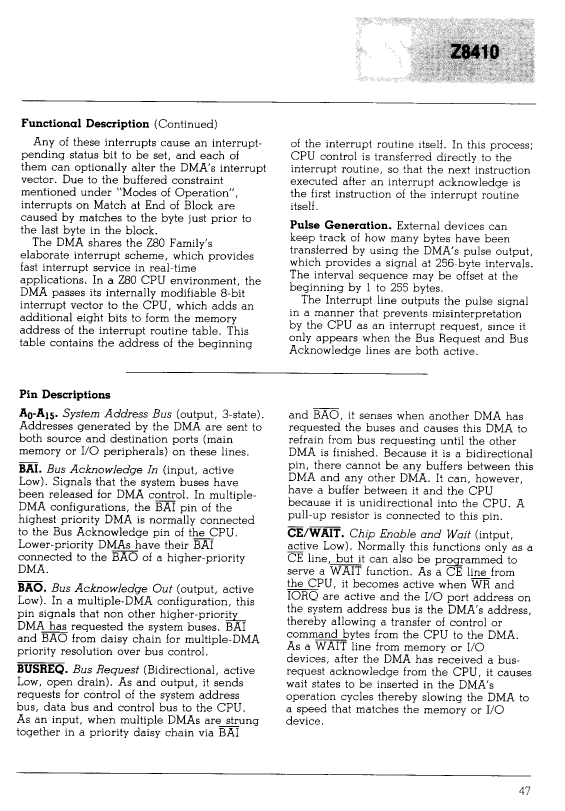

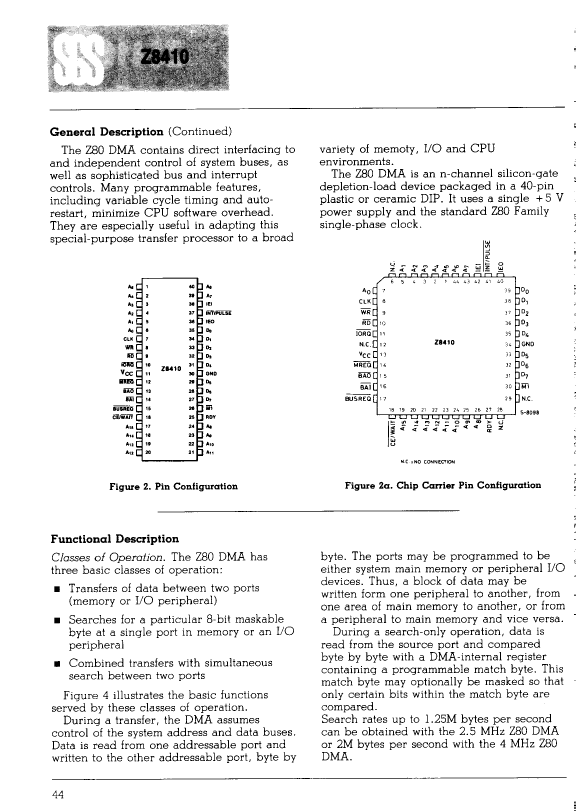

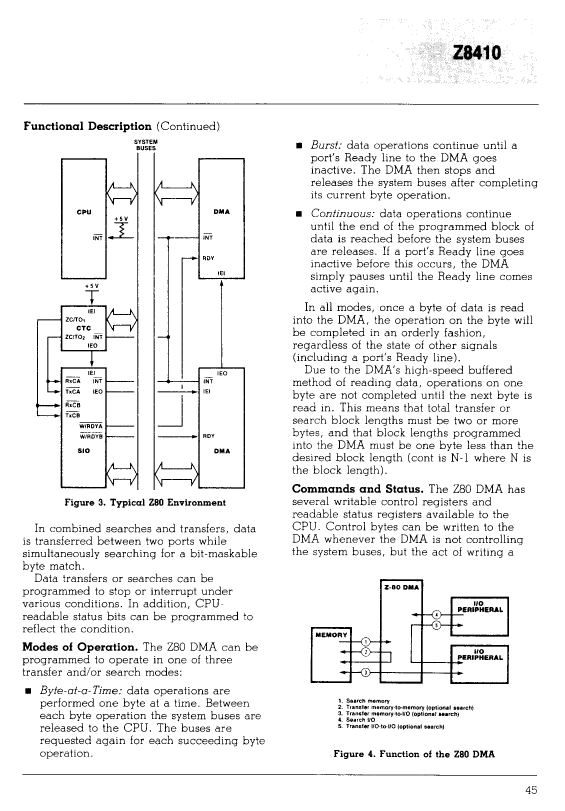

Preview

Download Datasheet

View All

Z8410K1 Related Products

	Z8410K1	Z8410C1	Z8410D2	Z8410D6	Z8410AC1	Z8410F1	Z8410AF1	Z8410AB1	Z8410AD1	Z8410AD6
Description	DMA Controller, MOS, CQCC44	DMA Controller, MOS, PQCC44	DMA Controller, MOS, CDIP40	DMA Controller, MOS, CDIP40	DMA Controller, MOS, PQCC44	DMA Controller, MOS, CDIP40	DMA Controller, MOS, CDIP40	DMA Controller, MOS, PDIP40	DMA Controller, MOS, CDIP40	DMA Controller, MOS, CDIP40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	QCCN, LCC44,.65SQ	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
JESD-30 code	S-XQCC-N44	S-PQCC-J44	R-XDIP-T40	R-XDIP-T40	S-PQCC-J44	R-XDIP-T40	R-XDIP-T40	R-PDIP-T40	R-XDIP-T40	R-XDIP-T40
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	44	44	40	40	44	40	40	40	40	40
Maximum operating temperature	70 °C	70 °C	125 °C	85 °C	70 °C	70 °C	70 °C	70 °C	70 °C	85 °C
Package body material	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC
encapsulated code	QCCN	QCCJ	DIP	DIP	QCCJ	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	LCC44,.65SQ	LDCC44,.7SQ	DIP40,.6	DIP40,.6	LDCC44,.7SQ	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	YES	NO	NO	NO	NO	NO
technology	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL	MILITARY	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	QUAD	QUAD	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER
Maker	SGS-Ates Componenti Electronici SPA	-	-	-	SGS-Ates Componenti Electronici SPA	SGS-Ates Componenti Electronici SPA	SGS-Ates Componenti Electronici SPA	SGS-Ates Componenti Electronici SPA	SGS-Ates Componenti Electronici SPA	SGS-Ates Componenti Electronici SPA
