TDA2-1209S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> TDA2-1209S

TDA2-1209S: DescriptionDC-DC Regulated Power Supply Module, 1 Output, Hybrid; CategoryPower/power management The power supply circuit; File Size54KB，2 Pages; ManufacturerTri-Mag Inc.

Download Datasheet Parametric Compare View All

TDA2-1209S Overview

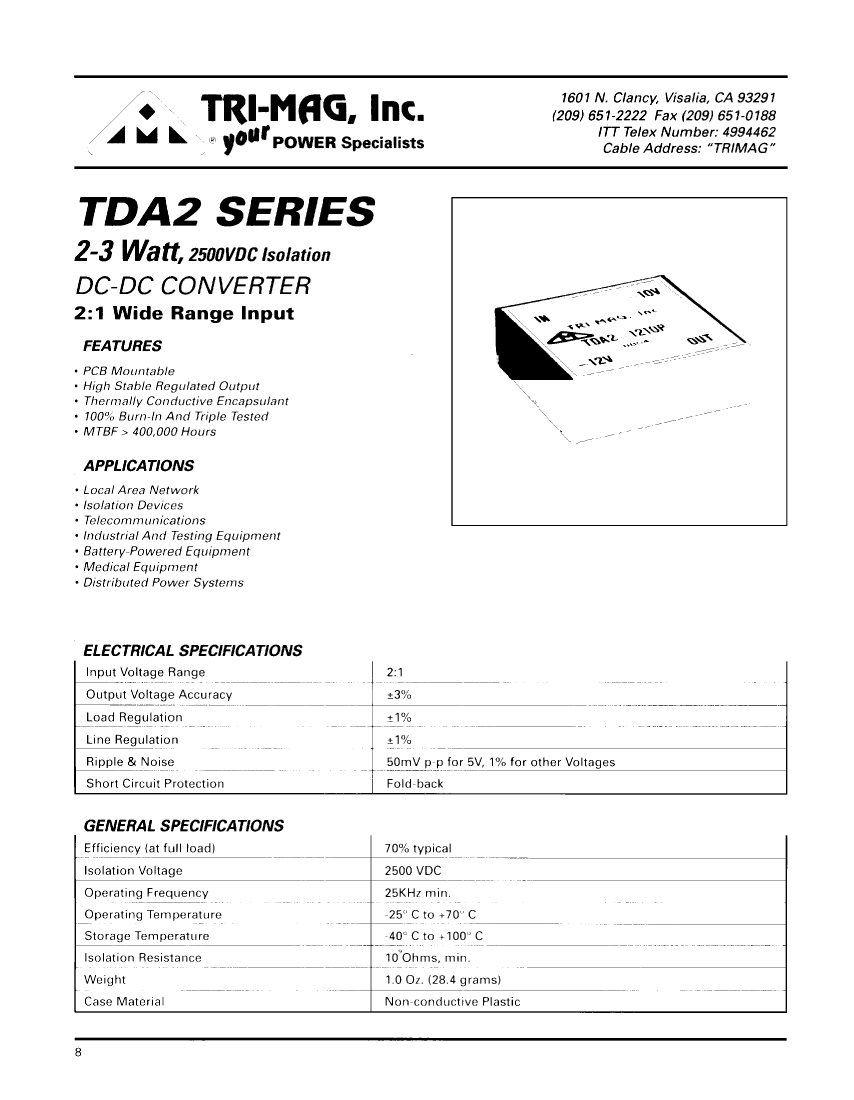

DC-DC Regulated Power Supply Module, 1 Output, Hybrid

TDA2-1209S Parametric

Parameter Name	Attribute value
Maker	Tri-Mag Inc.
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99

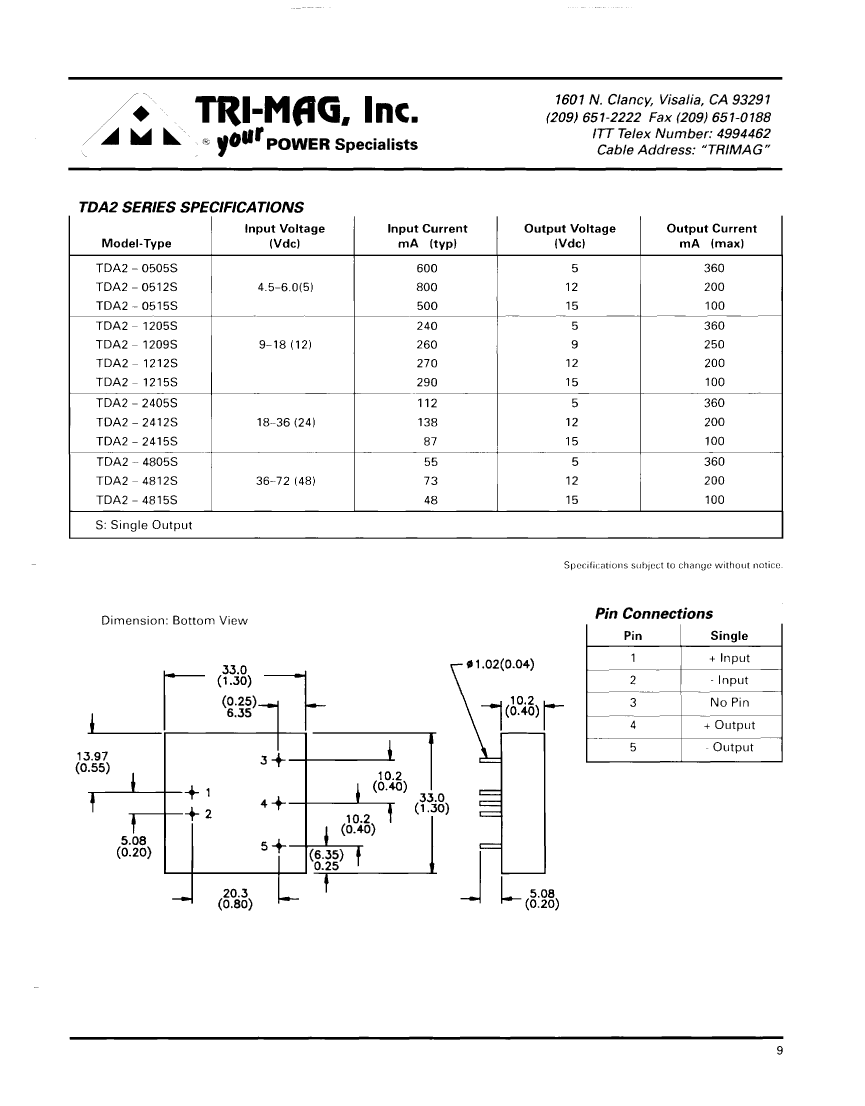

Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	70%
Maximum input voltage	18 V
Minimum input voltage	9 V
Nominal input voltage	12 V
JESD-30 code	S-PDIP-P5
Maximum grid adjustment rate	1%
Number of functions	1
Output times	1
Number of terminals	5
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Maximum output voltage	9.27 V
Minimum output voltage	8.73 V
Nominal output voltage	9 V
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	IN-LINE
Protect	CURRENT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

TDA2-1209S Related Products

	TDA2-1209S	TDA2-0515S	TDA2-1212S	TDA2-0505S	TDA2-4815S	TDA2-0512S	TDA2-2415S	TDA2-1205S	TDA2-2412S	TDA2-4805S
Description	DC-DC Regulated Power Supply Module, 1 Output, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, Hybrid
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	70%	70%	70%	70%	70%	70%	70%	70%	70%	70%
Maximum input voltage	18 V	6 V	18 V	6 V	72 V	6 V	36 V	18 V	36 V	72 V
Minimum input voltage	9 V	4.5 V	9 V	4.5 V	36 V	4.5 V	18 V	9 V	18 V	36 V
Nominal input voltage	12 V	5 V	12 V	5 V	48 V	5 V	24 V	12 V	24 V	48 V
JESD-30 code	S-PDIP-P5	S-PDIP-P5	S-PDIP-P5	S-PDIP-P5	S-PDIP-P5	S-PDIP-P5	S-PDIP-P5	S-PDIP-P5	S-PDIP-P5	S-PDIP-P5
Maximum grid adjustment rate	1%	1%	1%	1%	1%	1%	1%	1%	1%	1%
Number of functions	1	1	1	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1	1	1	1
Number of terminals	5	5	5	5	5	5	5	5	5	5
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maximum output voltage	9.27 V	15.45 V	12.36 V	5.15 V	15.45 V	12.36 V	15.45 V	5.15 V	12.36 V	5.15 V
Minimum output voltage	8.73 V	14.55 V	11.64 V	4.85 V	14.55 V	11.64 V	14.55 V	4.85 V	11.64 V	4.85 V
Nominal output voltage	9 V	15 V	12 V	5 V	15 V	12 V	15 V	5 V	12 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Protect	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Base Number Matches	-	1	1	1	1	1	1	-	-	-
