351100000 Overview

Thumbwheel Switches

3 Series
Thumbwheel Switches
Features/Benefits
Most complete product offering in the industry
Spacers available to fit most panel cutouts
Front or rear mounting options
Typical Applications
Test & measurement equipment
Industrial equipment
Computer devices
Specifications
CONTACT RATING:
CARRY: 1 AMP continuous.
SWITCH: 100 mA max.
OPERATING VOLTAGE: 50 mV to 28 V DC or 120 V AC.
ELECTRICAL LIFE: 100,000 actuations.
CONTACT RESISTANCE: Below 100 m
typ. initial @
2-4 V DC, 100 mA.
INSULATION RESISTANCE: 109
min.
DIELECTRIC STRENGTH: 500 Vrms min. @ sea level
between common terminal and any output.
OPERATING TEMPERATURE: -40ºC to 65ºC.
Materials
HOUSING: ABS plastic.
THUMBWHEEL: ABS plastic.
ROTOR CONTACTS: Precious metal on copper alloy.
STATOR CONTACTS: Hard gold over nickel over copper
on epoxy fiberglass.
NOTE:
Specifications and materials listed above are for switches with standard options
For information on specific and custom switches, consult Customer Service Center.
* Note: All models listed are RoHS compliant. See Technical Data section of this catalog for
RoHS compliant and compatible definitions and specifications.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages M–4 thru M–10. For additional options not shown in catalog, consult Customer Service Center.
Consult factory for illumination availability.
Thumbwheel & Pushwheel
Series
3
Thumbwheel switch
Number of Sections
0
Switch section
1
1 Switch section
2
2 Switch sections
3
3 Switch sections
4
4 Switch sections
5
5 Switch sections
6
6 Switch sections
7
7 Switch sections
8
8 Switch sections
9
More than 8
switch sections

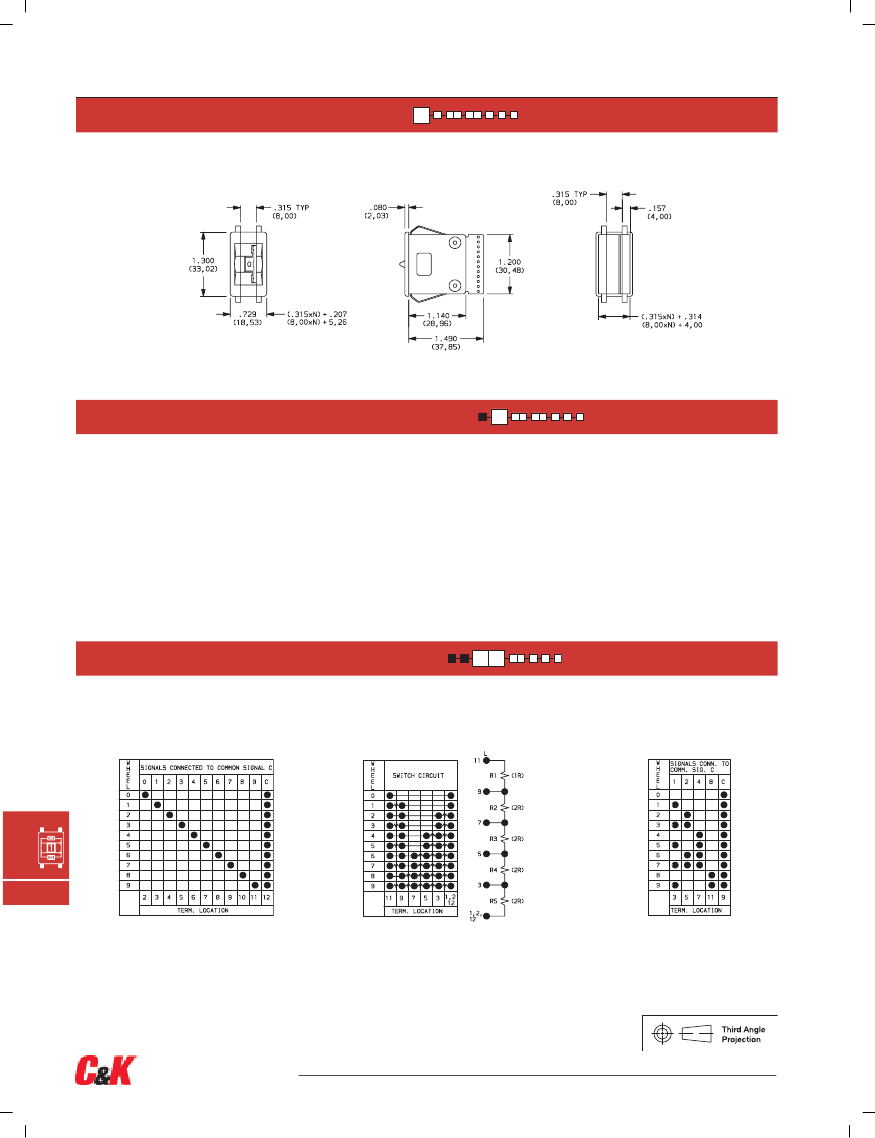

Function Code
11
Decimal, SP, 10 position
14
Resistor decade
21
BCD, 10 position
23
Complement of BCD, 10 position
27
BCD, 10 position
31
BCD, 10 position
71
BCH, 16 position

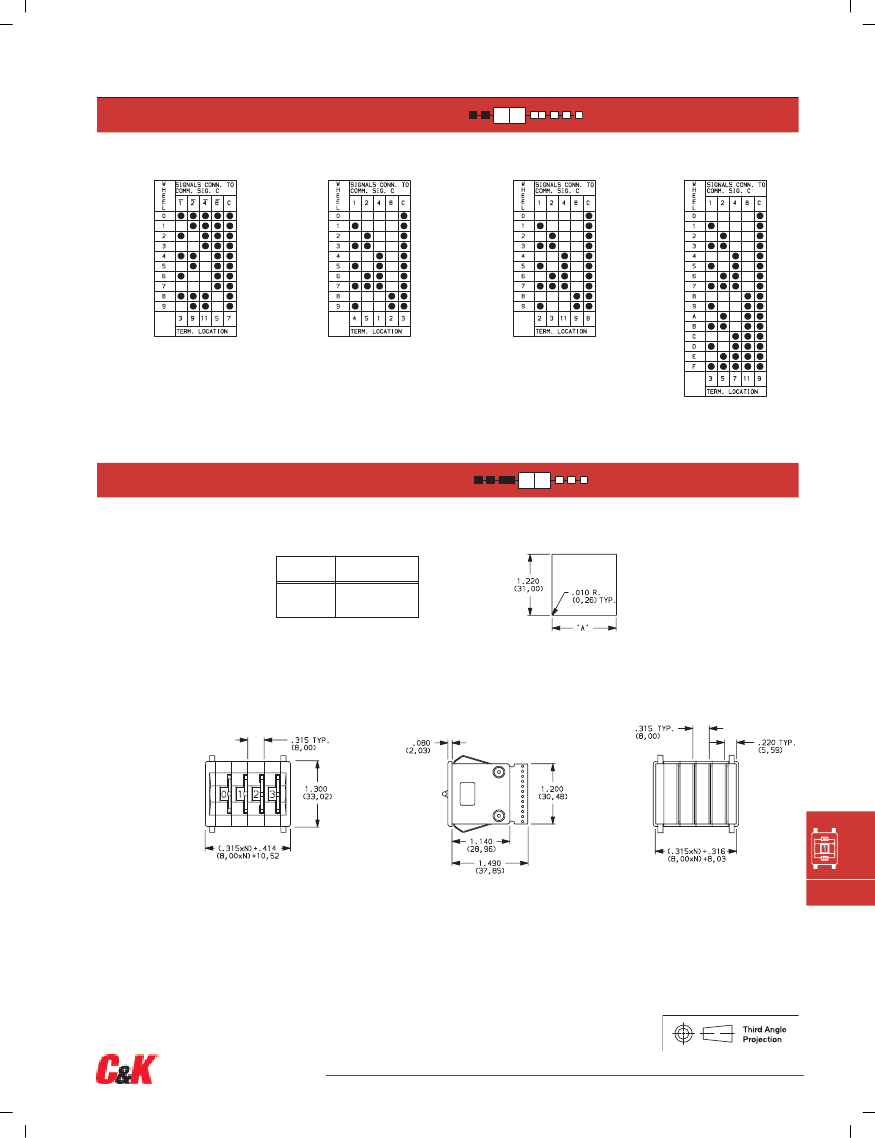

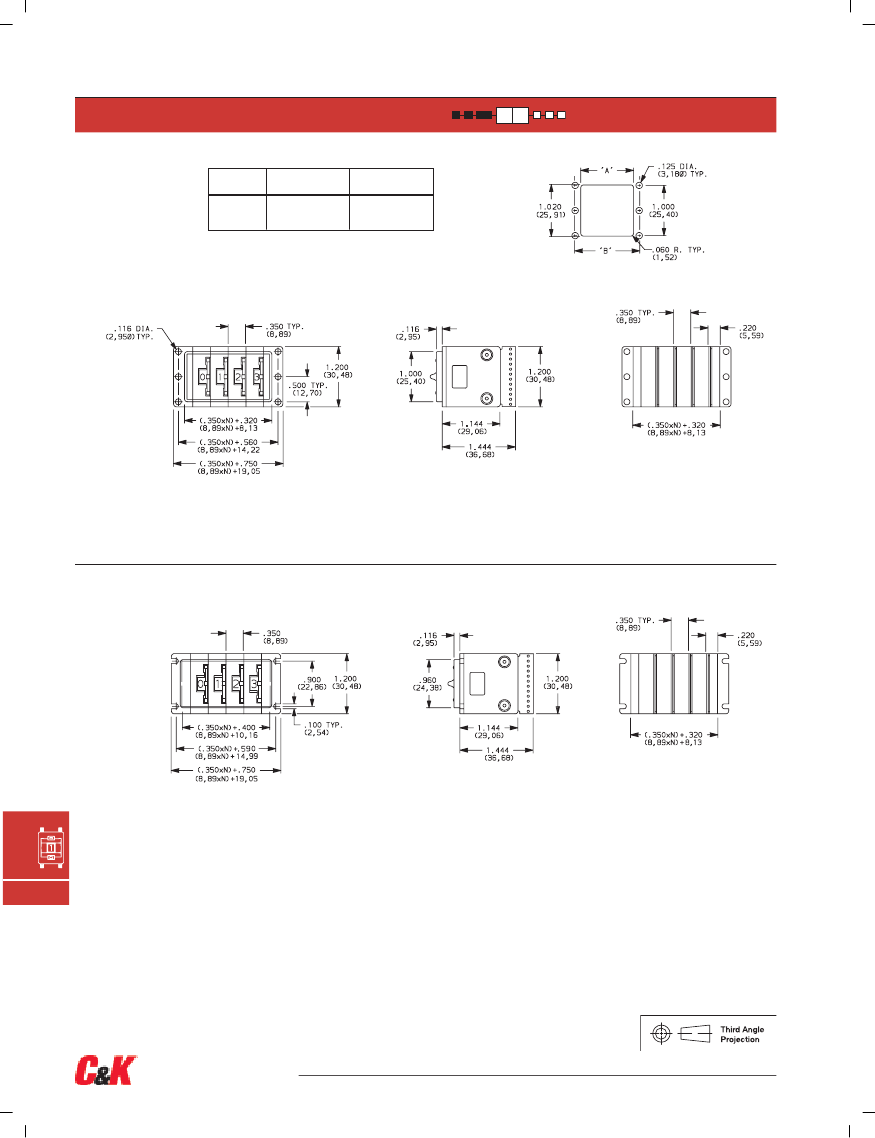

Mounting Style
00
Snap-in, front mount
09
Snap-in, front mount*
10
Rear mount

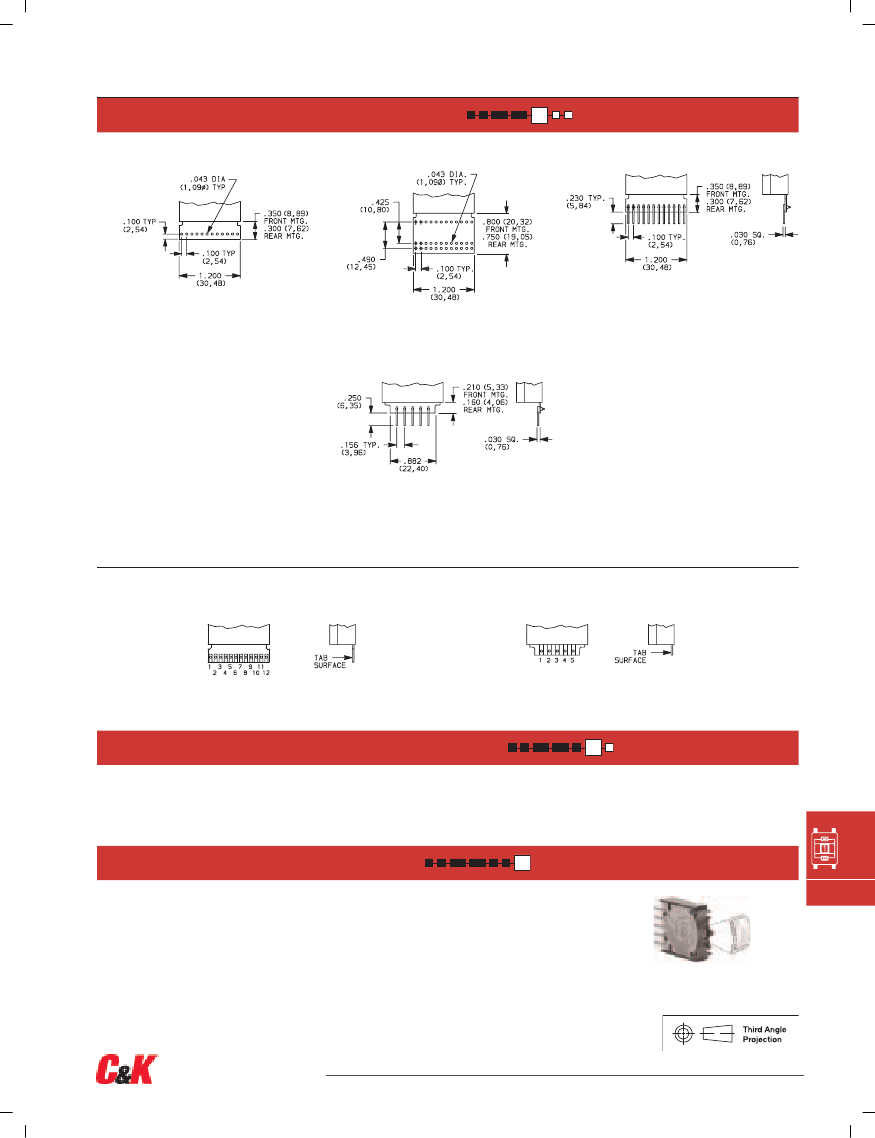

Terminations
19
Rear mount*
0
Type 0
20
Rear mount
1
Type 1, extended type 0
29
Rear mount*
N
Solder pins with .100” spacing**
P
Solder pins with .156” spacing**
9
Any combination
Color/Marking/Stops
0
Matte black body, gloss
black wheel,
white marking
*X9 mounting styles must be ordered with ‘0’ number of sections.
** Note: Termination option N (RoHS compliant) replaced termination option 3 (Non-RoHS compliant).
Termination option P (RoHS compliant) replaced termination option B (Non-RoHS compliant).
Seal
0
No seal
1
Sealed contacts
2
Dust lens
3
Sealed contacts & dust lens
M
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
M–3
www.ck-components.com
