AR111-CW-SP Overview

Single Color LED Display Cluster, Cool White

AR111-CW-SP Parametric

Parameter Name	Attribute value
Maker	DIALIGHT
Reach Compliance Code	compliant
color	COOL WHITE
Maximum forward current	0.7 A
Number of functions	1
Maximum operating temperature	40 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	SINGLE COLOR LED DISPLAY CLUSTER

Preview

Download Datasheet

View All

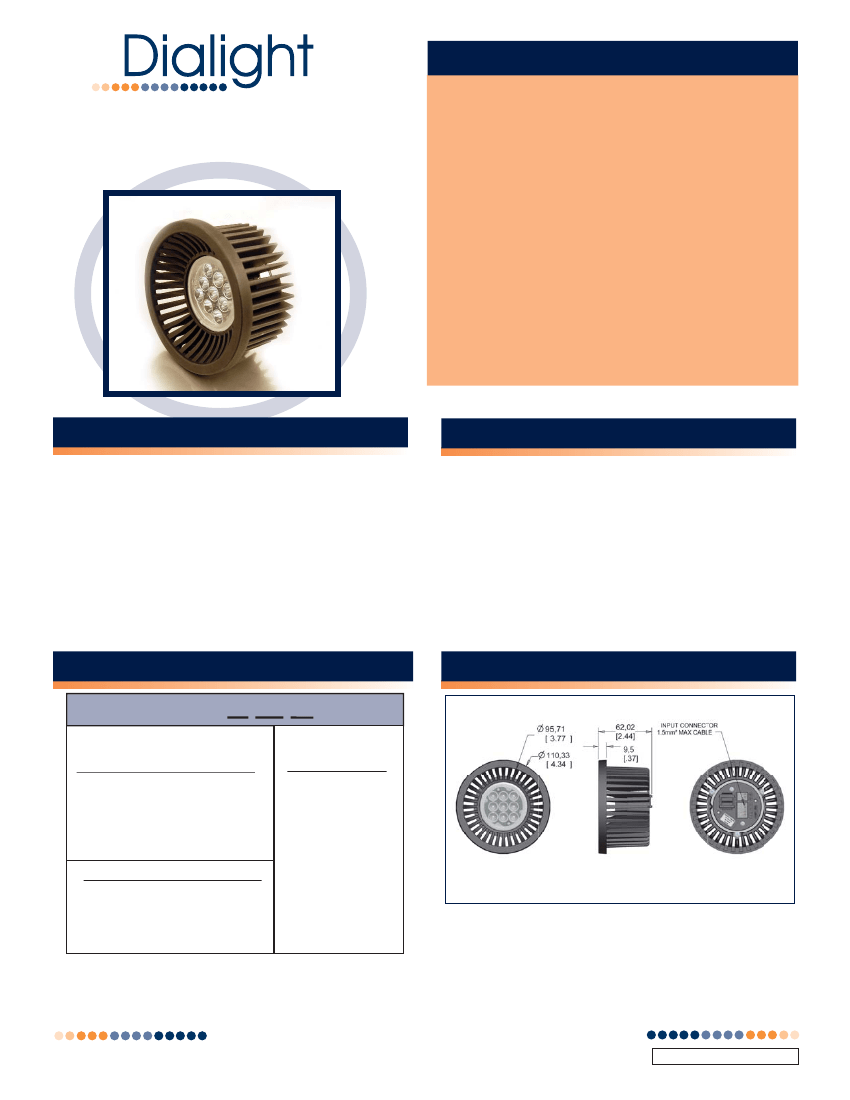

FEATURES / BENEFITS

p

Utilizes 9 premium flux LUXEON

®

Rebel™ LEDs,

POWERWHITE

CIRCULAR LED MODULES

AR111/AR111-LV

100+ lumens for cool white, 100+ lumens for

neutral white and 50+ lumens for warm white

p

ETL recognized to UL standards (pending)

p

Available in choice of colours & colour

temperatures

p

Quick connect terminal blocks for easy installation

p

>70% lumen maintenance @ 50,000 hours at

max operating temperature. Better at lower

operating temps!

APPLICATION

p

Spot lighting

p

Accent lighting

p

General illumination

p

Interior use only

p

Architectural lighting

p

Machine vision

p

Display cases

MATERIALS / FINISH

p

Connection

- Cage Clamp Connectors

p

Optics

- Dialight-Lumidrives Optics

p

Lens Cover

- Polycarbonate 143R

p

Rear Cover

- Polycarbonate 143R

p

Heatsink

- ADC10 Aluminum Alloy, Black Anodised Finish

Product designed to fit the majority of AR111 housings.

Depth of housing should be checked for compatibilty.

ORDERING INFORMATION

MECHANICAL DIMENSIONS

AR111-LV-AA-BB

Typical Colour

(AA) Temperature

CW

= 5000K – 6350K

NW

= 3800K – 4100K

WW

= 2850K – 3250K

Blank = no onboard

driver

LV = with onboard

driver

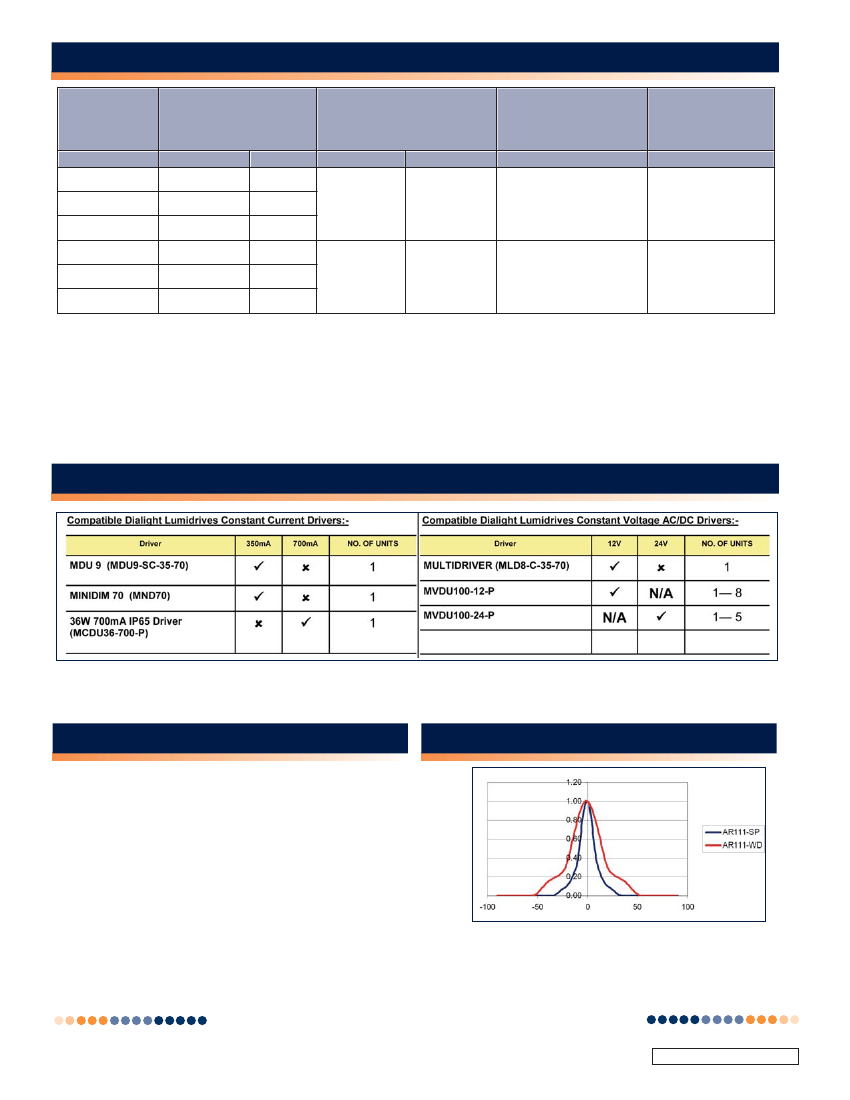

Options

Optic (BB)

SP

= 7 degree spot

WD

= 13 degree wide

All angles are half divergence

Diameter x H

110.33mm x 62.02mm (4.34” x 2.44”)

Maximum Cable Dia - 1.5mm

2

/ 16 AWG

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

Dialight Europe Ltd

Exning Road • Newmarket • Suffolk, United Kingdom, CB8 0AX

Tel :+44 (0)1638 666541 • www.dialight.com

MDEXLUMAR111_A
