FEATURES / BENEFITS
5 year performance warranty

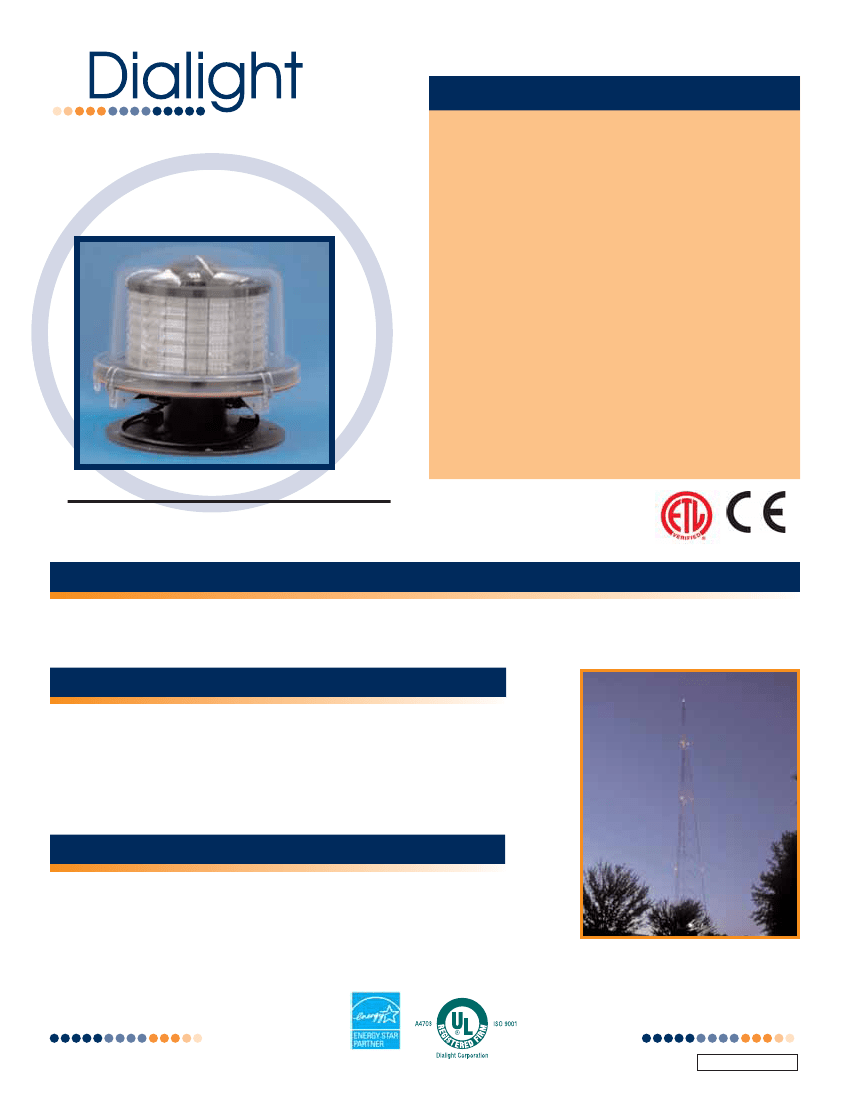

D164 SERIES LED BASED
Medium Intensity Red Beacon
FAA Type L864
Designed to replace 300mm incandescent
obstruction lighting fixtures with state of the art
high flux LED technology
Modular design for simple replacement of light engine
Can be flashed or steady burned
(controller not supplied)
Uses 90% less energy than an incandescent
Creates no EMI/RFI
Lasts years longer than an incandescent
Beacon designed to mount onto existing bolt
pattern installations
Resistant to shock and vibration
ETL Certified to: FAA AC NO: (150/5345-43E)
Canadian Aviation Regulation (CAR 621.19)
ICAO (Annex 14, July 1999)
APPLICATION
The Dialight D164 Series medium intensity red beacon was designed to easily interface into existing systems or
to be provided as a red lighting fixture for new installations. The beacon is used to mark any obstacle that may
provide hazards to air craft navigation.
OPERATING CONDITIONS
The beacon is designed to withstand the dynamic conditions
experienced in the most severe environments around the world.
Temperatures ranging from -55 to +55 degrees Celsius, Direct
Sunlight, Wind blown rain, Wind in excess of 150Mph, High
Humidity, Salt fog. Does not create, nor is the performance
degraded by EMI/RFI.
MATERIALS
The Beacon is designed for durability with a cast aluminum base
stainless steel hardware. The dome is made of UV resistant acrylic
and sealed to ensure maximum life of the product.
Dialight Europe Ltd.
Exning Road, Newmarket, England, CB8 0AX
Tel: +44 (0) 1638 666541 • Fax: +44 (0) 1638 561735
www.dialight-obstruction-lights.com
A Subsidiary of Dialight PLC
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778
www.dialight.com
MDTF864X001_E
PHOTOMETRIC DATA

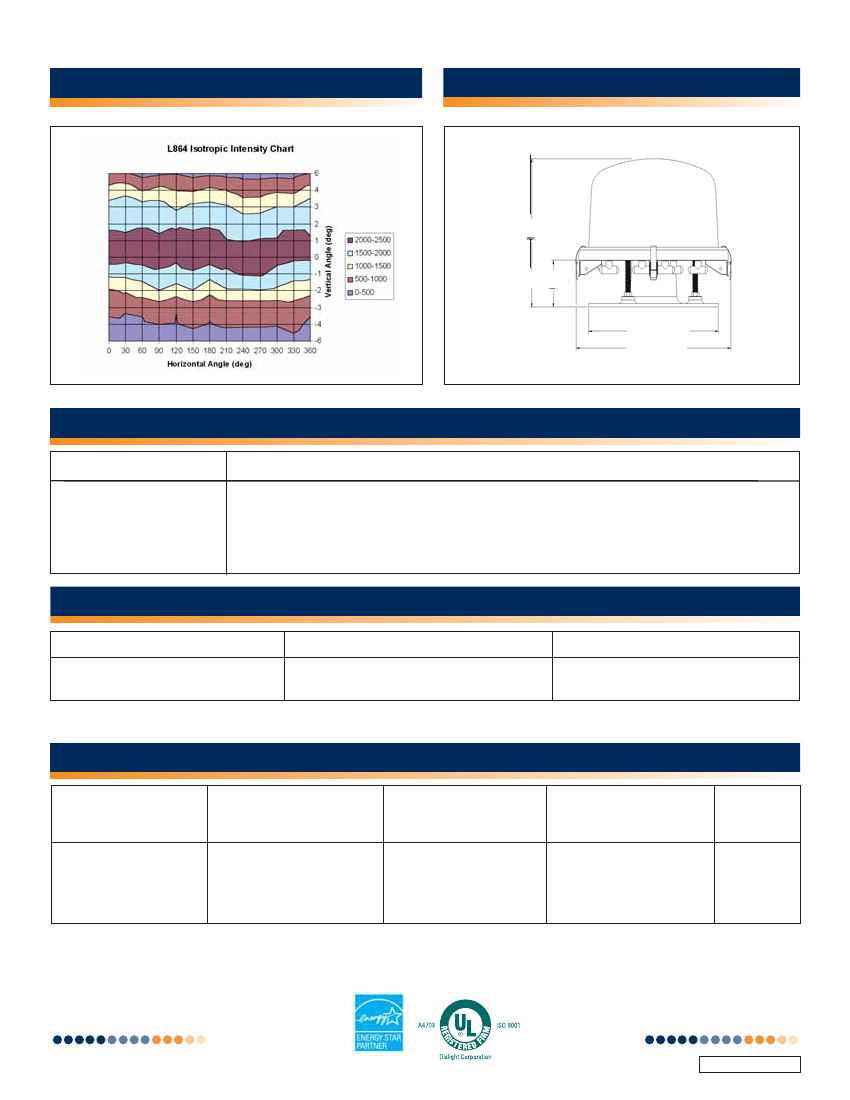

MECHANICAL DIMENSIONS
15.0” (393.7 m)
REF.
4.89” (124 mm)
REF.
15.00” (381 mm)
REF.
17.88” (454.2 mm)
REF.
ORDERING INFORMATION
Product
D164-A11-001
D164-A13-001
D164-1000
D164-1006
Description
Beacon, Red, 120 VAC
Beacon, Red, 120/240 VAC
Replacement Module, 120 VAC
Replacement Module, 120/240 VAC
WEIGHTS & MEASUREMENTS
PART NUMBER
D1 Series
APPROX. SHIPPING WEIGHT
50 lbs (22 kg)
CONTAINER DIMENSIONS
24” x 24” x 24” (600x600x600 mm)
UNIT ELECTRICAL SPECIFICATIONS
OPERATING VOLTAGE
Min
Typ
Max
D1 Series
120VAC UNITS
120/240 VAC UNITS
92
85
120
120/240
135
268
.8
.6
1.0
-
1.5
2
105
105
131
131
147
147
125
125
Current (Amps)
Min
Typ
Max
VOLT AMPS (VA)
Min
Typ
Max
WATTS
Typ
