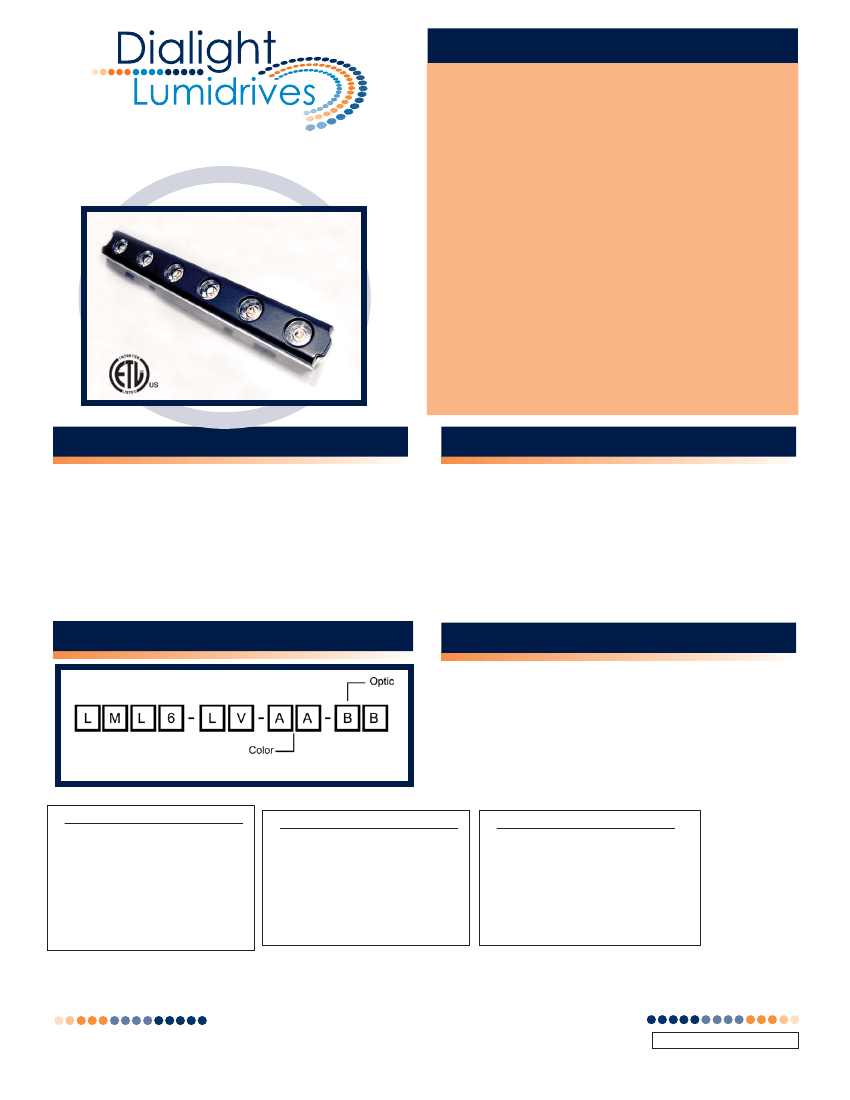

FEATURES / BENEFITS
p
Fully modular linear arrays of ultra high
brightness LEDs
POWERWHITE LV
LINEAR MODULES
p
Utilizes the latest 80+ lumen LUXEON
®
Rebel™
LEDs for cool white, 70+ lumen for neutral white &
50+ lumen for warm white
p
Onboard 350mA constant current driver runs off
low voltage input
p
ETL listed to UL2108 standards
p
Choice of color temperatures & optical patterns
p
>70% lumen maintenance @ 50,000 hours at
max acceptable ambient temperature
p
Primary heatsinking included
p
Color binned for consistent color
OPERATING CONDITIONS
p
Operating Ambient temperature -30ºC to +55ºC
p
Onboard driver model operates off 12-24VDC /
11-17VAC input
p
Max modules per run = 10 @ 12VAC, 16 @ 24VDC input
p
Typical power consumption 8.0W per module
p
Additional heatsinking required for optimal performance
p
Current draw 580mA @ 12VDC input
290mA @ 24VDC input
APPLICATION
p
Linear lighting
p
Accent lighting
p
Flood lighting
p
Street & area lighting
p
General illumination
ORDERING INFORMATION
MATERIALS / FINISH
p
Six premium LUXEON Rebel LEDs per module
p
Anodized cast aluminum heatsink
p
Dialight-Lumidrives optics (OPC 11 Series)
p
Onboard 350mA constant current driver
p
Required Entry Cable,
Power Supply to 1st module
(sold seperately): LML6-LV-CON-CAB
Color (AA)
CW
= Min 80 lumen ‘v bin’
Cool white
5300K
NW
= Min 70 lumen ‘s bin’
Neutral white 3950K
WW
= Min 50 lumen ‘n bin’
Warm white 2950K
*Optic (BB)
SP
= 5 degree spot
MD
= 8 degree spot
WD
= 20 degree wide
OV
= 5X25 degree oval
FR
= 7 degree frosted spot
*All angles are half divergence
Connectors
LML6-LV-CON-CAB
(sold separately)
Entry cable, power supply to 1st module
LML6-LV-M2M-CAB
(ships w/ 1 in box)
Connection cable (module to module)
* Cables use AWG 20 wires
Dialight-Lumidrives Ltd.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
York House • Wetherby Road • Long Marston, York, YO26 7NH
Tel: +44(0) 1904 739150 • Fax: +44(0) 1904 737926 • www.dialight.com
MDEXLUMPWMLV_B

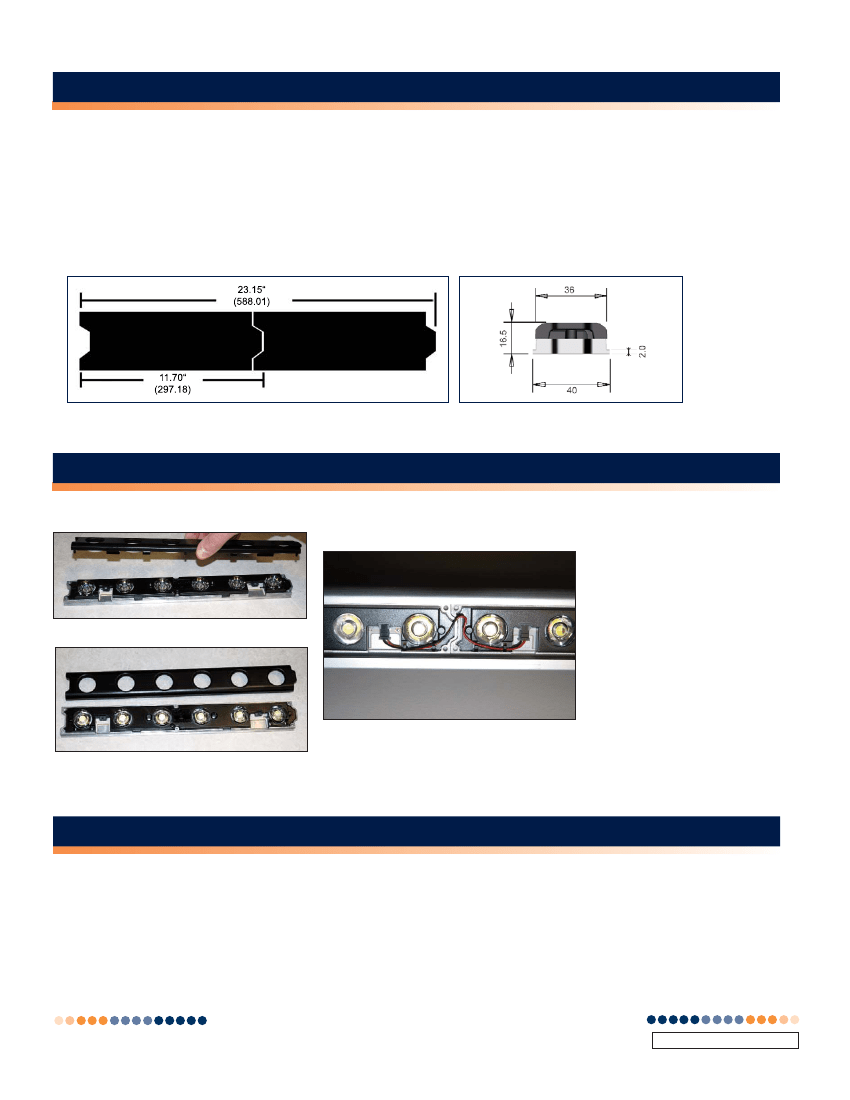

MECHANICAL DIMENSIONS
11.7” x 1.498” x 0.585”
(297.18mm x 38.05mm x 14.86mm)
Mounting hole spacing = 3.22” [81.8mm].
Max screw size #8
Total length for “Z” units connected end to end =
(Z x 11.7) - ((Z-1) x 0.25) (inches)
(Z x 297.2) - ((Z-1) x 6.35) (mm)
Top View
Example: 2 units total length = 23.15” [588.01]
Side View
ASSEMBLY INFORMATION
1) Remove cover from
module
(Do not remove mask)
2) Connect
LML6-LV-M2M-CAB
quick
connect cables between modules as
indicated in the photo. If desired, insert
8/32 or M6 mounting screws in holes
provided.
3) Wire between cables may be routed
through end as indicated in photo or
around side of module.
4) Connect
LML6-LV-CON-CAB
into front
of first module.
5) Replace cover.
6) Connect leads on
LML6-LV-CON-CAB
to low voltage power supply.
Red wire to +, black wire to -
PHOTOMETRIC DATA
IES 32 files available, consult factory
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
