87714-1010GG: Description14 CONTACT(S), MALE, DIP CONNECTOR, IDC; CategoryThe connector The connector; File Size29KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

87714-1010GG Overview

14 CONTACT(S), MALE, DIP CONNECTOR, IDC

87714-1010GG Parametric

Parameter Name	Attribute value
Maker	3M
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SOLDERED DIRECTLY TO THE BOARD
body width	0.421 inch
subject depth	0.181 inch
body length	0.791 inch
Connector type	DIP CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	877
Plug contact pitch	0.1 inch
Match contact row spacing	0.3 inch
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	100u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	14
UL Flammability Code	94V-0
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All

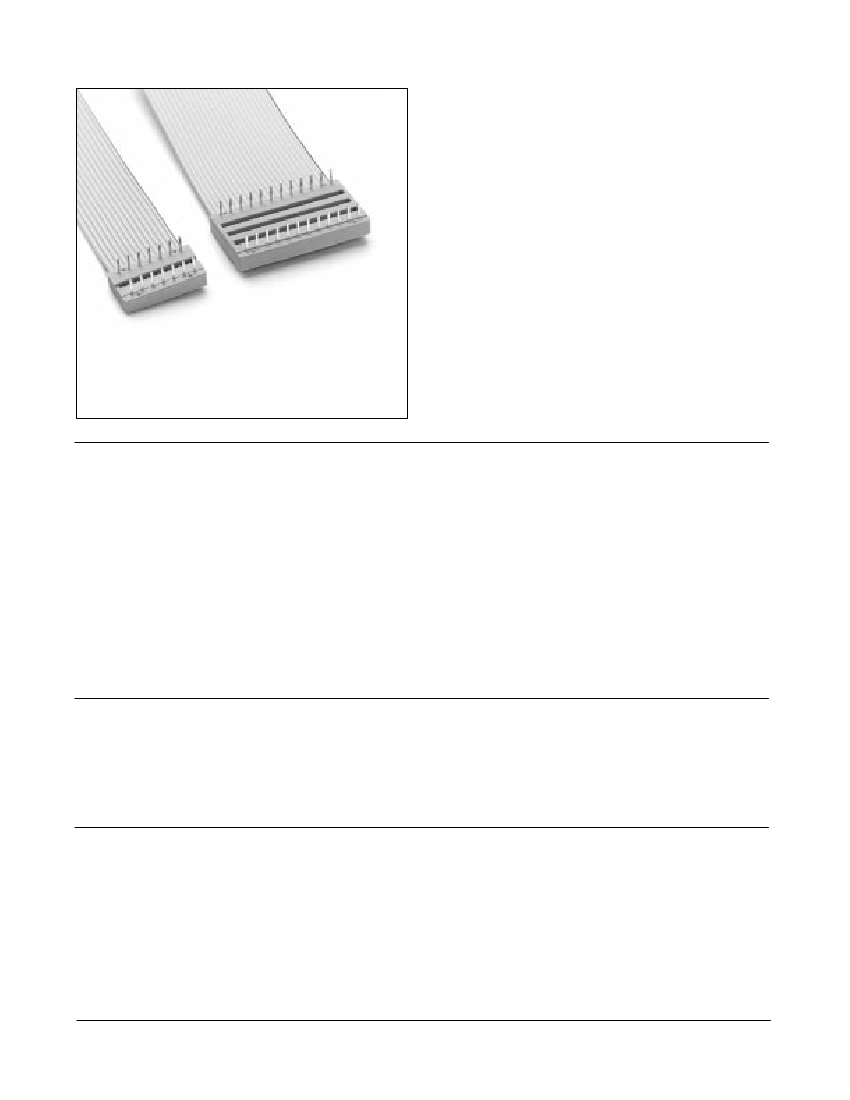

.100″

.300″ or .600″ Molded DIP

877 Series

S

Part of a complete cable assembly

S

Mates with industry standard IC sockets /

.100

.300 inch up to 20 positions and

.100

.600 inch between 24 and 40

positions

S

One piece, molded on construction with

integral strain relief

S

Lowest profile available in the industry

S

Molded on solder stand-offs facilitate flux

removal

S

Gold or tin/lead plating options

S

Closed end construction

S

Modular tooling allows customized designs

Date Issued: February 19, 1999

105

TS-0631-03

Sheet 1 of 2

Physical

Insulation

Material:

Flammability:

Color:

Contact

Material:

Plating

Underplate:

U-Slot & Solder Tails:

Wire Accomodation:

Marking:

Glass Filled Polyester (PBT)

UL94V-0

Gray

Copper Alloy

50–150

µ

″

[ 1.27–3.81

µ

m ] Nickel — QQ–N–290, Class 2

100–300

µ

″

[ 2.54–7.62

µ

m ] Tin Lead — MIL–P–81728

26 & 28 AWG Solid or Stranded

3M Logo, Part Identification and Contact Position Numbers

Electrical

Current Rating:

1 A

Insulation Resistance:

> 1

×

10

9

Ω

at 500 VDC

Withstanding Voltage:

1000 Vrms at Sea Level

Environmental

Temperature Rating:

–55°C to +105°C

UL File No.: E68080

3M Electronic Products Division

6801 River Place Blvd.

Austin, TX 78726-9000

For technical, sales or ordering information call

800-225-5373
