BJ770GL-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BJ770GL-S

BJ770GL-S: DescriptionCONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size119KB，1 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric Compare View All

BJ770GL-S Overview

CONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE

BJ770GL-S Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
Body/casing type	RECEPTACLE
Connector type	RF TRIAXIAL-BNC CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	NICKEL
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	BJ770
Installation method	STRAIGHT
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER

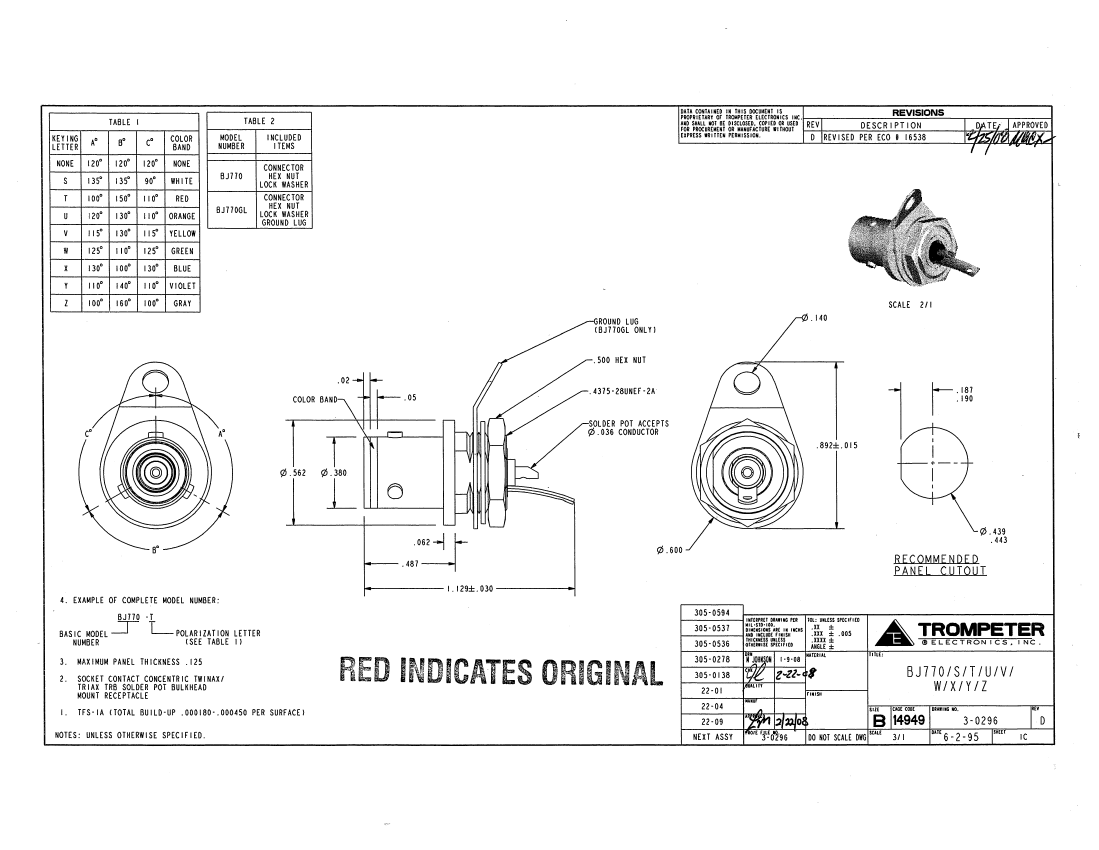

Preview

Download Datasheet

View All

BJ770GL-S Related Products

	BJ770GL-S	BJ770GL-W	BJ770GL-X	BJ770GL-U	BJ770GL-V	BJ770GL-Y	BJ770GL	BJ770GL-Z	BJ770GL-T
Description	CONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, PANEL MOUNT, CABLE TERMINATED, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, PANEL MOUNT, FEMALE, BNC, TRIAXIAL CONNECTOR, SOLDER, RECEPTACLE
Maker	Artysen Embedded Technologies	Artysen Embedded Technologies	Artysen Embedded Technologies	Artysen Embedded Technologies	Artysen Embedded Technologies	Artysen Embedded Technologies	Artysen Embedded Technologies	Artysen Embedded Technologies	Artysen Embedded Technologies
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	STANDARD:MIL-C-49142	POLARIZED	POLARIZED
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	RF TRIAXIAL-BNC CONNECTOR	RF TRIAXIAL-BNC CONNECTOR	RF TRIAXIAL-BNC CONNECTOR	RF TRIAXIAL-BNC CONNECTOR	RF TRIAXIAL-BNC CONNECTOR	RF TRIAXIAL-BNC CONNECTOR	RF TRIAXIAL-BNC CONNECTOR	RF TRIAXIAL-BNC CONNECTOR	RF TRIAXIAL-BNC CONNECTOR
Contact to complete cooperation	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Contact completed and terminated	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	BJ770	BJ770	BJ770	BJ770	BJ770	BJ770	BJ770	BJ770	BJ770
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES	YES	YES	YES	YES	YES	YES
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
