8812KFM3-40 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 8812KFM3-40

8812KFM3-40: DescriptionMonitor TEE DC Block, 0.012MHz Min, 40000MHz Max, 3dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size49KB，1 Pages; ManufacturerCobham PLC

Download Datasheet Parametric View All

8812KFM3-40 Overview

Monitor TEE DC Block, 0.012MHz Min, 40000MHz Max, 3dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE

8812KFM3-40 Parametric

Parameter Name	Attribute value
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	2.9 MM-F; 2.9 MM-M; BNC-F
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum DC voltage	16 V
Maximum insertion loss	3 dB
JESD-609 code	e4
Maximum operating frequency	40000 MHz
Minimum operating frequency	0.012 MHz
RF/Microwave Device Types	MONITOR TEE DC BLOCK
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.8

Preview

Download Datasheet

View All

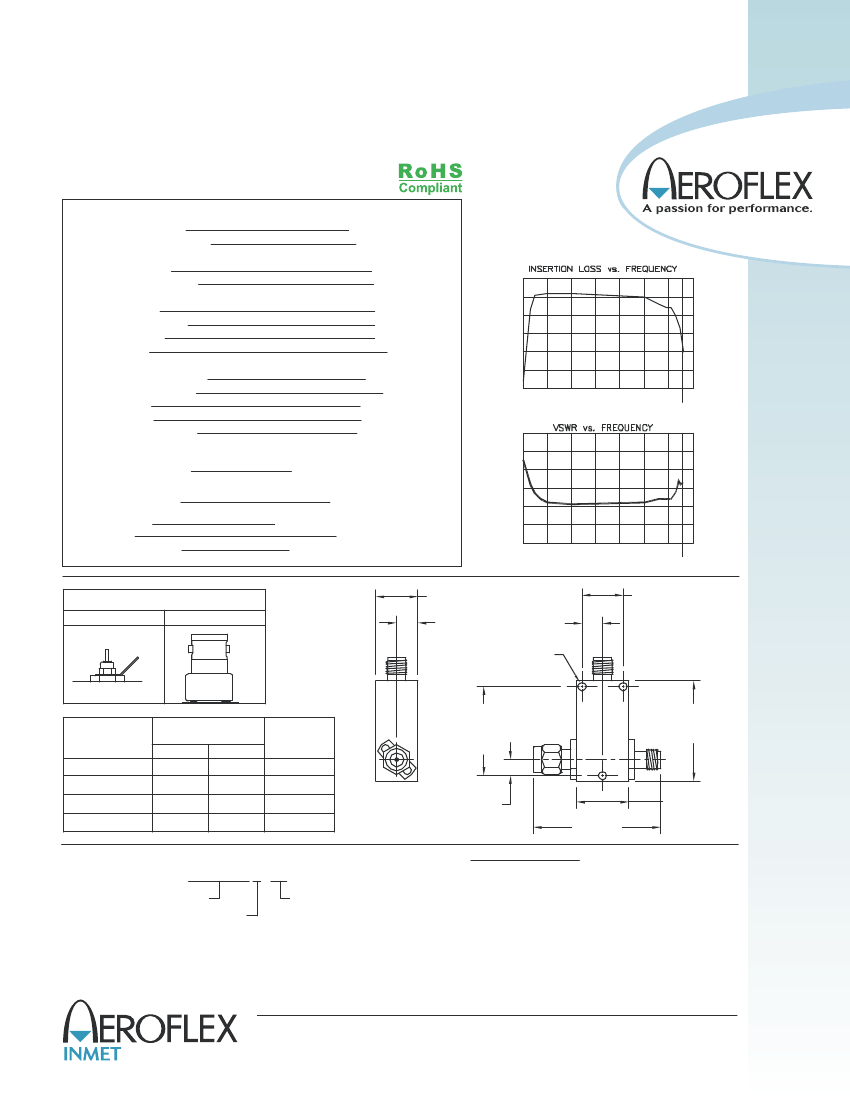

BIAS TEES

2.9mm, up to 40 GHz, 16 Volts / 150 mA

SPECIFICATIONS:

Models: 881

2KMFX-YY, 881

2kFFX-YY,

881

2KMMX-YY, 881

2KFMX-YY

Electrical:

Frequency Range

Standard Freq. Values

VSWR

1 - 100 kHz

100 kHz - 40 GHz

Insertion Loss

1 - 50 kHz

50 kHz - 18 GHz

18 - 40 GHz

Impedance

Isolation (RF to Bias Port)

250 kHz - 26.5 GHz

100 kHz - 40 GHz

DC Voltage

DC Current

Rise Time (10-90%)

1 kHz - 40 GHz

26.5 & 40 GHz

Typical performance from 12 kHz - 40 GHz

2.50:1 Max.

1.80:1 Max.

3.0dB Max.

1.5dB Max.

3.0dB Max.

50 Ohms

50dB Typical

30dB Typ.

16 VDC Max.

150 mA Max.

< 9 pS Typical

Passivated Stainless Steel

VSWR

Insertion Loss (dB)

-0.5

-1.0

-1.5

-2.0

-2.5

-3.0

.00001

.0001

.001

.01

FREQ (GHz)

100

3.0

2.5

2.0

1.5

1.0

0.5

0.0

.00001

.0001

.001

.01

Mechanical:

2.9mm Connectors

Mates with SMA, 23.5mm and K* Series Connectors

as well as SMK IAW MIL

-STD-348

BNC Connectors

Mates with MIL

-STD-348

Nickel Plated Brass

Gold Plated Beryllium Copper

Gold Plated Brass

Passivated Stainless Steel

* K is a Trademark of Anritsu Corp.

Conductors

Housing

SMA Connectors

Mates with MIL

-STD-348

FREQ (GHz)

100

DC Input Connector Options

Solder Post, X=1

BNC Female, X=3

.50±.03

[12.70±0.76]

.25 [6.35]

.244

[6.20]

.489 [12.42]

Centered

DC Input

(SMA Female Conn.)

Option X = 2

3X Ø.102 [Ø2.59]

THRU

Model

Numbers

8812KMFX-YY

8812KFFX-YY

8812KMMX-YY

8812KFMX-YY

Connector

Configuration Port

AC + DC

Female

Male

Female

Male

Female

Male

Overall

Length

Max.

1.63 [41.40]

1.75 [44.45]

1.63 [41.40]

1.060

[26.92]

Cent.

AC + DC

Port

1.20

[30.48]

AC Port

Female 1.60 [40.64]

.19 [4.83]

Overall

Length

.63 [16.00]

HOW TO ORDER:

Model Number:

881

2KZZX-YY

Base Number

Freq. Range

26 = 1 kHz - 26.5 GHz

40 = 1 kHz - 40 GHz

Ordering Examples:

Model Number:

881

2KFF2-26

1 kHz - 26.5 GHz, 2.9mm Fem/Fem

SMA Female DC ConnectorType

DC Connector Type

Model Number:

881

2KMF1-40

1 = Solder Post

1 kHz - 40 GHz, 2.9mm Male/Fem

2 = SMA Female Conn.

Solder Post DC ConnectorType

3 = BNC Female Conn.

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

881

2K: REV E

Contact factory for technical specifications before purchasing or use.

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet • inmetsales@aeroflex.com
