Compact Thick Film Chip Resistors

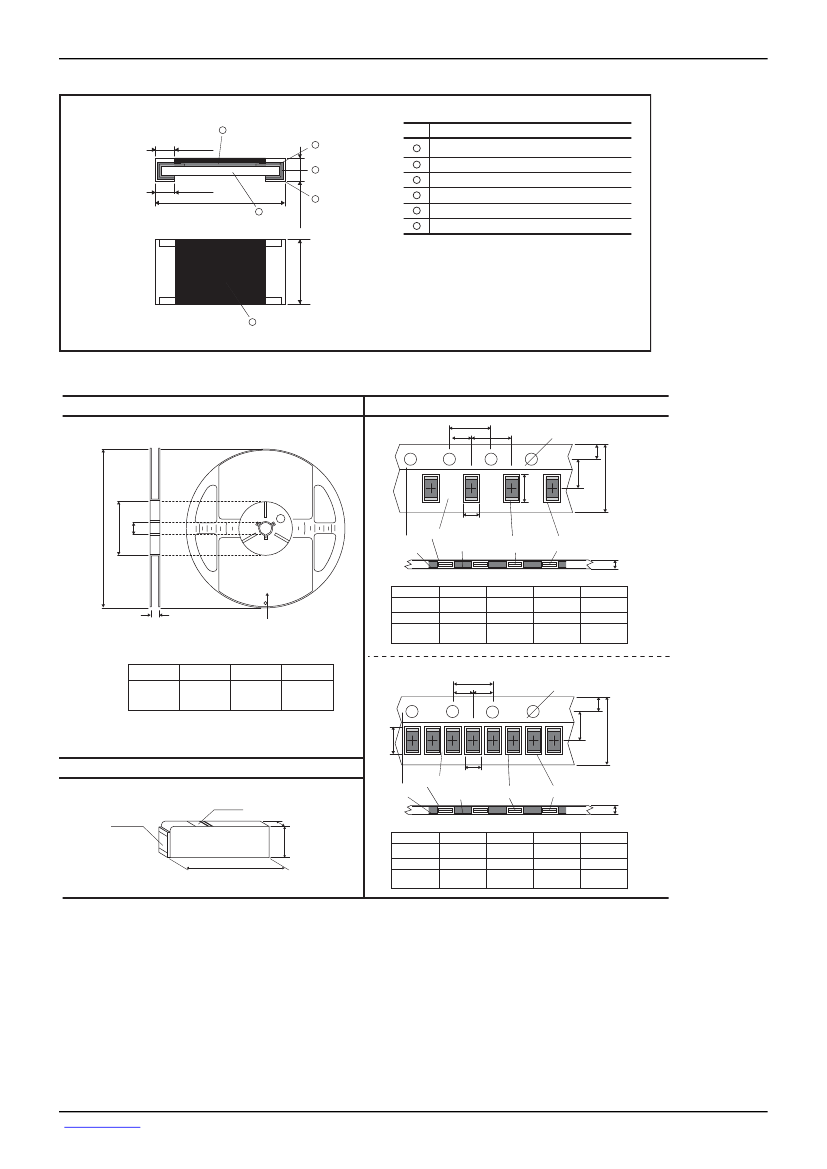

MCR03 (0603 size : 1 / 10W)
Features
1) Power rating of 1 / 10W
2) Highly reliable chip resistor
Ruthenium oxide dielectric offers superior resistance to the elements.
3) Electrodes not corroded by soldering
Thick film makes the electrodes very strong.
4) Resin protective coating absorbs impact, facilitates mounting.
5) ROHM resistors have approved ISO9001- / ISO/TS 16949- certification.
Ratings
Design and specifications are subject to change without notice. Carefully check the specification sheet supplied with the
product before using or ordering it.
Item
Rated power
Conditions
Power must be derated according to the power derating curve in
Figure 1 when ambient temperature exceeds 70°C.
100
80
POWER LOAD (%)
Specifications
0.10W (1 / 10W)
at 70°C
60
40
20
0
−55
0
70
100
155
AMBIENT TEMPERATURE (°C)
Fig.1
Rated voltage
The voltage rating is calculated by the following equation.
If the value obtained exceeds the limiting element voltage,
the voltage rating is equal to the maximum operating voltage.
E=
Nominal resistance
Operating temperature
P×R
E: Rated voltage (V) P: Rated power (W)
R: Nominal resistance (Ω)
Limiting element voltage
50V
See Table 1.
−55°C
to
+155°C
www.rohm.com
c
○
2011 ROHM Co., Ltd. All rights reserved.
1/4
2011.06 - Rev.N
MCR03 (0603 size : 1 / 10W)
Jumper type
Resistance
Rated current
Max. 50mΩ
1A
J (±5%)
FX (±1%)
D (±0.5%)
Table 1
Resistance tolerance
Resistance range
(Ω)
1.0 to 9.1
10 to 10M
10 to 10M
10 to 91
100 to 1M
(E24)
(E24)
(E24,96)
(E24)
(E24)
Resistance temperature coefficient
(ppm/°C)
±400
±200
±100
±100
±50
Data Sheet
Operating temperature
−55°C
to
+155°C
Characteristics
Item
Guaranteed value
Resistor type
Jumper type
J :
±5%
FX :
±1%
D:
±0.5%
Max. 50mΩ
Test conditions (JIS C 5201-1)
JIS C 5201-1 4.5
Resistance
Variation of resistance
with temperature
Overload
See Table.1
±
(2.0%+0.1Ω)
JIS C 5201-1 4.8
Measurement :
+25
/
+125°C
JIS C 5201-1 4.13
Rated voltage (current)
×2.5,
2s.
Limiting element voltage×2 : 100V
JIS C 5201-1 4.17
Rosin·Ethanol (25%WT)
Soldering condition : 235±5°C
Duration of immersion : 2.0±0.5s.
JIS C 5201-1 4.18
Soldering condition : 260±5°C
Duration of immersion : 10±1s.
JIS C 5201-1 4.19
Test temp. :
−55°C
to
+125°C
5cyc
JIS C 5201-1 4.24
40°C, 93%RH
Test time : 1,000h to 1,048h
JIS C 5201-1 4.25.1
Rated voltage (current), 70°C
1.5h : ON
−
0.5h : OFF
Test time : 1,000h to 1,048h
JIS C 5201-1 4.25.3
155°C
Test time : 1,000h to 1,048h
JIS C 5201-1 4.29
23±5°C, Immersion cleaning, 5±0.5min.
Solvent : 2-propanol
JIS C 5201-1 4.33
Max. 50mΩ
Solderability
A new uniform coating of minimum of
95% of the surface being immersed
and no soldering damage.
±
(1.0%+0.05Ω)
Max. 50mΩ
No remarkable abnormality on the appearance.
±
(1.0%+0.05Ω)
±
(3.0%+0.1Ω)
Max. 50mΩ
Max. 100mΩ
Resistance to
soldering heat
Rapid change of
temperature
Damp heat, steady state
±
(3.0%+0.1Ω)
Endurance at 70°C
±
(3.0%+0.1Ω)
Endurance
Max. 100mΩ
Max. 100mΩ
±
(1.0%+0.05Ω)
Resistance to solvent
Max. 50mΩ
Bend strength of
the end face plating
Max. 50mΩ
±
(1.0%+0.05Ω)
Without mechanical damage such as breaks.
www.rohm.com
c
○
2011 ROHM Co., Ltd. All rights reserved.
2/4
2011.06 - Rev.N
