Series 801 Mighty Mouse High-Speed Double-Start ACME Threads
File Size108KB,1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet View All

801-037-02 Overview

Series 801 Mighty Mouse High-Speed Double-Start ACME Threads

801-037-02 and 801-040-02
Series 801 Mighty Mouse
High-Speed
Double-Start ACME Threads

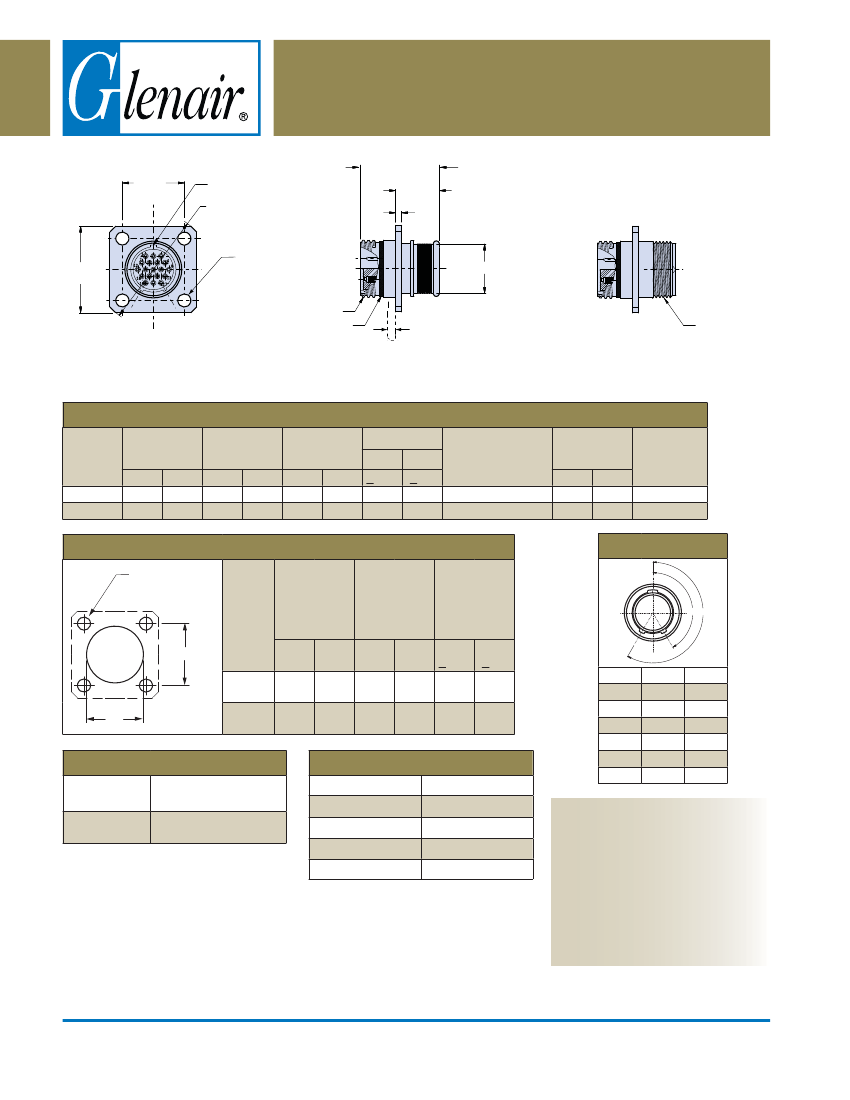

-02 Square Flange Receptacle Dimensions
B BSC
TYP
.900 (22.9) MAX
MASTER KEYWAY
øC
.430 (10.9) MAX
.060 (1.5)
Series 801
High Speed
Mighty Mouse
A SQ
TYP
3
7
12
16
19
1
4
8
13
17
4X ø D THRU
øF
E THREAD
RED FULL MATE
INDICATOR BAND
.100 (2.54) MAX PANEL
THICKNESS
G THREAD
Integral Band Platform
801-037-02
Accessory Thread
801-040-02
Dimensions
ØD
Shell
Size
6
7
A
In.
.590
.650
mm.
14.99
16.51
B BSC
In.
mm.
.423
.483
10.74
12.27
ØC
In.
mm.
In.
mm. +.003 +.08
.750
.850
19.05
21.59
.093
.093
2.36
2.36
E
Thread
.375-.05P-.1L-2A
.4375-.05P-1L-2A
ØF
In.
mm.
.290
.390
7.37
9.91
G Thread
UNEF-2A
.3125-32
.4375-28
Series 801 Panel Cutout
ø C ± .003 (0.08)
Key P
ositions
A° B°
ØA
B BSC
ØB
In
.423
.483
ØC
In
mm.
+.003 +.08
.093
.093
2.36
2.36
Shell
Size
6
In
.390
.450
mm.
9.91
11.43
mm.
10.74
12.27
A
B
C
D
E
F
150°
75°
95°
140°
75°
95°
210°
210°
230°
275°
275°
210°
øA
7
High Speed Performance
Impedence
VSWR
100 OHMS
±7
OHMS
at 100-Picosecond
<1.4 up to 4-GHz
Insertion Loss
1 GHz
2 GHz
3 GHz
4 GHz
5 GHz
.51 dB
.53 dB
.57 dB
1.2 dB
1.25 dB
Material and Finish
Plug Barrel, Coupling Nut: Aluminum
Alloy or Stainless Steel
Insulator: PFA
Interfacial Seal, Grommet Seal:
Fluorosilicone
Contact: Copper Alloy, 50 Microinch
Gold Plated per ATSM B 488, Type II,
Code C, Class 1.25 (.00005 Min THK),
over a suitable underplate.
In order to achieve high speed performance,
this Connector must be mated to another high
speed Mighty Mouse Connector.
This Connector mates with all Quick Coupling
High Density Plug Connectors with same
polarization and opposite contact gender,
(801-001, 801-002 and 801-007 and 801-008).
Data taken with adjacent pairs and grommet
removed.
Dimensions in Inches (millimeters) are subject to change without notice.
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
