VB-17-SD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> VB-17-SD

VB-17-SD: DescriptionRF/Microwave Switch, 100 MHz - 1000 MHz RF/MICROWAVE SGL POLE TRIPLE THROW SWITCH, 1.1 dB INSERTION LOSS; CategoryWireless rf/communication Radio frequency and microwave; File Size82KB，1 Pages; ManufacturerCobham PLC

Download Datasheet Parametric Compare View All

VB-17-SD Overview

RF/Microwave Switch, 100 MHz - 1000 MHz RF/MICROWAVE SGL POLE TRIPLE THROW SWITCH, 1.1 dB INSERTION LOSS

VB-17-SD Parametric

Parameter Name	Attribute value
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	SMA-F
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	20 dBm
Maximum insertion loss	1.1 dB
Maximum operating frequency	1000 MHz
Minimum operating frequency	100 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SP3T
Maximum voltage standing wave ratio	1.7

Preview

Download Datasheet

View All

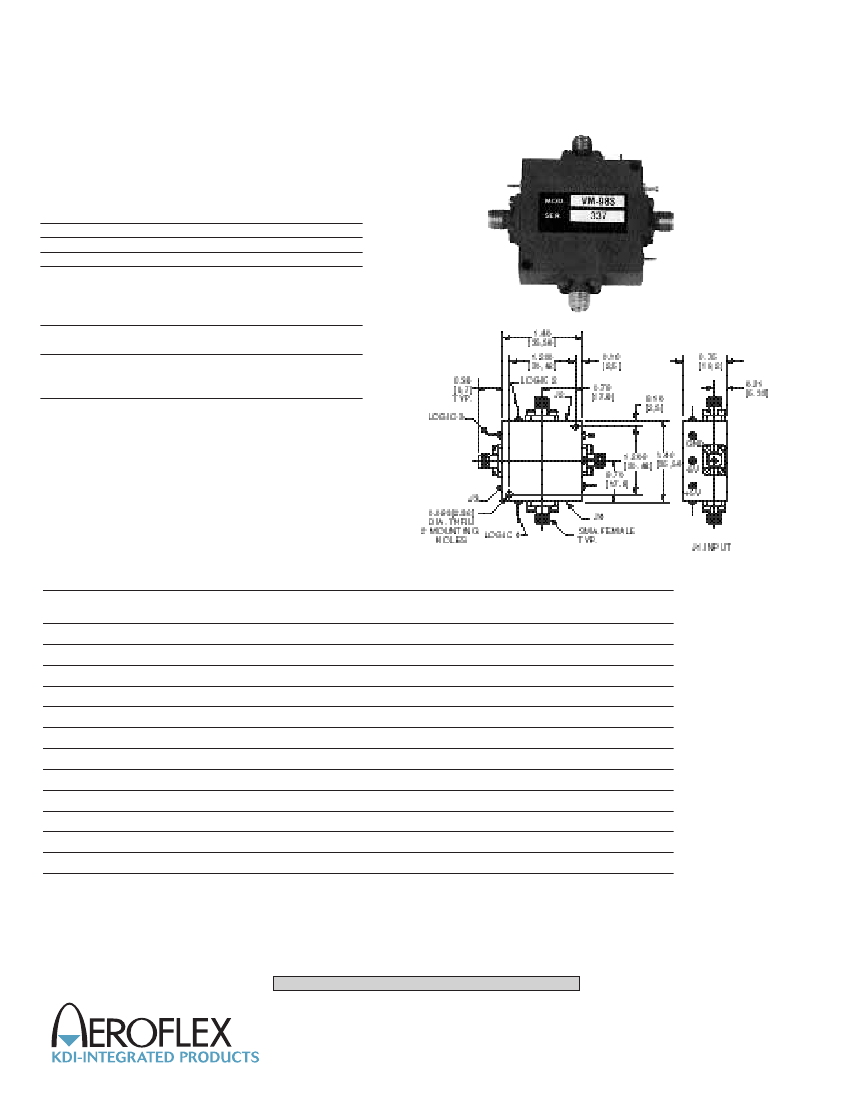

SP3T DIODE SWITCH

REFLECTIVE AND ABSORPTIVE 0.02–18 GHz

GENERAL INFORMATION

Series VB, VN, switches are medium power devices that operate over

commonly used frequency ranges. Carefully selected diodes placed in

either series, series-shunt, or shunt configurations produce excellent

electrical performance from UHF through KU bands.

SERIES VB, VN

GENERAL SPECIFICATIONS

Frequency Coverage:

RF Impedance:

RF Power:

DC Requirements:

0.02 to 18.0 GHz.

50 OHMS.

+20 dBm operational.

Switches require +5 volts at +180 mA

and –5 volts at –75 mA supplies.

Logic is TTL “0:” when “on” and “1”

when “off”.

Operating temperature from –55°C to

+85°C.

10% to 90% or 90% to 10% of RF.

There is an additional 30 nanosec of

driver delay.

Temperature Information:

Switching Speed:

OUTLINE WITH DRIVER

ELECTRICAL PERFORMANCE

Model No.

VN-11-HASD-1

VB-17-SD

VB-17-HASD

VB-35-HASD

VB-37-HASD-1

VB-48-HASD

VB-57-HASD

VB-73-HASD-2

VB-75-HASD

VB-84-HASD-2

VB-95-HASD

VN-77-ASD

Type

ABS

REFL

ABS

Frequency

Range GHz

0.02–0.07

0.1–1.0

0.5–2.0

1.0–6.0

2.0–4.0

2.0–18.0

5.0–10.0

6.0–18.0

8.0–18.0

8.5–9.6

Isolation

Minimum dB

Insertion Loss

Maximum dB

0.65

1.10

1.20

1.10

1.30

1.40

1.30

3.60

1.80

3.60

3.30

1.40

VSWR

Maximum

1.40

1.70

2.50

1.70

2.50

1.50

Speed

500 nsec.

2,000 nsec.

100 nsec.

2,000 nsec.

20 nsec.

2,000 nsec.

20 nsec.

2,000 nsec.

KEY:

Inches[Millimeters] .XX ±.03 .XXX ±.010 [.X ±0.8 .XX ±0.25]

60 South Jefferson Road, Whippany, NJ 07981

Tel: 973-887-8100 • Fax: 973-884-0445

email: sales@aeroflex-kdi.com

See us on the web @ www.aeroflex-kdi.com

8-10-07

VB-17-SD Related Products

	VB-17-SD	VB-84-HASD-2	VB-95-HASD	VB-48-HASD	VB-37-HASD-1	VN-11-HASD-1	VB-17-HASD	VB-35-HASD	VB-73-HASD-2
Description	RF/Microwave Switch, 100 MHz - 1000 MHz RF/MICROWAVE SGL POLE TRIPLE THROW SWITCH, 1.1 dB INSERTION LOSS	RF/Microwave Switch, 6000 MHz - 18000 MHz RF/MICROWAVE SGL POLE TRIPLE THROW SWITCH, 3.6 dB INSERTION LOSS	SP3T, 8000MHz Min, 18000MHz Max, 3.3dB Insertion Loss-Max	RF/Microwave Switch, 1000 MHz - 6000 MHz RF/MICROWAVE SGL POLE TRIPLE THROW SWITCH, 1.4 dB INSERTION LOSS	SP3T, 500MHz Min, 2000MHz Max, 1.3dB Insertion Loss-Max	SP3T, 20MHz Min, 70MHz Max, 0.65dB Insertion Loss-Max	RF/Microwave Switch, 100 MHz - 1000 MHz RF/MICROWAVE SGL POLE TRIPLE THROW SWITCH, 1.2 dB INSERTION LOSS	RF/Microwave Switch, 500 MHz - 2000 MHz RF/MICROWAVE SGL POLE TRIPLE THROW SWITCH, 1.1 dB INSERTION LOSS	RF/Microwave Switch, 2000 MHz - 18000 MHz RF/MICROWAVE SGL POLE TRIPLE THROW SWITCH, 3.6 dB INSERTION LOSS
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	SMA-F	SMA-F	SMA-F	SMA-F	SMA-F	SMA-F	SMA-F	SMA-F	SMA-F
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	20 dBm	20 dBm	20 dBm	20 dBm	20 dBm	20 dBm	20 dBm	20 dBm	20 dBm
Maximum insertion loss	1.1 dB	3.6 dB	3.3 dB	1.4 dB	1.3 dB	0.65 dB	1.2 dB	1.1 dB	3.6 dB
Maximum operating frequency	1000 MHz	18000 MHz	18000 MHz	6000 MHz	2000 MHz	70 MHz	1000 MHz	2000 MHz	18000 MHz
Minimum operating frequency	100 MHz	6000 MHz	8000 MHz	1000 MHz	500 MHz	20 MHz	100 MHz	500 MHz	2000 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	SP3T	SP3T	SP3T	SP3T	SP3T	SP3T	SP3T	SP3T	SP3T
Maximum voltage standing wave ratio	1.7	2.5	2.5	1.7	1.7	1.4	1.7	1.7	2.5
Maker	Cobham PLC	-	Cobham PLC	Cobham PLC	Cobham PLC	Cobham PLC	Cobham PLC	Cobham PLC	Cobham PLC
