Thick film thermal printhead (with thermal historical control)
KD2003-DC72A
DC72 series has our own internally developed heat-history control function.
This product is best suited for applications which require 24 hours operation like factory production lines.
Applications
High speed label printer
High speed bar code printer
High speed ticket printer
Various high speed terminal printers
Features
1) Newly developed thick-film fast response thermal element and driver LSI with the function of thermal history control which is
added the future history control are employed for this series. It is possible to print with super high speed of 10 inches / s or 250
mm / s.
2) 150km life realized by attributing durable new protection film.
3) New partial glaze construction makes it compatible with the thermal transfer application.

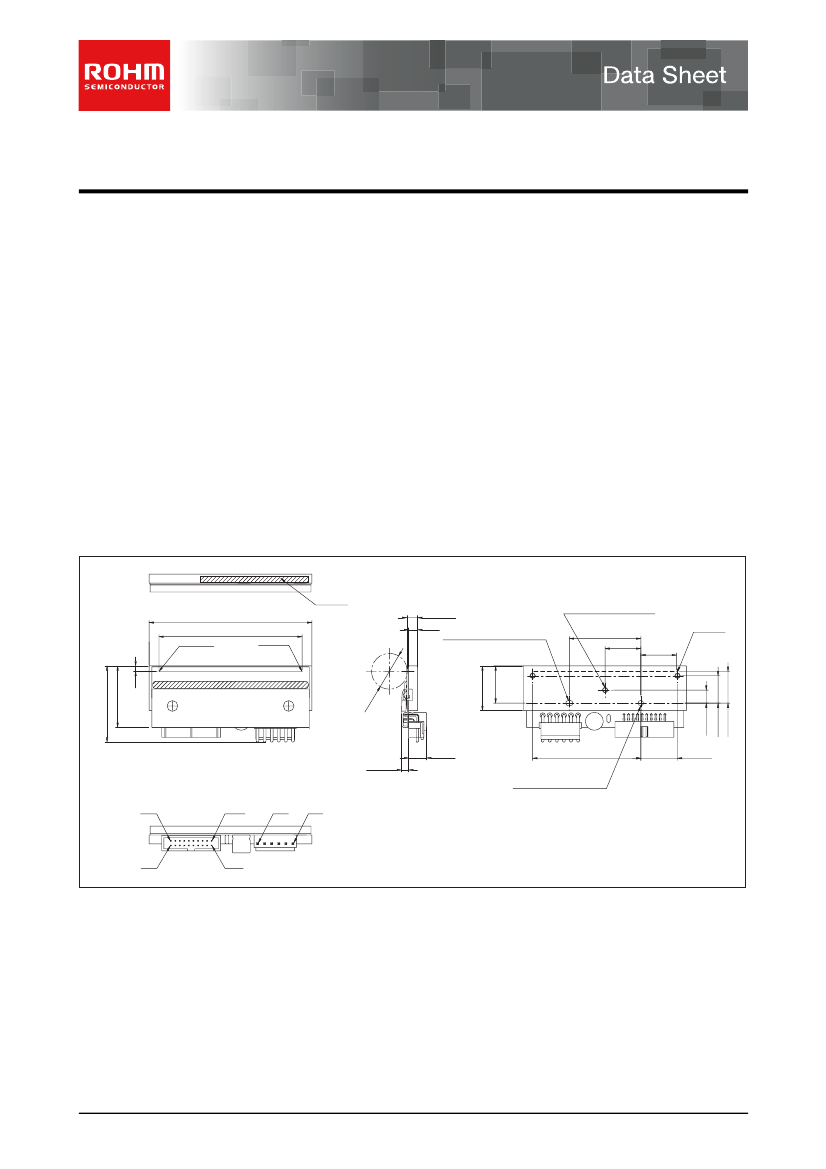

Dimensions
(Unit : mm)
LABEL
91
6.1
±
0.4
(5)
φ3H10
Length 4 (Effective Depth 3)
3-M3(Effective Depth 3)
DOT #640
40±0.3
20±0.3
20±0.2
80(Effective Print Width)
Dot #1
Dot #640
25±0.5
Max.36
Max.45
Ma
x.
φ
20
(20.8)
(3)
15.3±0.3
Max.12
60.5±0.3
20.5±0.3
Max.5.5
φ3H10
(Effective Depth 3)
#2
#20
#6
#1
#1
CONNECTOR A
#19
CONNECTOR B
www.rohm.com
c
○
2009 ROHM Co., Ltd. All rights reserved.
1/3
2009.01 - Rev.A
17.8±0.2
7.3±0.3
