8546-6010-50 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 8546-6010-50

8546-6010-50: DescriptionInside DC Block; CategoryWireless rf/communication Radio frequency and microwave; File Size29KB，1 Pages; ManufacturerXMA Corp.

Download Datasheet Parametric View All

8546-6010-50 Overview

Inside DC Block

8546-6010-50 Parametric

Parameter Name	Attribute value
Maker	XMA Corp.
Reach Compliance Code	compliant
RF/Microwave Device Types	INSIDE DC BLOCK

Preview

Download Datasheet

View All

PRODUCTION

RELEASE

SPECIFICATIONS

-1

FIXED TYPO - FREQ RANGE

9/8/09

T. KUHN

ELECTRICAL

FREQUENCY RANGE

INSERTION LOSS

10 MHz - 50 GHz

10 MHz - 40 GHz

1 dB MAX.

10 MHz - 50 GHz

<1.65:1

100 VOLTS MAX.

40 - 50 GHz

1.25 dB MAX.

VSWR

VOLTAGE

IMPEDANCE

OPERATING TEMP RANGE

50 OHMS

-35 TO +85°C

MATERIAL

HOUSING: STAINLESS STEEL IAW ASTM-A484 & ASTM-A582, ALLOY 303, COND A

CONTACT: BERYLLIUM COPPER

DIELECTRIC: HIGH TEMPERATURE PLASTIC BEAD

FINISH

HOUSING: PASSIVATED STAINLESS STEEL

CONDUCTOR: GOLD PLATED IAW MIL-PRF-39012

.X"

.XX"

.XXX"

.XXXX"

ANGLES

.05"

.03"

.015

[1.3]

[.79]

[.38]

UNLESS OTHERWISE NOTED

DIAS CONCENTRIC <.003 T.I.R.

THESE DRAWNGS AND

SPECIFICATIONS ARE THE PROPERTY

OF XMA CORP. OR OMNI SPECTRA

AND SHALL NOT BE REPRODUCED,

COPIED NOR USED - IN WHOLE OR IN

PART - AS A BASIS FOR THE

MANUFACTURE OR SALE OF OTHER

ITEMS WITHOUT THE EXPRESS

WRITTEN PERMISSION OF XMA CORP.

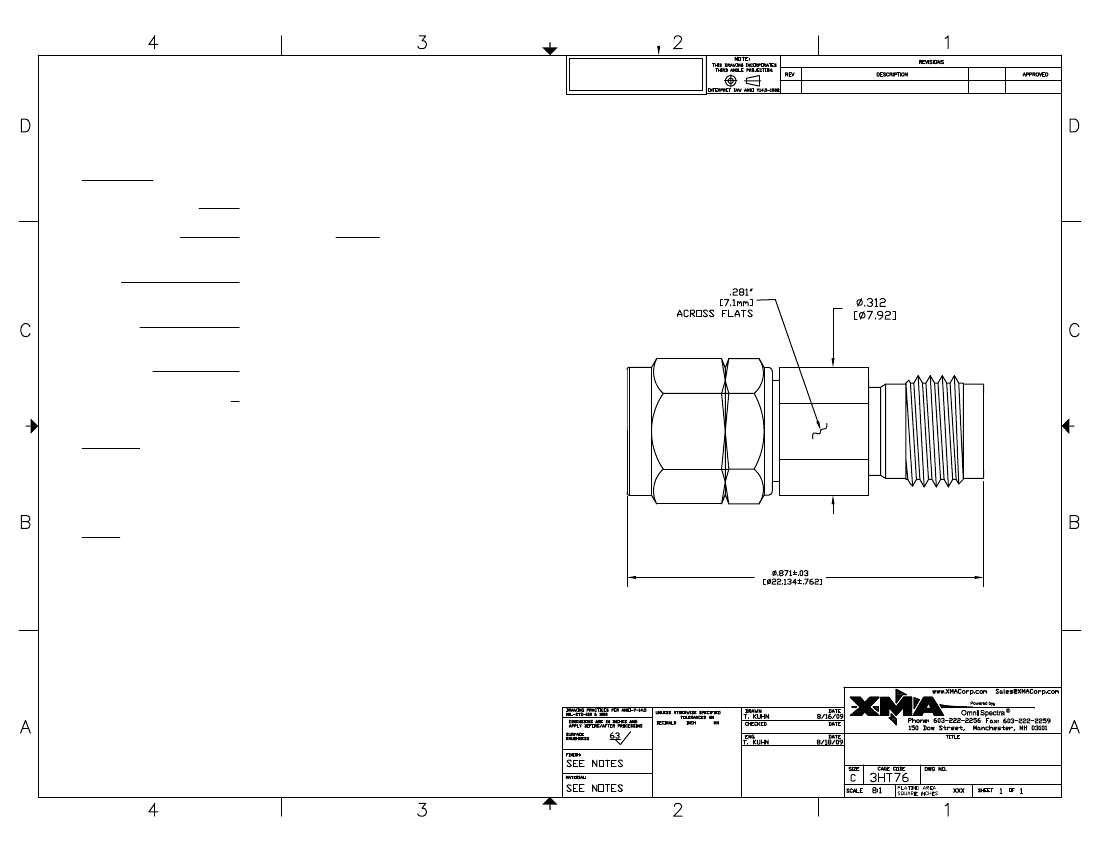

10 MHz - 50 GHz, 2.4 mm, M/F,

INNER DC BLOCK, 100 V

8546-6010-50
