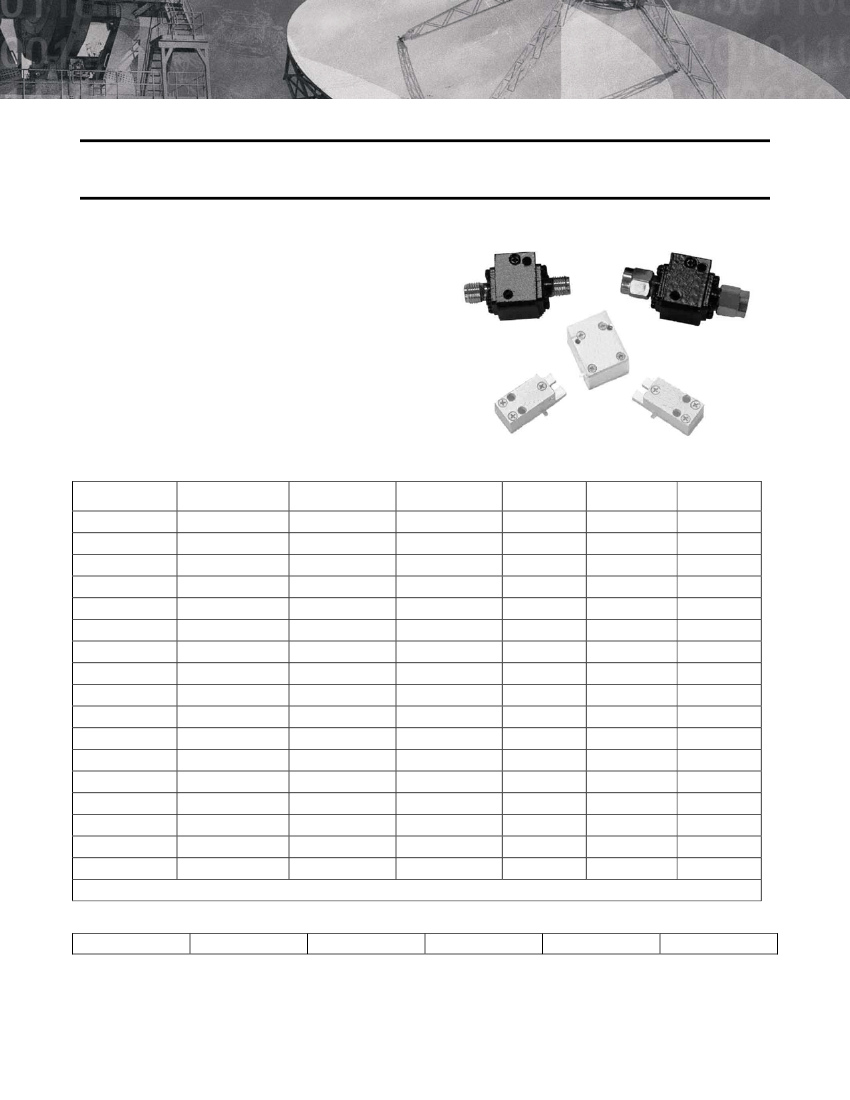

Isolator & Circulator
Features
Satellite Communication Series
•
3.6-18 GHz
•
Low Insertion Loss
•
Power Handling 10-40 Watts
Description
XMA isolators and circulators are widely used in mobile
communication, satellite communication, radar, electronic
countermeasures and telemetry, etc. as well as other products
requiring small volume, low insertion loss, high isolation and
good power handling.
Ordering Information
Part Number
XMAISO-35-X*
XMAISO-36-X
XMAISO-37-X
XMAISO-38-X
XMAISO-39-X
XMAISO-40-X
XMAISO-41-X
XMAISO-42-X
XMAISO-43-X
XMAISO-44-X
XMAISO-45-X
XMAISO-46-X
XMAISO-47-X
XMAISO-48-X
XMAISO-49-X
XMAISO-50-X
XMAISO-51-X
Frequency
(GHz)
3.6 - 4.2
5.8 - 6.4
7 - 8.5
7.7 - 8.5
8-9
9 - 10
8 - 12.4
12.75 - 13.25
10.95 - 12.75
14 - 14.5
8.5 - 15.5
10 - 15
11.45 - 11.7
11.7 - 12.2
14.5 - 15.5
12 - 18
8 - 18
Insertion Loss
(dB)
0.40
0.35
0.40
0.30
0.40
0.30
0.5
0.30
0.40
0.40
0.60
0.50
0.30
0.30
0.35
0.70
1
Isolation (dB)
23
23
23
23
23
23
20
23
23
23
20
20
23
23
20
20
16
VSWR
1.20
1.20
1.25
1.20
1.20
1.20
1.30
1.20
1.20
1.20
1.35
1.25
1.15
1.15
1.20
1.35
1.5
Temperature
o
( C)
-40~+70
-40~+70
-40~+70
-55~+85
-40~+70
-55~+85
-40~+70
-55~+85
-55~+85
-55~+85
-40~+70
-40~+70
-55~+85
-55~+85
-55~+85
-40~+70
-30~+70
Power
(watts)
10-40
10-20
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
Power Handling:
Ranges from 10-40 Watts
Temperature Range: from -30
to +85
o
C / -22 to 185
o
F
*Optional Connectors
S=SMA
N=Type
B=BNC
T=TNC
D=Din
DP=Drop In
Some connector configurations may not be available. Please contact XMA with specifications
Specifications subject to change without notice.
Phone: 603-222-2256
fax: 603-222-2259
www.XMAcorp.com
