8AB36-1422-LJ-PP datasheet, PDF

Datasheet> All Categories > The connector> The connector> 8AB36-1422-LJ-PP

8AB36-1422-LJ-PP: Description36 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT; CategoryThe connector The connector; File Size370KB，9 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric Compare View All

8AB36-1422-LJ-PP Overview

36 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT

8AB36-1422-LJ-PP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	3M
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	3M
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN (100) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	8AB36
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	SOLDER
Total number of contacts	36
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

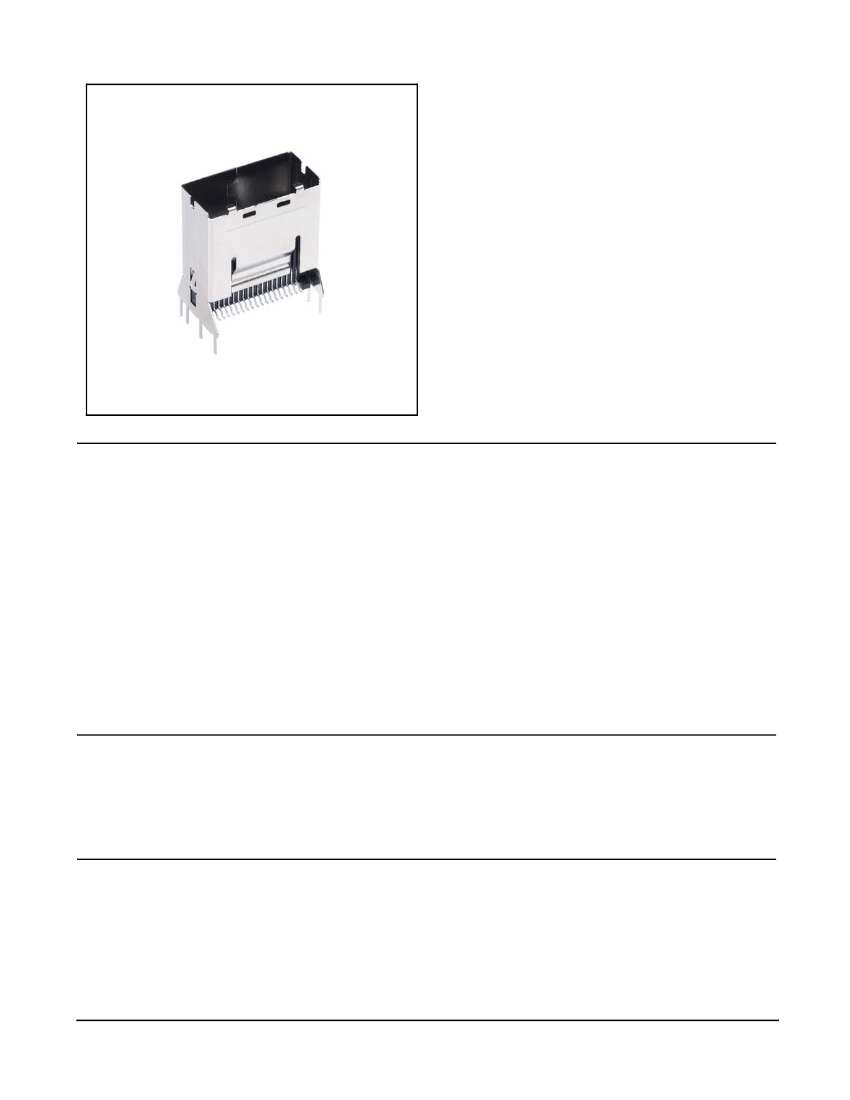

3M™ Mini Serial Attached SCSI (miniSAS) Connector Assembly

Internal Vertical Combo Connector

8AB36 Series

• 6 Gbps aggregate input/output connector for server

applications

• Combination receptacle/shell assembly to facilitate

board assembly

• Multiple tail types and lengths available on shell

guide

• Multiple keying options available

• Meets SFF-8086 Specification

• Meets SAS Specification, SAS-1.1

• See Regulatory Information Appendix (RIA) for

chemical compliance information

Date Modified: October 11, 2007

TS-2207-C

Sheet 1 of 6

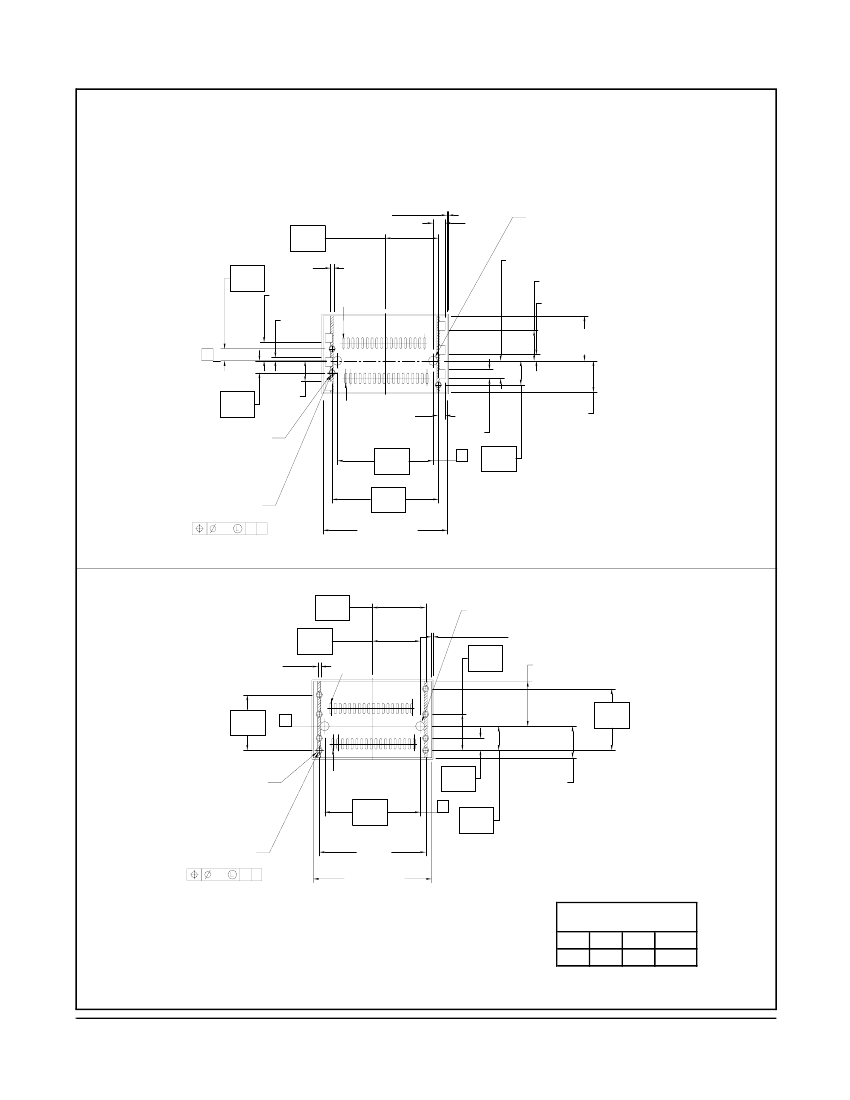

Physical

Insulation

Material:

High Temperature Thermoplastic

Flammability:

UL 94V-0

Color:

Black

Contact

Material:

Copper Alloy

Plating

Underplating:

50 µ" [ 1.27 µm ] Nickel

Wiping Area:

30 µ" [ 0.76 µm ] Gold

Solder Tails:

100 µ" [ 2.54 µm ] Matte Tin

Backshell

Material:

Stainless Steel

Wiping Area:

30 µ" [ 0.76 µm ] Nickel on tails only

Electrical

Connector

Current Rating:

Per Contact: 0.5 A

300 V

min. for 1 minute

Insulation Resistance:

MΩ min.

Withstanding Voltage:

Environmental

Operating Temperature:

-20°C to +85°C (connector and shell)

Interconnect Solutions

http://www.3M.com/interconnects/

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373

8AB36-1422-LJ-PP Related Products

	8AB36-1422-LJ-PP	8AB36-1421-LJ	8AB36-1421-LJ-PP	8AB36-1422-LJ	8AB36-1430-LJ	8AB36-1430-LJ-PP	8AB36-1431-LJ-PP	8AB36-1432-LJ	8AB36-1432-LJ-PP
Description	36 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT	36 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT	36 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT	36 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE, ROHS COMPLIANT	36 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT	36 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT	36 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT	36 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT	36 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	3M	3M	3M	3M	3M	3M	3M	3M	3M
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	3M	3M	3M	3M	3M	3M	3M	3M	3M
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN (100) OVER NICKEL (50)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	8AB36	8AB36	8AB36	8AB36	8AB36	8AB36	8AB36	8AB36	8AB36
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	36	36	36	36	36	36	36	36	36
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
